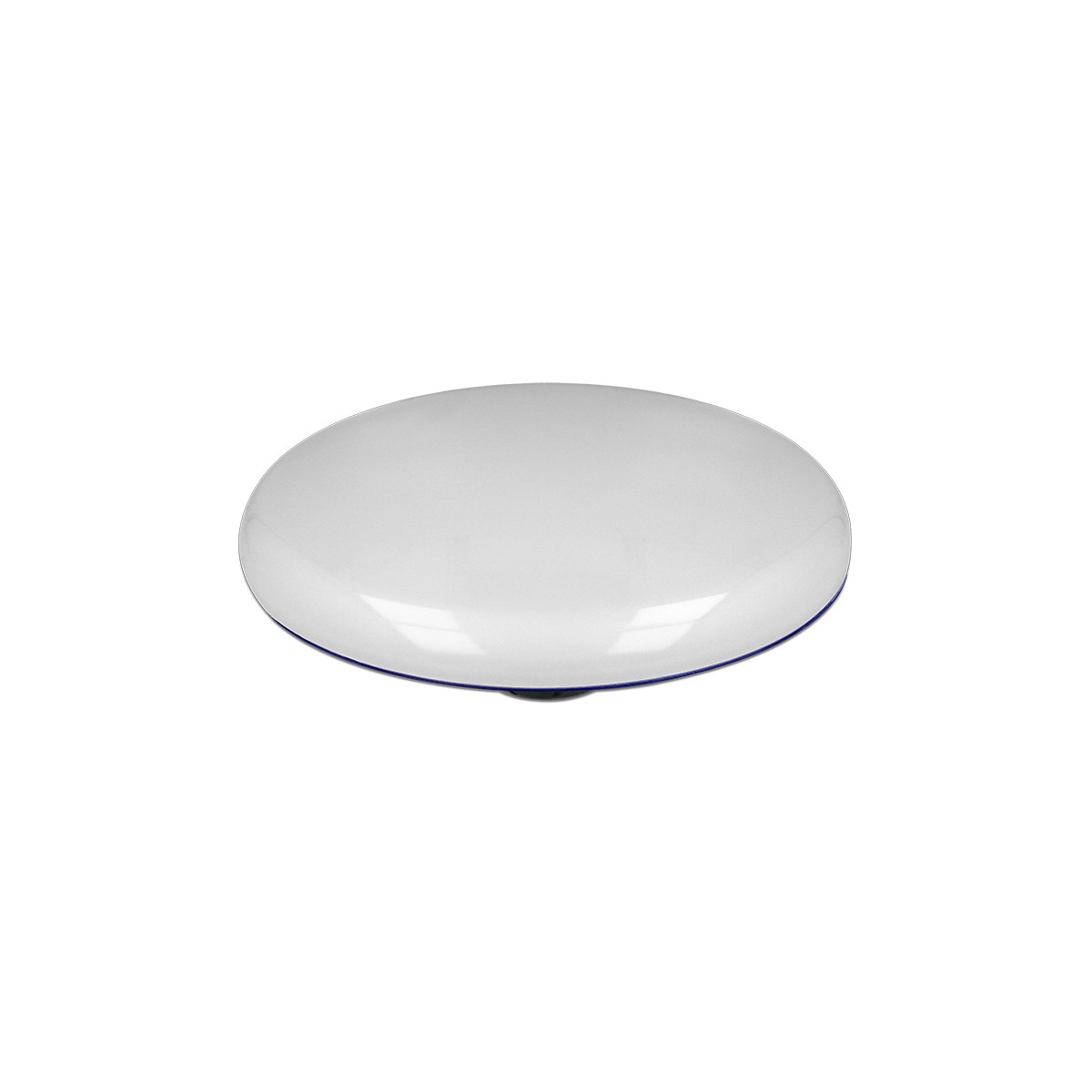

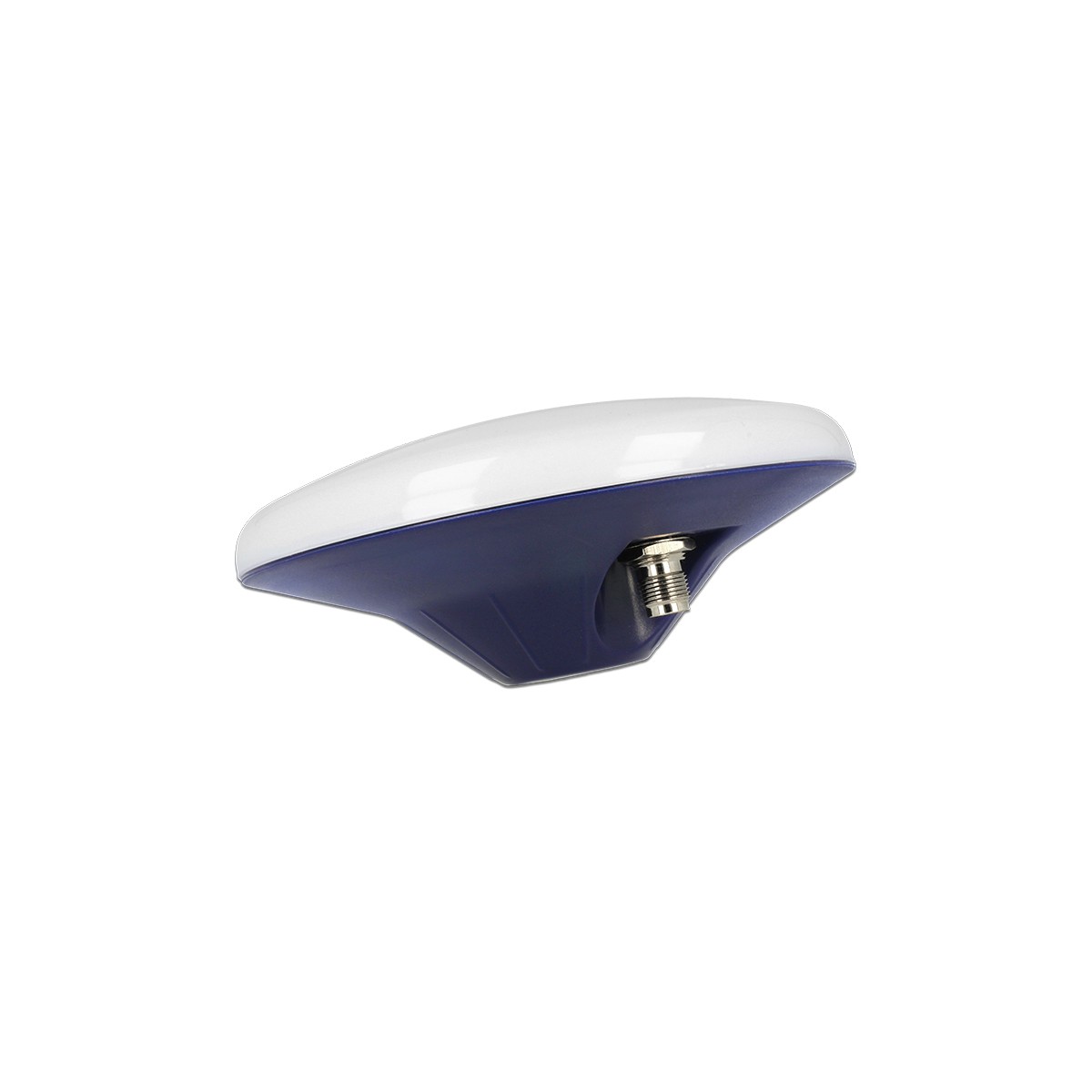

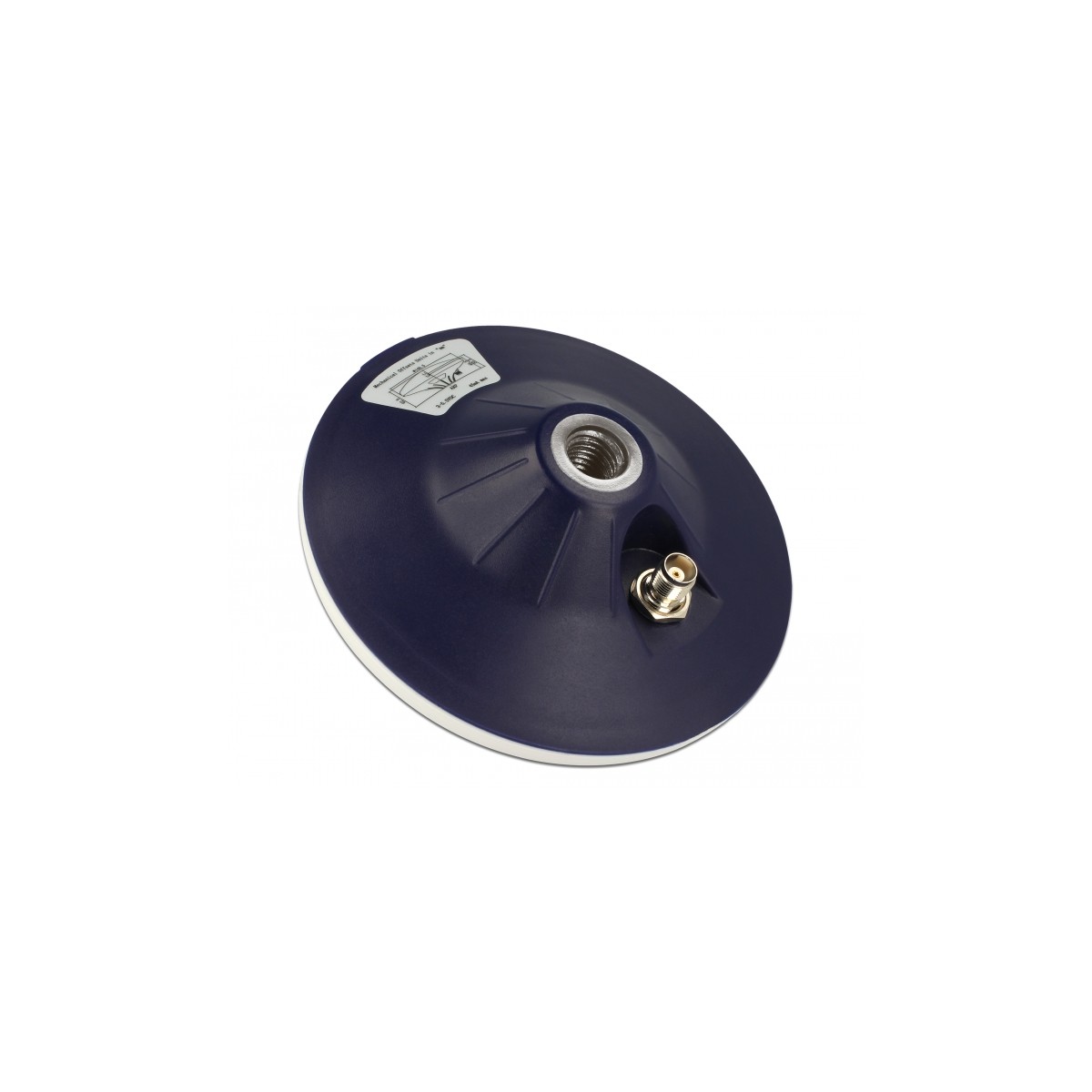

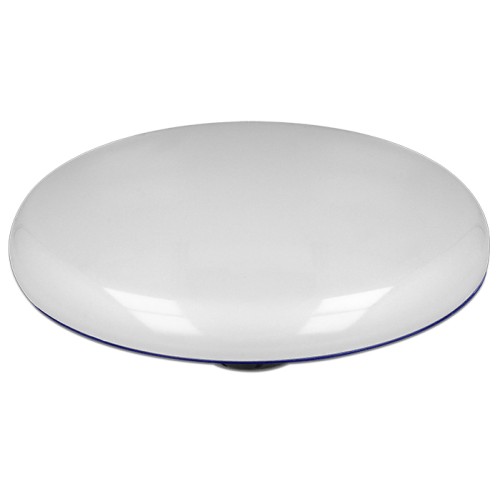

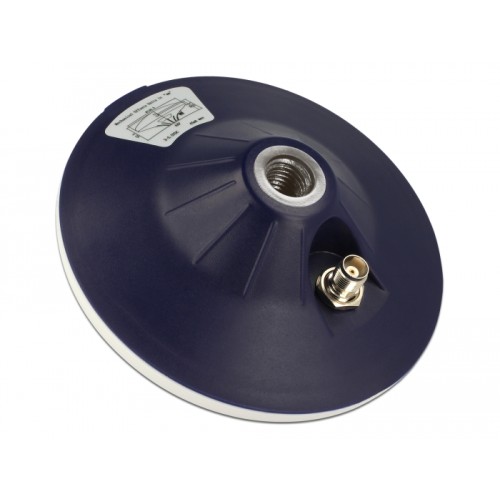

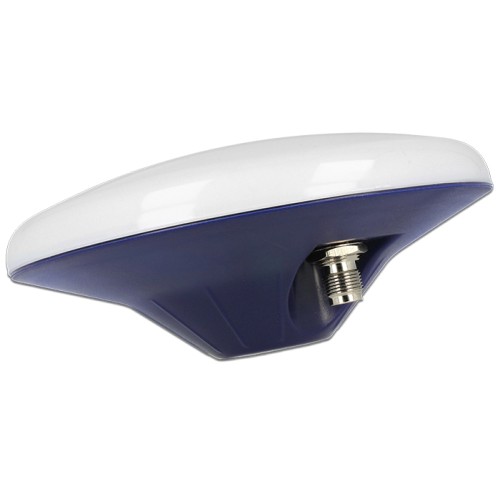

Navilock NL-60560M quad feed GNSS BEIDOU GALILEO GLONASS GPS TNC antenna outdoor
60560
Nuovo
Description
This high-precision antenna by Navilock can be used on GNSS devices to receive BEIDOU, GALILEO, GLONASS and GPS satellite signals at the same time.
Specification
System requirements
Package content
• Quad feed antenna
This high-precision antenna by Navilock can be used on GNSS devices to receive BEIDOU, GALILEO, GLONASS and GPS satellite signals at the same time.
Specification
• Connector: 1 x TNC jack
• GNSS:
Frequency range:
BEIDOU: B1, 1.561098 GHz / B2, 1.20714 GHz / B3, 1.26852 GHz
GALILEO: E1, 1.5754200 GHz / E5b, 1.20714 GHz / E6, 1.27875 GHz
GLONASS: G1, 1.6025625 - 1.6155000 GHz / G2, 1.2429375 - 1.2516875 GHz
GPS: L1, 1.5754200 GHz / L2, 1.2276 GHz
• GNSS:
Frequency range:
BEIDOU: B1, 1.561098 GHz / B2, 1.20714 GHz / B3, 1.26852 GHz
GALILEO: E1, 1.5754200 GHz / E5b, 1.20714 GHz / E6, 1.27875 GHz
GLONASS: G1, 1.6025625 - 1.6155000 GHz / G2, 1.2429375 - 1.2516875 GHz
GPS: L1, 1.5754200 GHz / L2, 1.2276 GHz
Gain: 5 dBic
PZC Phase Center Variation: +/- 2 mm
Axial Ratio: < 3 dB
Beam width: 360°
VSWR: 1.5
Impedance: 50 Ohm
Polarisation: RHCP
Antenna type: quad feed patch
Polarisation: RHCP
Antenna type: quad feed patch
• LNA:
Frequency range:
BEIDOU: B1, 1.561098 GHz / B2, 1.20714 GHz / B3, 1.26852 GHz
GALILEO: E1, 1.5754200 GHz / E5b, 1.20714 GHz / E6, 1.27875 GHz
GLONASS: G1, 1.6025625 - 1.6155000 GHz / G2, 1.2429375 - 1.2516875 GHz
GPS: L1, 1.5754200 GHz / L2, 1.2276 GHz
Operating voltage: 3.0 - 5.5VBEIDOU: B1, 1.561098 GHz / B2, 1.20714 GHz / B3, 1.26852 GHz
GALILEO: E1, 1.5754200 GHz / E5b, 1.20714 GHz / E6, 1.27875 GHz
GLONASS: G1, 1.6025625 - 1.6155000 GHz / G2, 1.2429375 - 1.2516875 GHz
GPS: L1, 1.5754200 GHz / L2, 1.2276 GHz
Gain: 40 dB
Pass band fluctuation: +/- 1 dB
Noise Figure: < 1.5 dB
Current consumption: 45 mA
VSWR: 2
• Impedance: 50 Ohm
• Impedance: 50 Ohm
• Mounting type: Tripod mount
• Thread type: UNC 11, 5/8 in
• Thread type: UNC 11, 5/8 in
• Housing colour: blue / white
• Housing material: ABS
• Protection category: IP67 exclude air vent in screw hole
• Suitable for outdoor: yes
• Operating temperature: -40 °C ~ 80 °C
• Diameter: 146.5 mm
• Height: 62.5 mm
System requirements
Package content
• Quad feed antenna
