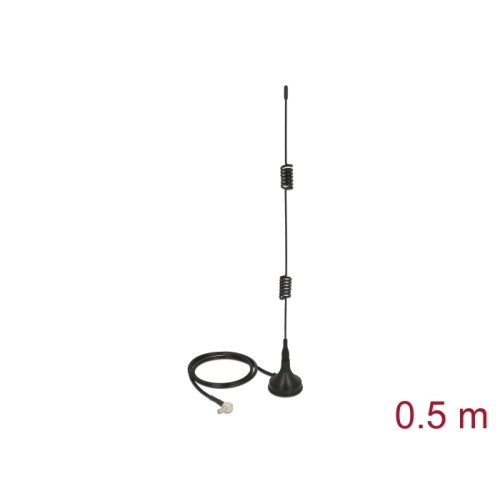

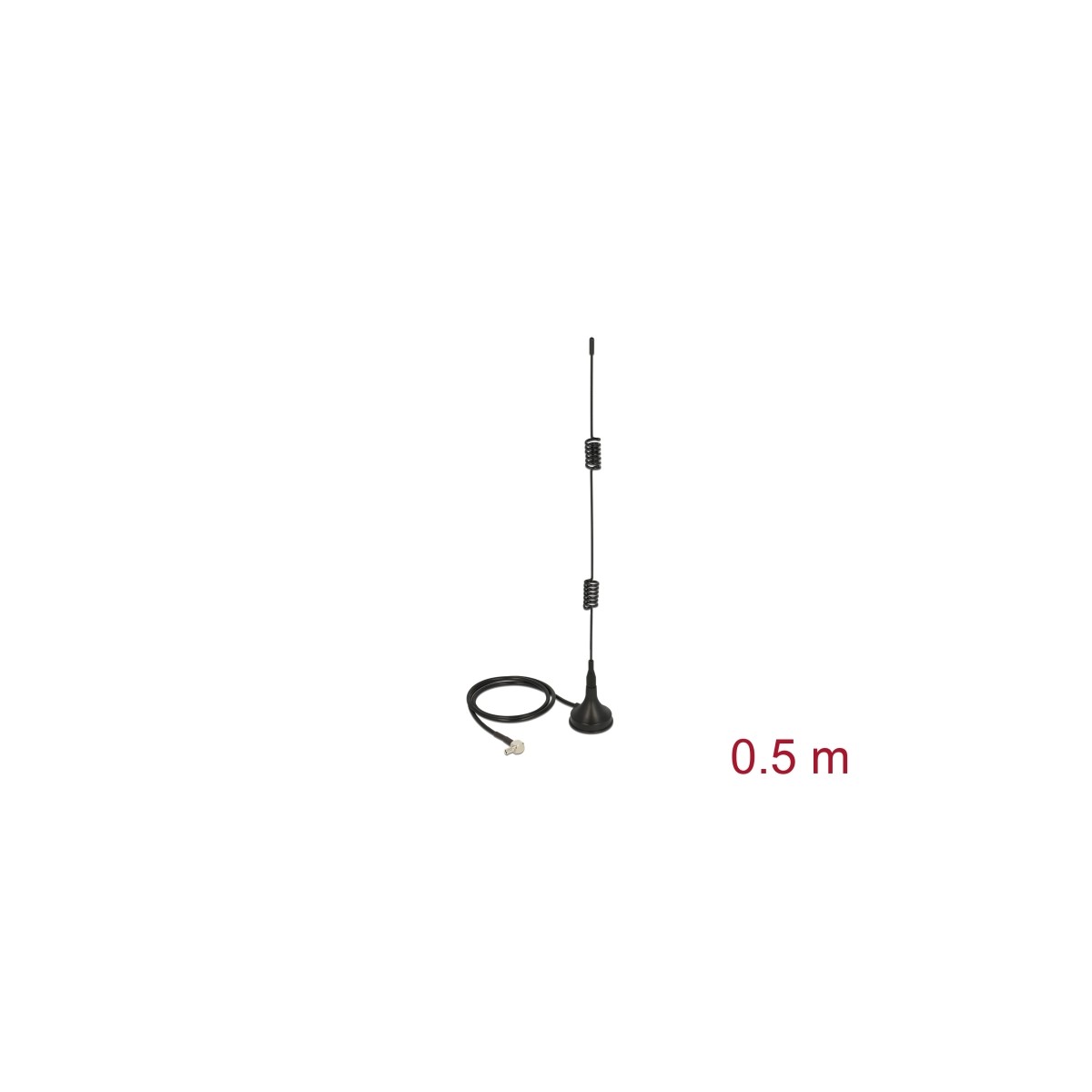

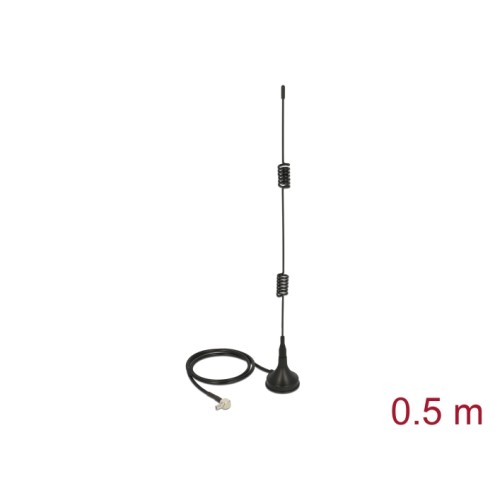

Delock LTE Antenna TS-9 plug 90° 2 - 3 dBi fixed omnidirectional with magnetic base and connection cable RG-174 50 cm outdoor bl
12480
Nuovo
Description
This antenna by Delock allows the usage of different LTE bands indoors and outdoors. It is completely compatible to GSM, UMTS, LTE, ZigBee, DECT, Z-Wave, NB-IoT, WLAN, Bluetooth, ISM, DECT, TETRA and LoRa .
Specification
• Connector: 1 x TS-9 plug 90°
• Frequency range:
690 - 960 MHz
1710 - 2700 MHz
• GSM, UMTS, LTE, ZigBee, DECT, Z-Wave, NB-IoT, WLAN, Bluetooth, ISM, DECT, LoRa
• Antenna gain: 2 - 3 dBi
• Impedance: 50 Ohm
• Polarisation: linear, vertical
• VSWR: 2.0
• Operating temperature: -10 °C ~ 55 °C
• Colour: black
• Cable: coaxial
• Cable type: RG-174
• Cable colour: black
• Cable attenuation: 1.5 dB @ 1.5 GHz per meter
• Cable diameter: ca. 2.7 mm
• Cable length incl. connector: ca. 50 cm
• Dimensions (LxD): ca. 265 x 10 mm
• Diameter magnetic base: ca. 30.0 mm
System requirements
• Device with one free TS-9 port
Package content
• Antenna
This antenna by Delock allows the usage of different LTE bands indoors and outdoors. It is completely compatible to GSM, UMTS, LTE, ZigBee, DECT, Z-Wave, NB-IoT, WLAN, Bluetooth, ISM, DECT, TETRA and LoRa .
Specification
• Connector: 1 x TS-9 plug 90°
• Frequency range:
690 - 960 MHz
1710 - 2700 MHz
• GSM, UMTS, LTE, ZigBee, DECT, Z-Wave, NB-IoT, WLAN, Bluetooth, ISM, DECT, LoRa
• Antenna gain: 2 - 3 dBi
• Impedance: 50 Ohm
• Polarisation: linear, vertical
• VSWR: 2.0
• Operating temperature: -10 °C ~ 55 °C
• Colour: black
• Cable: coaxial
• Cable type: RG-174
• Cable colour: black
• Cable attenuation: 1.5 dB @ 1.5 GHz per meter
• Cable diameter: ca. 2.7 mm
• Cable length incl. connector: ca. 50 cm
• Dimensions (LxD): ca. 265 x 10 mm
• Diameter magnetic base: ca. 30.0 mm
System requirements
• Device with one free TS-9 port
Package content
• Antenna
Nuovo
4043619124800
