Description

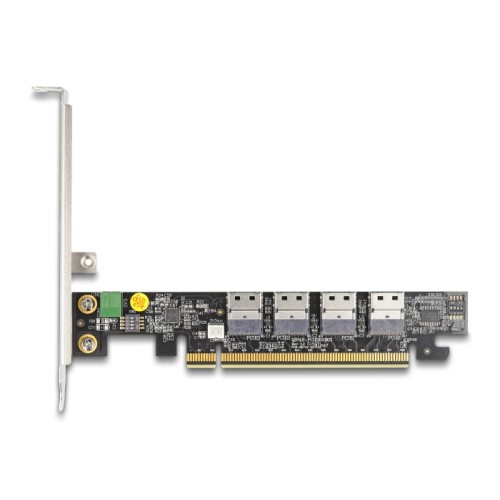

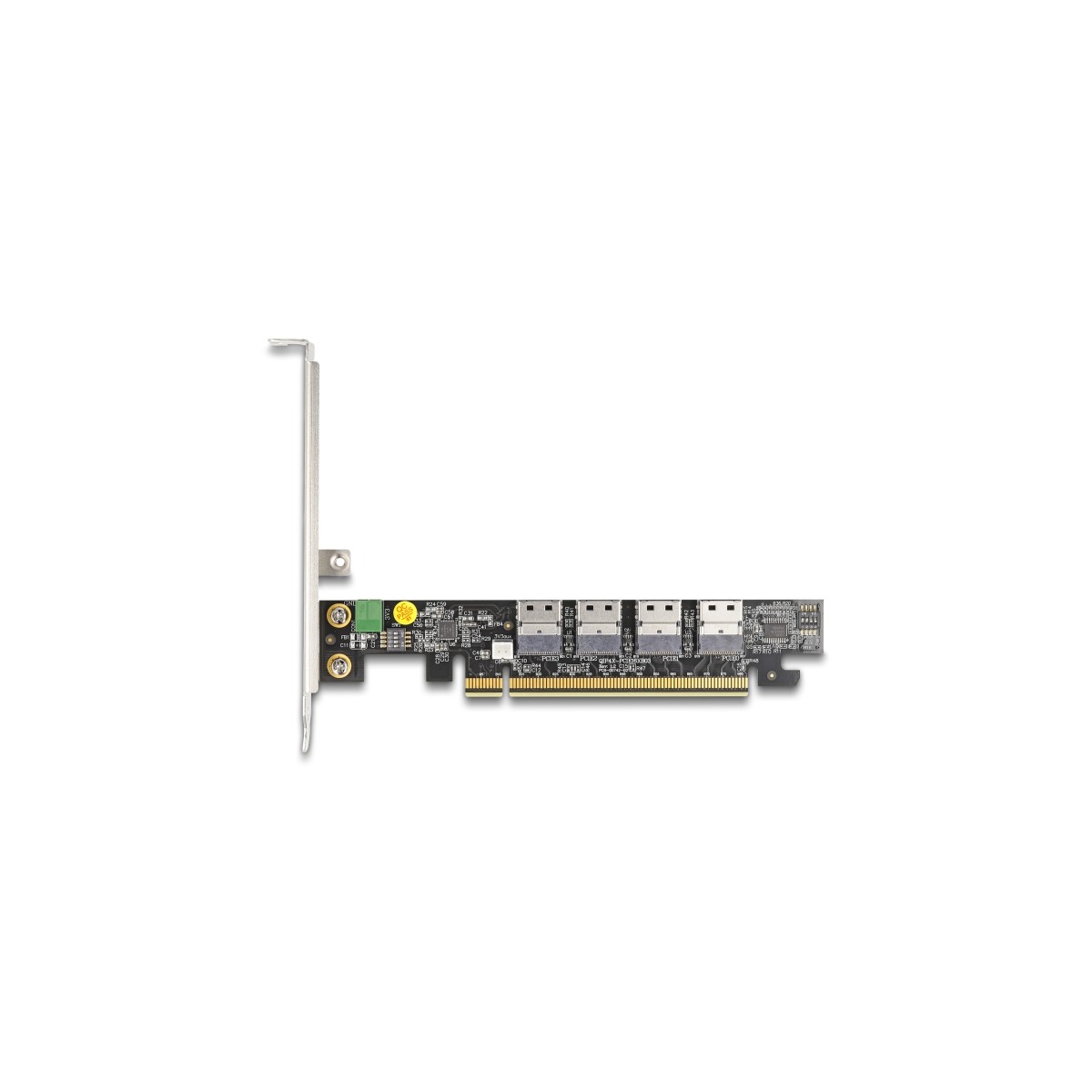

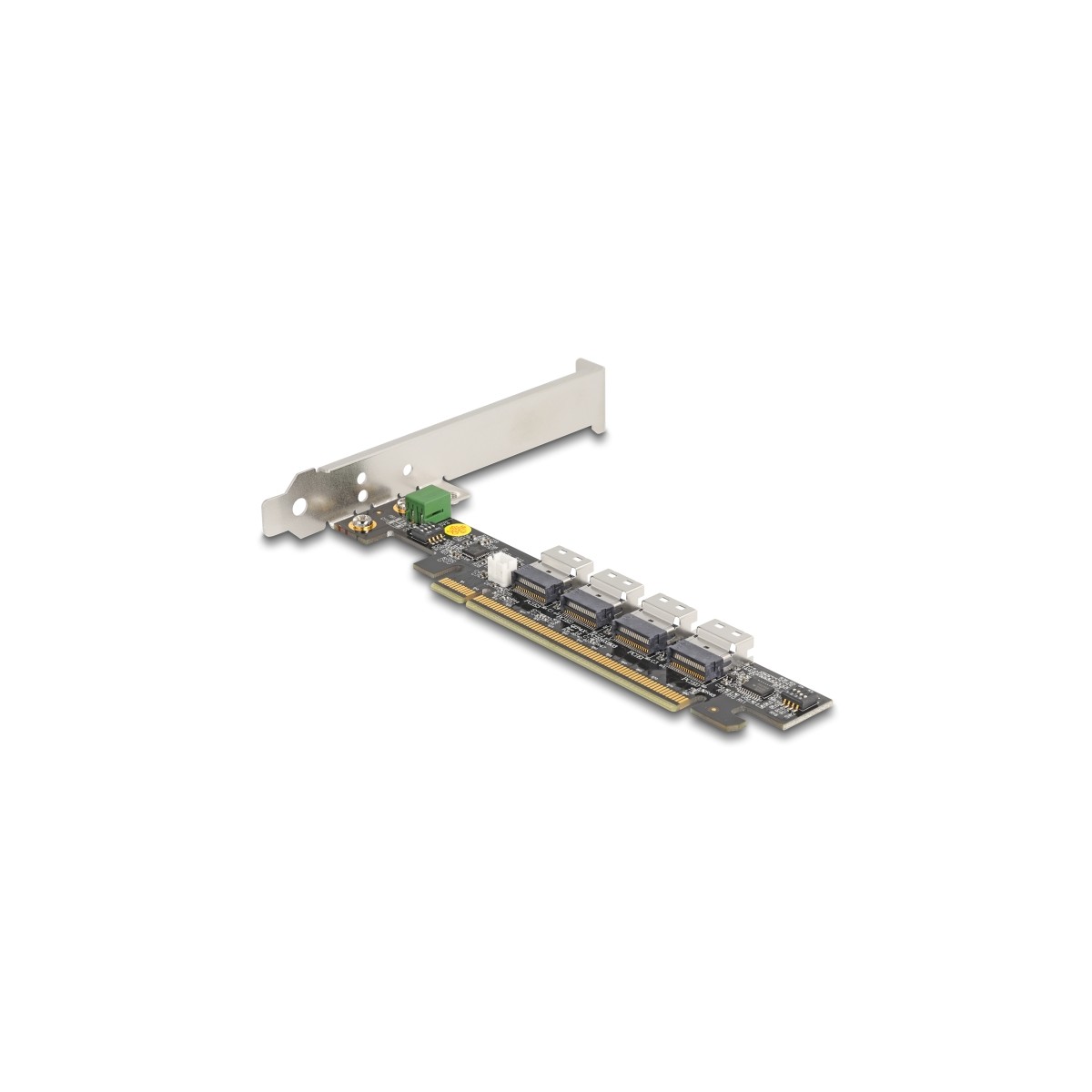

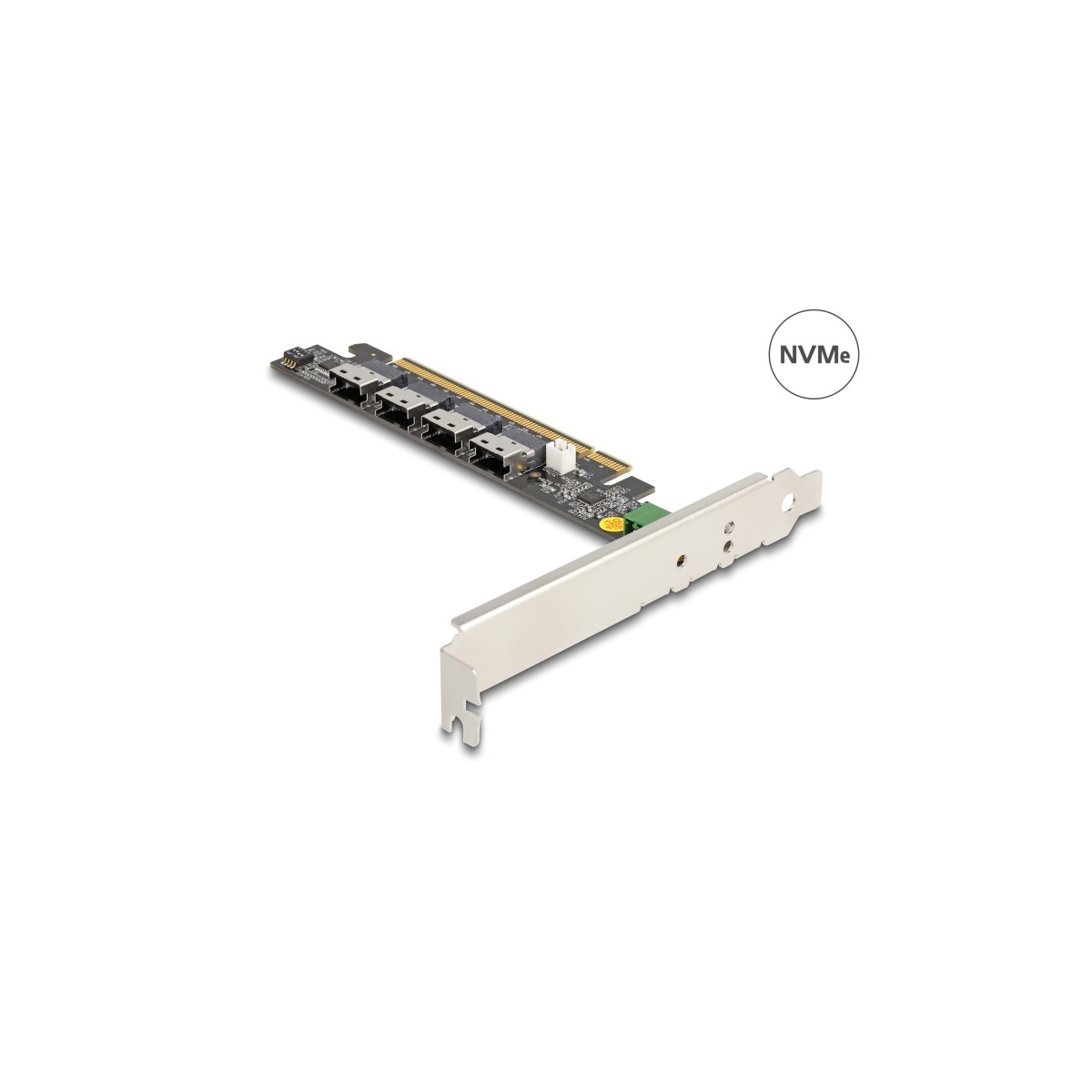

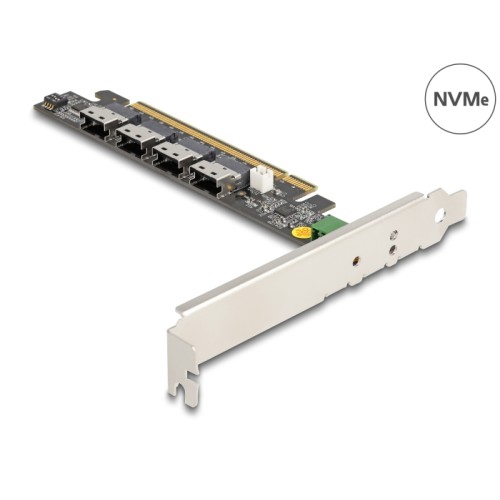

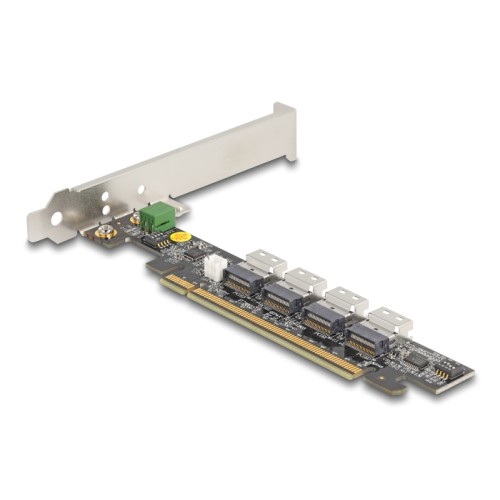

This PCI Express card by Delock expands the PC by four SFF-8654 interfaces. SSDs with e.g. U.2 interface can be connected to these ports by using an optional cable. The card transmits PCI Express signals using the NVMe protocol.

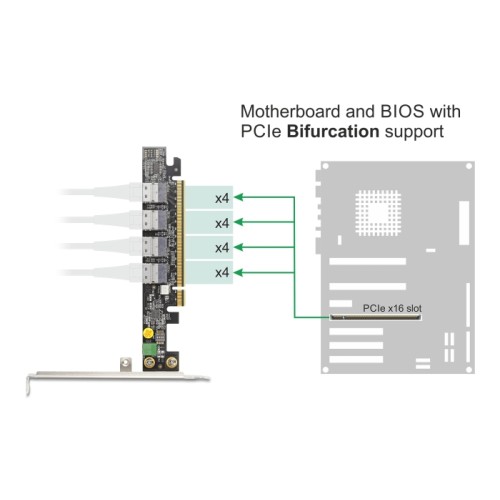

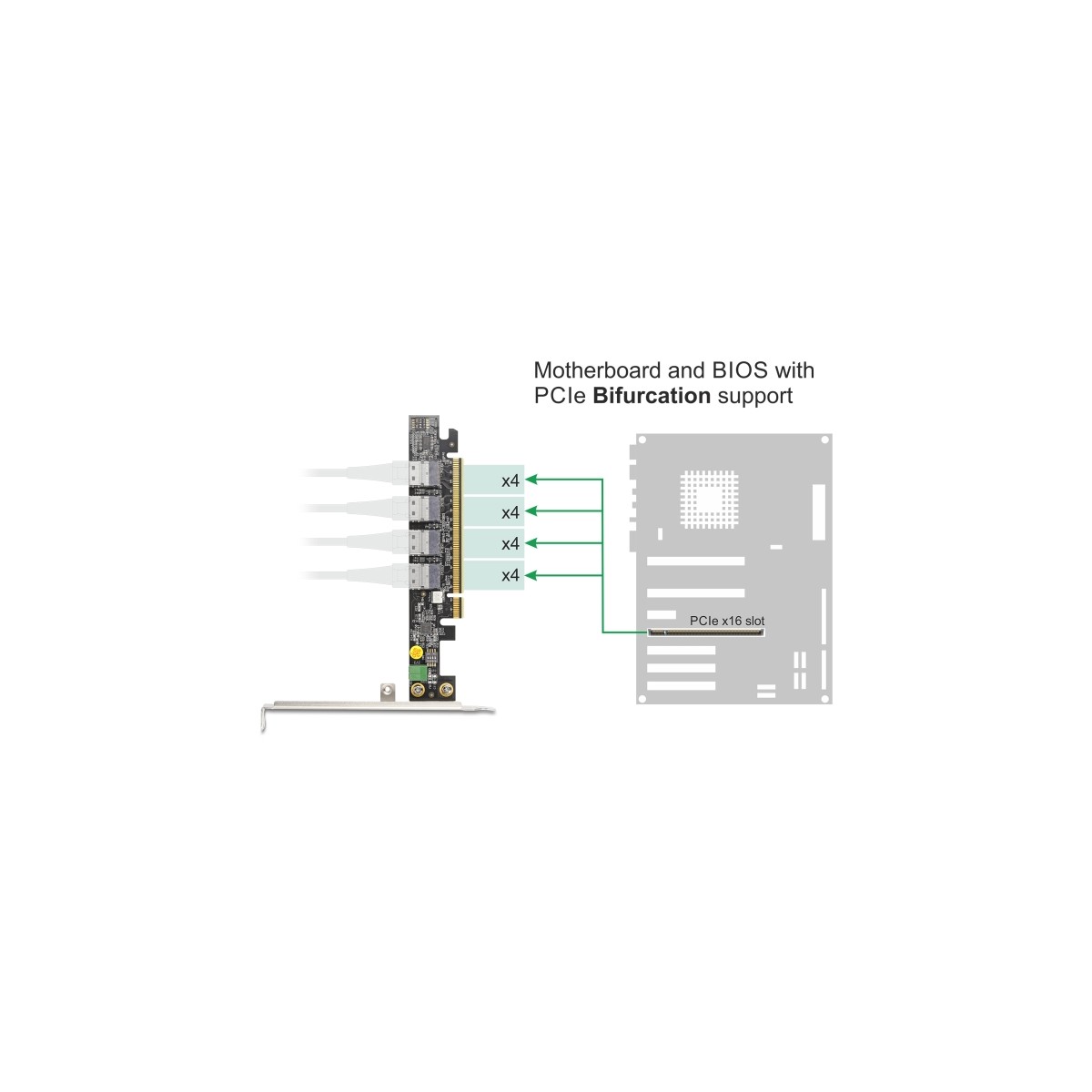

PCIe Bifurcation
The card requires the PCIe bifurcation of the motherboard to split the PCIe signal in order to use multiple ports.
Please Note
Without PCIe bifurcation only the first SFF-8654 port of the card can be used.
Specification
• IOI item number: QIP4X-PCIE16XB03
• Connectors:
internal:
4 x 38 pin SFF-8654 4i female
1 x PCI Express x16, V5.0
2 x 2 pin 3.3 V power output
• Supports NVM Express (NVMe)
• Bootable
System requirements
• Linux Kernel 3.16 or above
• Windows 8.1/8.1-64/10/10-64
• PC with one free PCI Express x16 / x32 slot
• Motherboard and BIOS with PCIe bifurcation support
Package content
• PCI Express card
This PCI Express card by Delock expands the PC by four SFF-8654 interfaces. SSDs with e.g. U.2 interface can be connected to these ports by using an optional cable. The card transmits PCI Express signals using the NVMe protocol.
PCIe Bifurcation
The card requires the PCIe bifurcation of the motherboard to split the PCIe signal in order to use multiple ports.
Please Note
Without PCIe bifurcation only the first SFF-8654 port of the card can be used.
Specification
• IOI item number: QIP4X-PCIE16XB03
• Connectors:
internal:
4 x 38 pin SFF-8654 4i female
1 x PCI Express x16, V5.0
2 x 2 pin 3.3 V power output
• Supports NVM Express (NVMe)
• Bootable
System requirements
• Linux Kernel 3.16 or above
• Windows 8.1/8.1-64/10/10-64
• PC with one free PCI Express x16 / x32 slot
• Motherboard and BIOS with PCIe bifurcation support
Package content
• PCI Express card
