Description

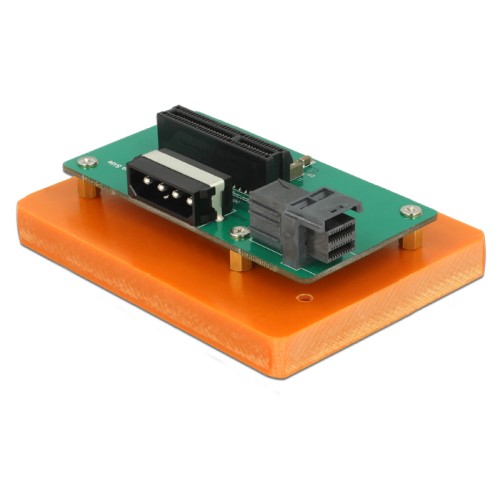

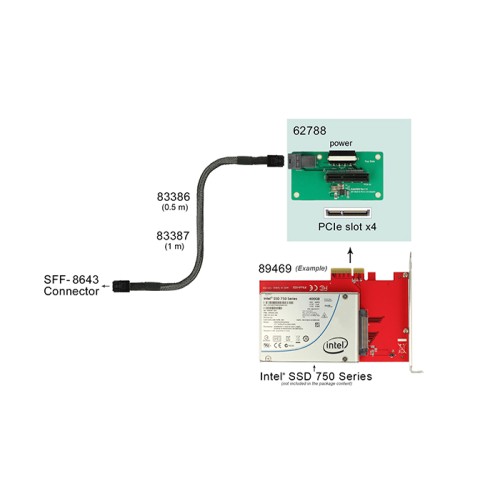

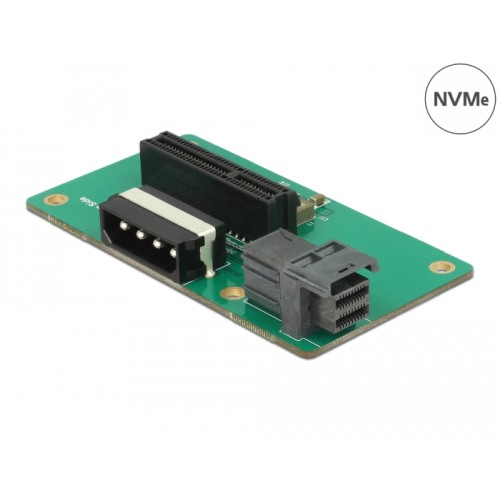

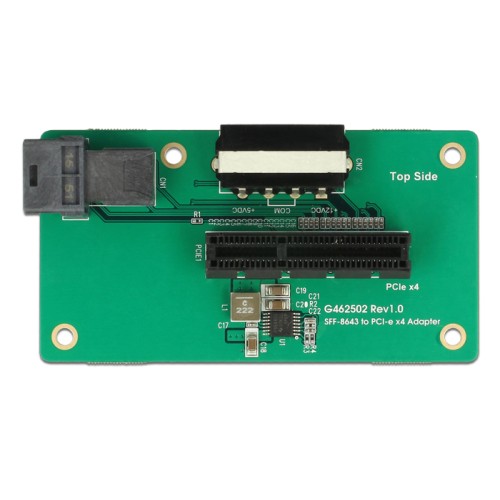

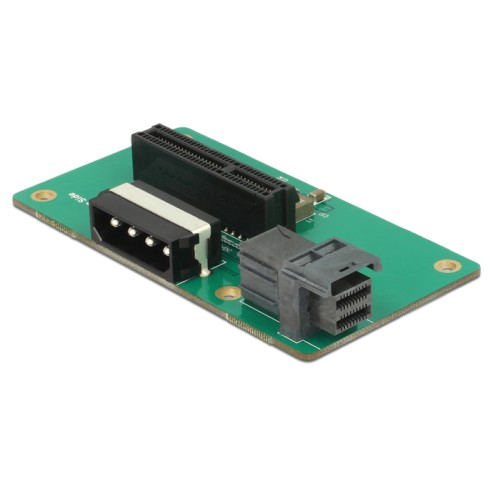

This Delock adapter can be connected via SFF-8643 interface to the system and provides a PCI Express x4 NVMe slot. To this slot e.g. PCI Express cards with M.2 slot for M.2 PCIe modules can be connected.
Specification
• Connector:
1 x SFF-8643 >
1 x PCI Express x4, V3.0
1 x 4 pin power connector
• Bootable, from UEFI version 2.3.1
• Supports NVM Express (NVMe)
• Maximum output current: 4 A
• Output voltage: 3.3 V
• Short circuit protection, over heating protection
• ESD protection up to 2 kV
• Dimensions (LxWxH):
adapter: ca. 85 x 45 x 15 mm
fixing plate: ca. 95 x 70 x 10 mm
System requirements
• Windows 7/7-64/8.1/8.1-64/10/10-64, Linux ex Kernel 3.10 / Kernel 4.x.x
• A free SFF-8643 interface
Package content
• Adapter

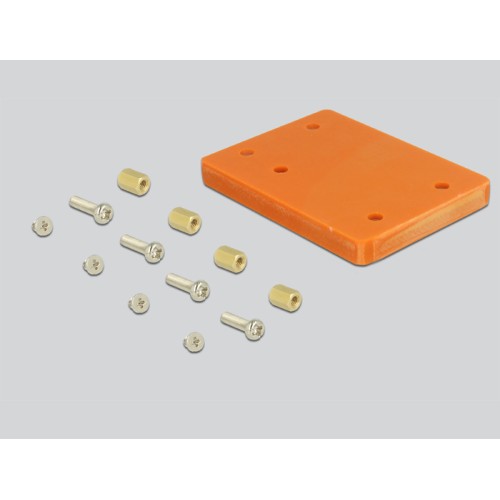

• Fixing plate
• Screws and spacer
• User manual
This Delock adapter can be connected via SFF-8643 interface to the system and provides a PCI Express x4 NVMe slot. To this slot e.g. PCI Express cards with M.2 slot for M.2 PCIe modules can be connected.
Specification
• Connector:
1 x SFF-8643 >
1 x PCI Express x4, V3.0
1 x 4 pin power connector
• Bootable, from UEFI version 2.3.1
• Supports NVM Express (NVMe)
• Maximum output current: 4 A
• Output voltage: 3.3 V
• Short circuit protection, over heating protection
• ESD protection up to 2 kV
• Dimensions (LxWxH):
adapter: ca. 85 x 45 x 15 mm
fixing plate: ca. 95 x 70 x 10 mm
System requirements
• Windows 7/7-64/8.1/8.1-64/10/10-64, Linux ex Kernel 3.10 / Kernel 4.x.x
• A free SFF-8643 interface
Package content
• Adapter
• Fixing plate
• Screws and spacer
• User manual
