Description

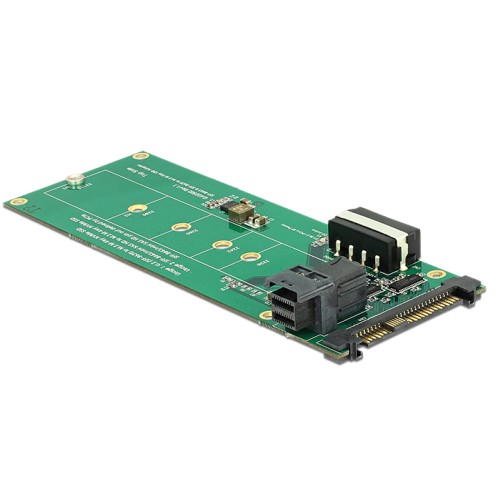

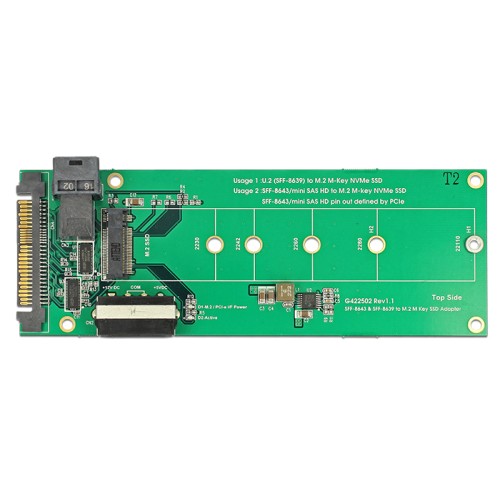

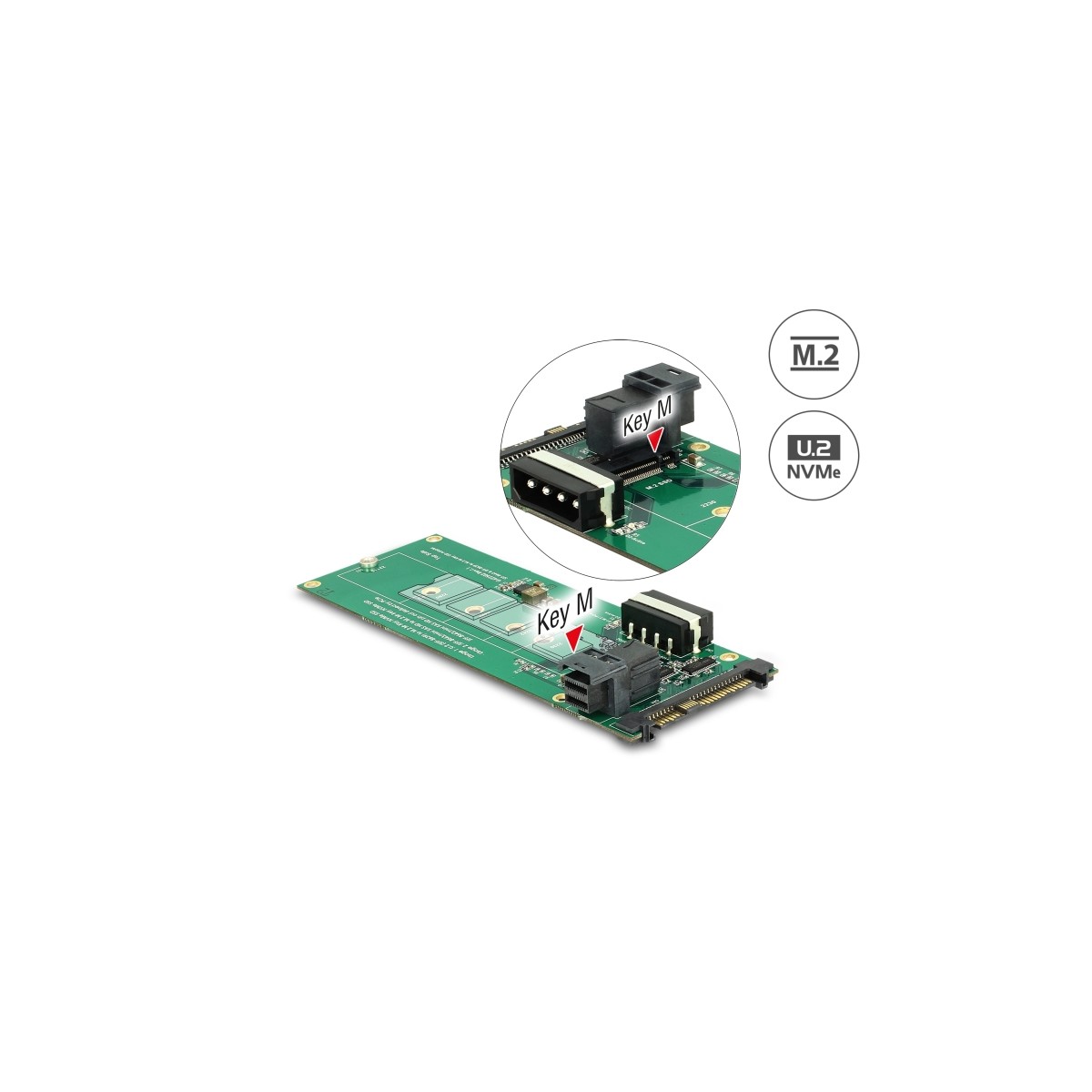

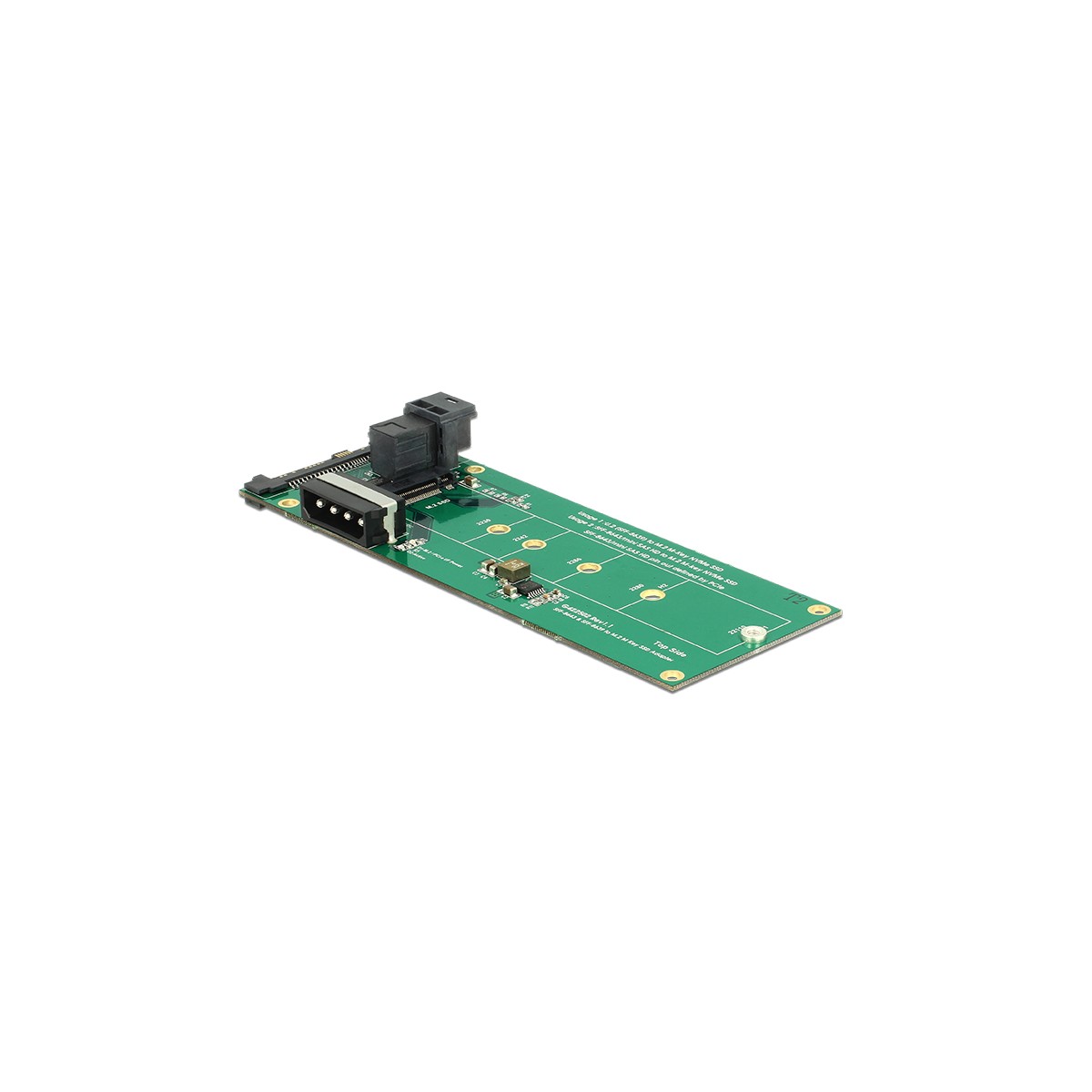

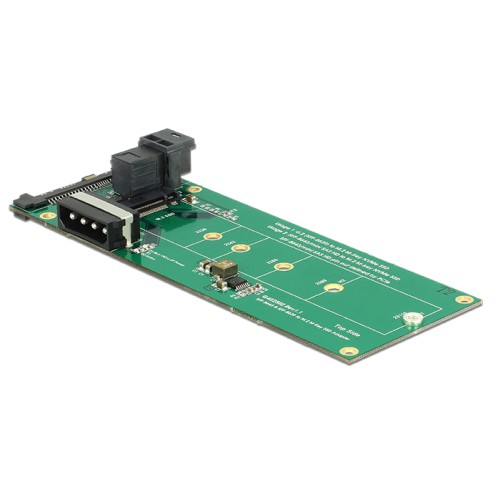

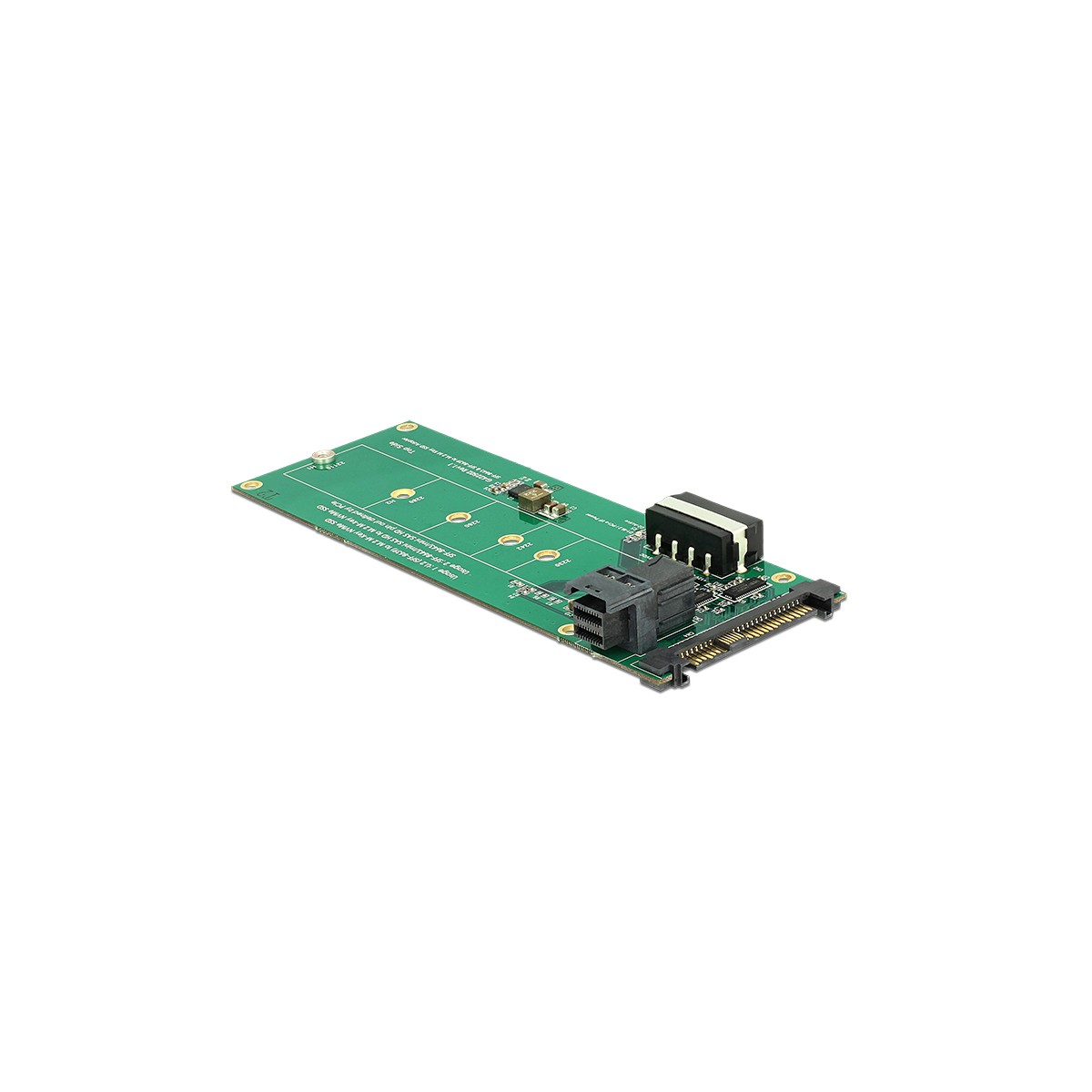

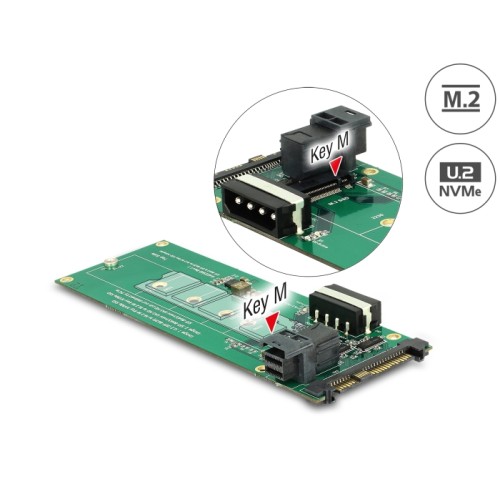

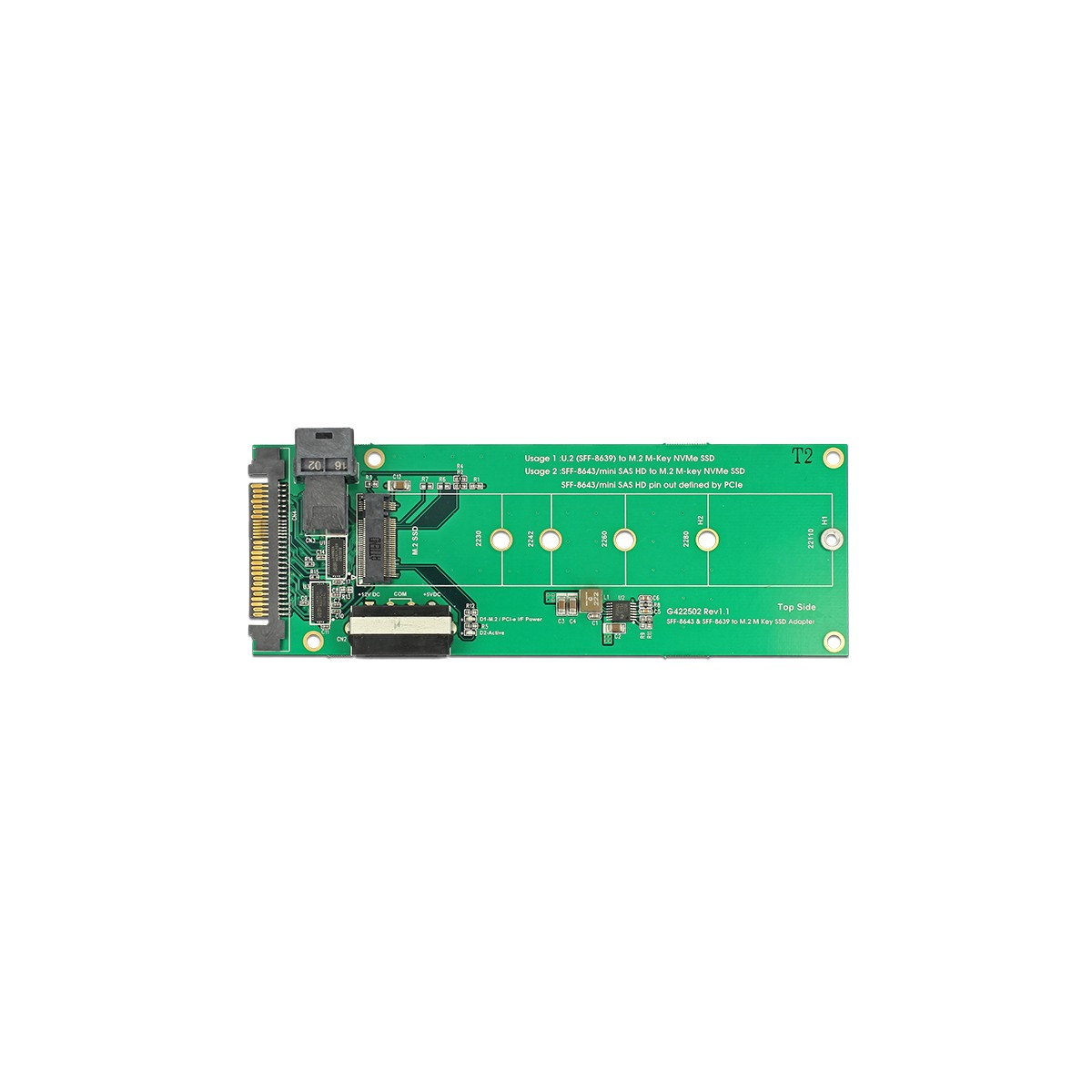

This Delock converter enables the connection of an M.2 SSD in 22110, 2280, 2260, 2242 and 2230 format. The converter can be installed into the system internally through U.2 SFF-8639 or U.2 SFF-8643 interface.
Specification
• Connectors:
1 x 68 pin U.2 SFF-8639 male
1 x 36 pin SFF-8643 female
1 x 67 pin M.2 key M slot
1 x Molex 4 pin male
• Interface: PCIe
• Supports M.2 modules in format 22110, 2280, 2260, 2242 and 2230 with key M
or key B+M based on PCIe
• Maximum height of the components on the module: 1.35 mm,
application of double-sided assembled modules supported
• LEDs for power and activity
• Supports NVM Express (NVMe)
• Maximum output current: 4 A
• Over current protection, over heating protection
• ESD protection up to 2 kV
• Dimensions (LxWxH): ca. 145 x 52 x 16 mm
System requirements
• Windows 7/7-64/8.1/8.1-64/10/10-64, Linux ex Kernel 4.6.x
• A free U.2 SFF-8639 interface or
• A free U.2 SFF-8643 interface
Package content
• Converter

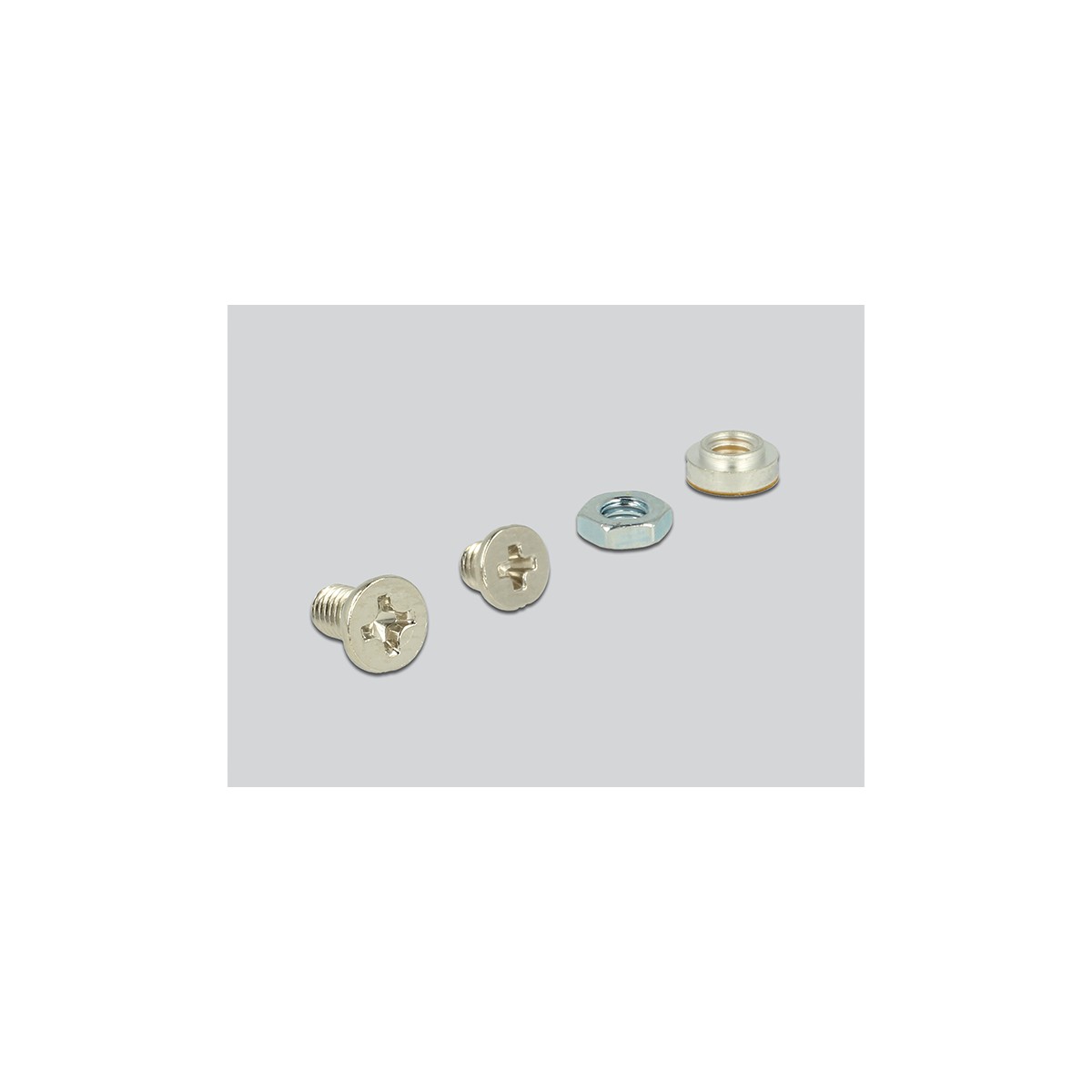

• Mounting material
• User manual
This Delock converter enables the connection of an M.2 SSD in 22110, 2280, 2260, 2242 and 2230 format. The converter can be installed into the system internally through U.2 SFF-8639 or U.2 SFF-8643 interface.
Specification
• Connectors:
1 x 68 pin U.2 SFF-8639 male
1 x 36 pin SFF-8643 female
1 x 67 pin M.2 key M slot
1 x Molex 4 pin male
• Interface: PCIe
• Supports M.2 modules in format 22110, 2280, 2260, 2242 and 2230 with key M
or key B+M based on PCIe
• Maximum height of the components on the module: 1.35 mm,
application of double-sided assembled modules supported
• LEDs for power and activity
• Supports NVM Express (NVMe)
• Maximum output current: 4 A
• Over current protection, over heating protection
• ESD protection up to 2 kV
• Dimensions (LxWxH): ca. 145 x 52 x 16 mm
System requirements
• Windows 7/7-64/8.1/8.1-64/10/10-64, Linux ex Kernel 4.6.x
• A free U.2 SFF-8639 interface or
• A free U.2 SFF-8643 interface
Package content
• Converter
• Mounting material
• User manual
