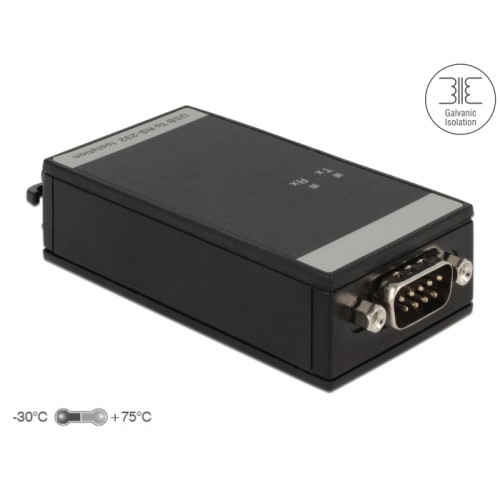

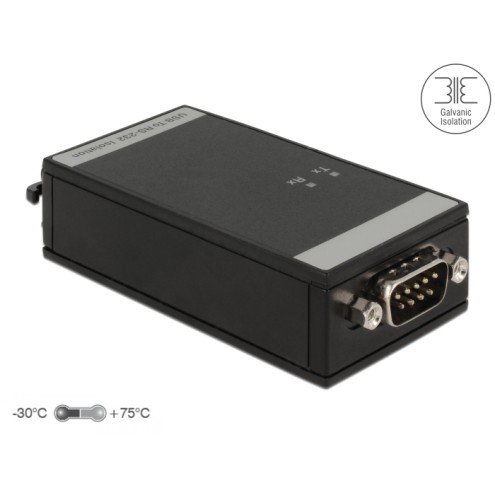

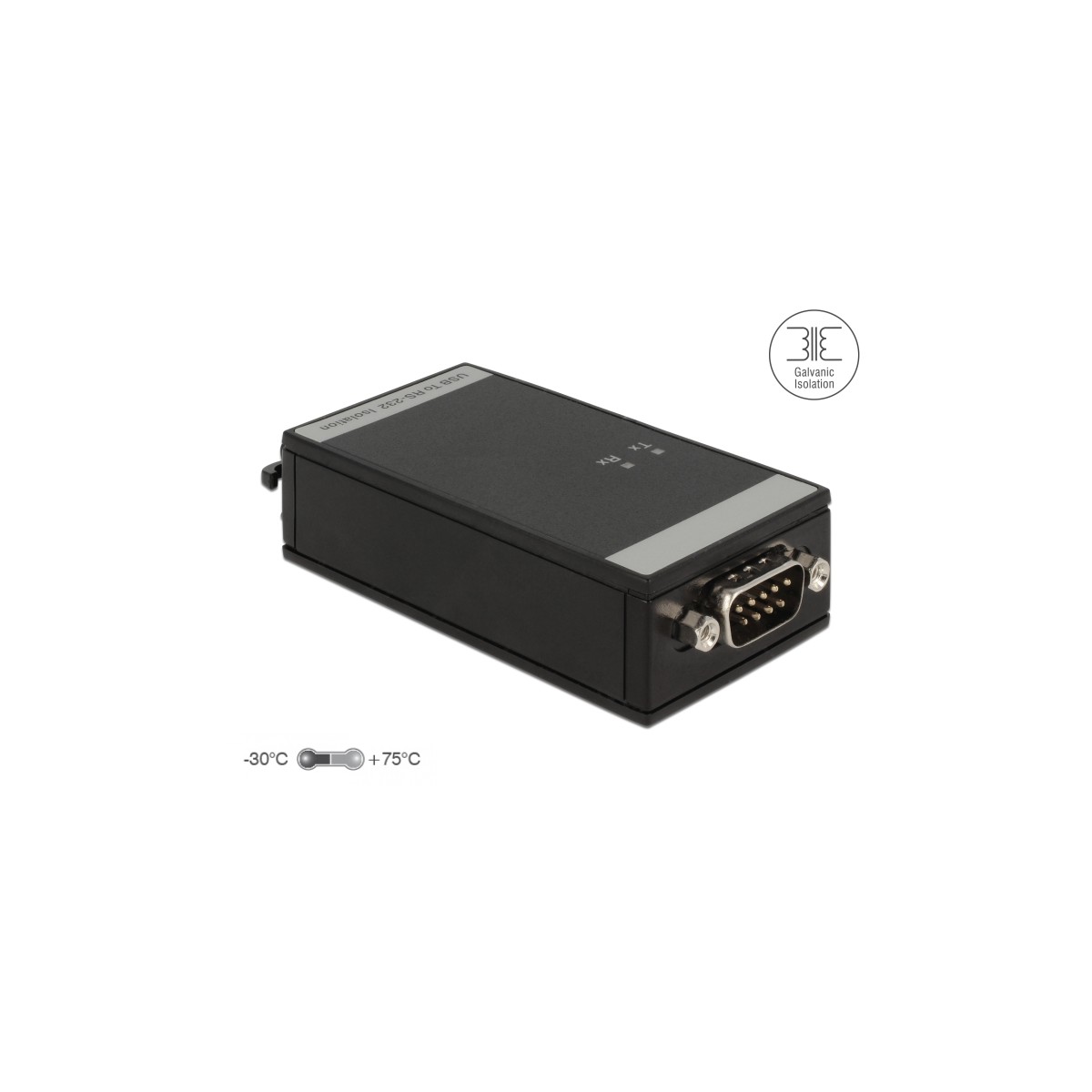

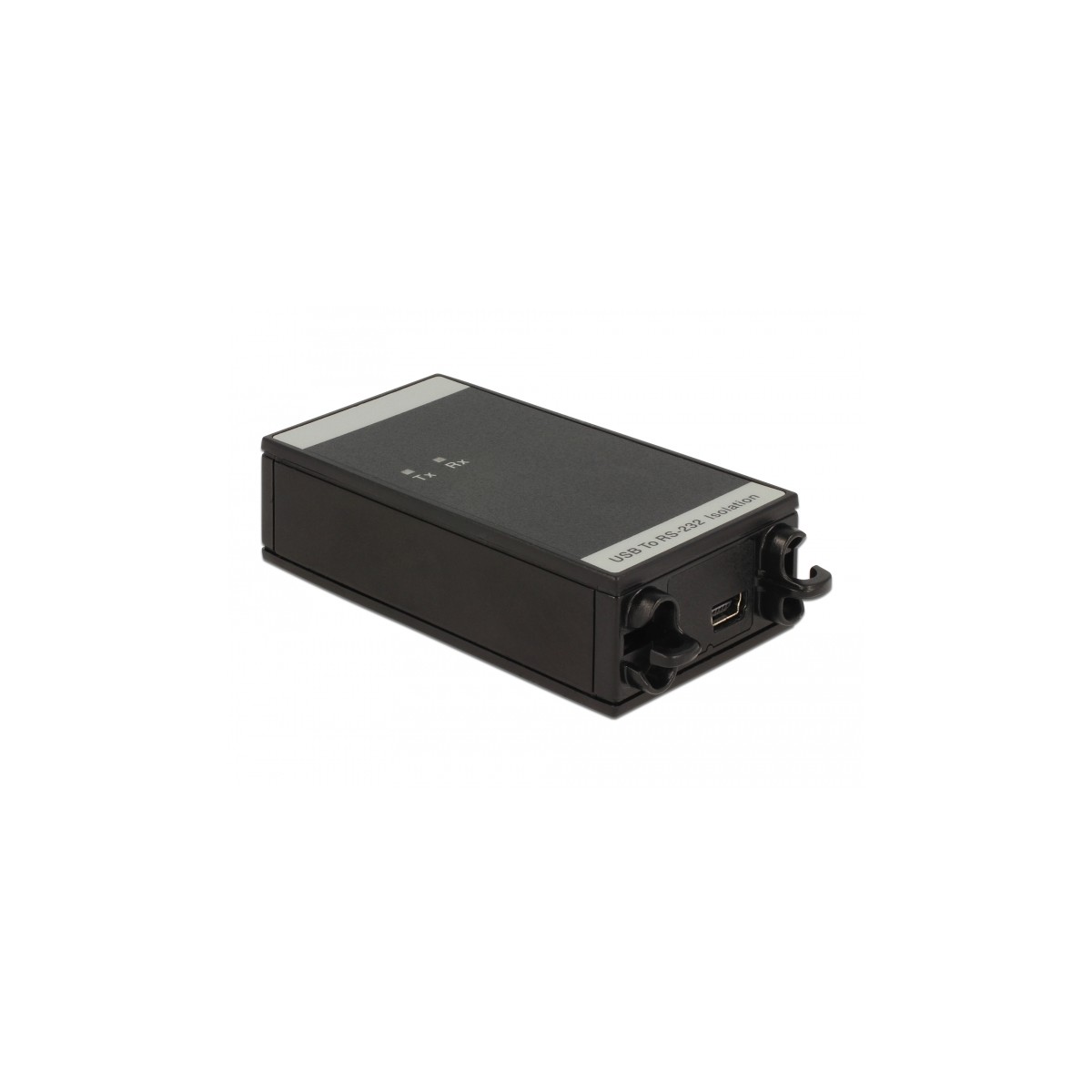

Delock Isolator USB 2.0 Type-A to RS-232 D-Sub 9 male galvanic isolation 5 kV

Description
This USB 2.0 to serial RS-232 converter by Delock offers an RS-232 connection for measuring devices, POS systems, printers, modems, IoT devices etc. The galvanic isolation prevents data transmission errors with uneven earthing potentials, ground loops or voltage spikes. The converter is suitable for DIN rail mounting.

Galvanic isolation
The galvanic isolation (5 KV) is done with optical isolators.

Specification
• Connector:

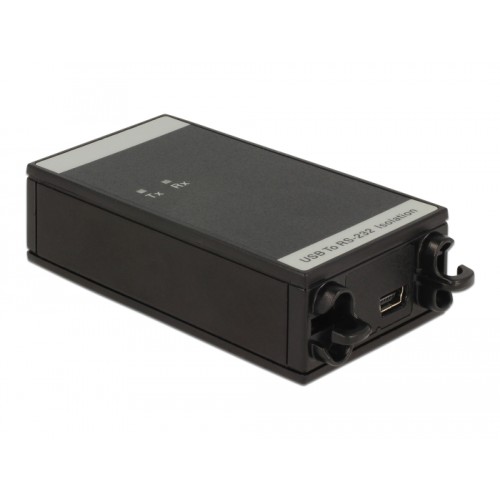

Host: 1 x Mini USB 2.0 B female

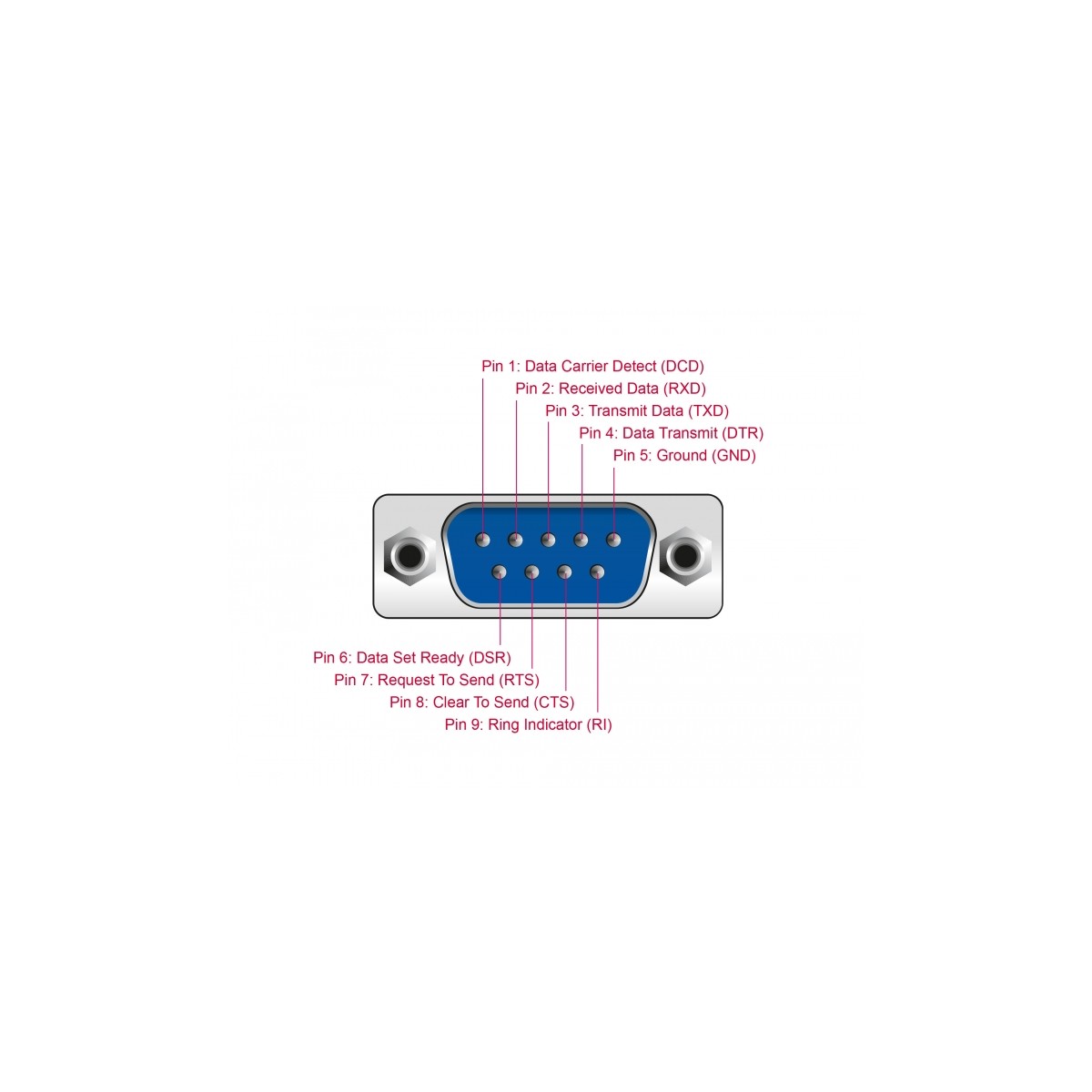

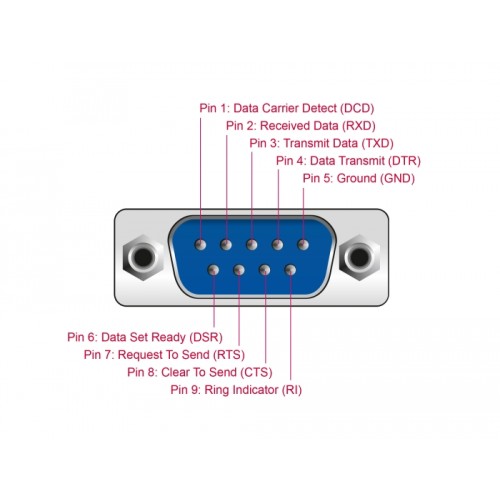

Device: 1 x D-Sub 9 pin Serial RS-232 male
• Chipset: FTDI
• Data transfer rate up to 1 Mb/s
• LED indicators for status TX / RX
• 5 kV optical isolation
• ± 15 kV ESD protection for all signal pins
• Power consumption: 70 mA / 350 mW
• Power supply via USB (Bus-Powered)
• Operating temperature: - 30° ~ 75° C
• Storage temperature: - 40° ~ 85° C
• Relative humidity: 5 ~ 95 % (not condensing)
• Housing: plastic
• Dimension (LxWxH): ca. 93 x 42 x 22 mm

System requirements
• Windows XP/XP-64/Vista/Vista-64/7/7-64/8/8-64/10/10-64/11, Mac OS 10.5,
Linux Kernel 2.6
• PC or notebook with one free USB port

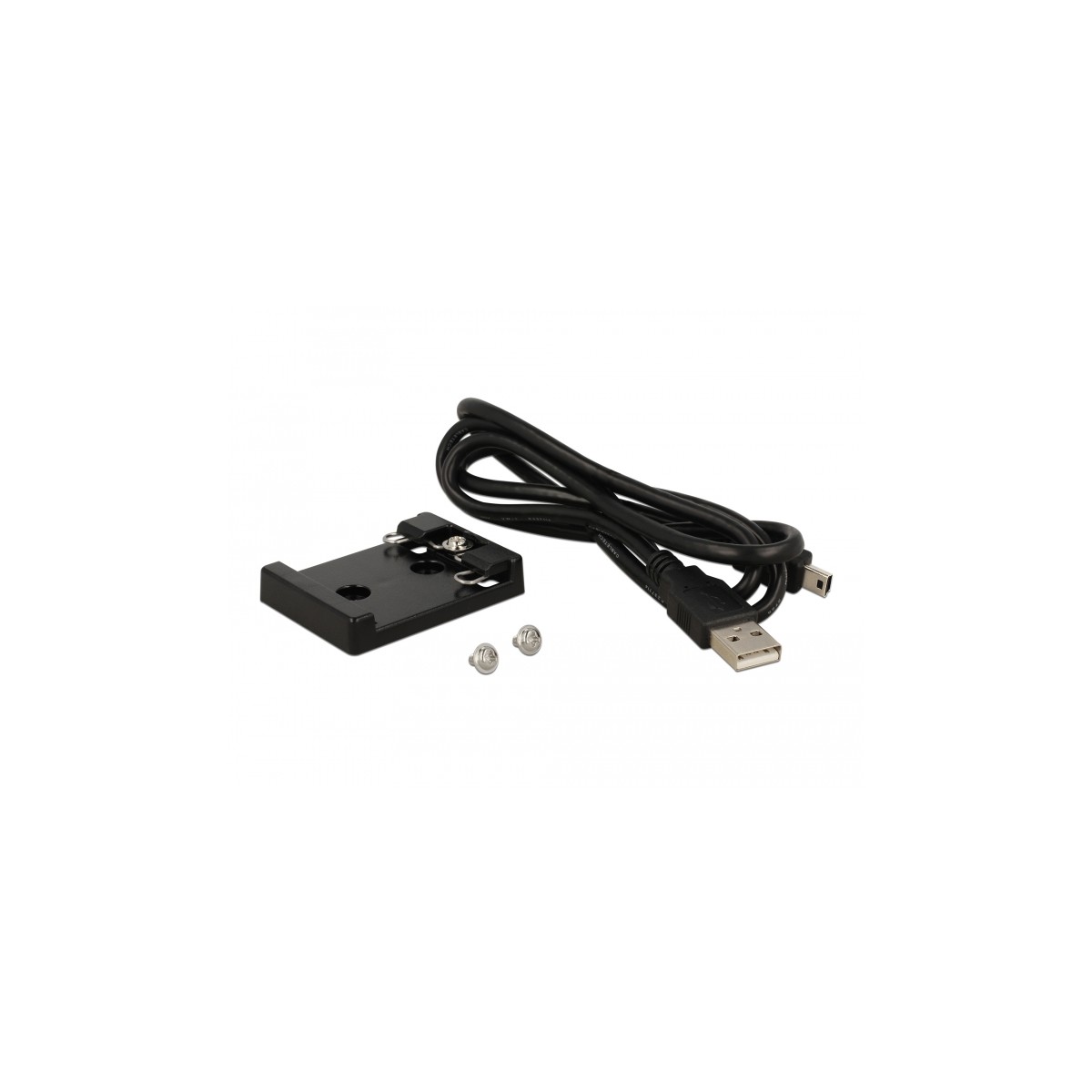

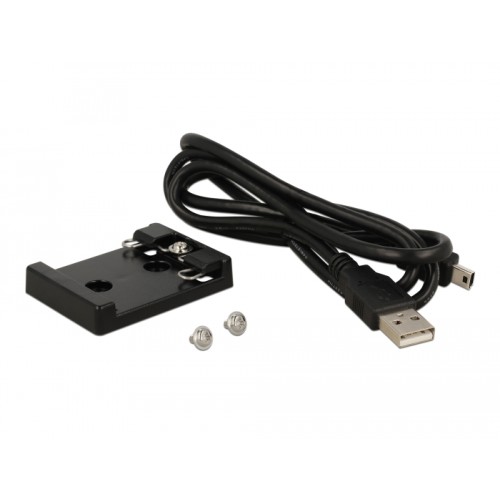

Package content
• Converter
• USB 2.0 cable, length: ca. 1 m
• Mounting set for DIN rail
• Driver CD
• User manual
