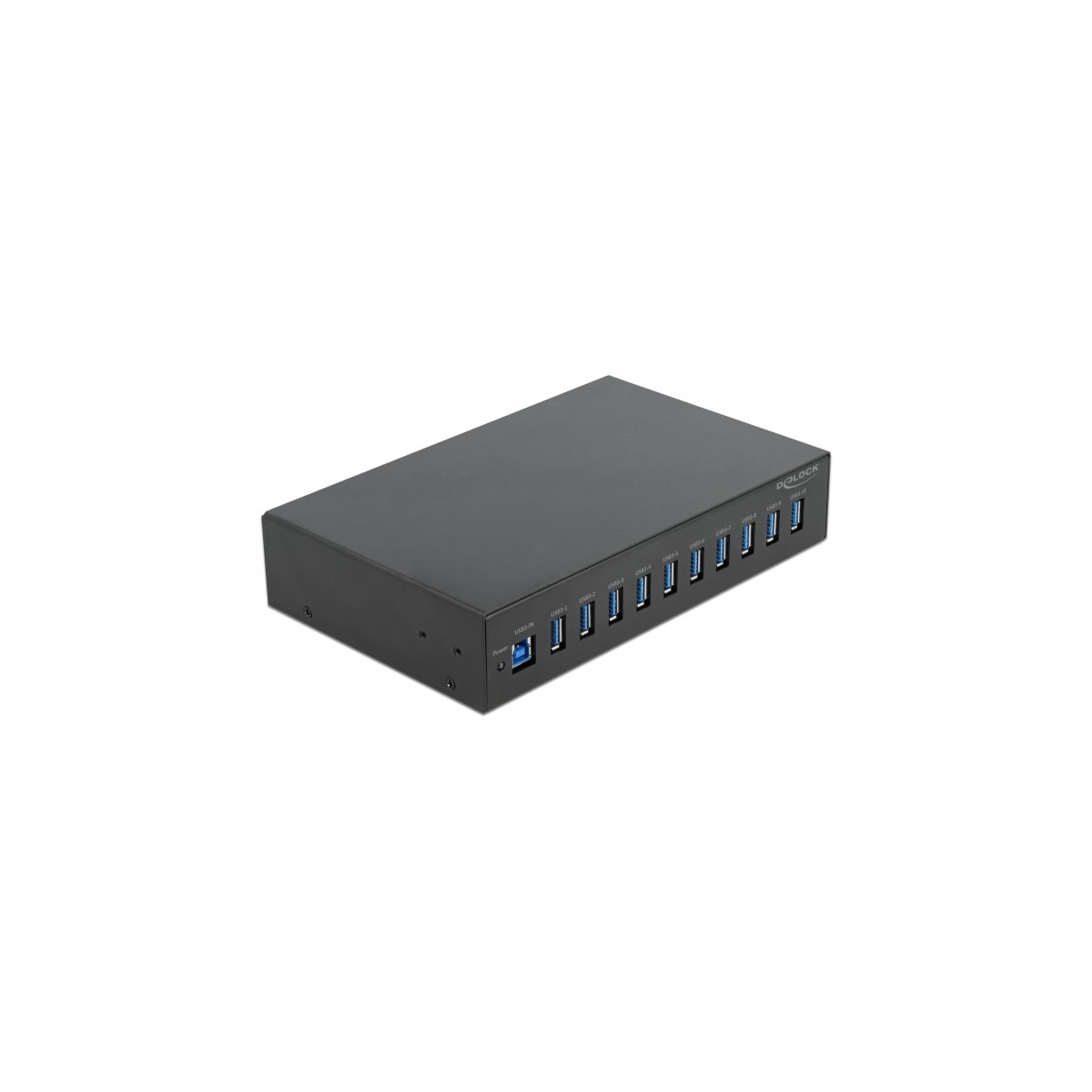

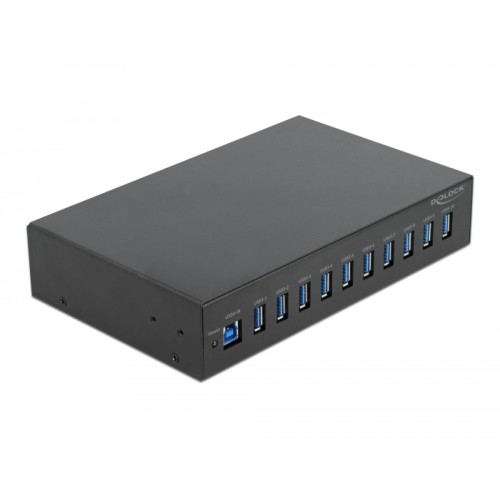

Delock 10″ Industry Hub 10 x USB 3.2 Gen 1 Type-A

Description
This solid industry capable USB hub by Delock with metal housing can be connected to a computer via the USB Type-A interface. It expands the computer by 10 USB Type-A ports. The hub can be used for automation and office applications.

USB 3.2 Gen 1 specification
With the support of USB 3.2 Gen 1 specification a data transfer rate up to 5 Gbps can be reached. Compared to USB 2.0, data can be transferred 10 times faster. All ports are backward compatible, so USB 2.0 and USB 1.1 devices can be used as well.

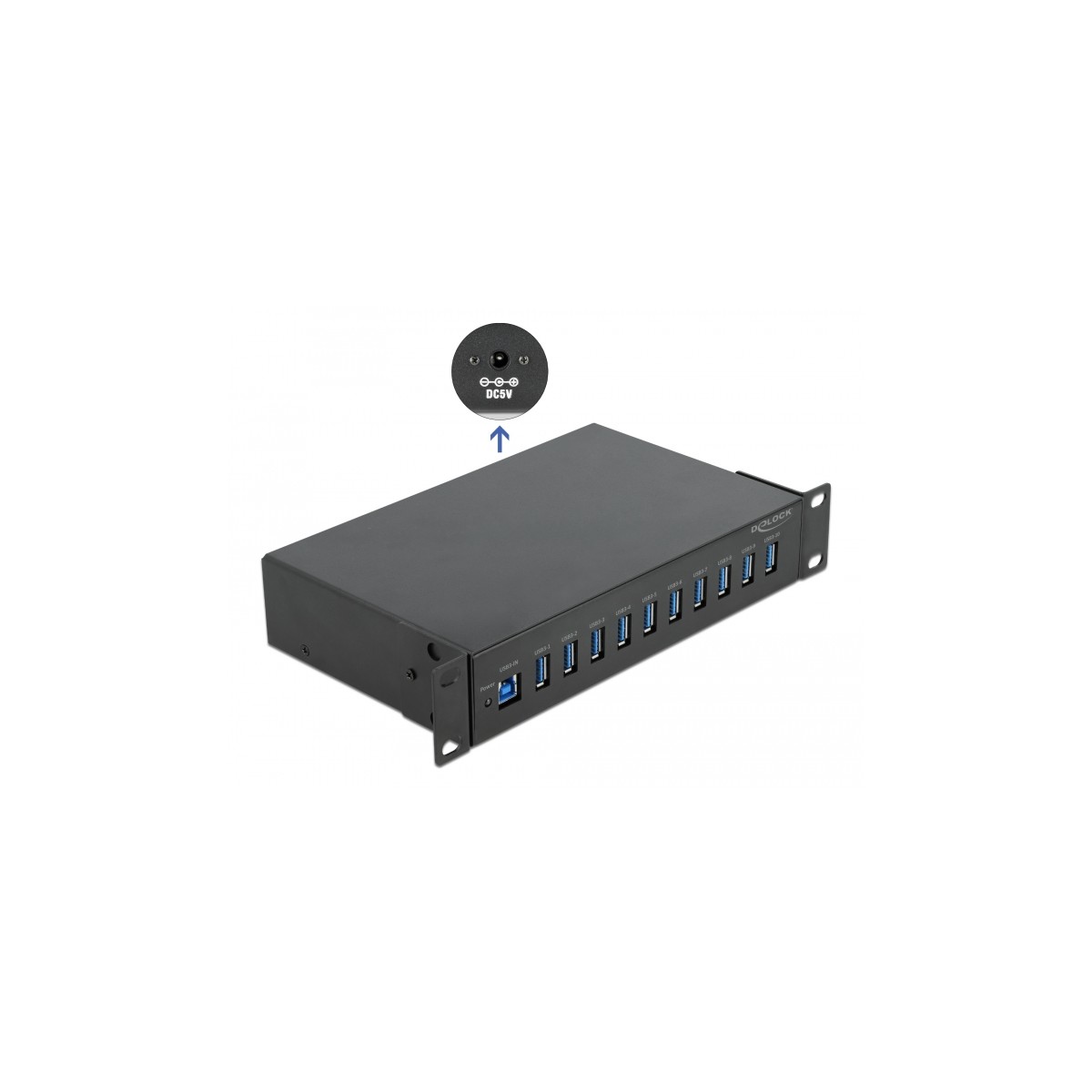

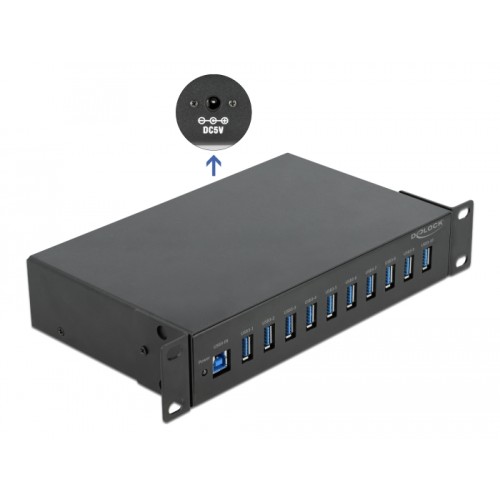

10″ rack mounting
With the supplied mounting brackets, the hub can be mounted in a 10″ rack.

Specification
• Connectors:
1 x SuperSpeed USB (USB 3.2 Gen 1) Type-B female
10 x SuperSpeed USB (USB 3.2 Gen 1) Type-A female
1 x 5 V DC jack 5.5 x 2.1 mm
• Chipset: VIA VL813
• Data transfer rate up to:
SuperSpeed USB 5 Gbps,
Hi-Speed 480 Mbps,
Full-Speed 12 Mbps,
Low-Speed 1.5 Mbps
• Output power: max. 16 W total
• Robust metal housing
• Removable 10″ rack brackets
• LED indicator for power
• Operating temperature: 0 °C ~ 60 °C
• Dimensions (LxWxH): ca. 215 x 135 x 45 mm
• Colour: black
• Plug & Play

Power supply specification
• Wall power supply
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 1.0 A
• Output: 5 V / 4 A
• Ground outside, plus inside
• Dimensions:
inside: ø ca. 2.1 mm
outside: ø ca. 5.5 mm
length: ca. 9 mm

System requirements
• Linux Kernel 3.4 or above
• Windows 8.1/8.1-64/10/10-64
• PC or laptop with a free USB Type-A port

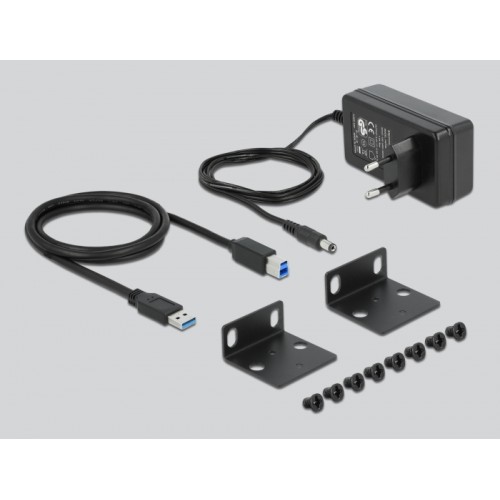

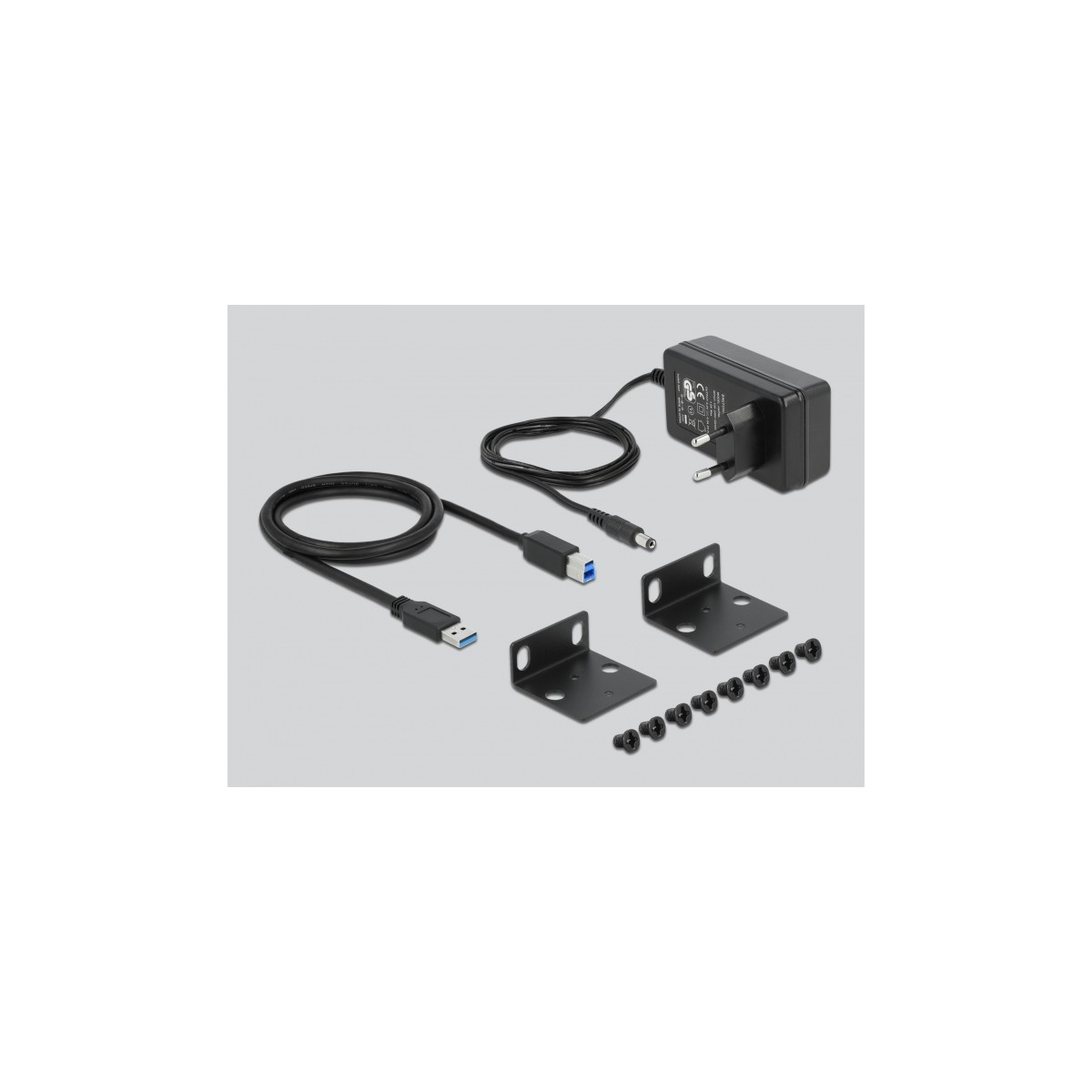

Package content
• Hub USB
• 1 x cable USB 3.2 Gen 1 Type-A male to USB 3.2 Gen 1 Type-B male, length ca. 1.20 m
• 2 x mounting brackets for 10″ rack
• Power supply
• User manual
