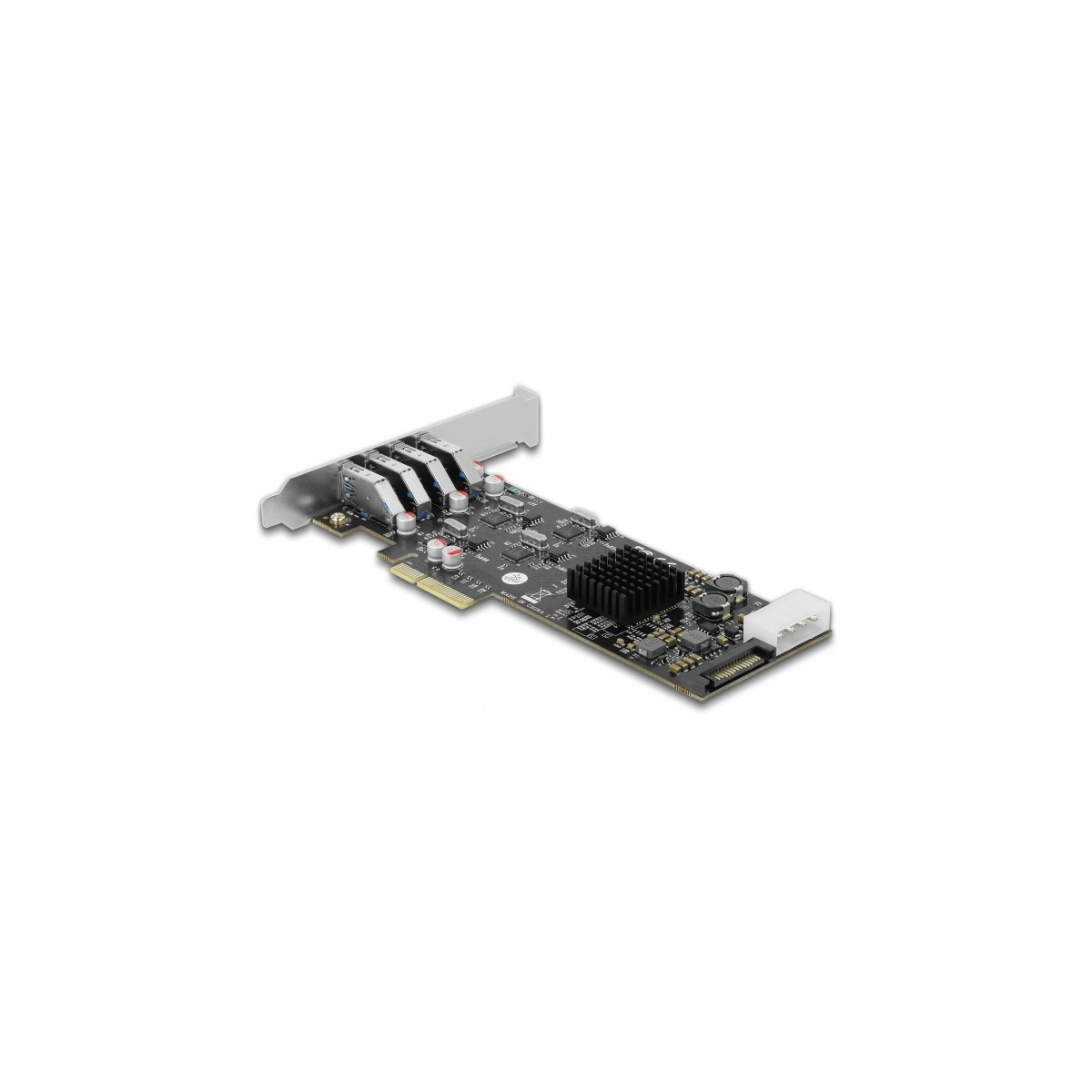

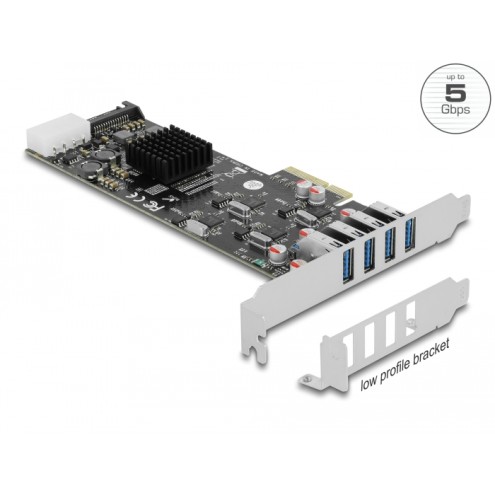

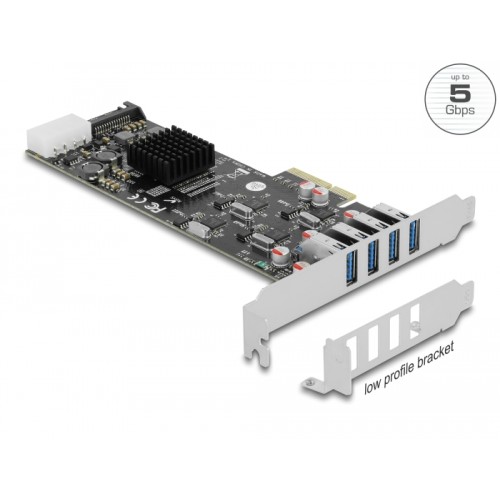

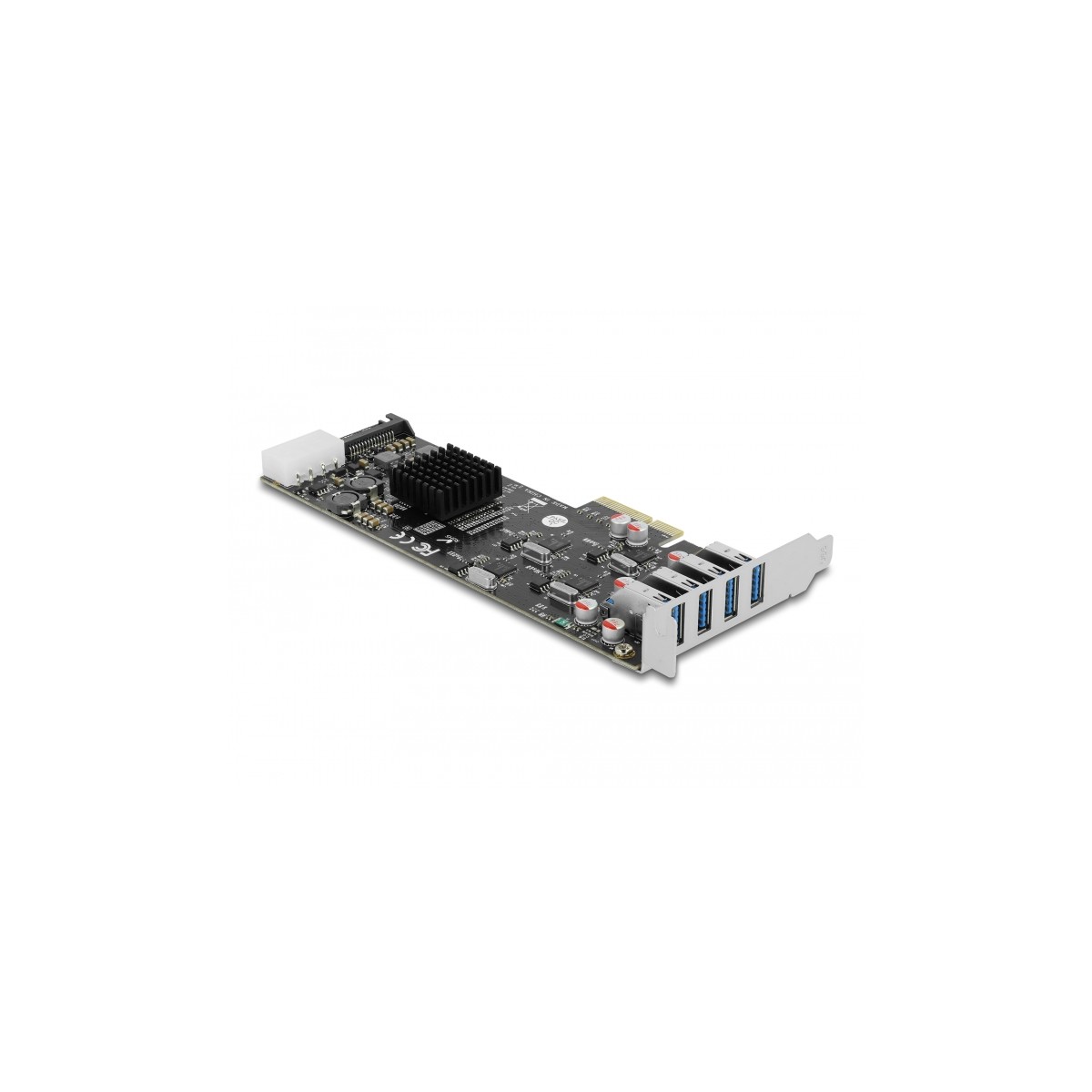

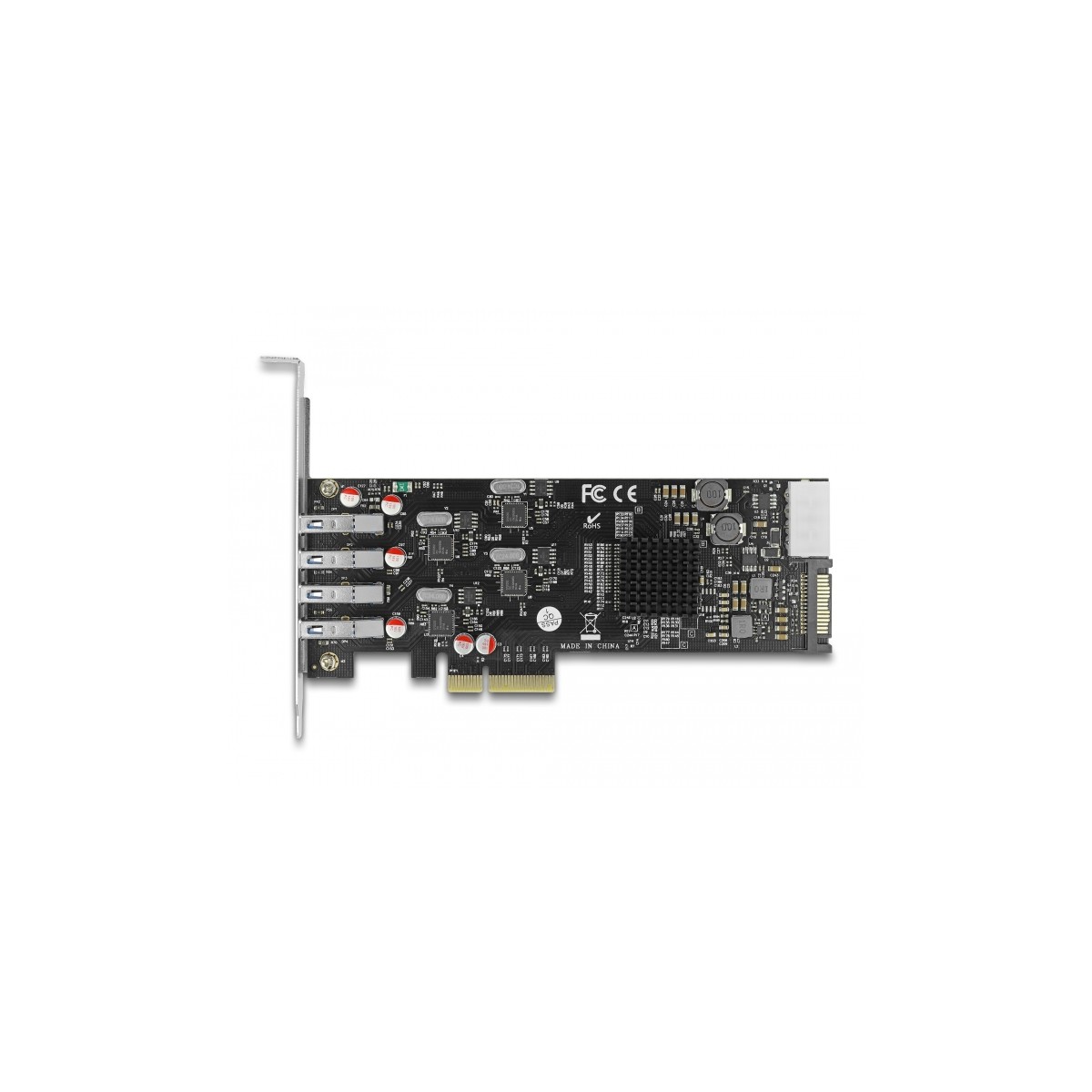

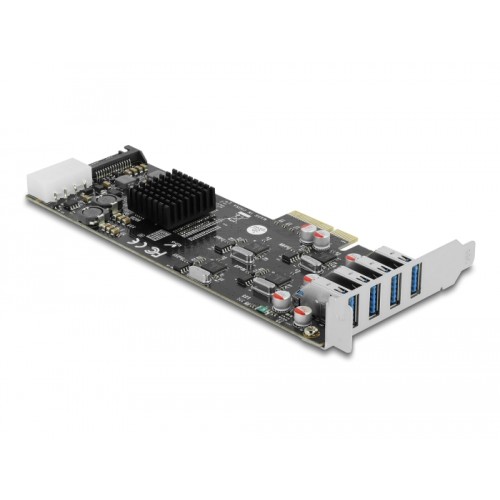

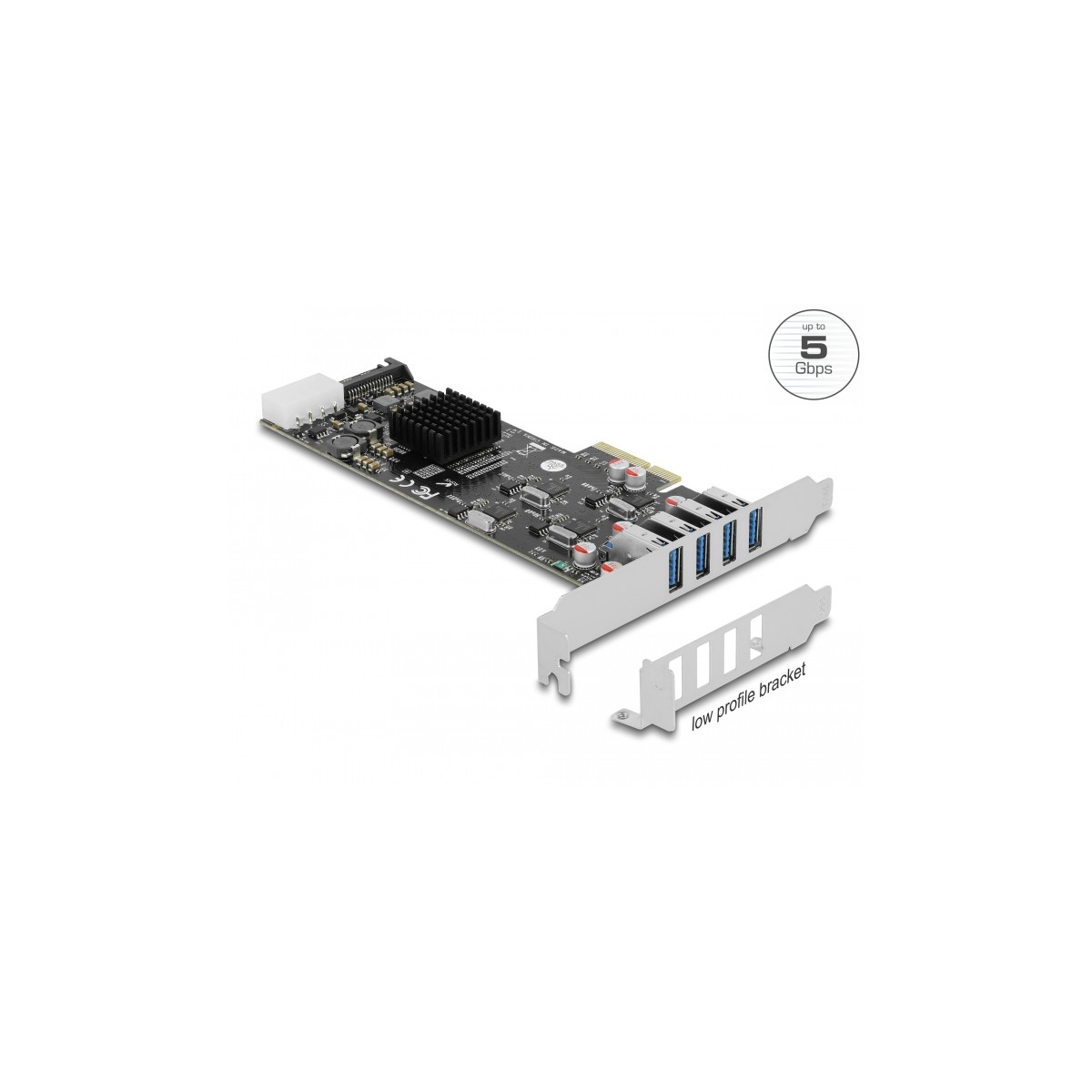

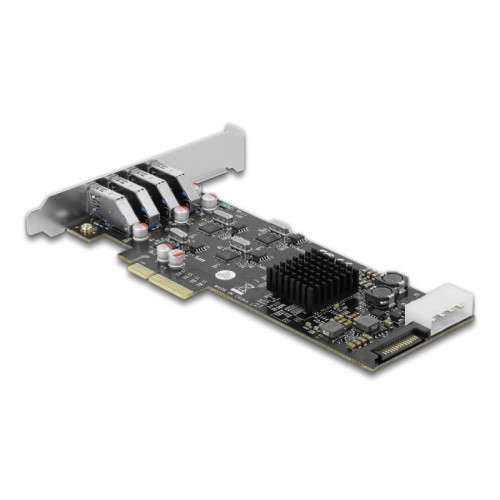

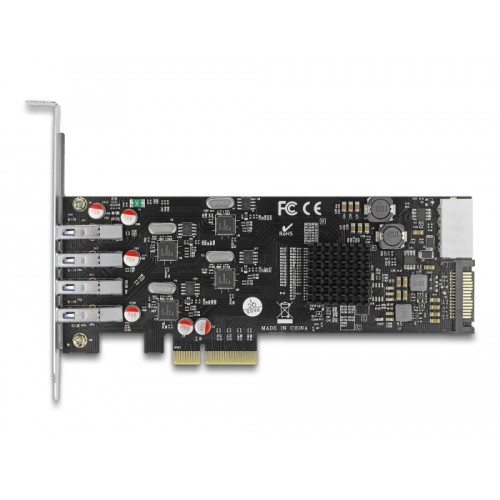

Delock PCI Express x4 Card to 4 x external SuperSpeed USB 5 Gbps (USB 3.2 Gen 1) USB Type-A female Quad Channel - Low Profile Fo
89008
Nuovo
Description
The PCI Express card by Delock expands a PC by four external USB 3.0 ports. Each port is supported by a single Renesas chip, which provides a high data transfer rate. Different USB devices such as docking stations, card reader, external enclosure etc. can be connected. Due to the vertical direction of the USB 3.0 ports, it is possible to install it into a low profile slot.
Specification
• Connectors:
external:
4 x SuperSpeed USB 5 Gbps (USB 3.2 Gen 1) Type-A female
internal:
1 x PCI Express x4, V2.0
1 x SATA power connector
1 x Molex 4 pin power connector
• Chipset: 4 x Renesas uPD720202
• Data transfer rate up to:
SuperSpeed 5 Gbps,
Hi-Speed 480 Mbps,
Full-Speed 12 Mbps,
Low-Speed 1.5 Mbps
• Bootable
System requirements
• Linux Kernel 3.3 or above
• Windows 8.1/8.1-64/10/10-64/11
• PC with one free PCI Express x4 / x8 / x16 / x32 slot
Package content
• PCI Express card USB 3.0
• Low profile bracket
• User manual
The PCI Express card by Delock expands a PC by four external USB 3.0 ports. Each port is supported by a single Renesas chip, which provides a high data transfer rate. Different USB devices such as docking stations, card reader, external enclosure etc. can be connected. Due to the vertical direction of the USB 3.0 ports, it is possible to install it into a low profile slot.
Specification
• Connectors:
external:
4 x SuperSpeed USB 5 Gbps (USB 3.2 Gen 1) Type-A female
internal:
1 x PCI Express x4, V2.0
1 x SATA power connector
1 x Molex 4 pin power connector
• Chipset: 4 x Renesas uPD720202
• Data transfer rate up to:
SuperSpeed 5 Gbps,
Hi-Speed 480 Mbps,
Full-Speed 12 Mbps,
Low-Speed 1.5 Mbps
• Bootable
System requirements
• Linux Kernel 3.3 or above
• Windows 8.1/8.1-64/10/10-64/11
• PC with one free PCI Express x4 / x8 / x16 / x32 slot
Package content
• PCI Express card USB 3.0
• Low profile bracket
• User manual
Nuovo
4043619890088
