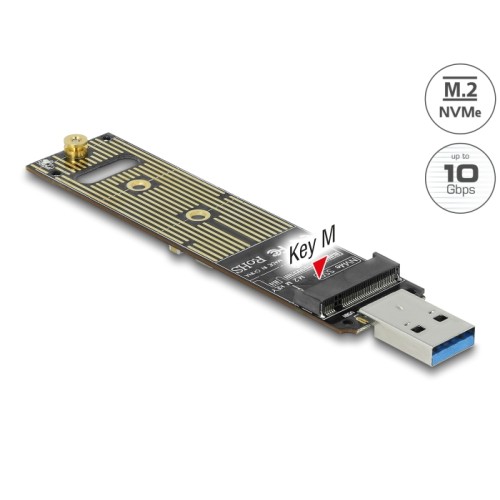

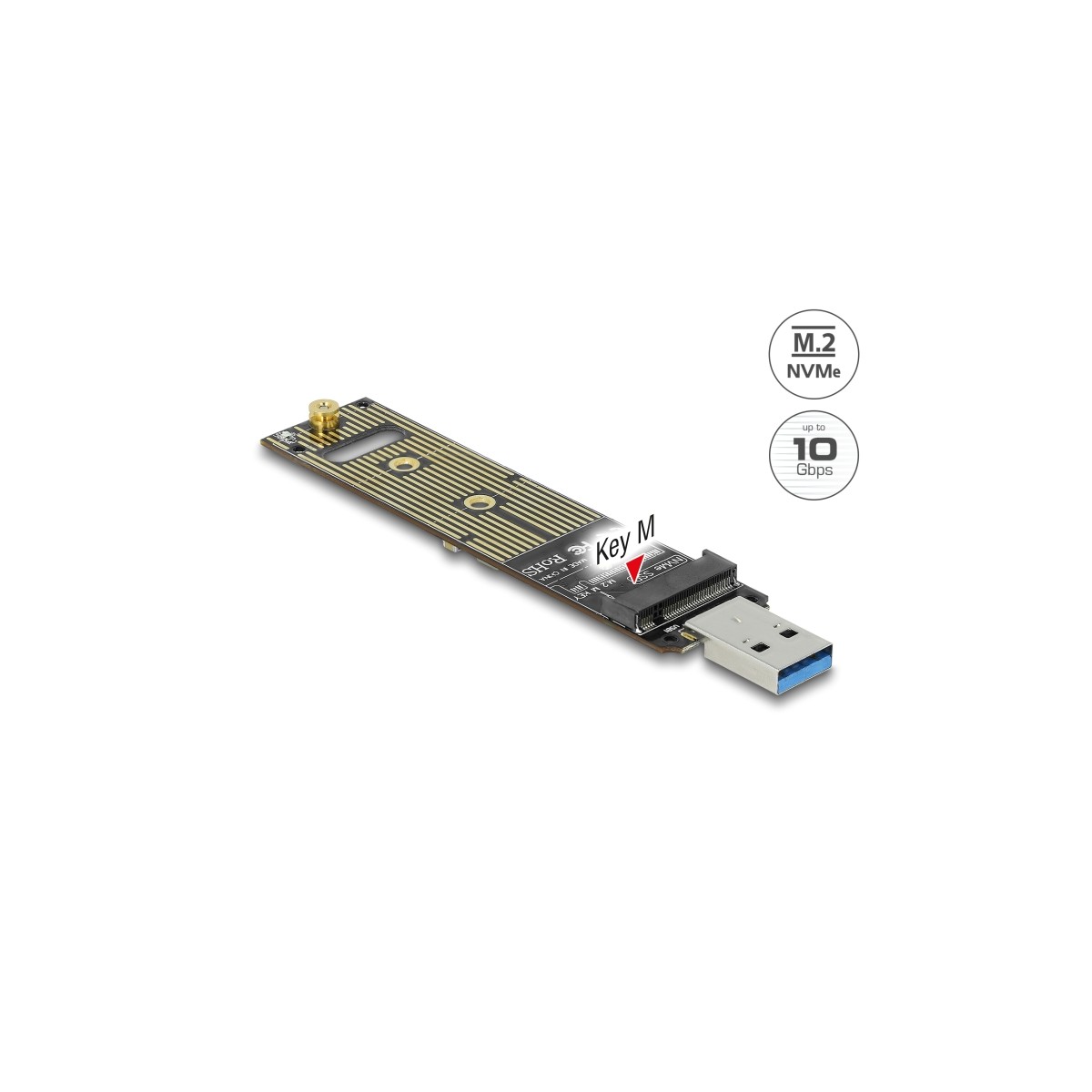

Delock Converter for M.2 NVMe PCIe SSD with USB 3.1 Gen 2

Description

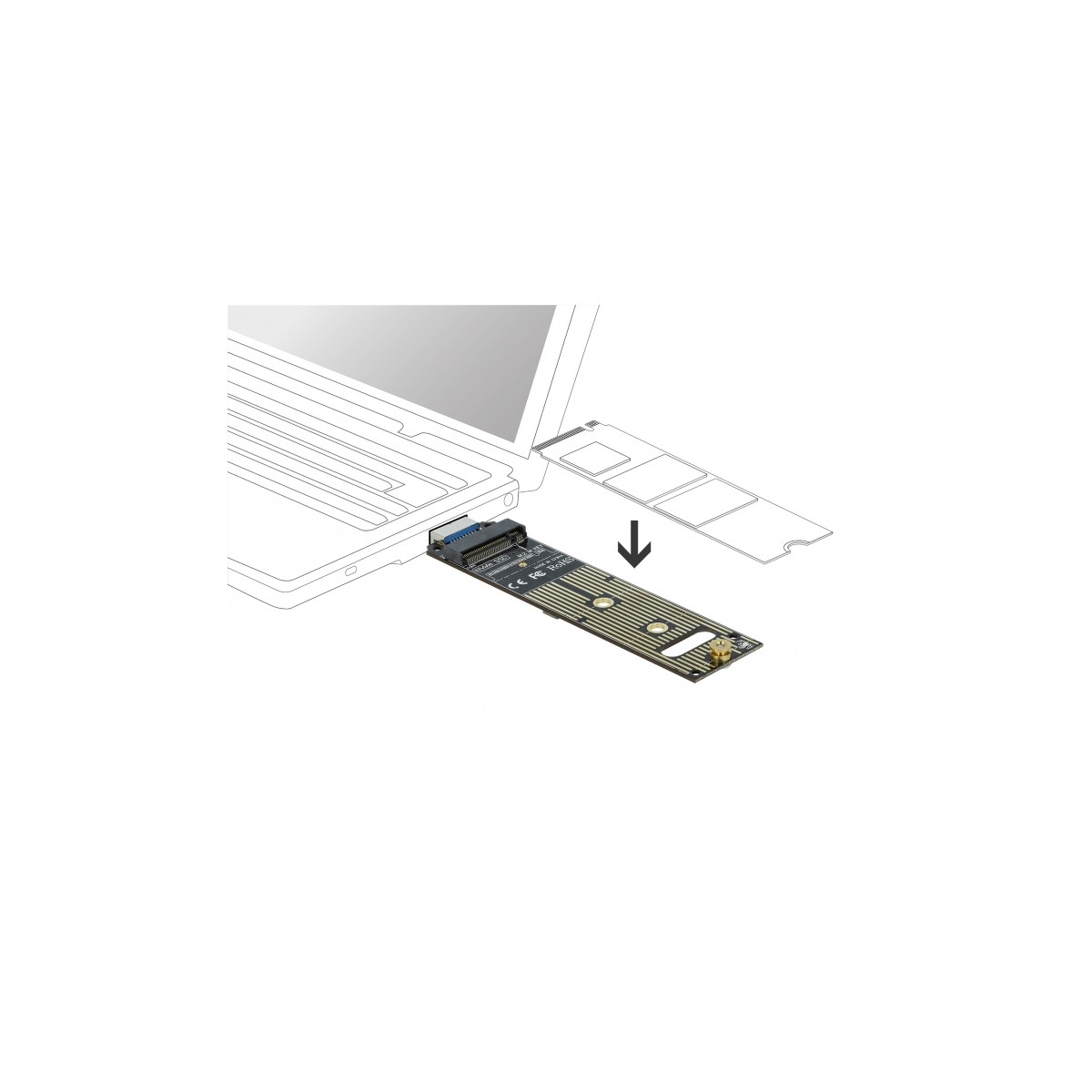

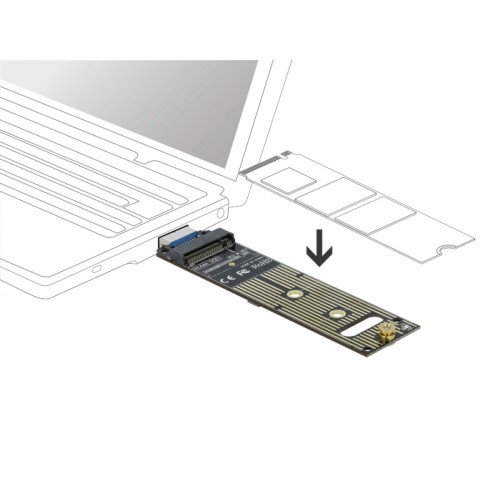

This converter by Delock enables the installation of an M.2 PCIe NVMe SSD in 2280, 2260 and 2242 format, it can be connected via USB to the PC or laptop.

Ideal test equipment
Due to the USB-A connector and the direct installation of the SSD on the board, without enclosure, the Delock converter is most suitable as test equipment.

Please Note
There is no support for SATA M.2 SSD.

Specification
• Connectors:
1 x SuperSpeed USB 10 Gbps (USB 3.1 Gen 2) Type-A male
1 x 67 pin M.2 key M slot
• Chipset: JMicron JMS583
• Supports M.2 modules in format 2280, 2260 and 2242 with key M or
key B+M based on PCIe (NVMe)
• Maximum height of the components on the module: 1.5 mm,
application of double-sided assembled modules supported
• Supports NVM Express (NVMe)
• Data transfer rate up to 10 Gbps
• LED indicator for power and access
• Bootable
• Dimensions (LxWxH): ca. 110 x 22 x 6 mm
• Plug & Play

System requirements
• Chrome OS 71.0 or above
• Linux Kernel 4.9.4 or above
• Mac OS 10.14 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64
• PC or laptop with a free USB Type-A port

Package content
• M.2 converter
• Mounting material

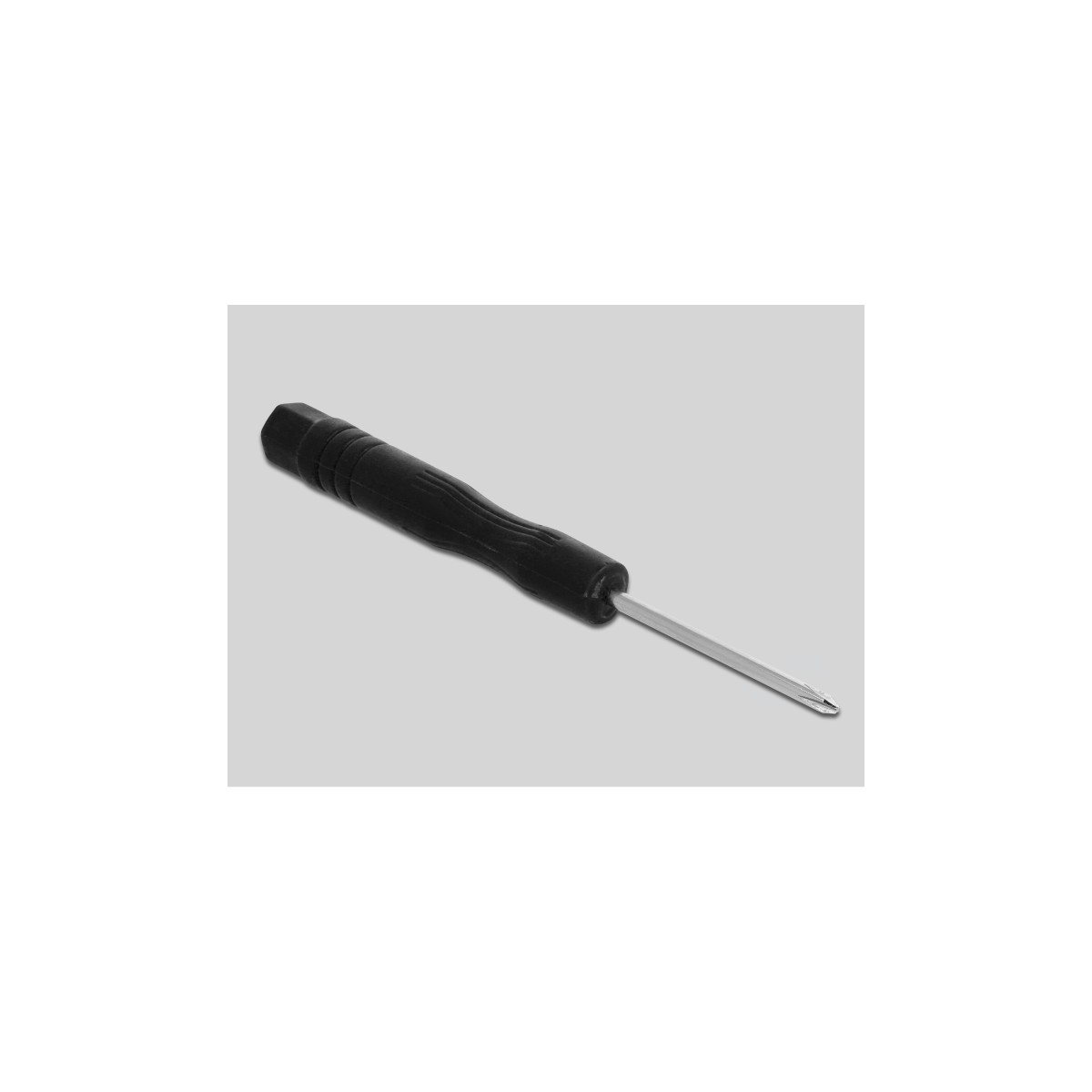

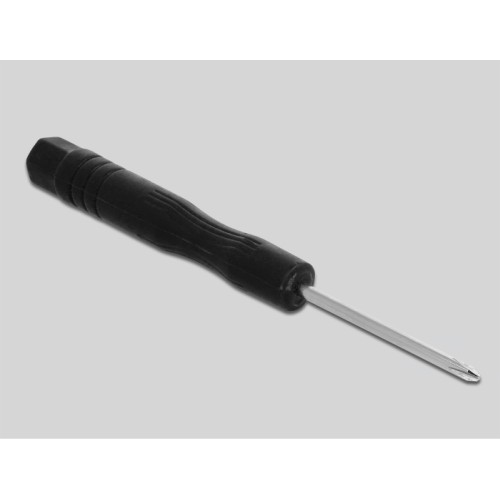

• Screwdriver
• User manual
