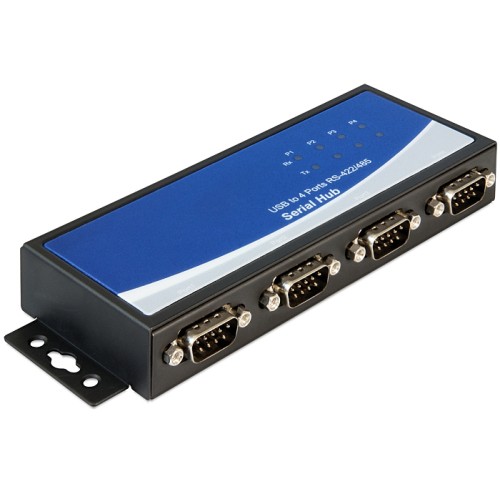

Delock USB 2.0 Adapter to 4 x Serial RS-422/485

Description
This adapter by Delock enables the connection of up to four serial devices via a USB Type-A port.

Specification
• Connectors:
1 x USB 2.0 Type-B female >

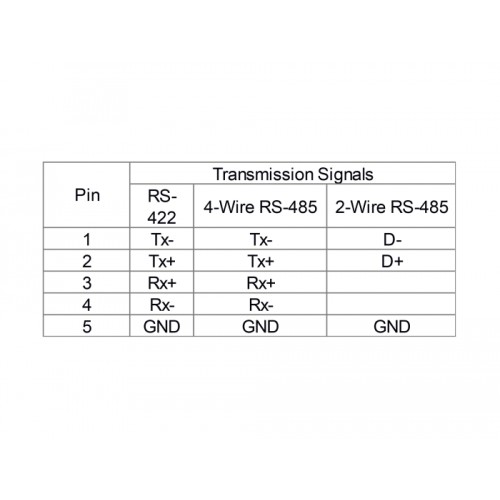

4 x serial RS-422/485 DB9 male
1 x 5 V DC jack
• Chipset: FT4232HL, SP3078EE

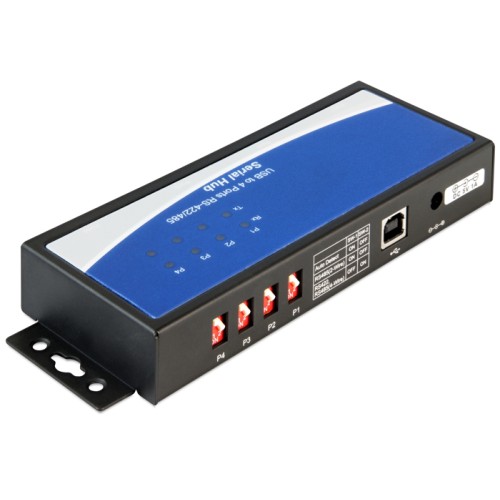

• 4 x DIP switch: RS-422/485 operation setting
• Internal pin header: jumper switch terminator on / off
• Serial connector with nuts
• Data transfer rate up to 1 Mbps
• LED for indication of TxD / RxD activity
• Automatical recognition and switching between RS-422 and RS-485
• ±15 kV ESD protection on all signal pins
• Wall mounting integrated in the housing
• Current consumption:
operation: ≤ 143 mA / 715 mW
standby: ca. 92 mA / 460 mW
• Additional I/O and IRQ are not required
• DC jack for optional power supply
• Operating temperature: 0 °C ~ 70 °C
• Dimensions (LxWxH): ca. 172 x 65 x 23 mm

Specification of power connector
• 5 V, ground outside, plus inside
• Dimensions:
inside: ø ca. 2.1 mm
outside: ø ca. 5.5 mm
length: ca. 9.5 mm

System requirements
• Linux Kernel 2.6 or above
• Windows Server 2012/Server 2012 R2/Server 2016
• Windows Vista/Vista-64/7/7-64/8.1/8.1-64/10/10-64/11
• PC or laptop with a free USB Type-A port

Package content
• USB 2.0 to 4 x serial RS-422/485 adapter
• USB 2.0 cable
• 8 x jumper
• Driver CD
• User manual
