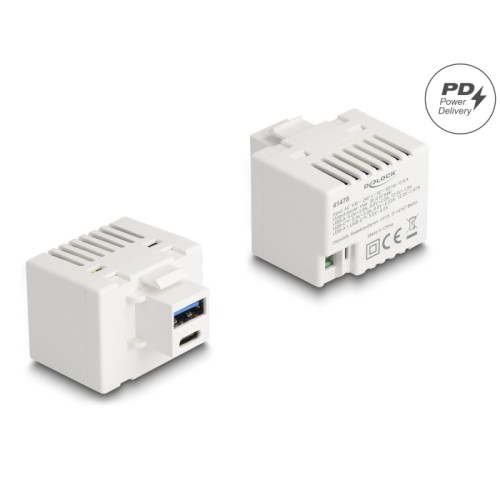

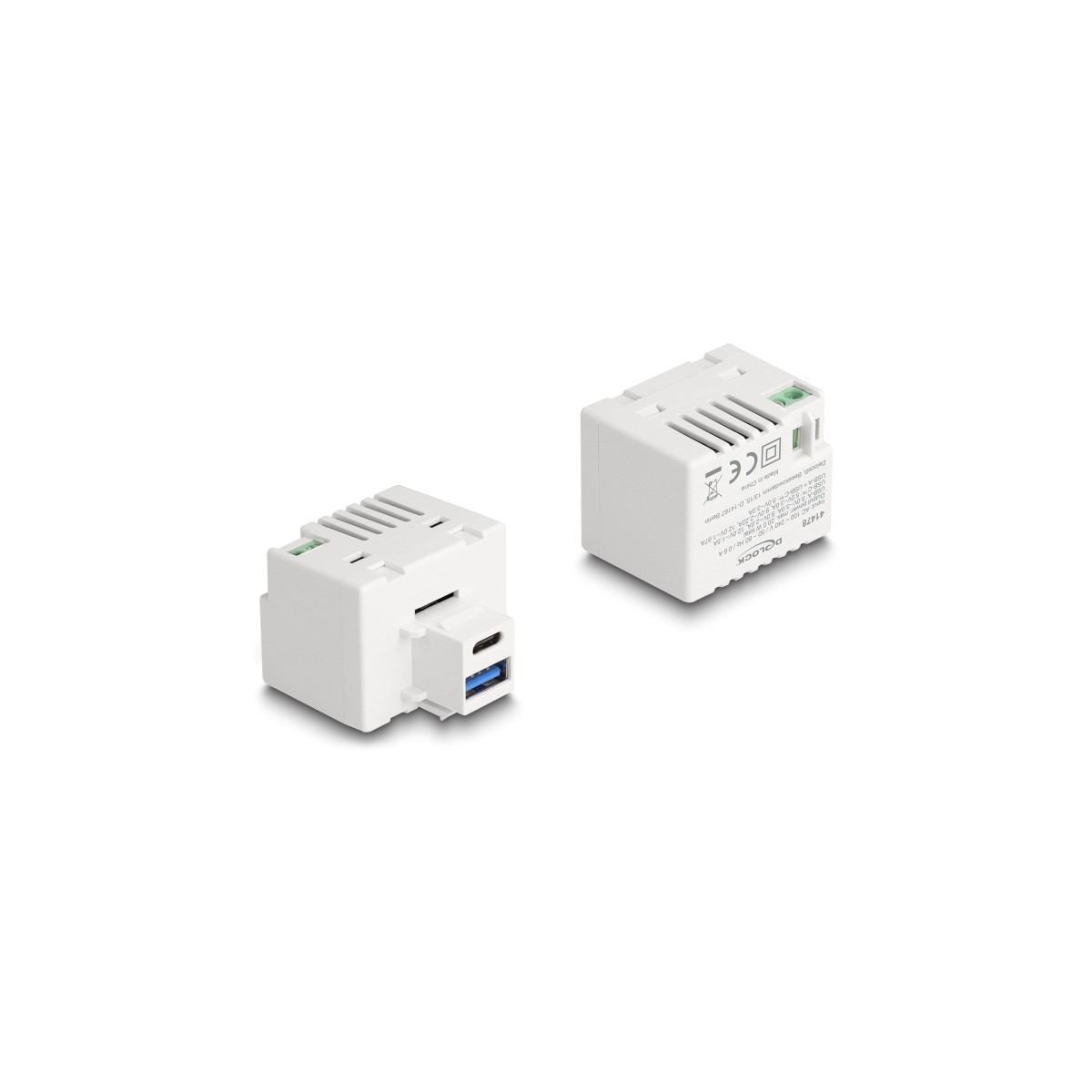

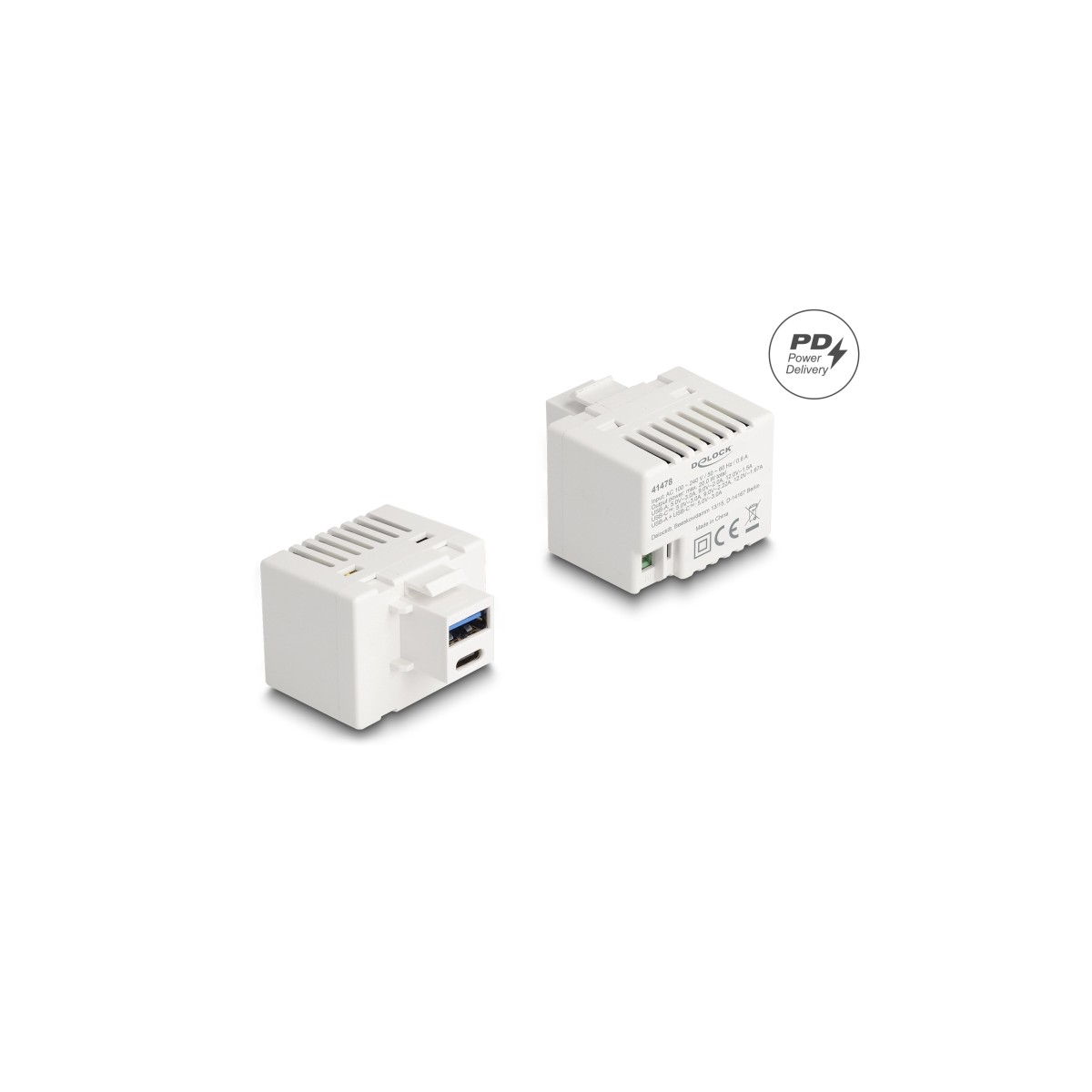

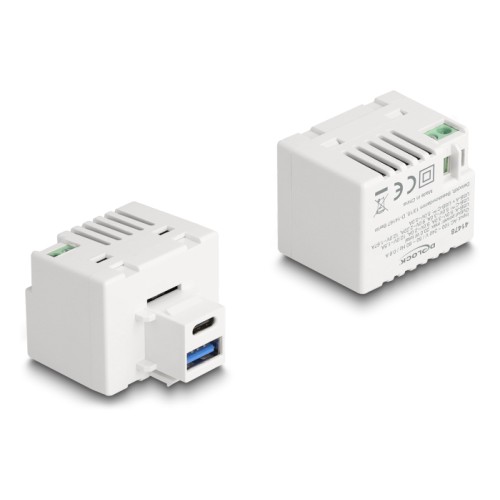

Delock Keystone Module with USB Type-A and USB Type-C™ Charging Port PD 20 W white
41478
Nuovo
Description
This module by Delock provides a USB Type-A and a USB Type-C™ Power Delivery (PD) charging port. The USB charging ports supports common fast charging protocols. Connected devices can be charged with up to 20 W. With its standardised dimensions it can be used for easy snap-in mounting in e.g. a Keystone patch panel, face plate or surface-mount box.
Specification
• Connectors:
1 x USB Type-C™ female
1 x USB Type-A female
1 x 2 pin terminal block
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.6 A
• Output power: max. 20.0 W total
USB-A: 5.0 V / 3.0 A, 9.0 V / 2.0 A, 12.0 V / 1.5 A
USB-C™: 5.0 V / 3.0 A, 9.0 V / 2.22 A, 12.0 V / 1.67 A
USB-A + USB-C™: 5.0 V / 3.0 A
• Average active efficiency 86.8 %
• Efficiency at low load (10 %) 75.1 %
• No-load power consumption 0.1 W
• Short circuit protection
• For Keystone ports with 19.2 x 14.9 mm
• Colour: white
• Dimensions (LxWxH): ca. 44.7 x 41.2 x 32.5 mm
System requirements
Package content
• Keystone module
• User manual
This module by Delock provides a USB Type-A and a USB Type-C™ Power Delivery (PD) charging port. The USB charging ports supports common fast charging protocols. Connected devices can be charged with up to 20 W. With its standardised dimensions it can be used for easy snap-in mounting in e.g. a Keystone patch panel, face plate or surface-mount box.
Specification
• Connectors:
1 x USB Type-C™ female
1 x USB Type-A female
1 x 2 pin terminal block
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.6 A
• Output power: max. 20.0 W total
USB-A: 5.0 V / 3.0 A, 9.0 V / 2.0 A, 12.0 V / 1.5 A
USB-C™: 5.0 V / 3.0 A, 9.0 V / 2.22 A, 12.0 V / 1.67 A
USB-A + USB-C™: 5.0 V / 3.0 A
• Average active efficiency 86.8 %
• Efficiency at low load (10 %) 75.1 %
• No-load power consumption 0.1 W
• Short circuit protection
• For Keystone ports with 19.2 x 14.9 mm
• Colour: white
• Dimensions (LxWxH): ca. 44.7 x 41.2 x 32.5 mm
System requirements
Package content
• Keystone module
• User manual
