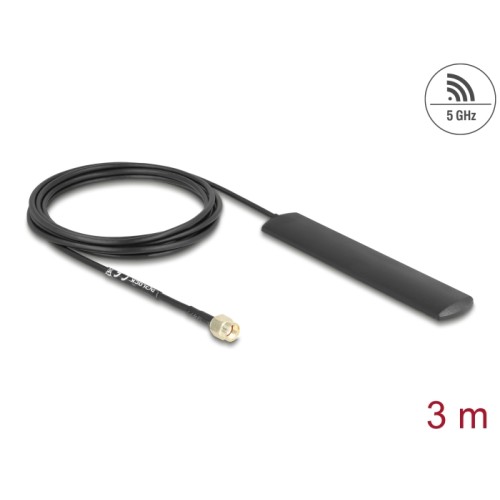

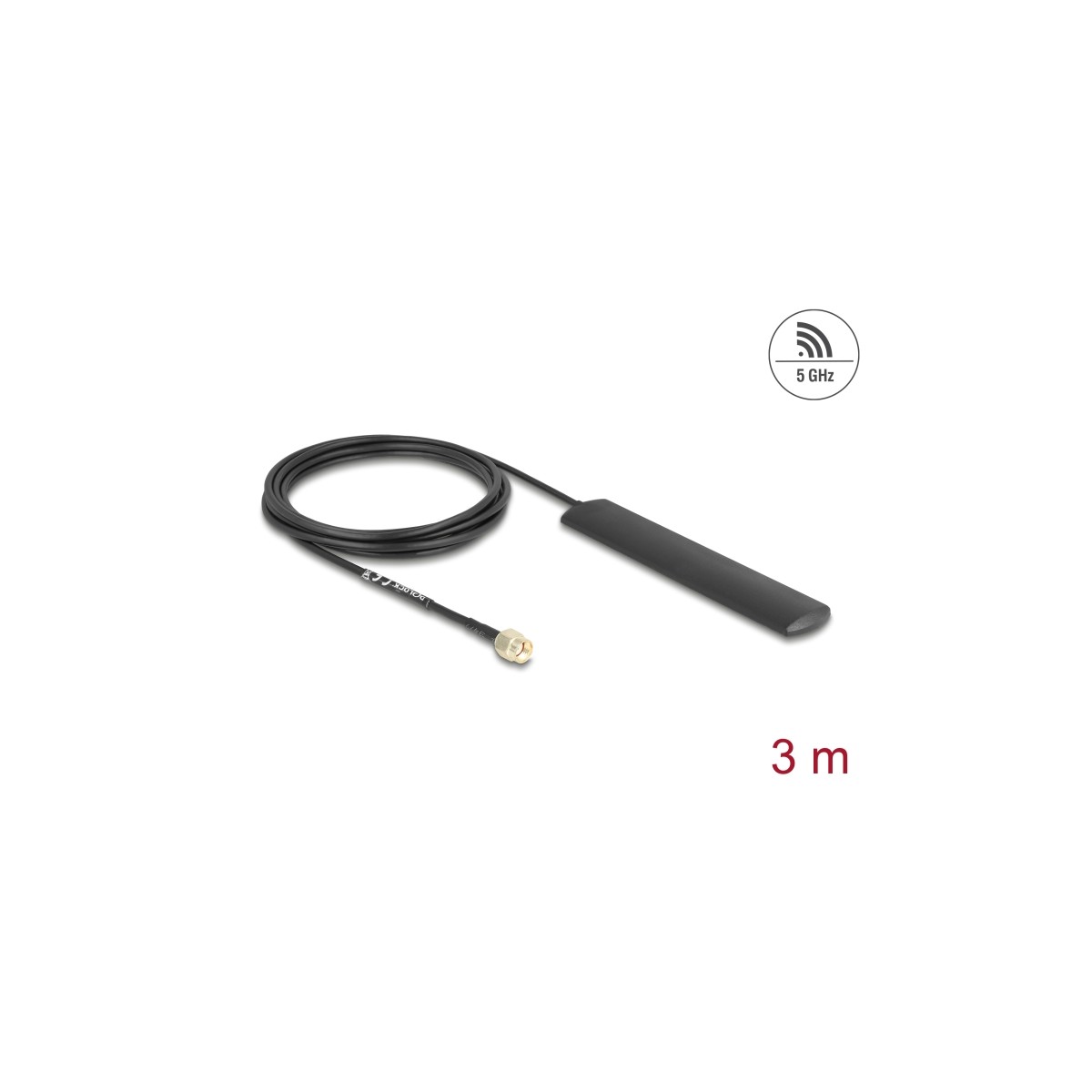

Delock WiFi 5.8 GHz Antenna RP-SMA plug 3 dBi omnidirectional with connection cable RG-174 3 m black self-adhesive
10035
Description
This WiFi 5.8 GHz antenna by Delock allows the usage of WiFi frequency range 5.15 GHz to 5.85 GHz indoors.
Specification
• Connector: 1 x RP-SMA plug
• Frequency range: 5.15 GHz - 5.85 GHz
• Antenna gain: 3 dBi
• Impedance: 50 Ohm
• VSWR: 1.5:1
• Cable type: RG-174
• Cable attenuation: 0.9 dB @ 800 MHz per meter
• Cable colour: black
• Cable length: ca. 3 m
• Polarisation: linear, vertical
• Operating temperature: -40 °C ~ 70 °C
• Housing material: ABS
• Colour: black
• Dimensions (LxWxH): ca. 115 x 22 x 5 mm
System requirements
• Device with a free RP-SMA jack
Package content
• Antenna
This WiFi 5.8 GHz antenna by Delock allows the usage of WiFi frequency range 5.15 GHz to 5.85 GHz indoors.
Specification
• Connector: 1 x RP-SMA plug
• Frequency range: 5.15 GHz - 5.85 GHz
• Antenna gain: 3 dBi
• Impedance: 50 Ohm
• VSWR: 1.5:1
• Cable type: RG-174
• Cable attenuation: 0.9 dB @ 800 MHz per meter
• Cable colour: black
• Cable length: ca. 3 m
• Polarisation: linear, vertical
• Operating temperature: -40 °C ~ 70 °C
• Housing material: ABS
• Colour: black
• Dimensions (LxWxH): ca. 115 x 22 x 5 mm
System requirements
• Device with a free RP-SMA jack
Package content
• Antenna
4043619100354
