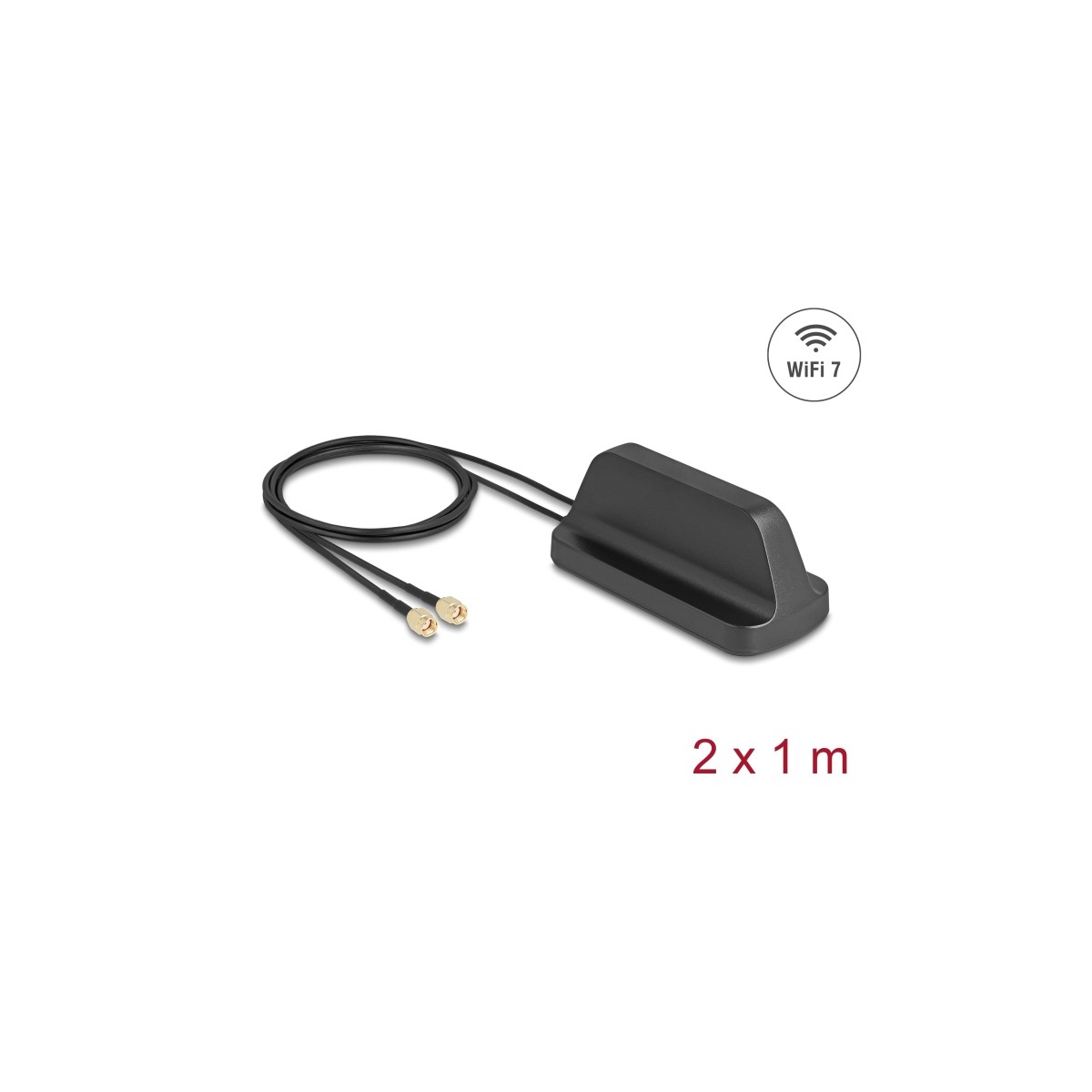

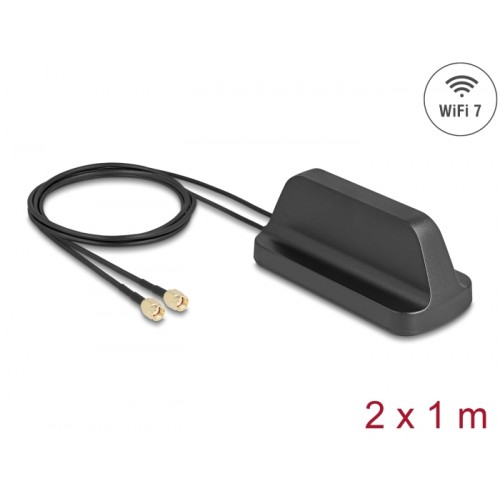

Delock WiFi 7 Antenna 2 x RP-SMA plug 2.4 - 4.0 dBi omnidirectional with magnetic base and connection cable ULA100 1 m outdoor b

Description
This WLAN antenna by Delock allows the usage of different WLAN bands inside and outside.

WiFi 7
WiFi 7, IEEE 802.11be, is the latest wireless standard and offers significant improvements over previous generations. It is characterised by higher speeds, lower latency and improved stability, especially in environments with many connected devices. WiFi 7 utilises the 6 GHz band for more capacity and introduces new technologies such as Multi-Link Operation (MLO) and 4K QAM. It is backwards compatible and also supports the 2.4 GHz and 5 GHz bands.

Specification
• Connector: 2 x RP-SMA plug
• Frequency range:
2400 - 2500 MHz
5150 - 7125 MHz
• Antenna gain: 2.4 - 4.0 dBi
• Polarisation: linear, vertical
• VSWR: 2.0 - 2.5
• Cable type: ULA100
• Cable attenuation: 1 dB @ 1500 MHz per meter
• Cable colour: black
• Cable length: ca. 1 m
• Impedance: 50 Ohm
• Housing material: PC
• Protection class: IP67
• Housing colour: black
• Operating temperature: -40 °C ~ 85 °C
• Dimensions (LxWxH): ca. 126.8 x 56.8 x 52.0 mm

System requirements
• Device with free RP-SMA connectors

Package content
• WLAN antenna
