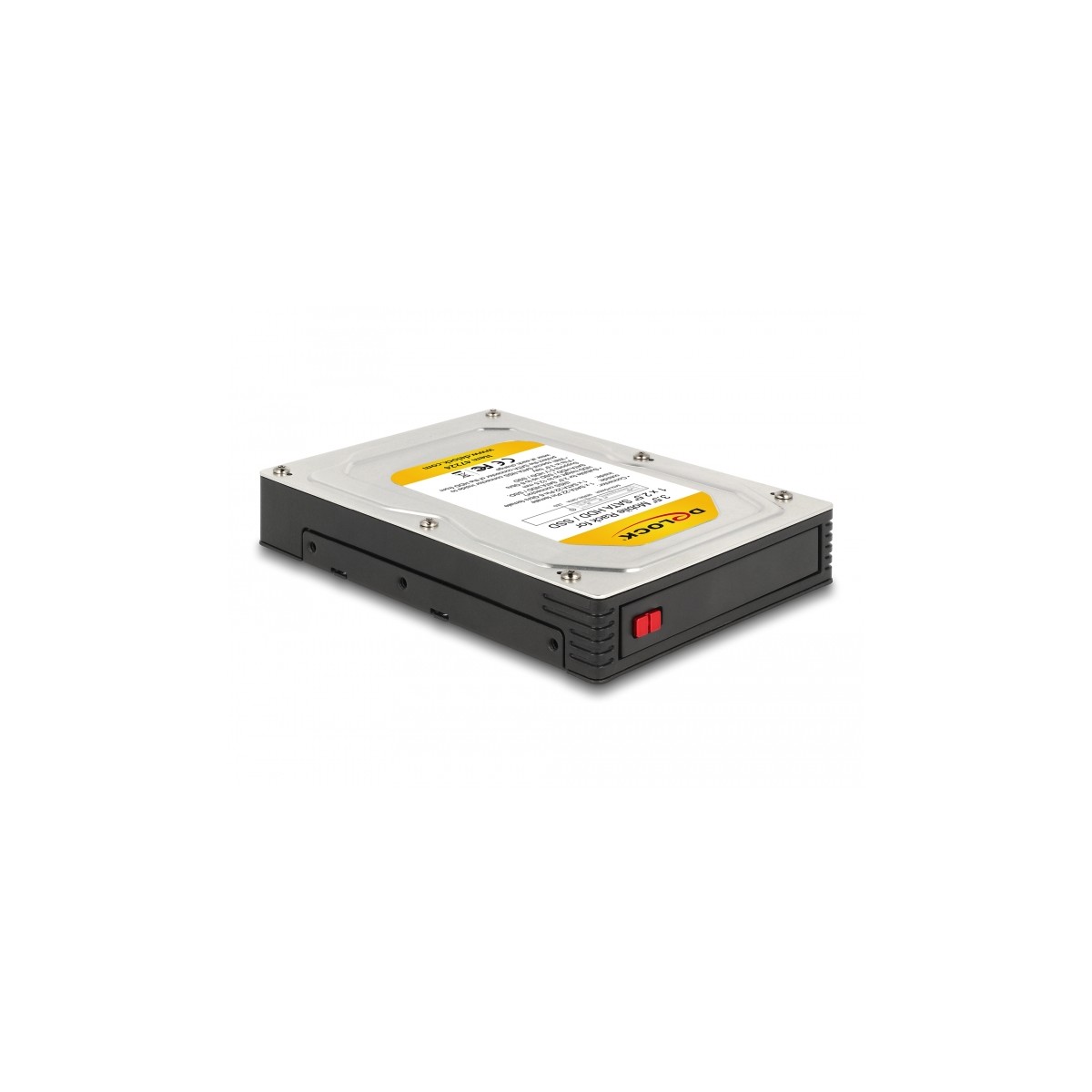

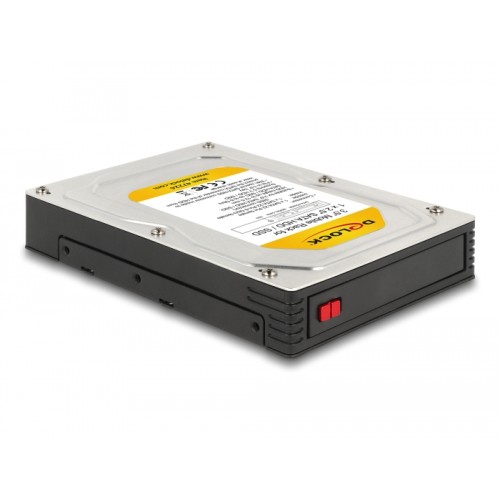

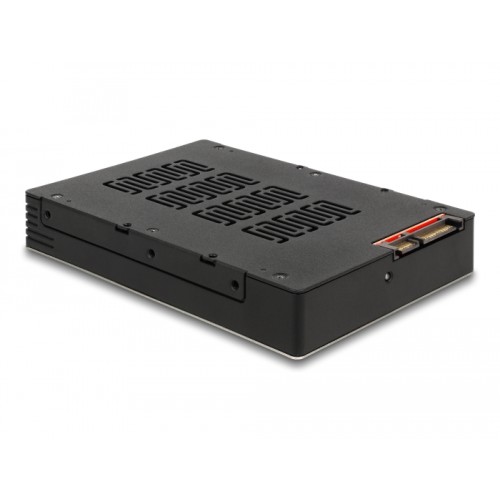

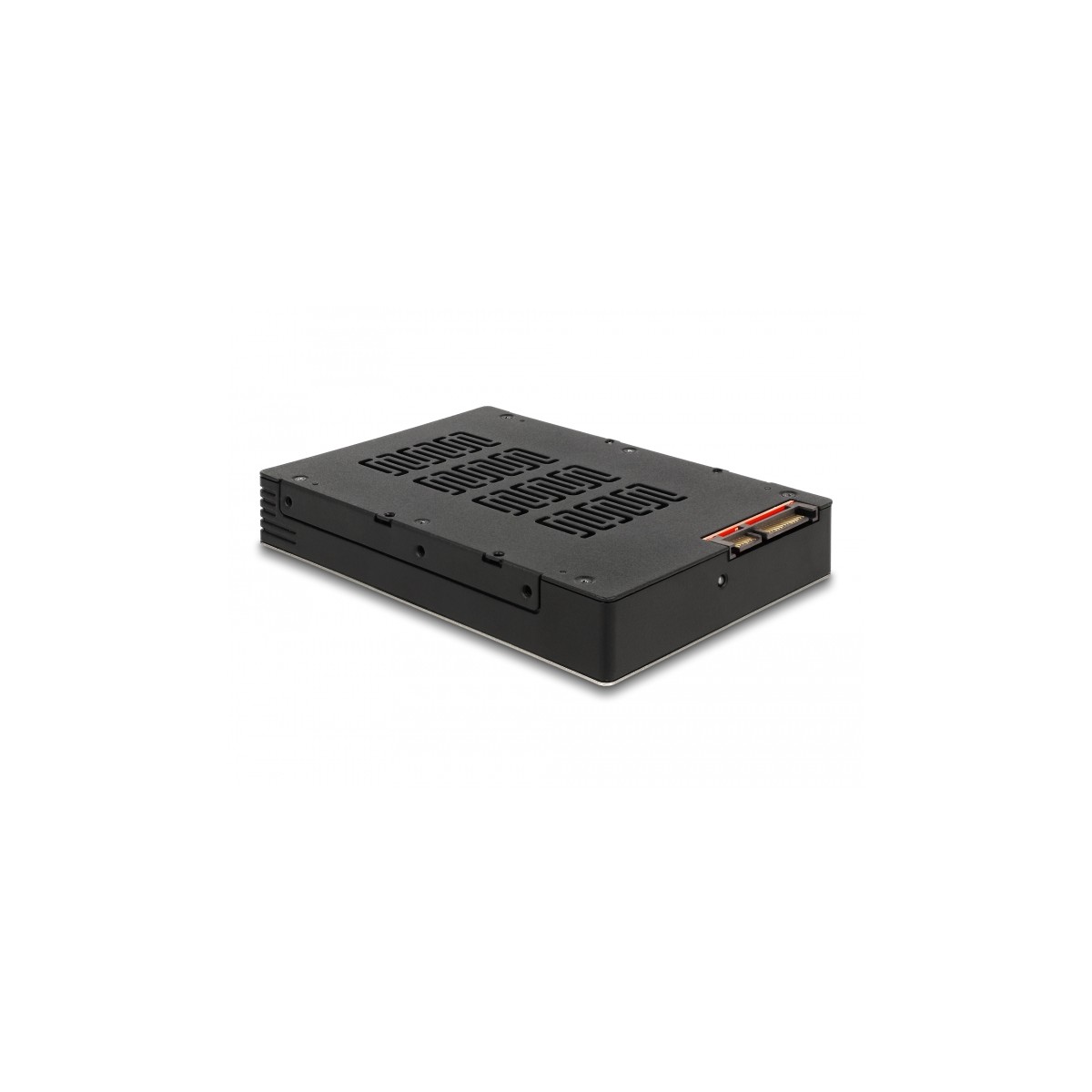

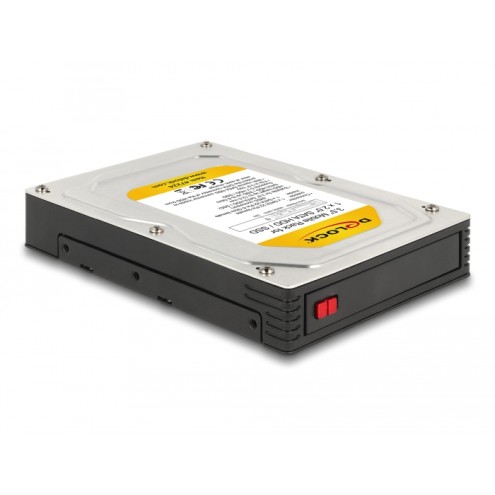

Delock 3.5″ Mobile Rack for 1 x 2.5″ SATA HDD / SSD

Description
This Delock Mobile Rack is designed for external or internal connection of a 2.5″ SATA HDD. Insert the HDD directly into the frame and connect it either externally to a Power Over eSATA port with the help of an optional cable, or internally to SATA. The dimension of the frame complies to a standard 3.5″ HDD. Thus you can install the frame into a 3.5″ slot as well as into a 5.25″ mobile rack.

Specification
• Connectors:
  outside: 1 x SATA 22 pin plug
  inside: 1 x SATA 22 pin receptacle (NSS connector)
• Suitable for 2.5″ SATA HDD / SSD:
  HDD height up to 12.5 mm
  SATA HDD / SSD up to 6 Gb/s
  supports 5 V HDD / SSD
• Data transfer rate up to 6 Gb/s
• Possible applications:

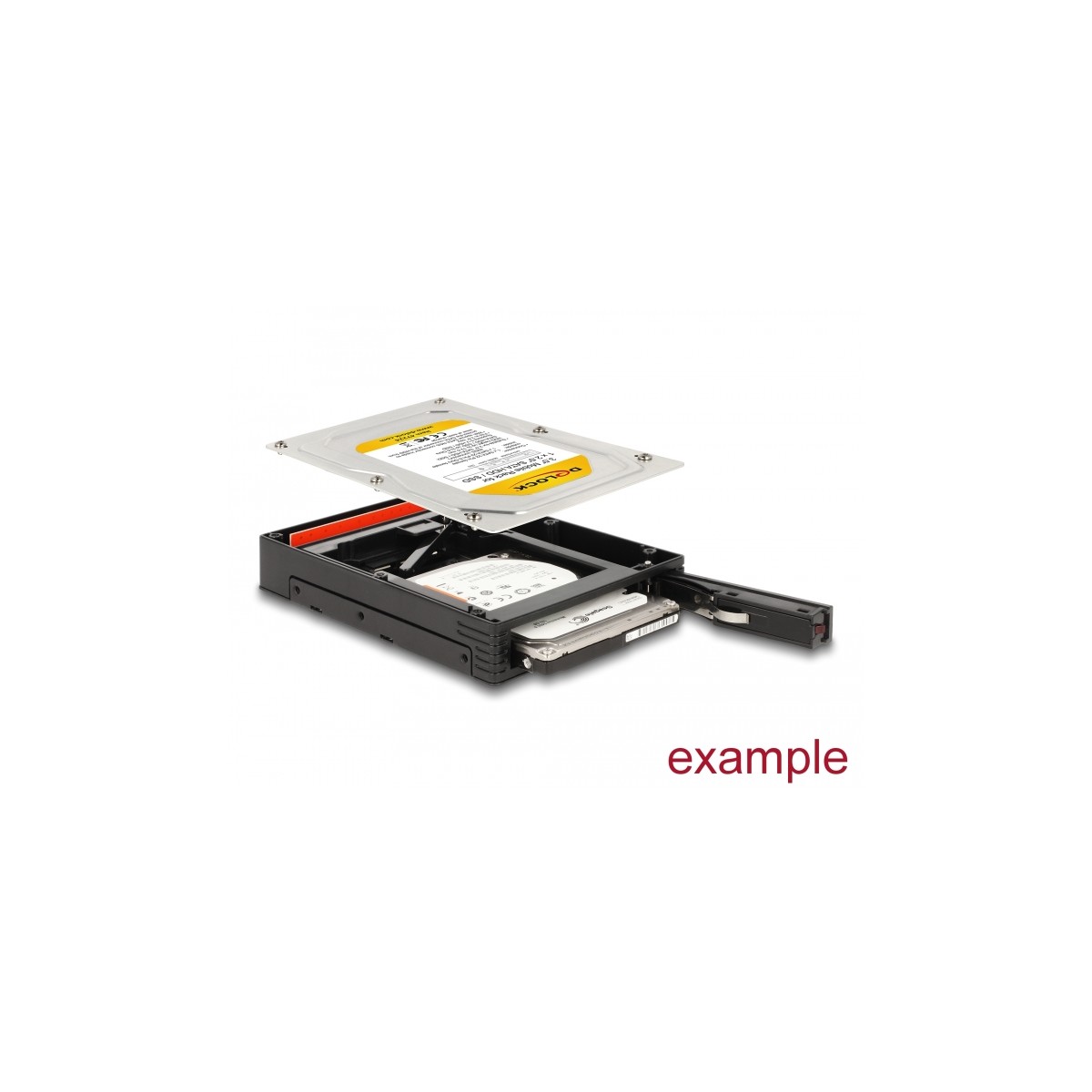

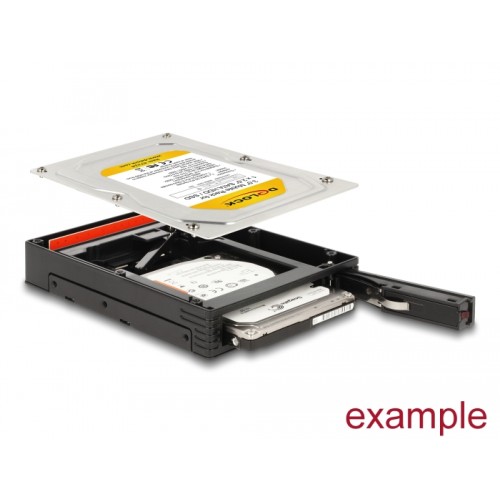

  1. internally in a 3.5″ bay
  2. inside a 5.25″ mobile rack

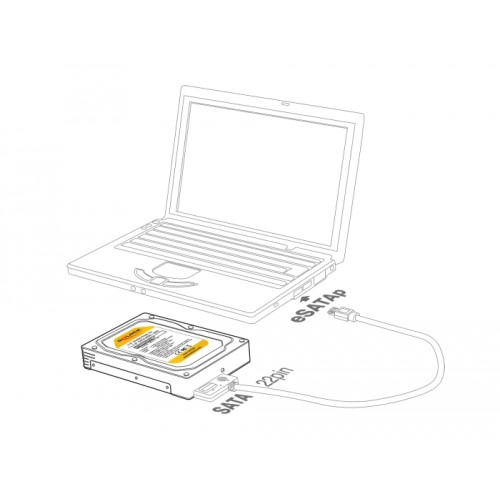

  3. externally over eSATAp (cable optional)
• Hot Swap
• With special SATA NSS connector inside to protect the SATA connector of the HDD from
  wear at each change
• Optional HDD fan (mounting holes on the bottom side of mobile rack)
• OS independent, no driver installation necessary

System requirements
• For external using:
  PC or laptop with a free Power Over eSATA port (optional eSATAp cable item 84397 /
  84396 / 84432)
• For internal using:
  1 SATA data cable
  PC with a free SATA port
  Power supply with a free SATA power connector

Package content
• Mobile Rack
• 1 x 2.5″ hard drive protective film
• Screws
• User manual

Package
• Retail Box
