Description

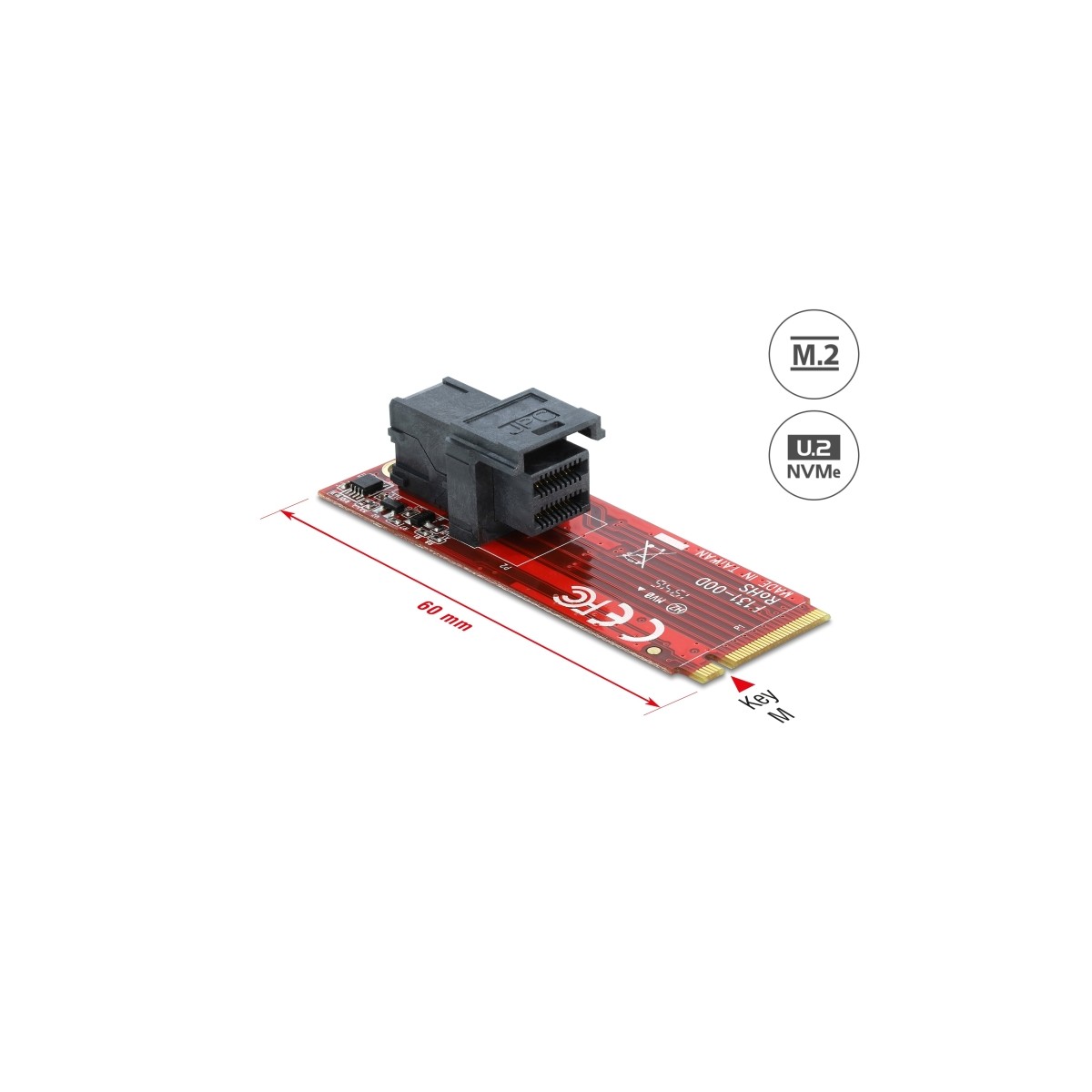

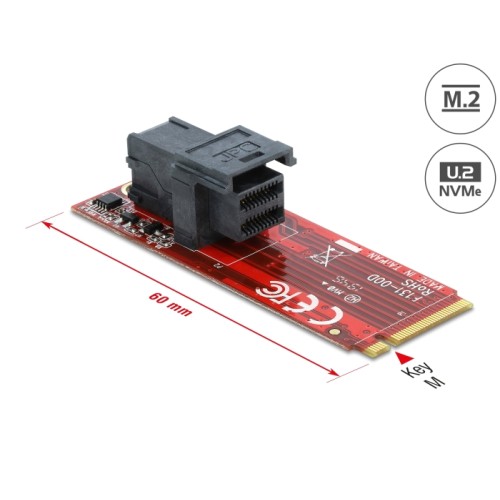

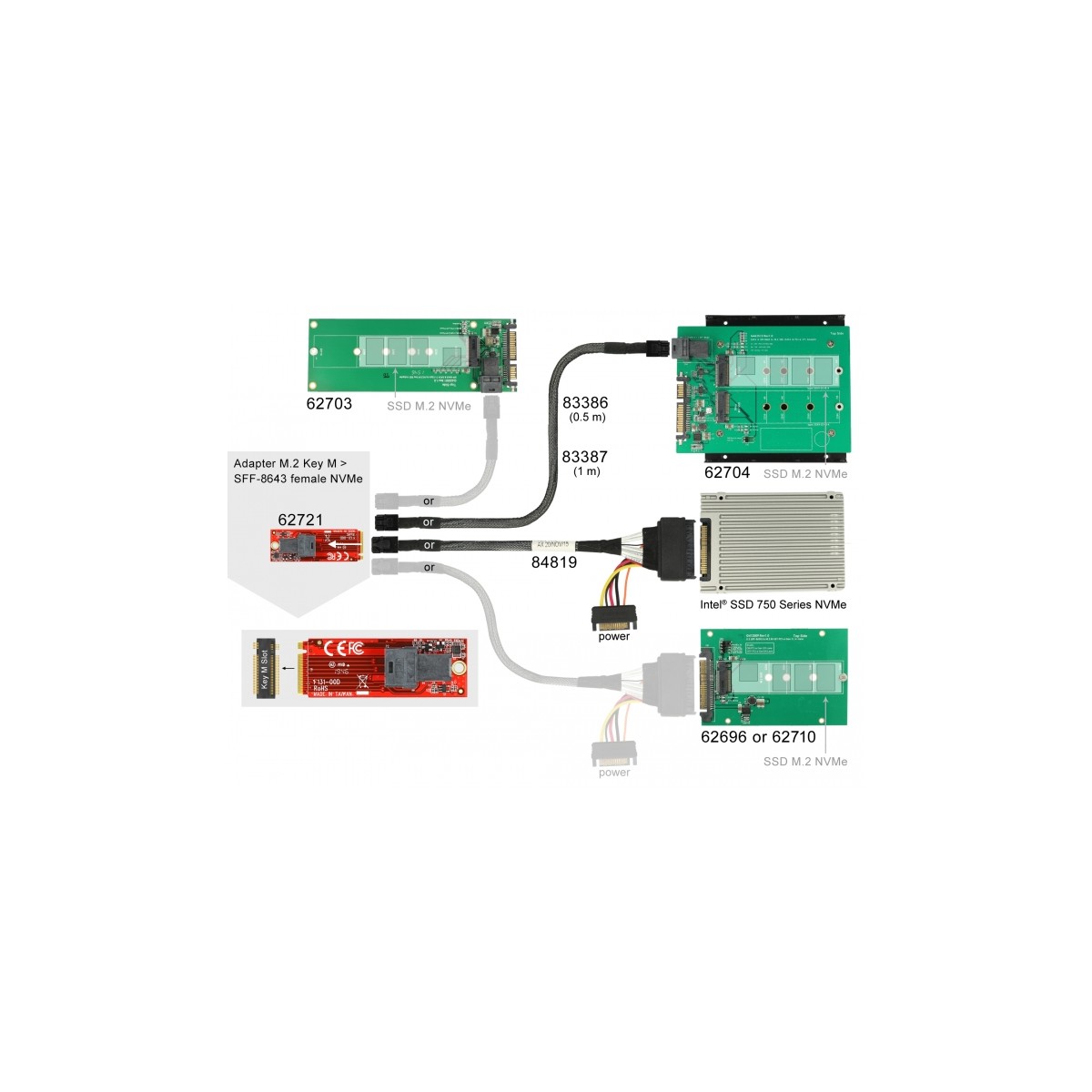

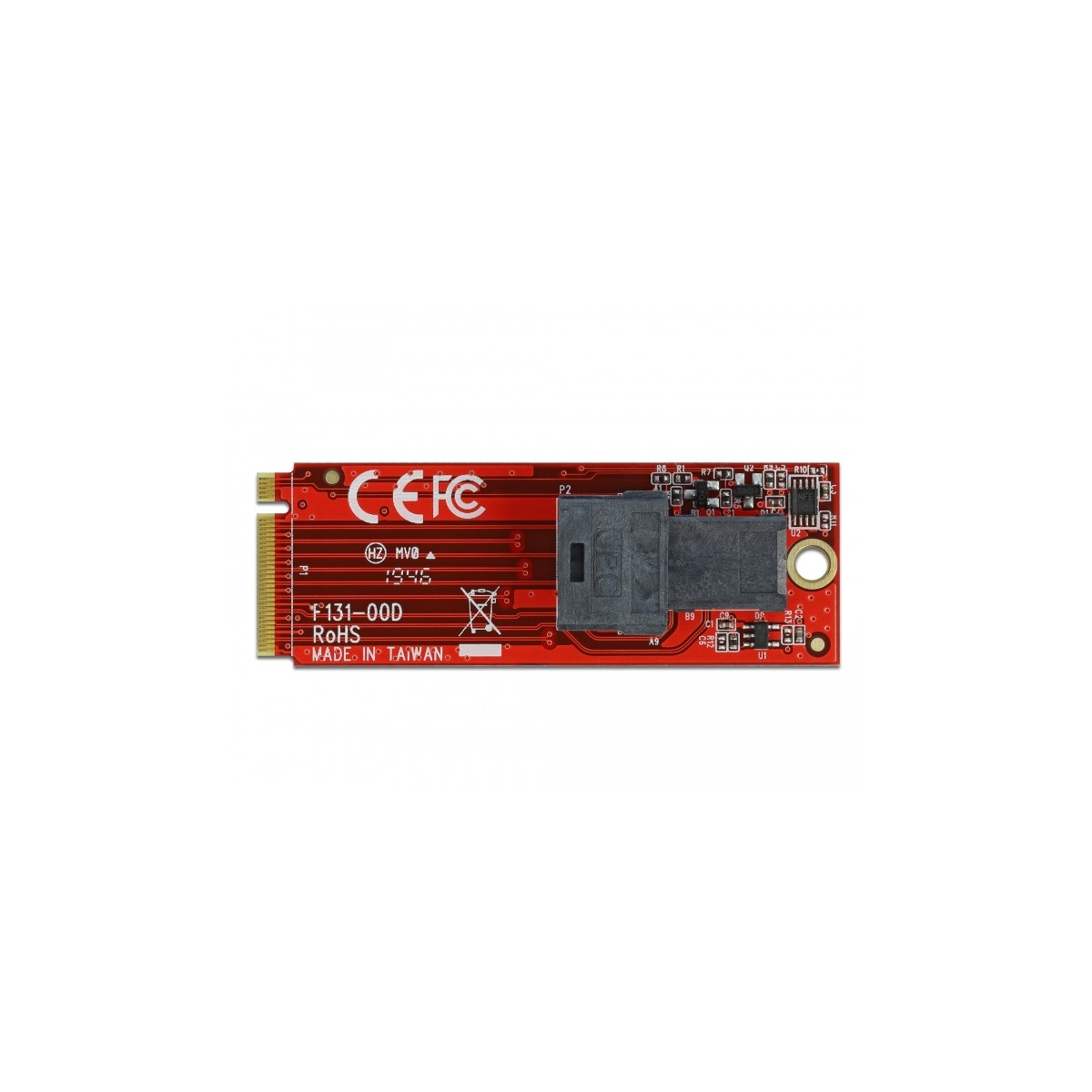

This Delock adapter enables the connection of a NVMe memory e.g. U.2 SSD via the SFF-8643 interface to a M.2 slot.
Specification

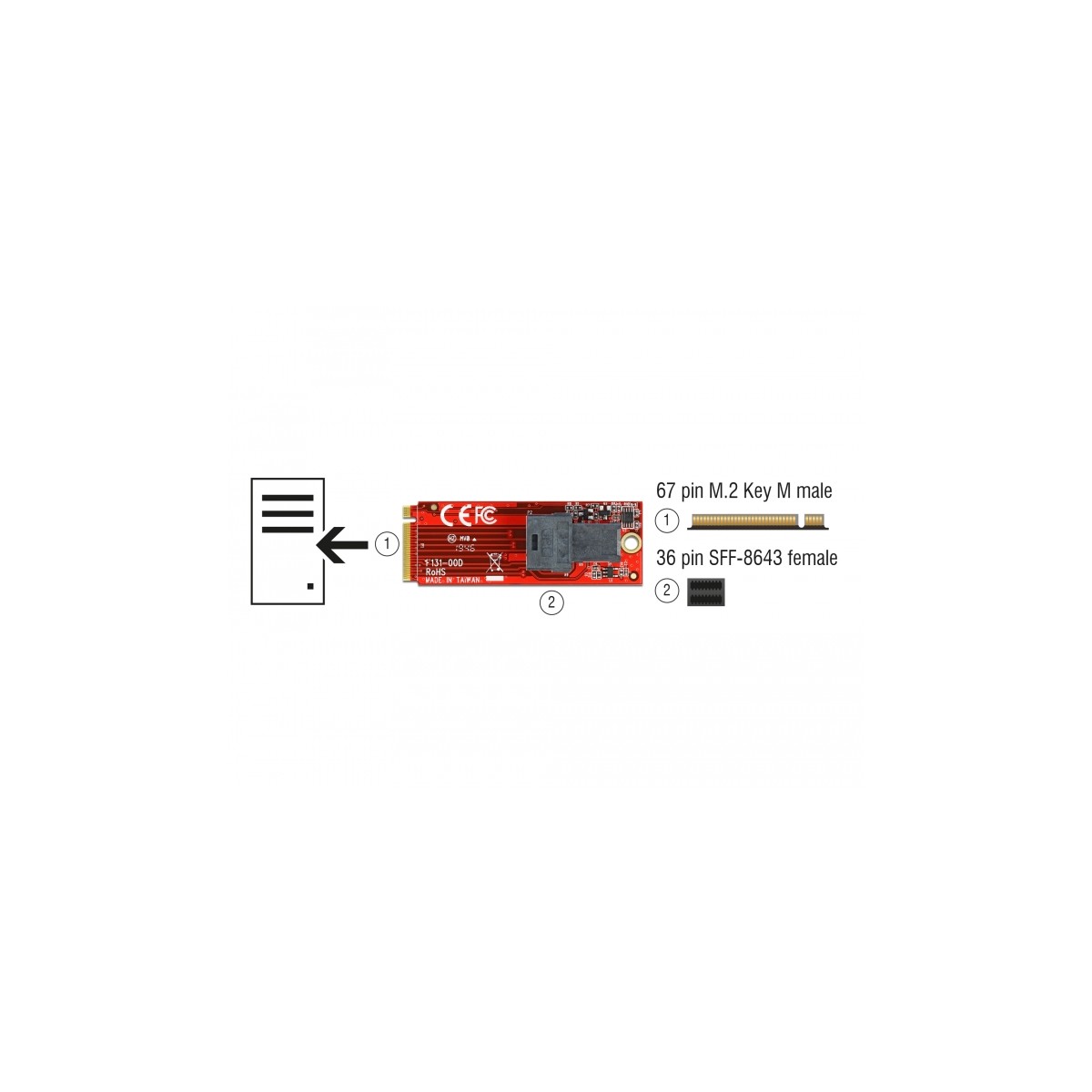

• Connector:
1 x 67 pin M.2 Key M male
1 x 36 pin SFF-8643 female
• Interface: PCIe (2 or 4 lanes)
• Form factor: M.2 2260
• Suitable for M.2 slot with key M based on PCIe
• Compatible to PCI Express V3.0
• Data transfer rate up to 12 Gbps
• Supports NVM Express (NVMe)
• Operating temperature: -10 °C ~ 85 °C
System requirements
• Windows 7/7-64/8.1/8.1-64/10/10-64
• A free M.2 interface with key M
Package content
• Adapter M.2 > SFF-8643
• User manual
Package
• Retail Box
