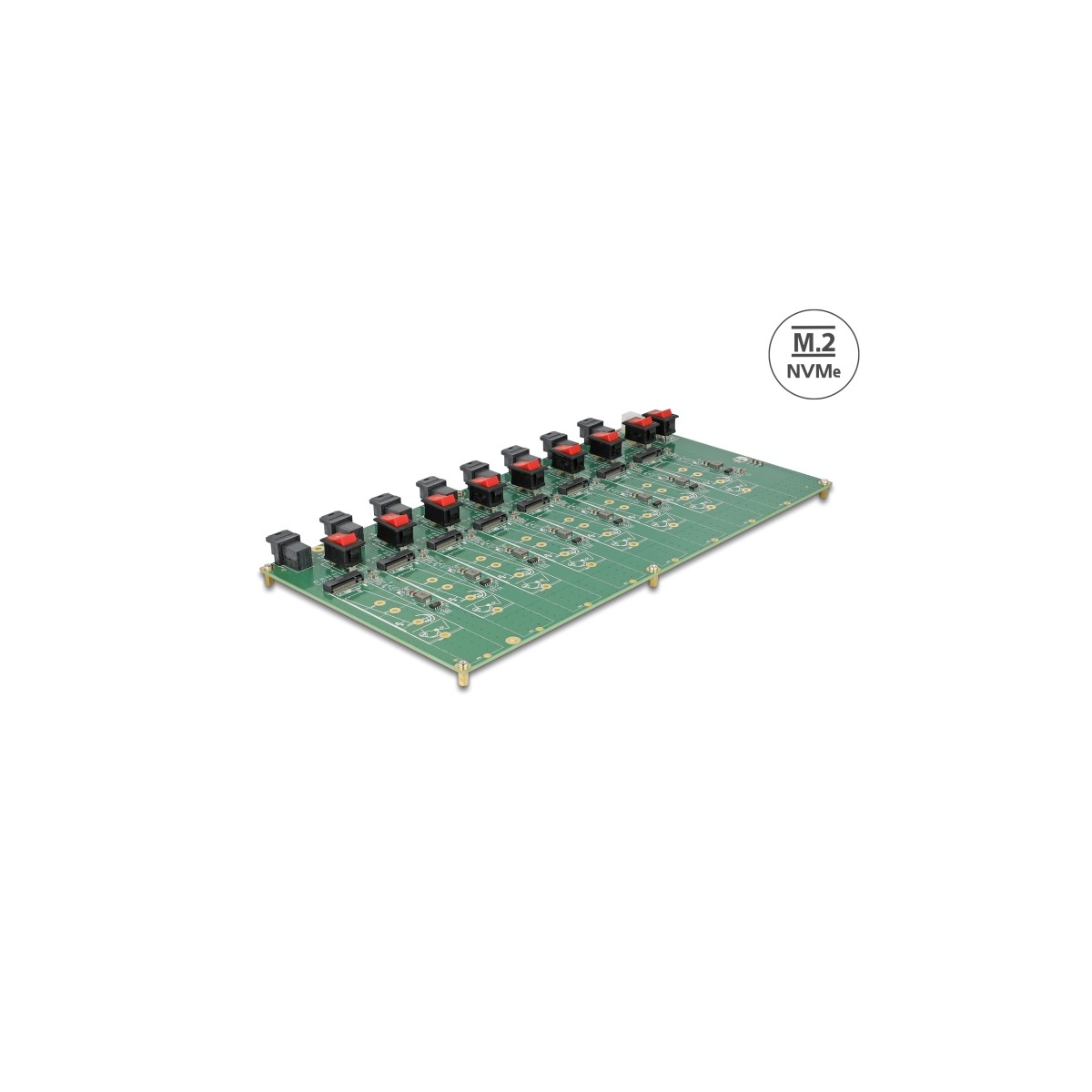

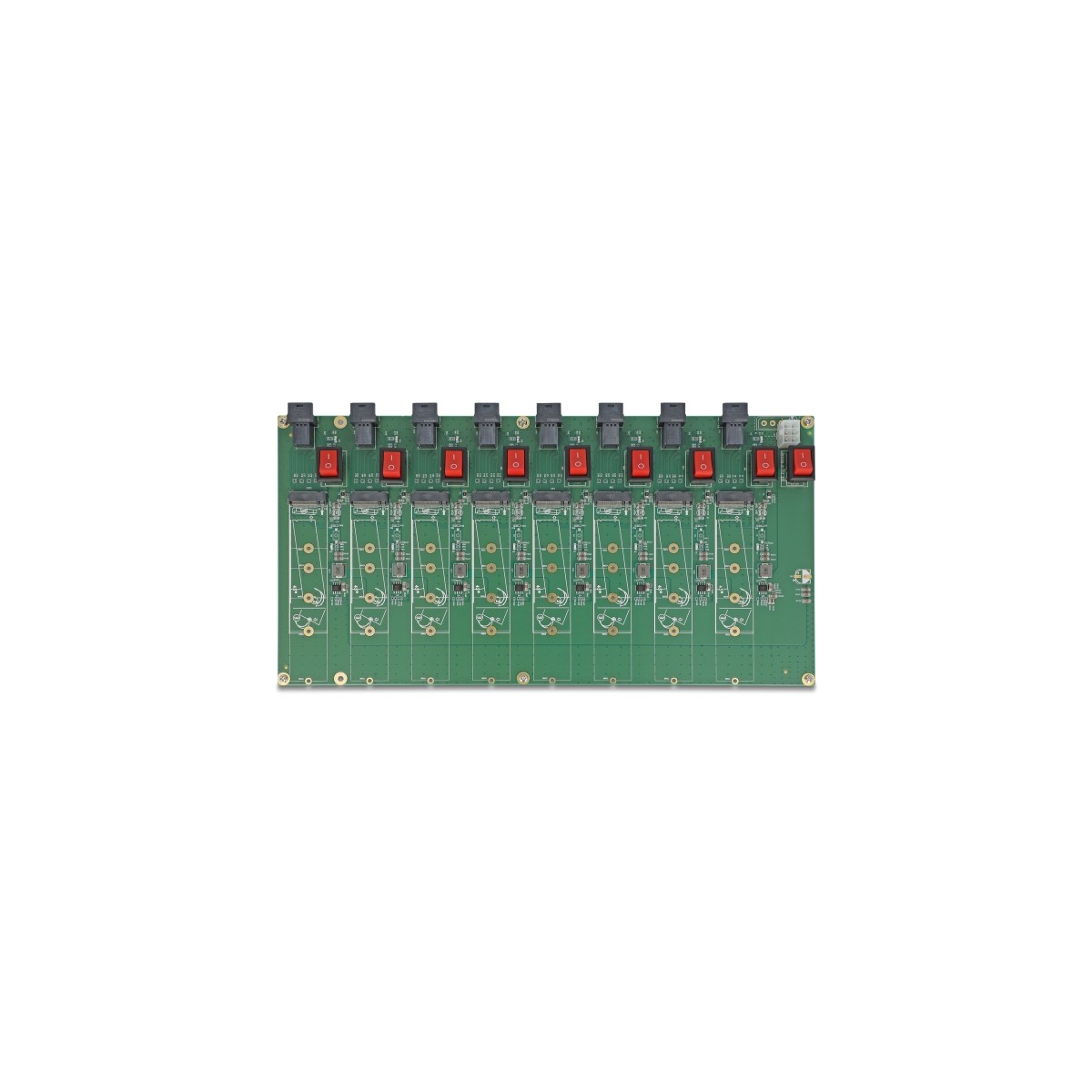

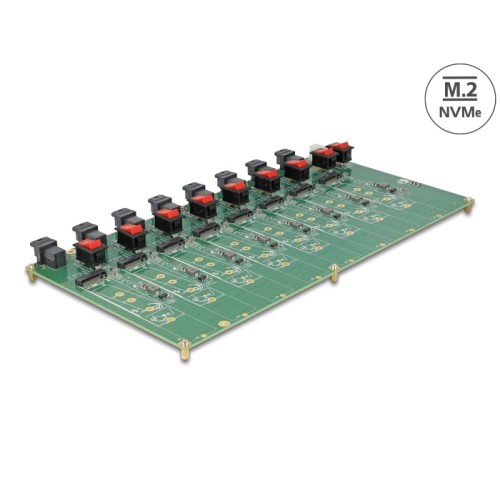

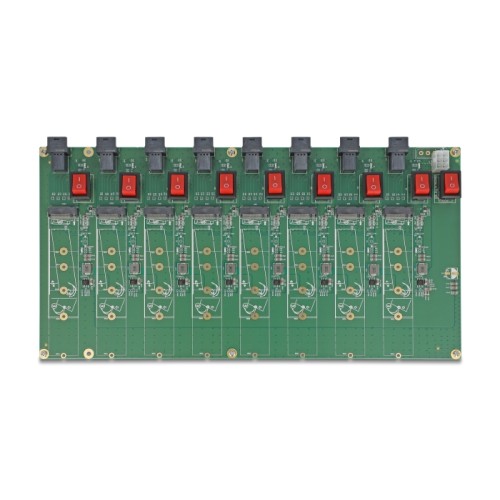

Delock M.2 Test Board for 8 x M.2 NVMe Key M SSD with SFF-8643 connector

Description

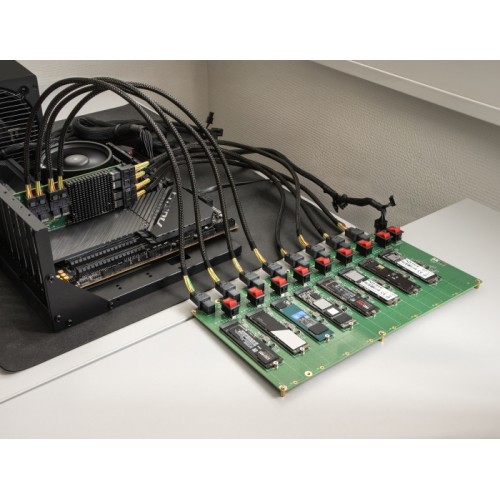

This Delock test board enables the connection of NVMe M.2 SSDs via the SFF-8643 interface. This high-quality test board allows to test and monitor up to eight NVMe SSDs simultaneously, making it ideal for developers, technicians and IT professionals.

Perfect test tool
With this test card, the performance and reliability of NVMe SSDs can be evaluated efficiently. The eight M.2 key M interfaces enable flexible test configurations, while the robust design ensures durability. Each M.2 slot has a separate power switch, allowing targeted testing of individual SSDs with ease. An indispensable tool for anyone working with NVMe SSDs.

Specification
• Connectors:

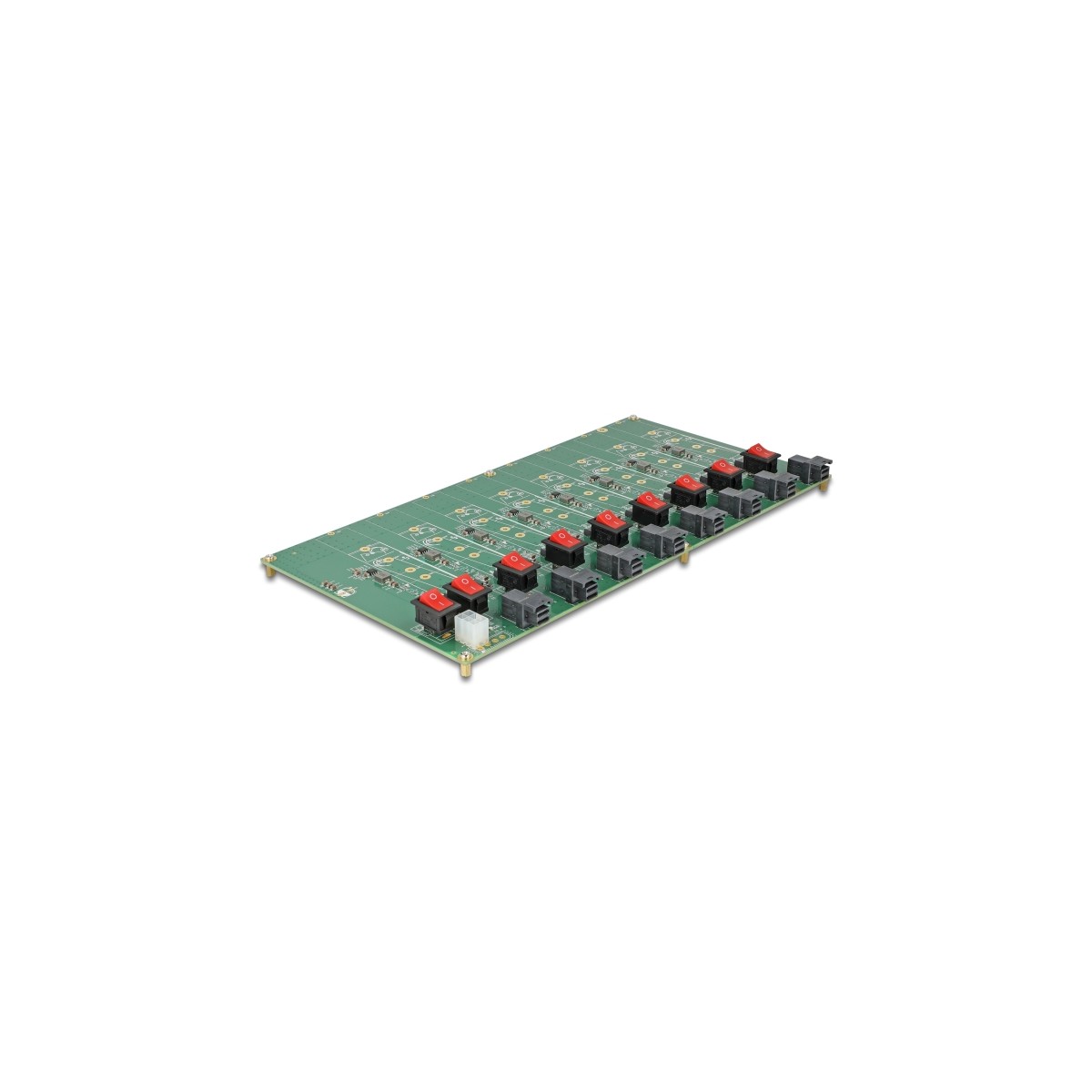

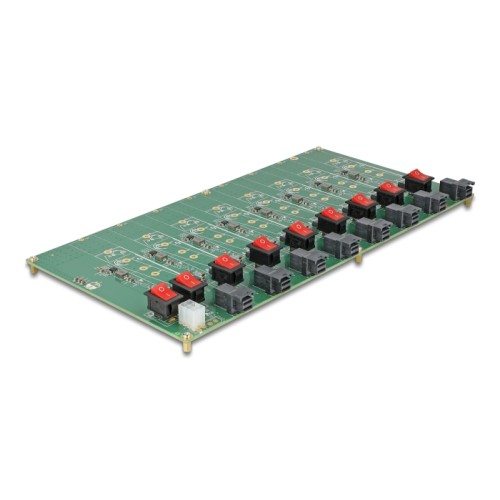

8 x SFF-8643 female
8 x M.2 key M slot
1 x 6 pin power connector
• Interface: PCIe Rev. 4.0
• Supports M.2 modules in format 22110, 2280, 2260, 2242 and 2230 with key M or key B+M based on PCIe
• Maximum height of the components on the module: 1.5 mm, application of double-sided assembled modules supported
• 8 x LED indicator
• 9 x On / Off switch
• Supports NVM Express (NVMe)
• Bootable, ex UEFI version 2.3.1
• Humidity: 0 ~ 90 %
• Operating temperature: 5 °C ~ 50 °C
• Storage temperature: -10 °C ~ 65 °C
• Dimensions (LxWxH): ca. 317 x 168 x 29 mm

System requirements


Package content
• M.2 test board

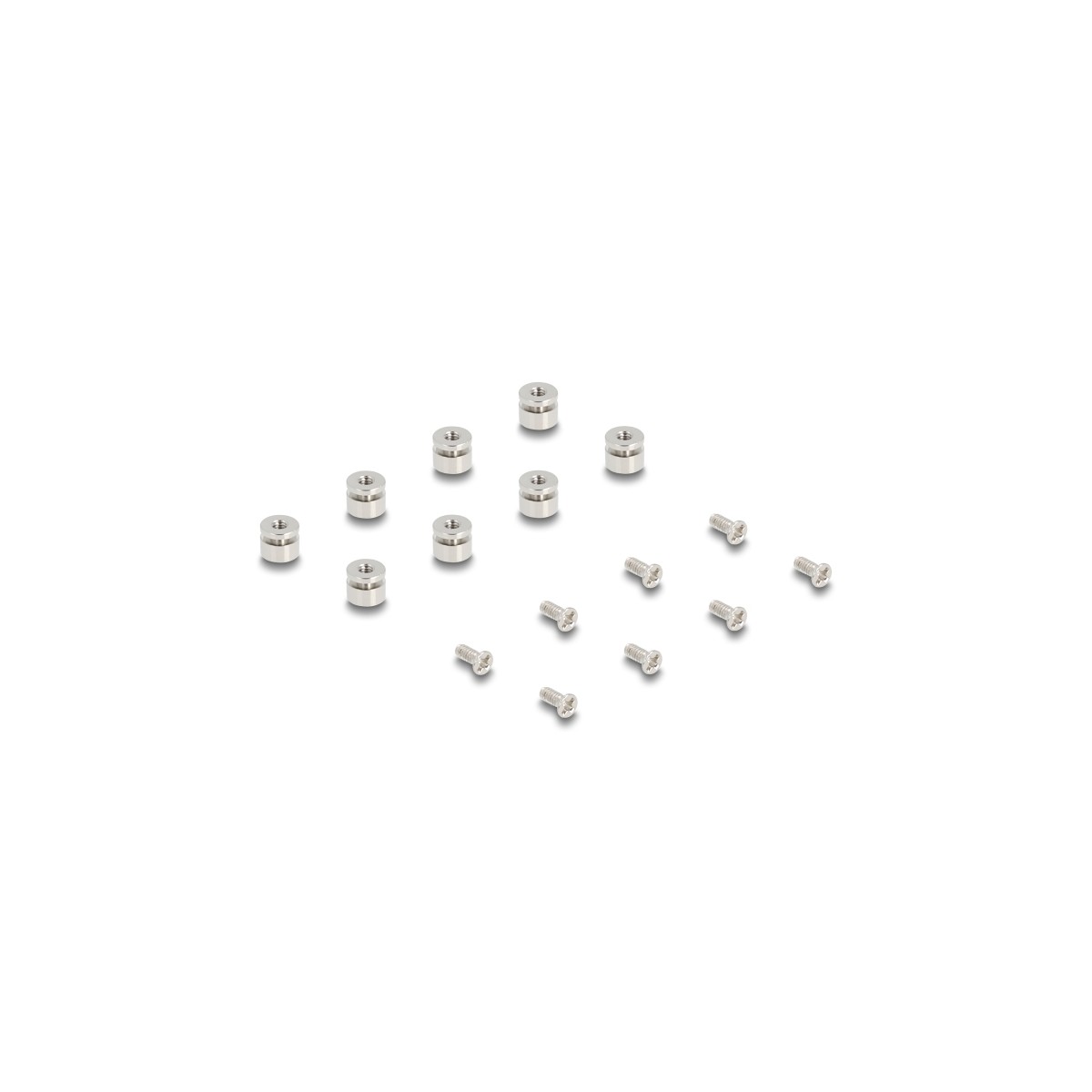

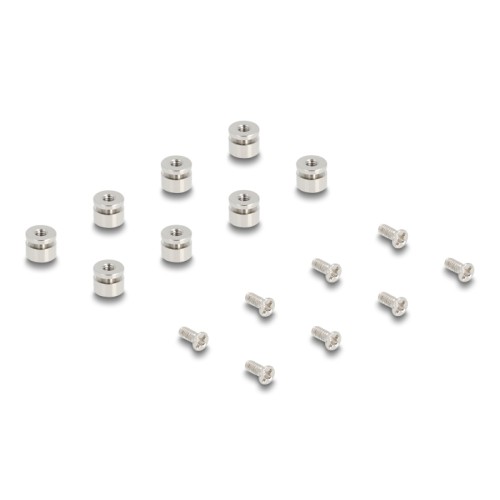

• 8 x M.2 mounting material
• User manual
