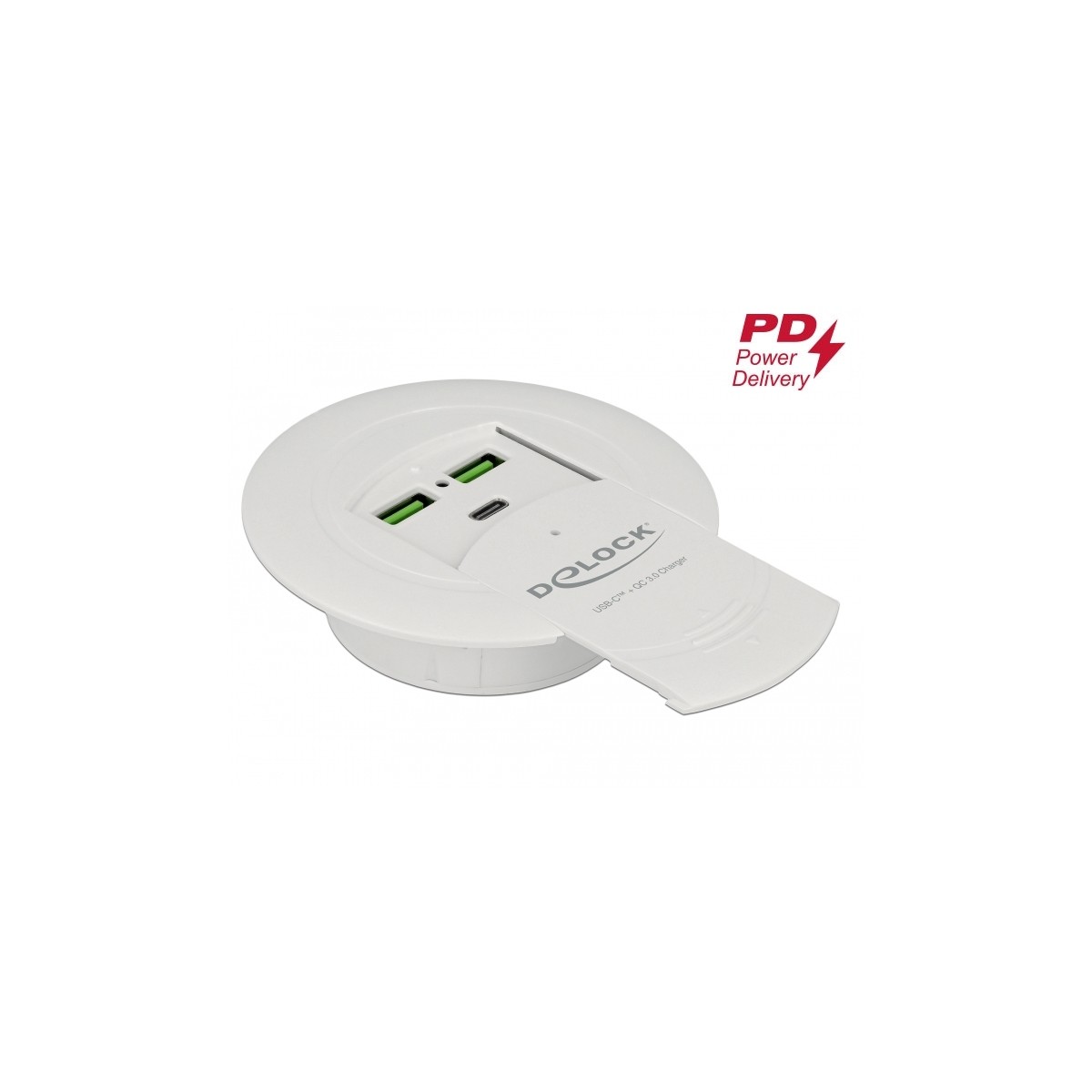

Delock USB Type-C™ Charger PD 85 W + Qualcomm Quick Charge 3.0 for table mounting

Description

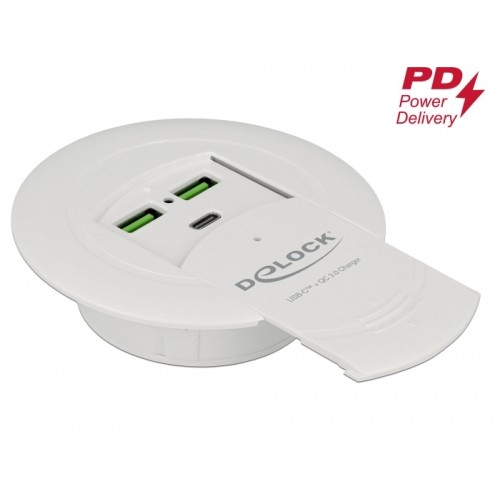

This USB Power Delivery (PD) charger by Delock can be used to charge laptops with USB Type-C™ connector. It provides various voltages from 5 V to 20 V and power up to 85 Watt. In addition, 2 USB Type-A connectors with Qualcomm Quick Charge 3.0 charging technology are available for smartphones.

Qualcomm Quick Charge 3.0
The charger supports fast charging of up to 18 W with appropriately equipped smartphones.

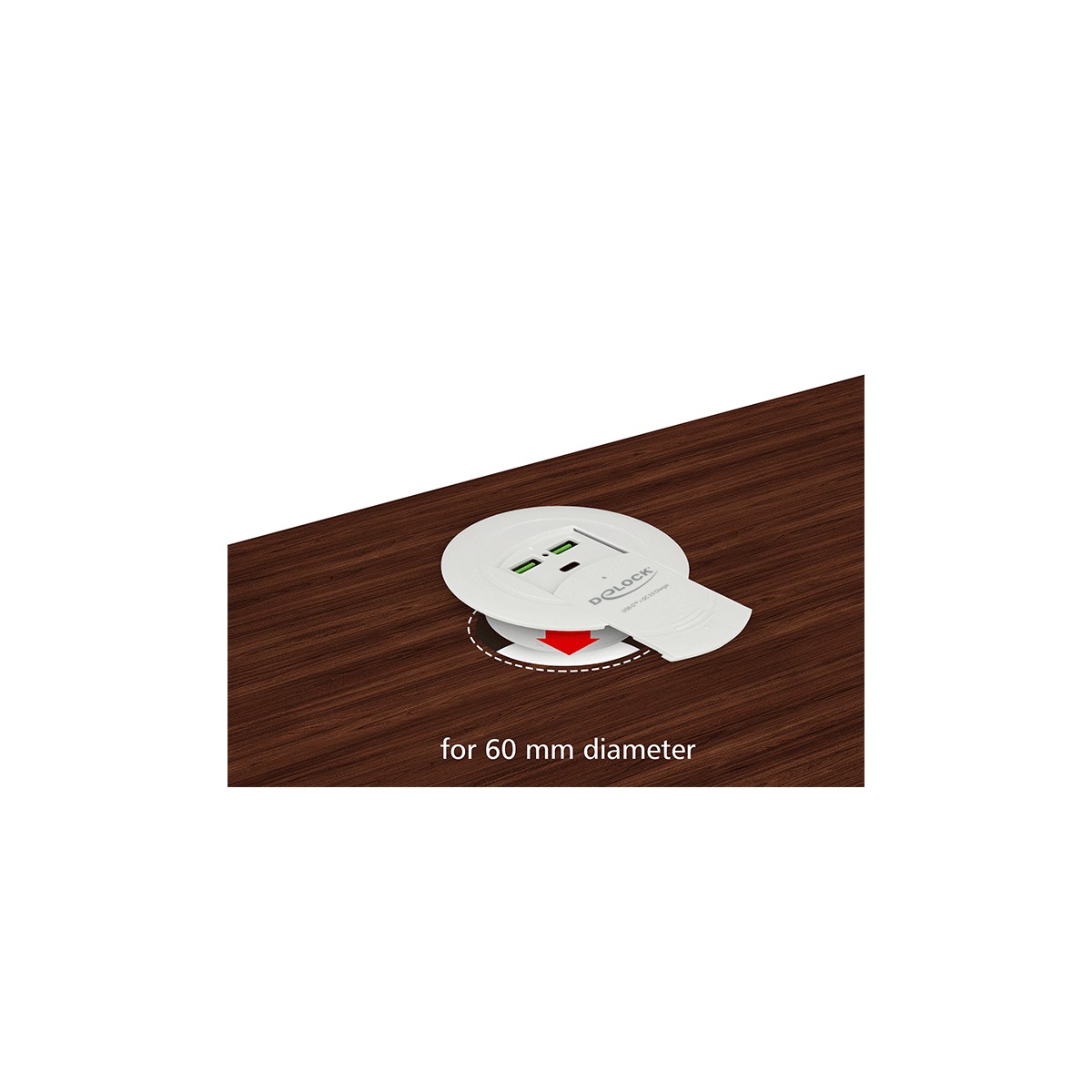

Designed for table mounting
The charger can be inserted into an existing recess of the desk. This is a practical and space-saving solution and allows to easily charge mobile devices.

Specification
• Connectors:
 1 x USB Type-C™ female
 2 x USB Type-A female
 1 x DC 24 V power connector
• Output:
 USB Type-C™ Power Delivery (PD): 5 V
 5 V / 9 V / 12 V / 15 V / 20 V 4.3 A
 USB Type-A Qualcomm Quick Charge 3.0 Class A:
 3.6 ~ 6.5 V / 3 A, 9 V / 2 A, 12 V / 1,5 A
• Output power: max. 87 W total

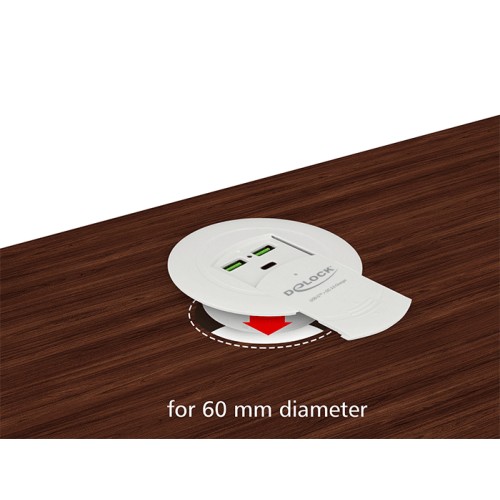

• Mounting diameter: 60 mm / 80 mm
• Mounting depth: 25 mm
• Material: plastic
• Colour: white
• Dimensions: diameter ca. 9.0 cm, height ca. 2.5 cm

Power supply specification
• Power supply with IEC-60320-C8 connector
• Wallmount option
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 2.0 A
• Output: DC 24 V / 3.74 A
 USB Type-A Qualcomm Quick Charge 3.0 Class A:
 3.6 ~ 6.5 V / 2.4 A, 9 V / 2 A, 12 V / 1.5 A
• Ground outside, plus inside
• Dimensions:
 inside: ø ca. 2.1 mm
 outside: ø ca. 5.5 mm
 length: ca. 11 mm

System requirements
• Device with a free USB port

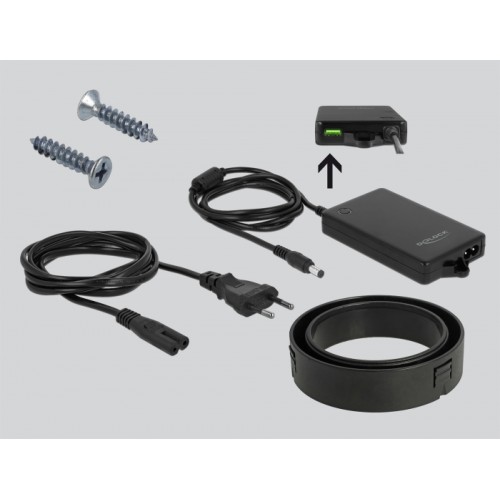

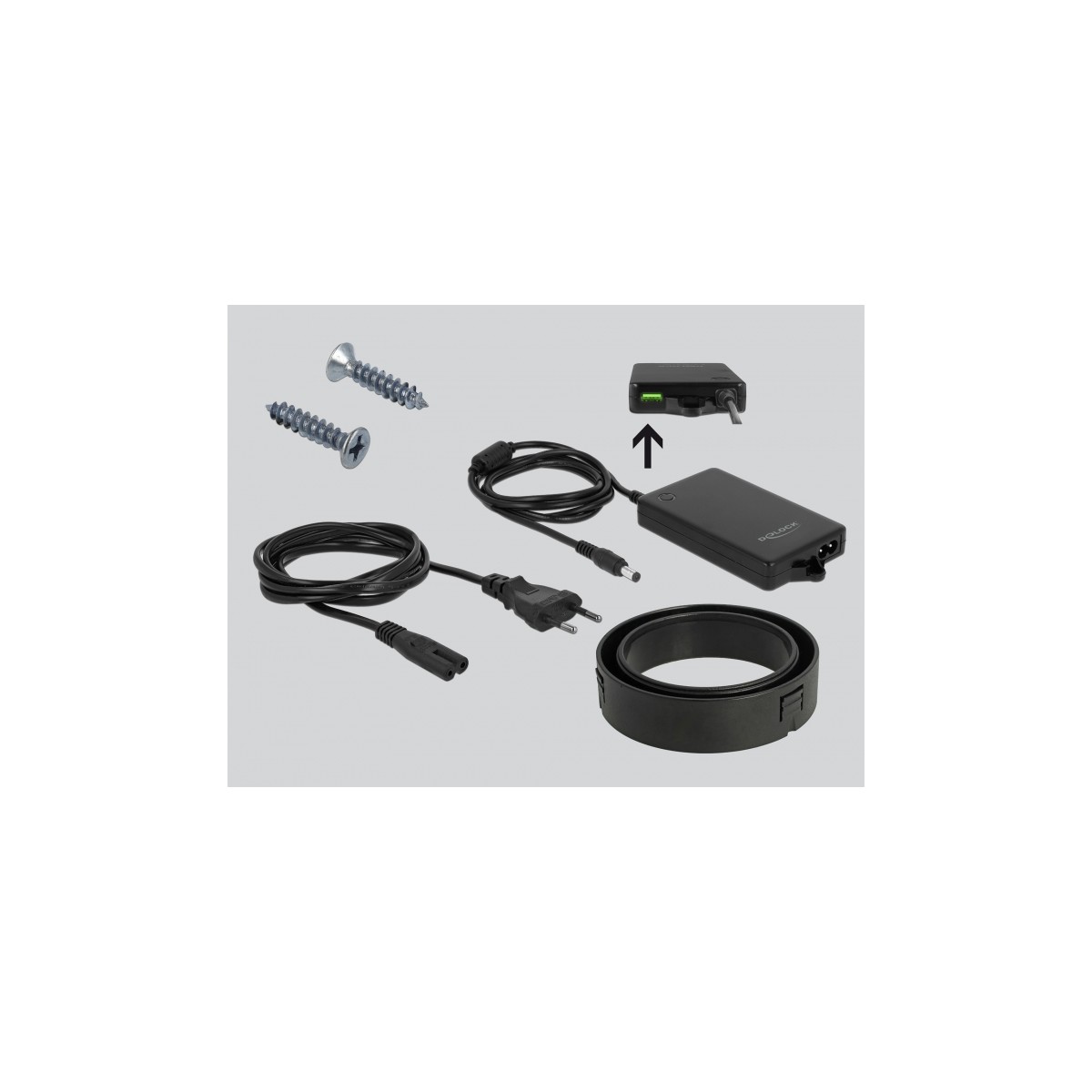

Package content
• USB charger for table mounting
• Adapter from 80 mm to 60 mm
• Power supply
• Power cord, length ca. 1.5 m
• Screws
• User manual

Package
• Retail Box
