Description

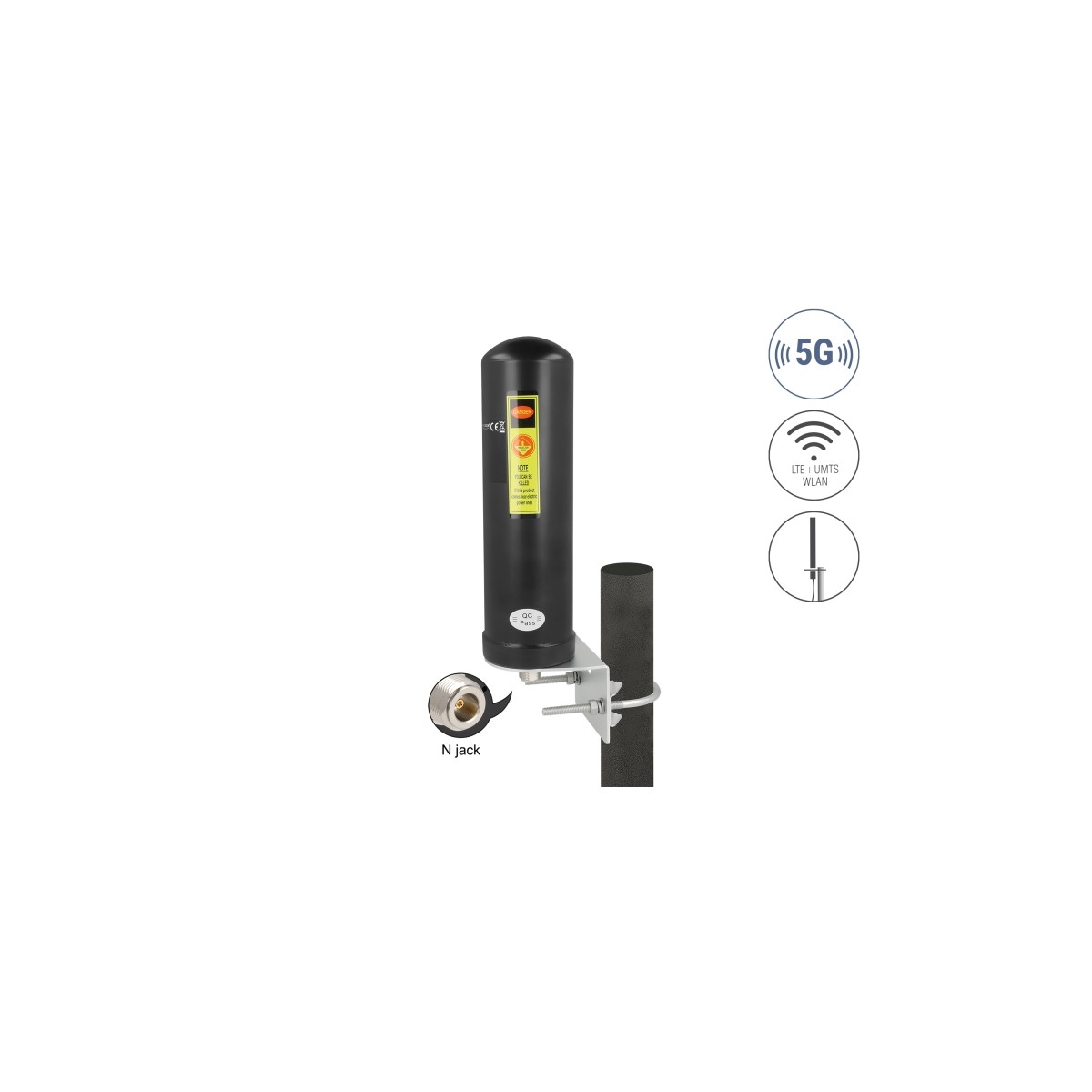

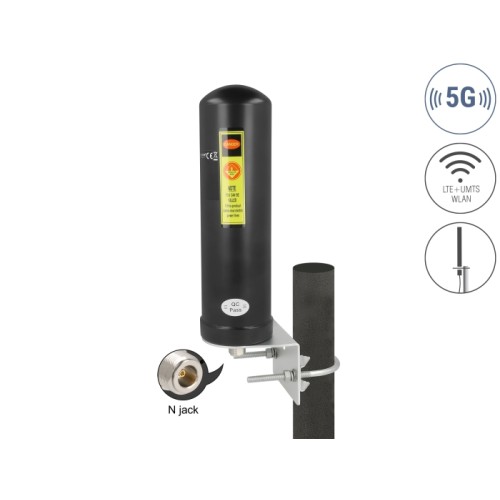

This 5G LTE antenna by Delock allows the usage of different 5G LTE bands inside and outside. It is completely compatible to GSM, UMTS, LTE, ZigBee, Z-Wave, NB-IoT, WLAN 2.4 GHz, Bluetooth, ISM and LoRa.
5G the new mobile radio standard
5G unlike its predecessors LTE (4G) and UMTS (3G) will use more and wider frequency spectrums. The 5G standard promises more throughput, capacity and low latency.
Specification
• Connector: 1 x N jack
• Frequency range:
600 - 960 MHz
1710 - 6000 MHz
• Antenna gain: 3 - 5 dBi
• Impedance: 50 Ohm
• VSWR: 2.0:1
• Polarisation: linear, vertical
• Horizontal beam angle: 360°
• Vertical beam angle: 18°
• Operating temperature: -40 °C ~ 80 °C
• Housing material: ABS
• Colour: black
• Weight: ca. 490 g
• Dimensions (LxD): ca. 216 x 63 mm
System requirements
• Device with one free N port
Package content
• Antenna
4043619960934
