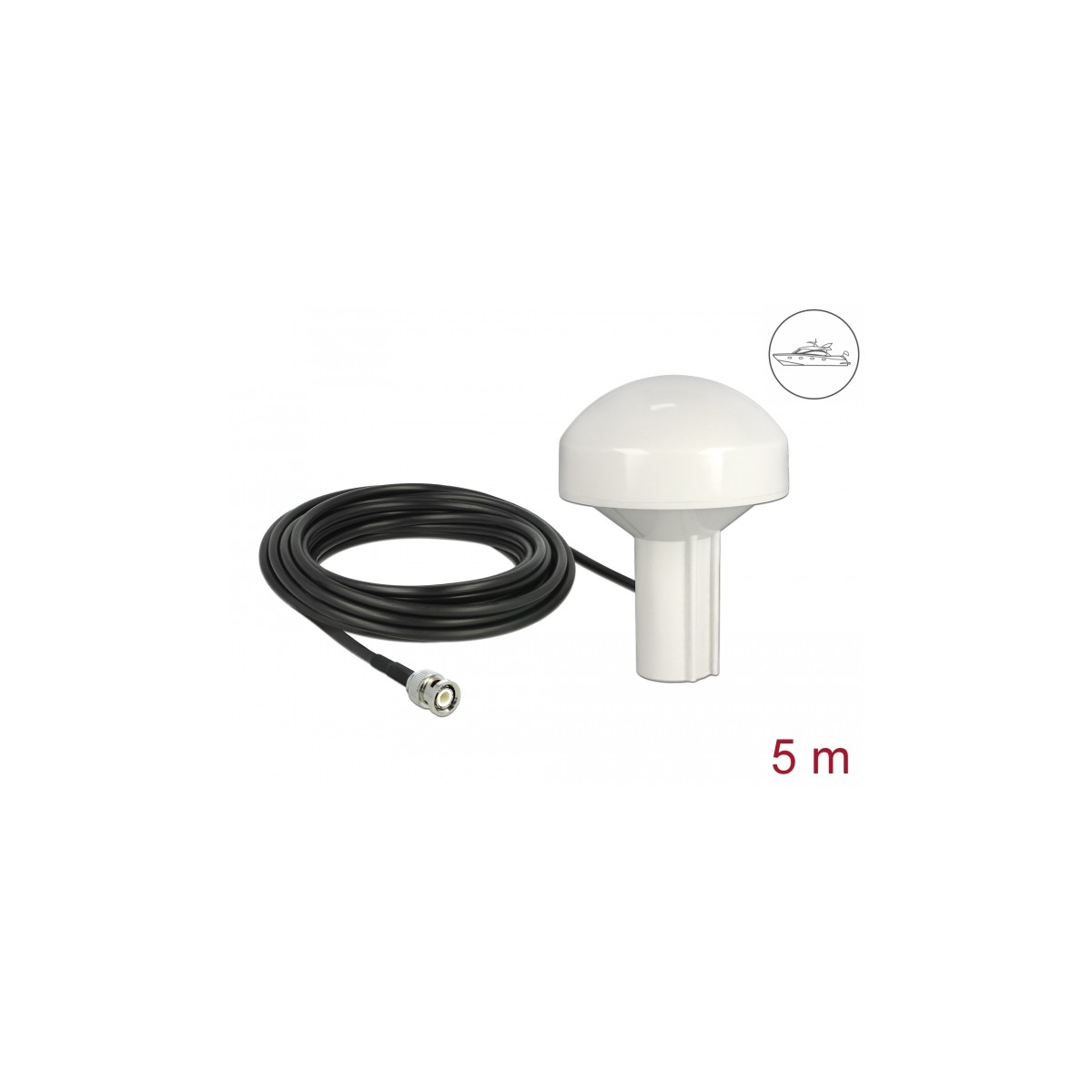

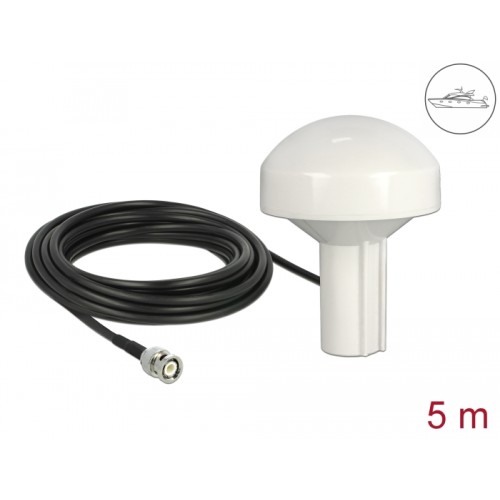

Navilock GNSS GALILEO GPS QZSS Marine Antenna 1575 MHz BNC male 28 dBi directional with connection cable RG-58 U 5 m outdoor whi
12578
New
Description
This antenna by Navilock allows the usage of the 1575 MHz GPS band indoors and outdoors. The material is particularly weather resistant.
Specification
• Connector: 1 x BNC male
• Frequency range: 1575 MHz
• Antenna gain: 28 dBi
• Impedance: 50 Ohm
• VSWR: 1.5
• Polarisation: RHCP
• Operating temperature: -40 °C ~ 80 °C
• Housing material: ABS
• Colour: white
• Cable: coaxial
• Cable type: RG-58 U
• Cable attenuation:
0.57 dB @ 1.0 GHz per meter
1.20 dB @ 3.0 GHz per meter
• Cable diameter: ca. 4.95 mm
• Cable length incl. connector: ca. 5.0 m
• Weight: ca. 0.5 kg
• Dimensions (LxD): ca. 127.0 x 96.0 mm
• Inner thread: 1 ″-14 UNS
System requirements
• Device with one free BNC port
Package content
• Antenna
Package
• White Box
New
4043619125784
