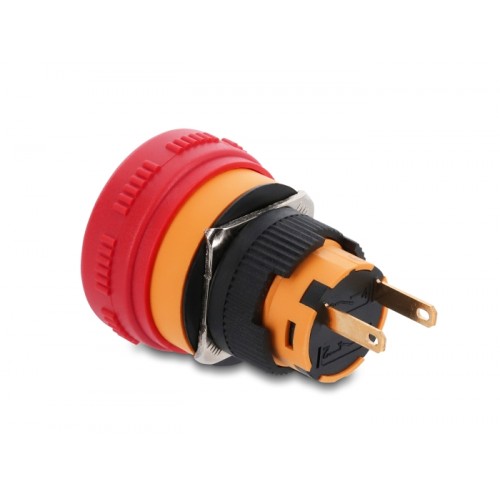

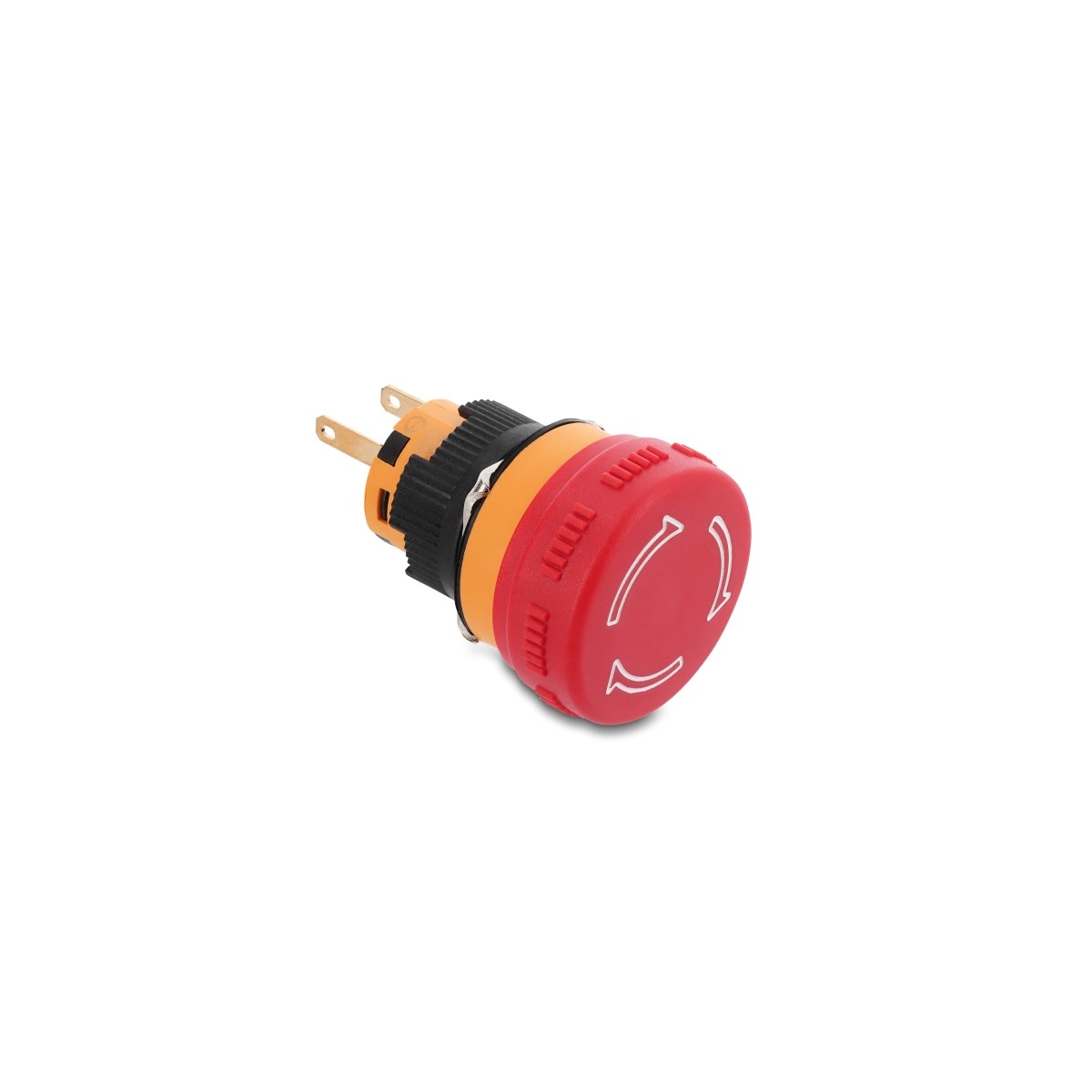

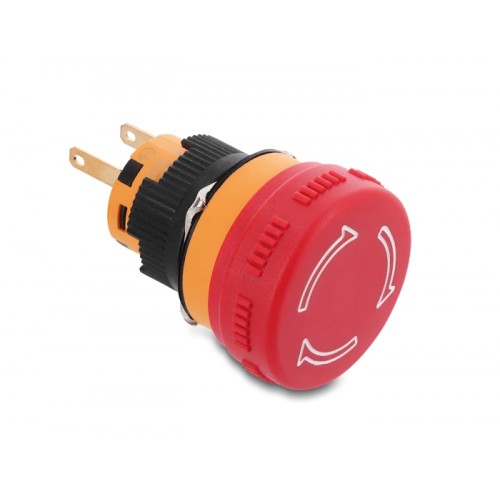

Delock Mushroom-Head Push Button for Installation 16 mm 2 x solder terminals plastic 26 mm Ø

Description

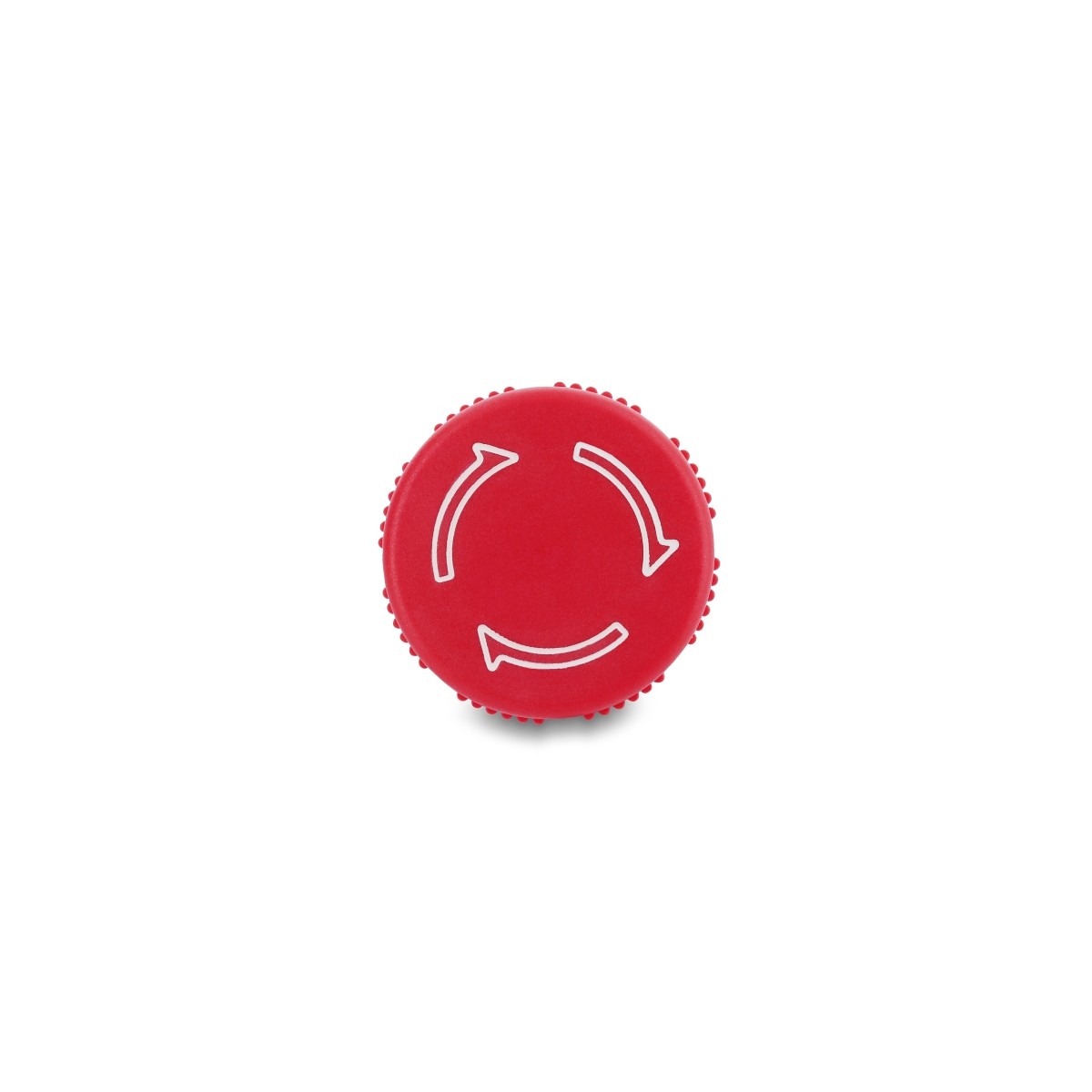

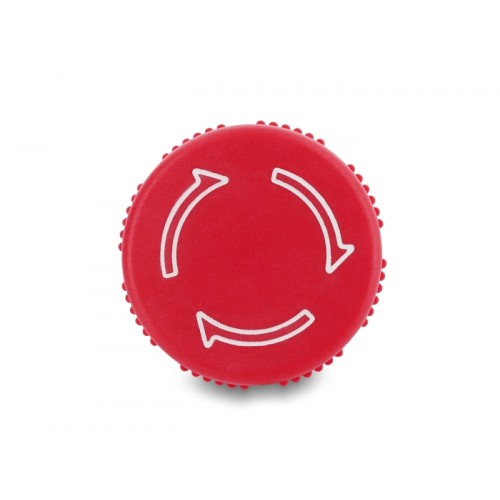

This mushroom-head push button by Delock is suitable for control and signaling applications in machines, systems, and control panels. The large red actuator head, with arrow marking, ensures highly visible and ergonomic operation.

Application area
When pressed, the contact (1NO) closes, enabling a targeted signaling or control function. Typical applications include: triggering a reset, activating a warning light, sending a signal to a control system, or granting authorization.

Press and turn
The release is achieved through a turning motion. The button springs back to its original position and is ready for use again.

Please Note
Due to its 1NO (normally open) configuration, this push button is not suitable as a safety-relevant emergency stop or emergency-off switch according to applicable standards.

The installation should only be carried out by qualified electricians in compliance with the usual national power supply guidelines.
Grounding is necessary for low-voltage systems to ensure the safety and functionality of the system.


Specification

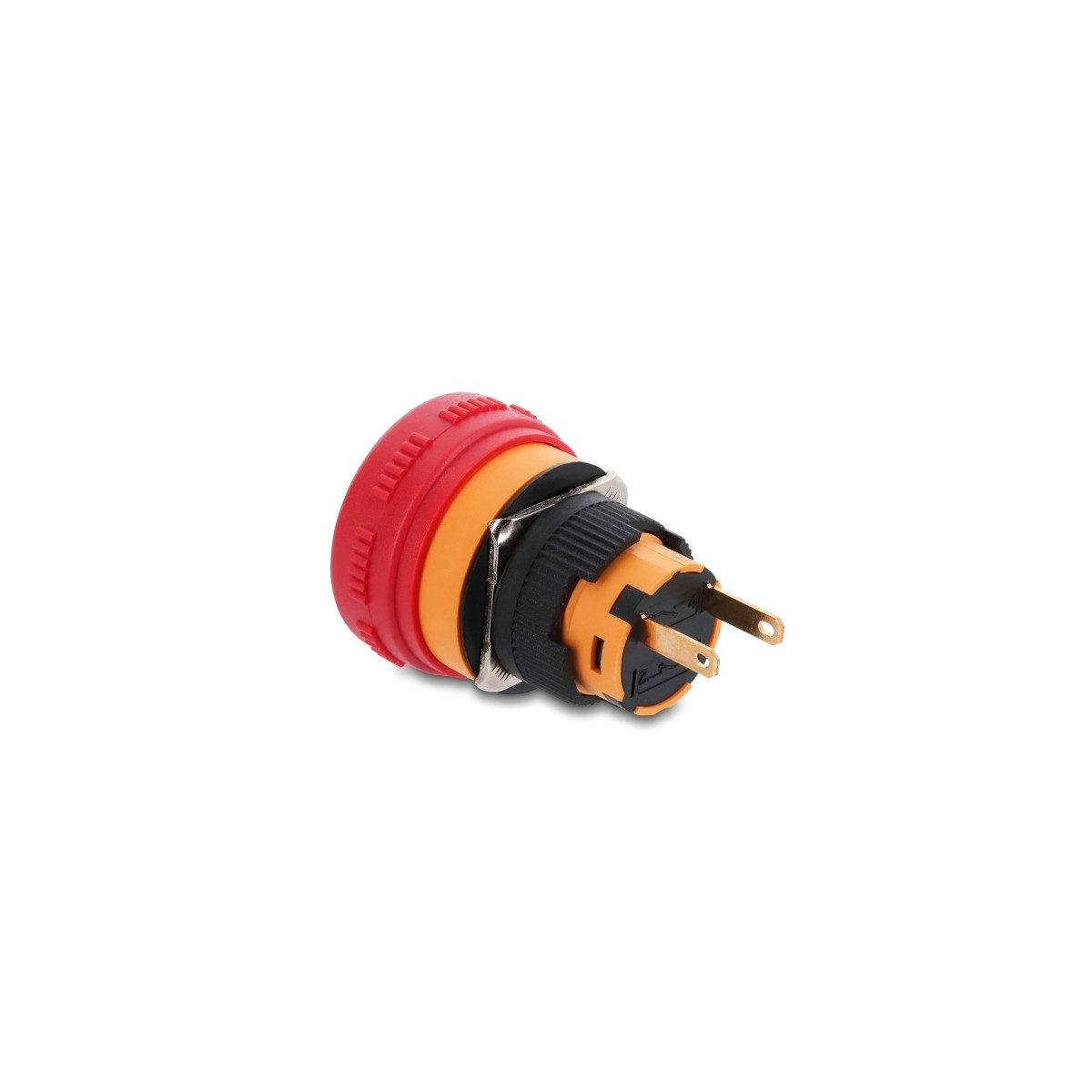

• Connectors: 2 x solder connection
• Switch type: 1NO
• Load limit: AC 250 V~ / 5 A
• Utilization category:
AC-15: 0.75 A / 250 V
DC-13:1 A / 30 V
• Number of contacts: 2
• Operating temperature: -25 °C ~ 55 °C
• Mounting hole diameter: ca. 16 mm
• Mounting depth: ca. 25 mm
• Thread size: M16
• Material: plastic
• Protection class: IP65
• Dimensions (LxD): ca. 41.00 x 26.00 mm

System requirements


Package content
• Push-button
