Description

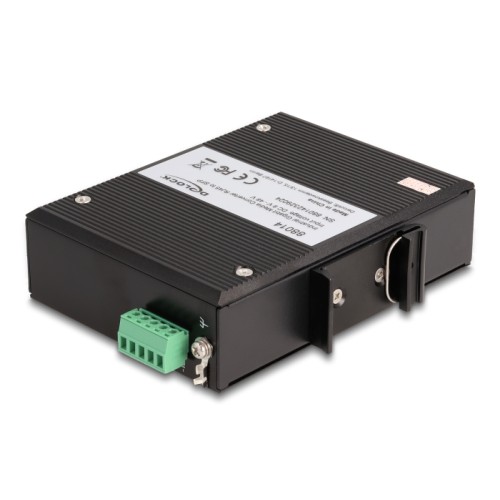

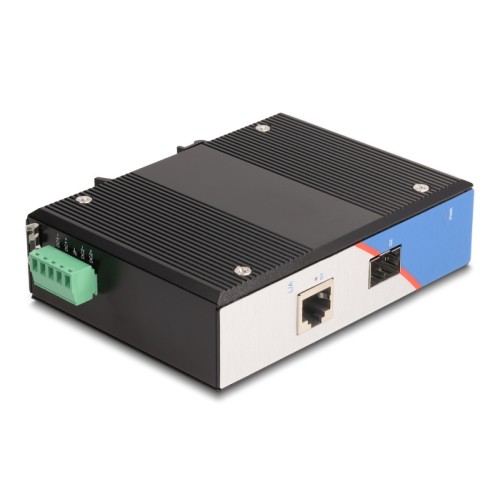

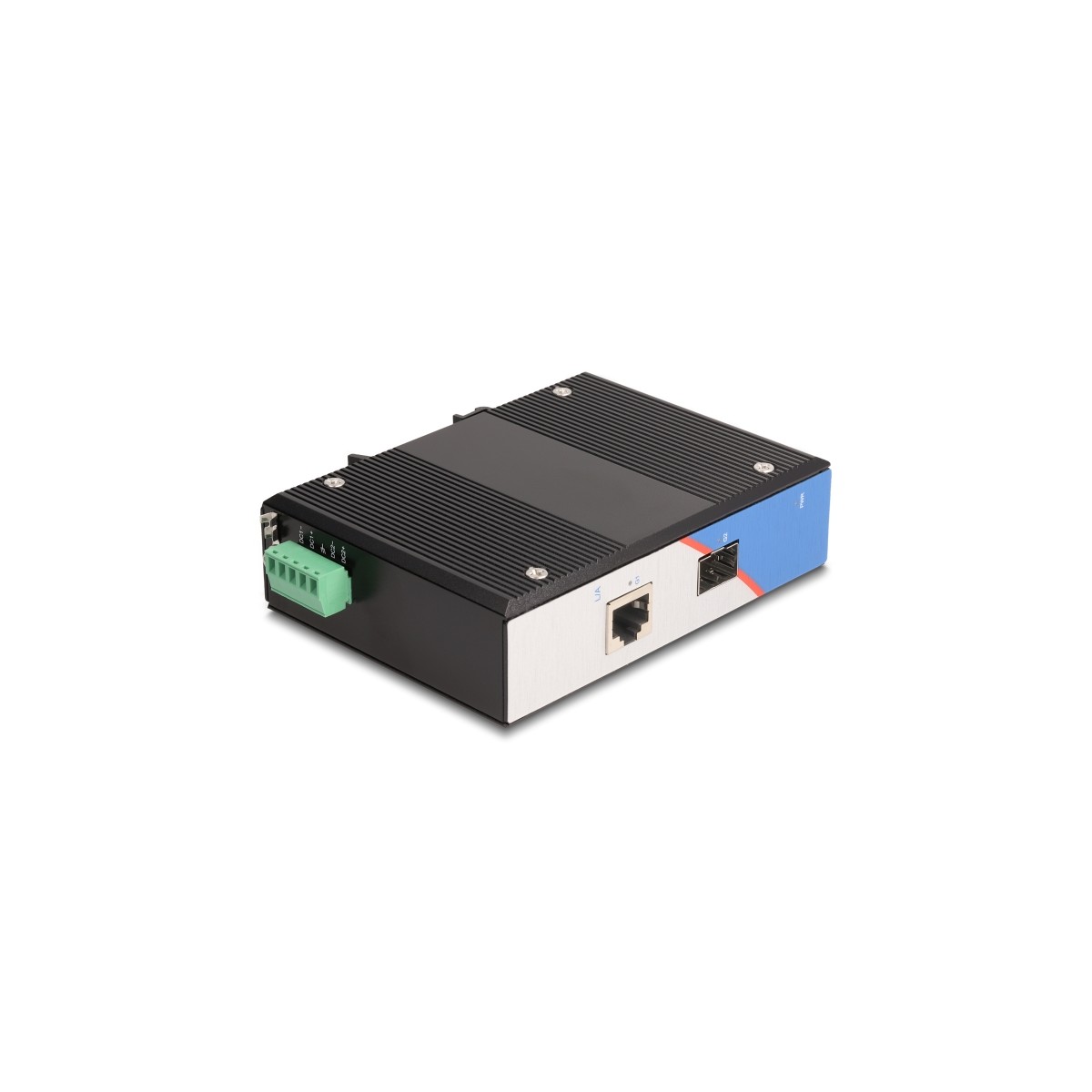

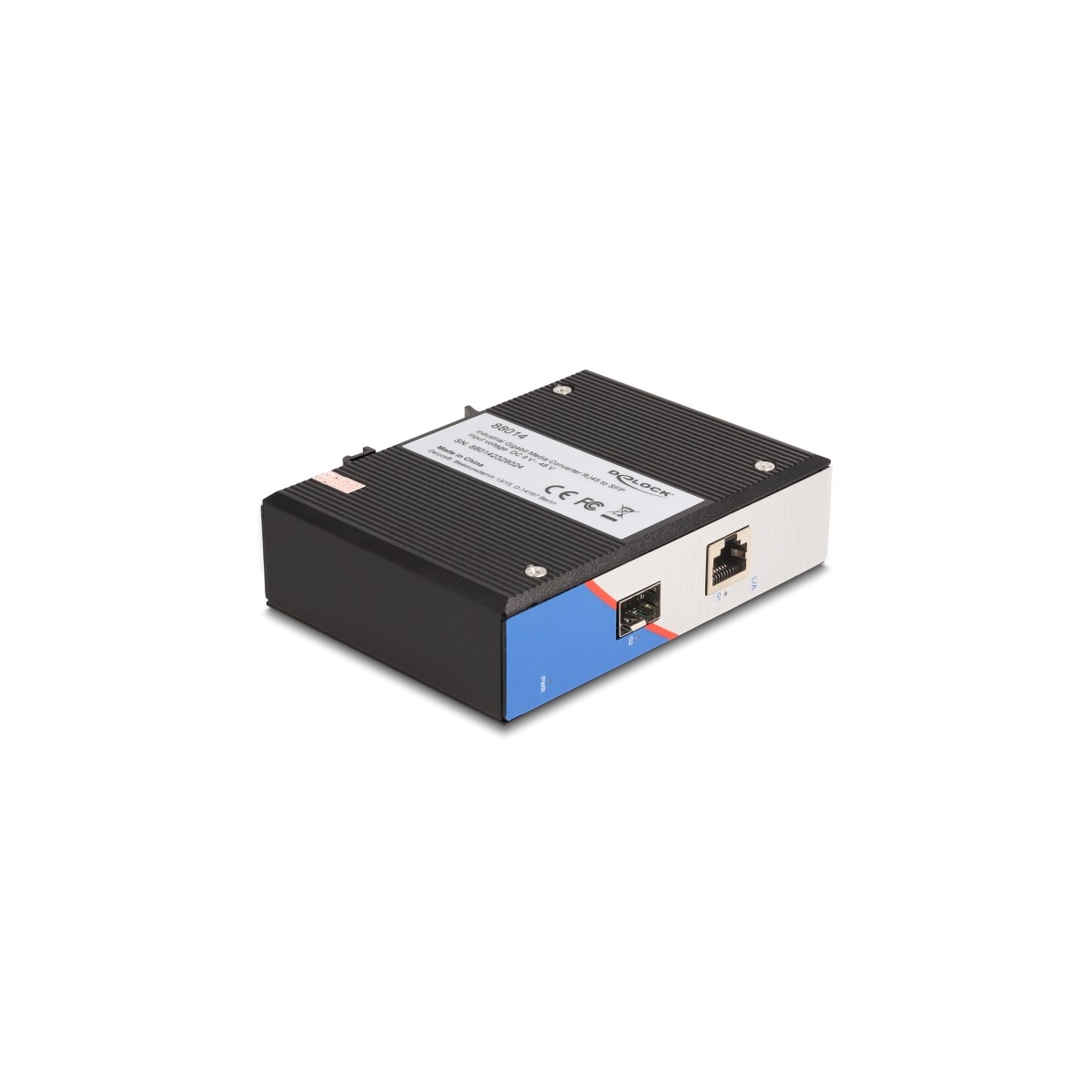

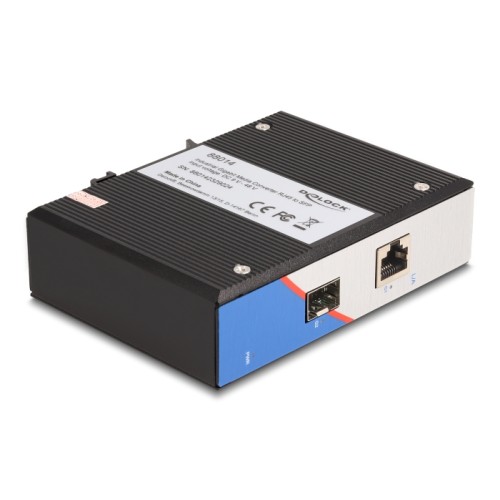

This robust, industry capable Gigabit Ethernet media converter by Delock can be used to expand a network with an optical fiber interface. In the SFP slot, an optional 1 Gbps SFP module can be used.
Redundant power supply with 9 V to 48 V
The switch accepts two terminal power sources, allowing it to be permanently connected to multiple power sources, enabling applications that require high availability.
Specification
• Connectors:
1 x RJ45 jack for 10/100/1000 Mbps Base-T
1 x SFP slot for 1 Gbps SFP module
1 x 5 pin terminal power connector
• Data transfer rate up to 1 Gbps
• Supports IEEE 802.3 / 802.3u / 802.3z / 802.3ab
• 330 m long range mode with 10 Mbps
• LEDs for status monitoring
• Redundant power supply with 9 V to 48 V
• Power consumption: max. 2 W
• Robust metal housing
• Fanless

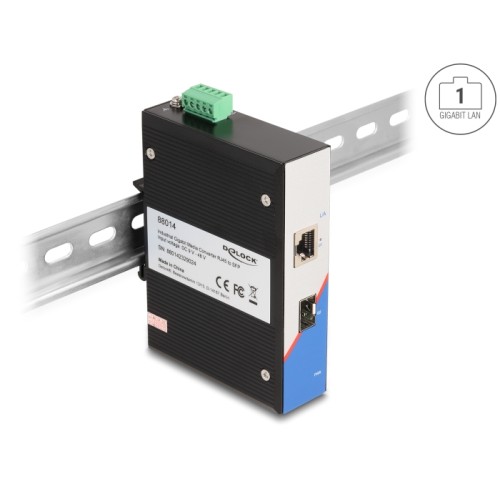

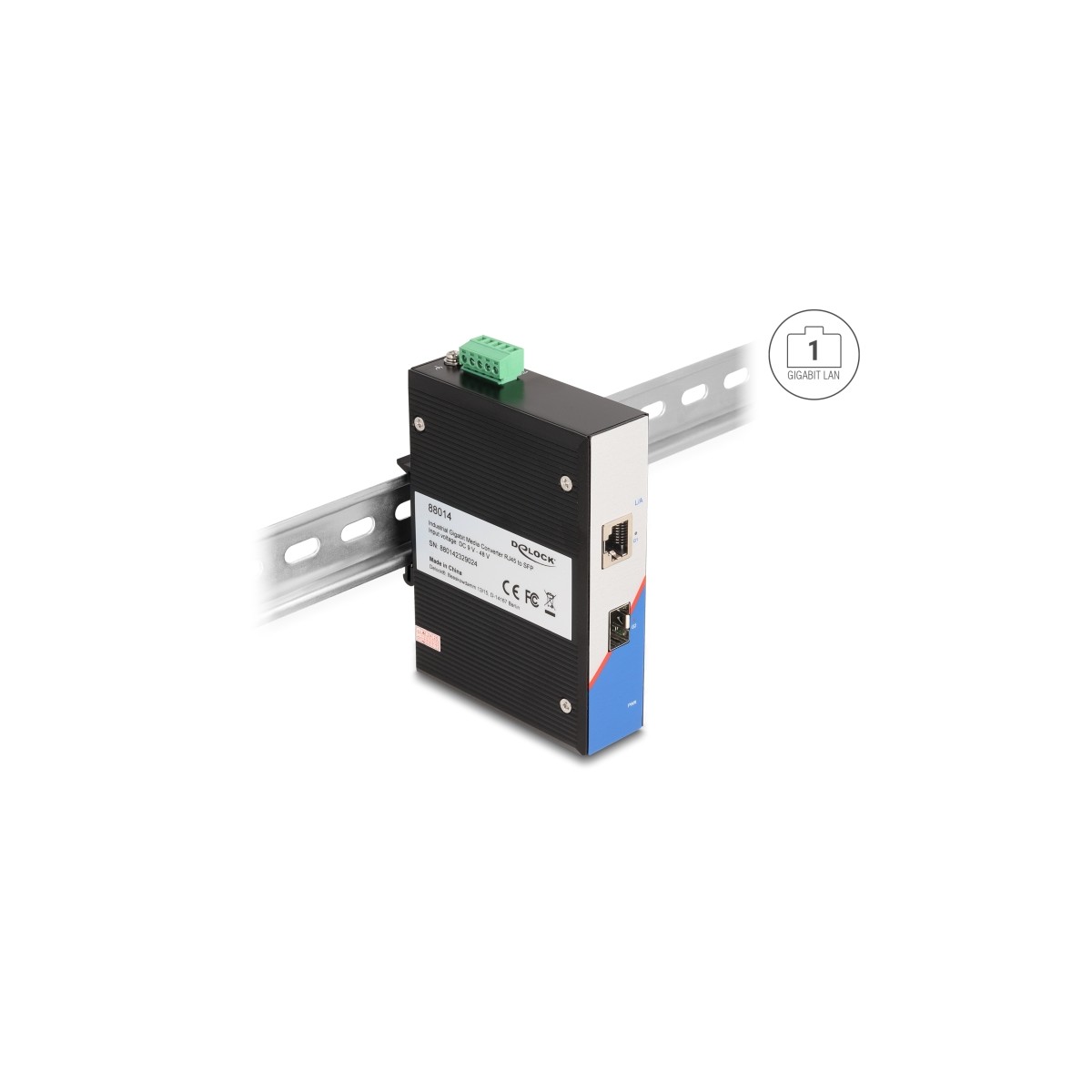

• Suitable for 35 mm DIN rail
• Protection class: IP40
• Operating temperature: -40 °C ~ 85 °C
• Dimensions (LxWxH): ca. 116 x 85 x 33 mm
System requirements
• Power supply with DC 9 V - 48 V (not included)
Package content
• Media converter
• User manual
New
4043619880140
