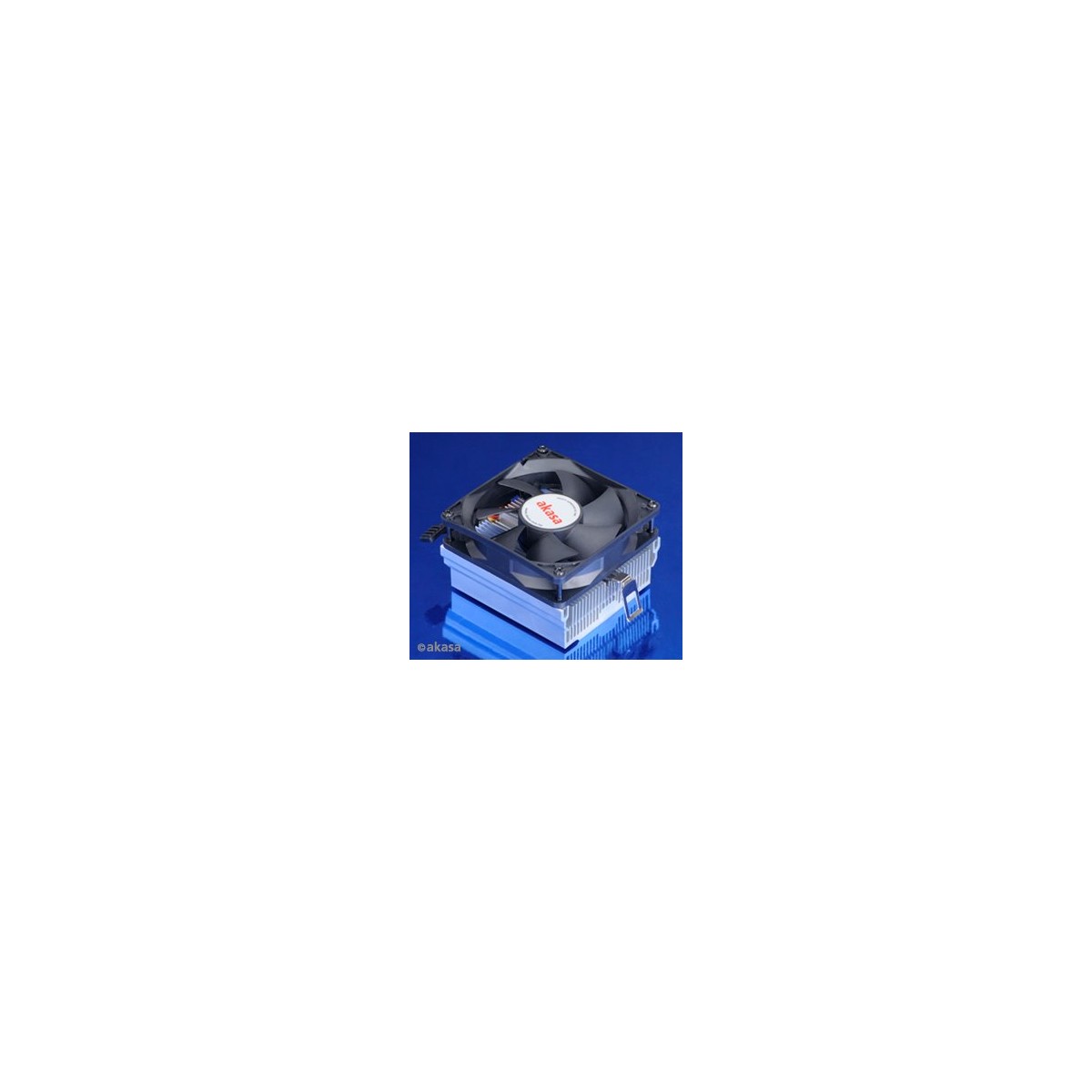

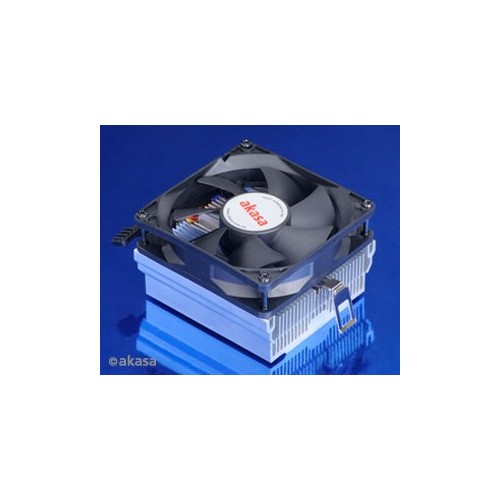

Compact AMD Cooler for AMD Athlon 64, Athlon 64 X2, Phenom X3

New design cooler combining lo-noise, efficient cooling with great value. Only 50mm of height (including fan) means it can be installed even in very compact cases. Hi-engineered aluminium heatsink and quiet 80mm fan ensure optimized performance with all AMD processors up to 89W or TDP. Thermal compound is pre-applied.

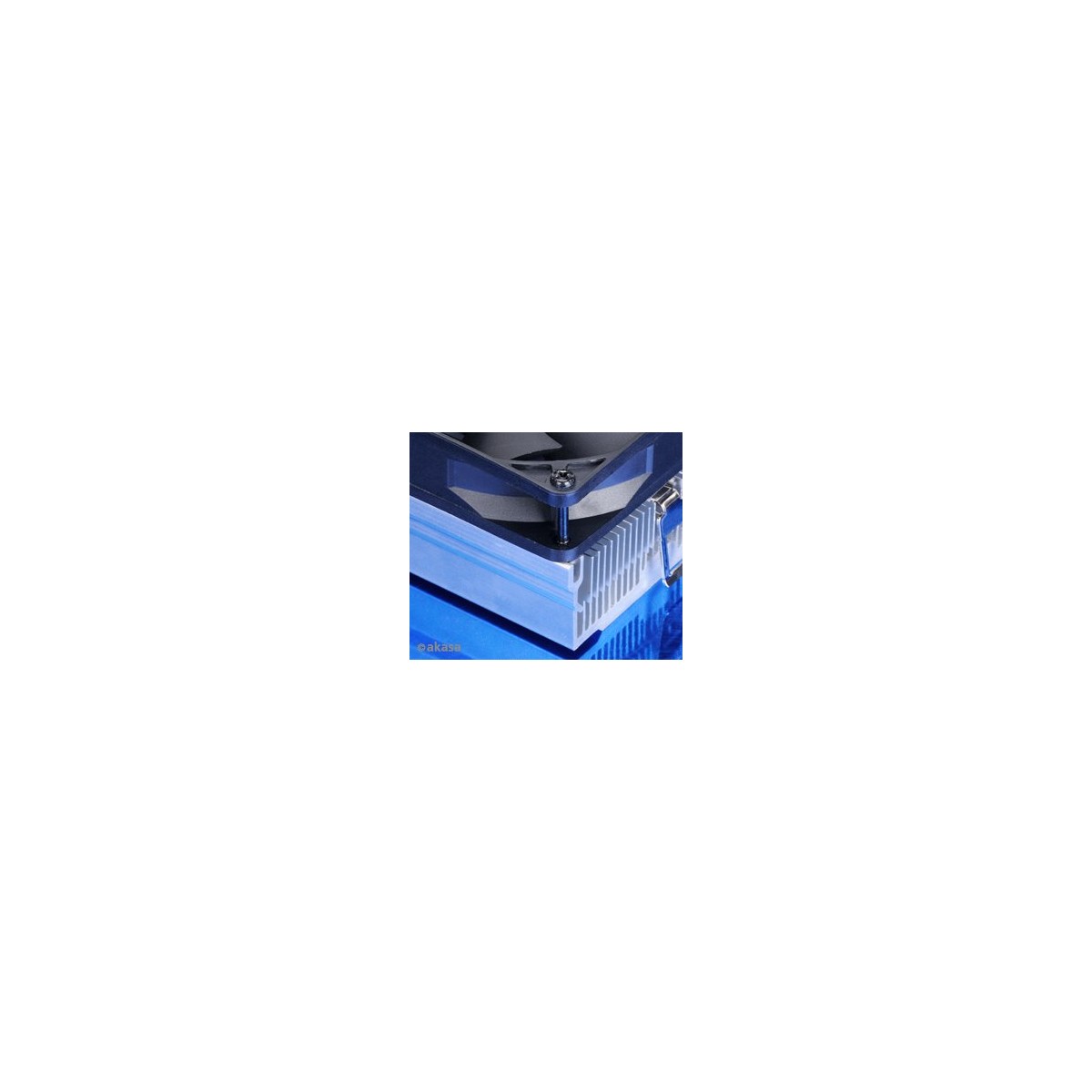

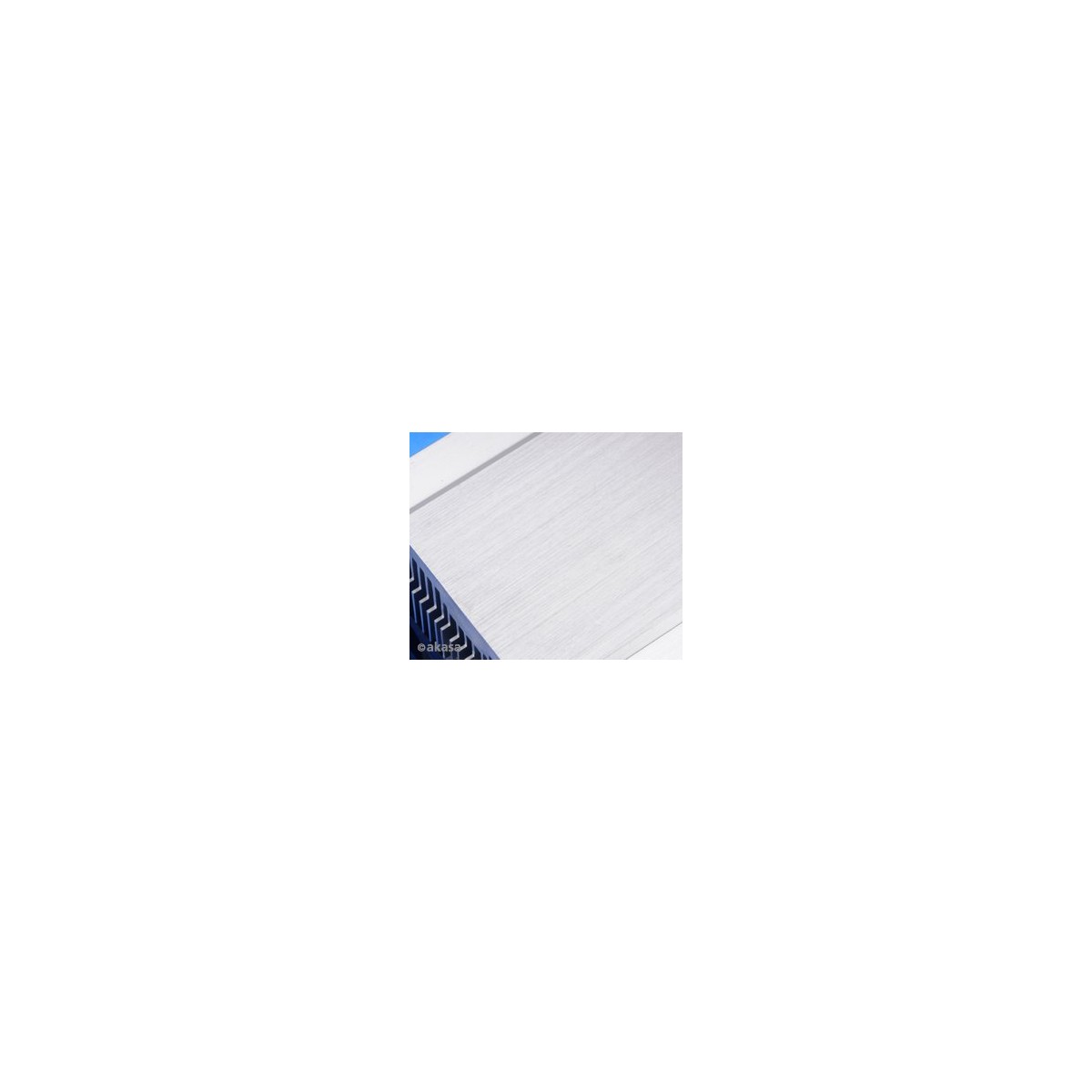

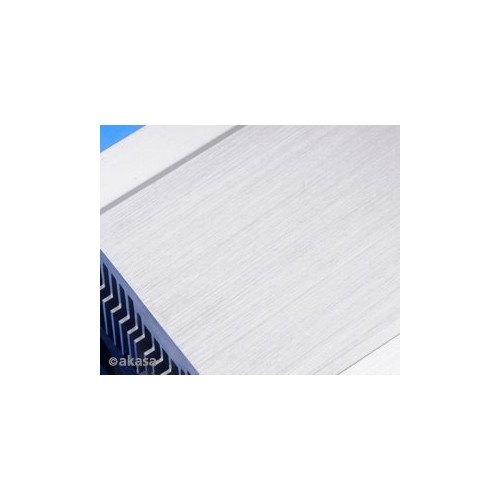

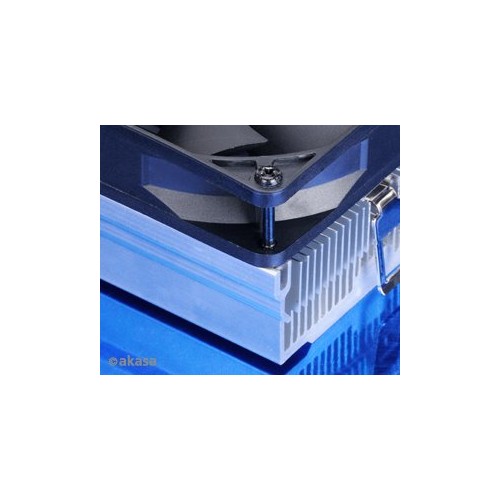

• High engineered aluminium heatsink for cost effective cooling performance

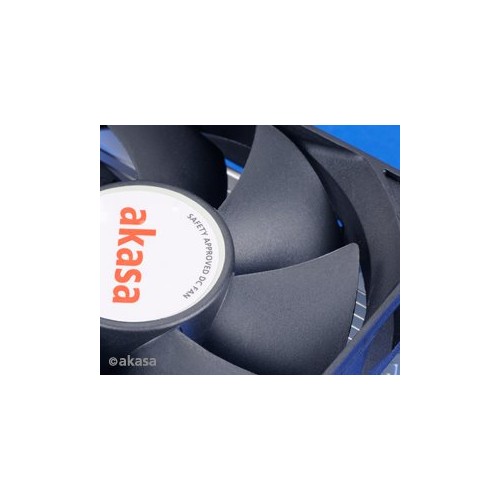

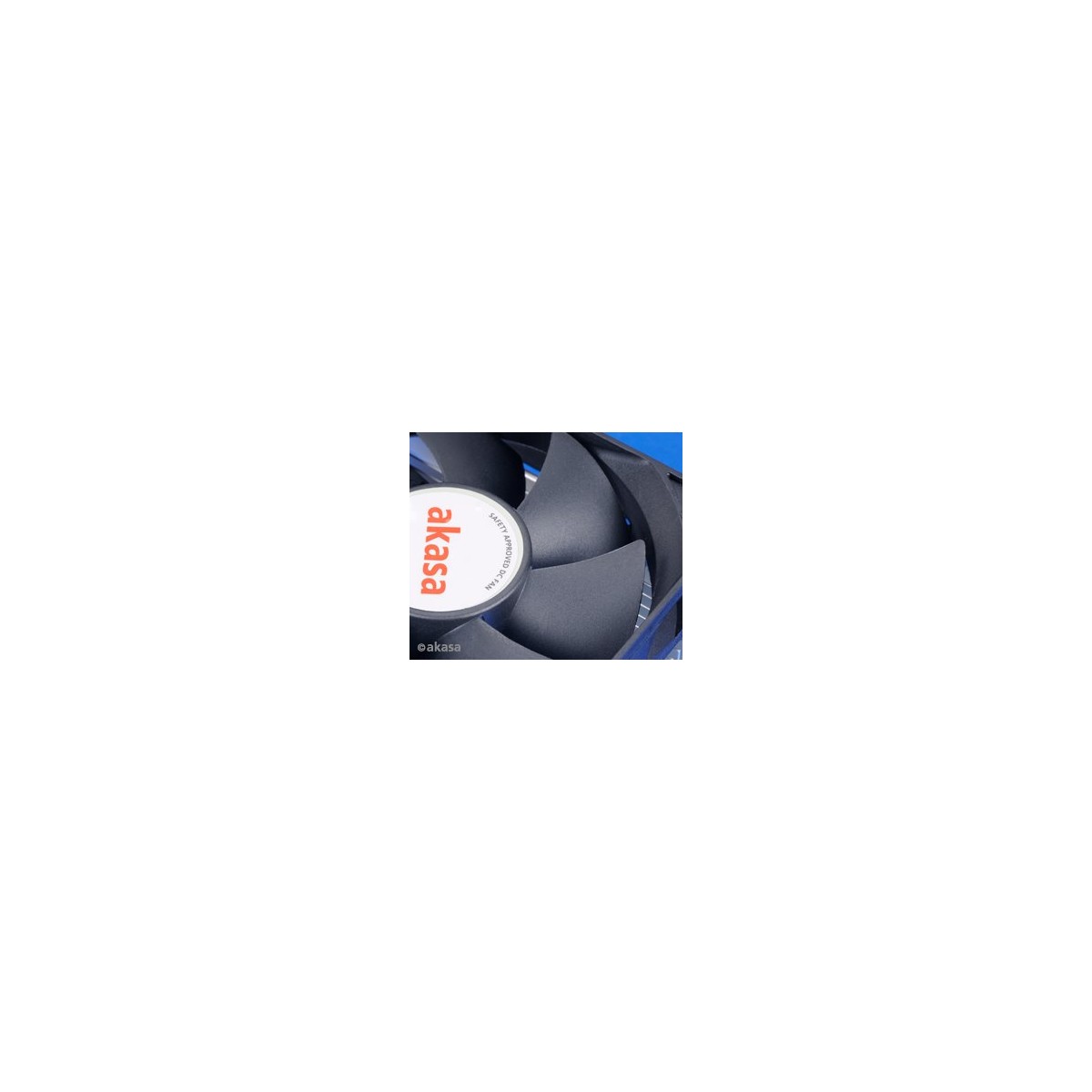

• 8 cm low noise high performance fan
• new design one point clip enables quick and safe retention
• 3-pin fan connector Hi-grade thermal interface pre-applied

Technical specifications

Type of socket

• AMD 754, 939, 940, AM2, AM2 +, AM3, AM3 +, AM4, FM1, FM2 and FM2 + socket

Cooler size

• 80 x 80 x 50 (H) mm

Heatsink material

• Aluminum

Weight

• 225g

Installation

• Cam lever clip

Fan size

• 80 x 80 x 20 mm

Fan speed

• 2300 RPM

Fan air flow

• 24.10 CFM (40.85 m³ / h)

Fan air pressure

• 1.94 mm H20

Noise level

• 22.64 dB (A)

Current rating

• 0.10A

Nominal tension

• 12V DC

Bearing type

• Sleeve bearing

Life expectancy of fans

• 30,000 hours

Fan connector

• 3pin

Product code

• AK-865
