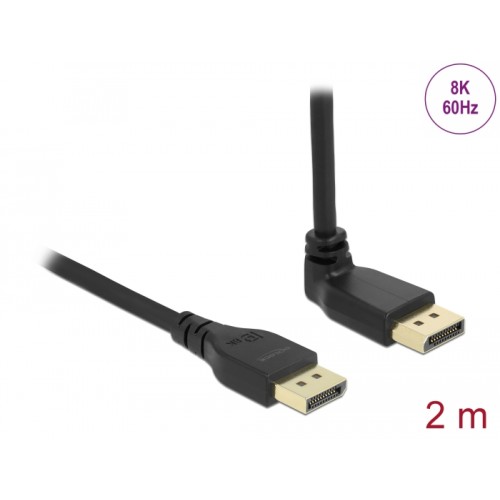

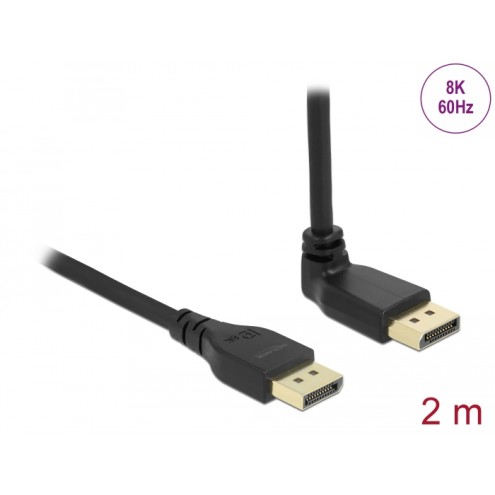

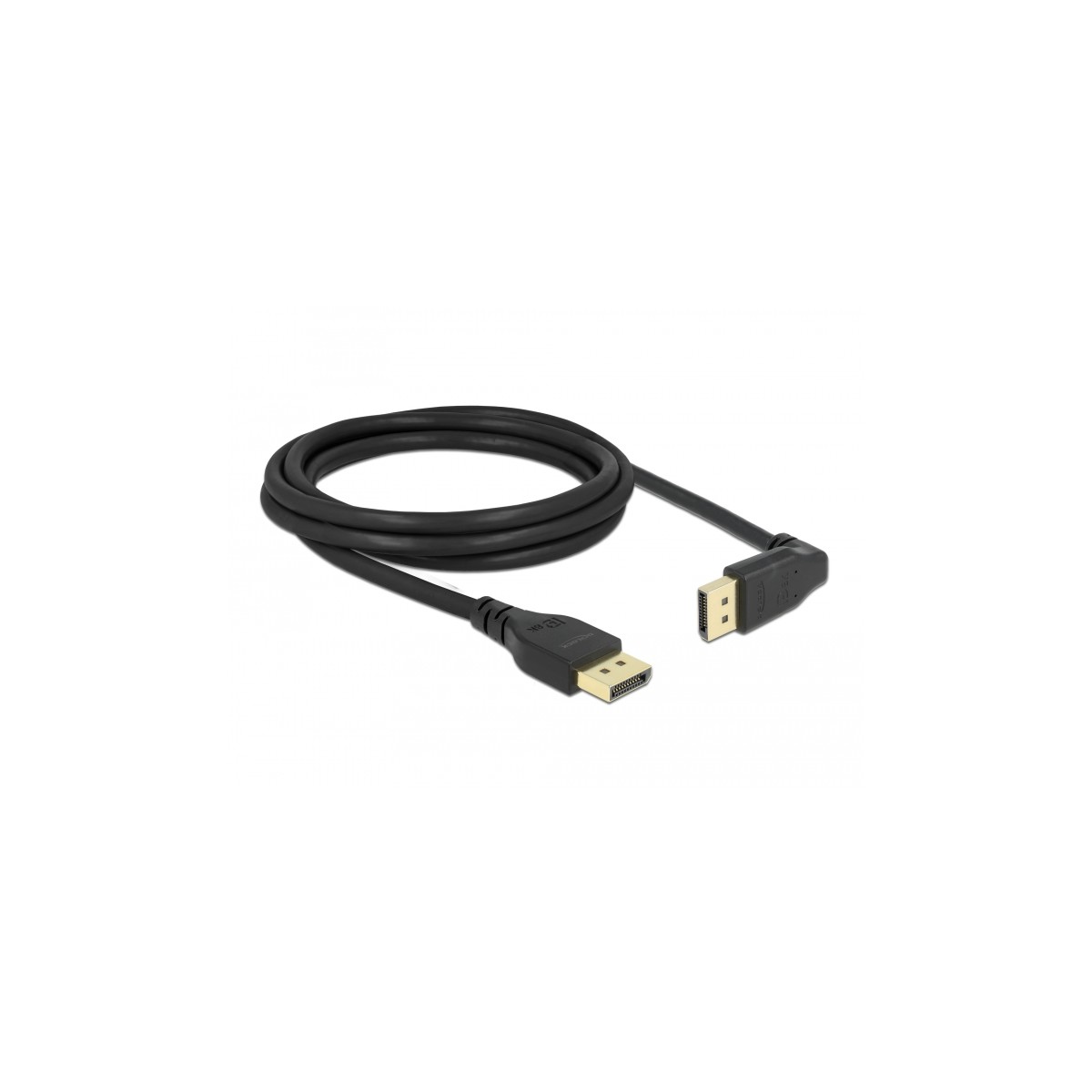

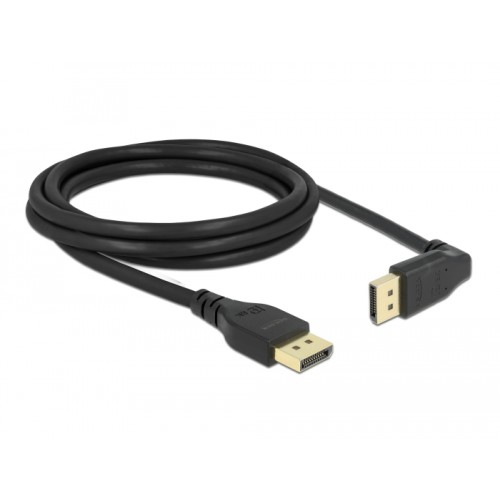

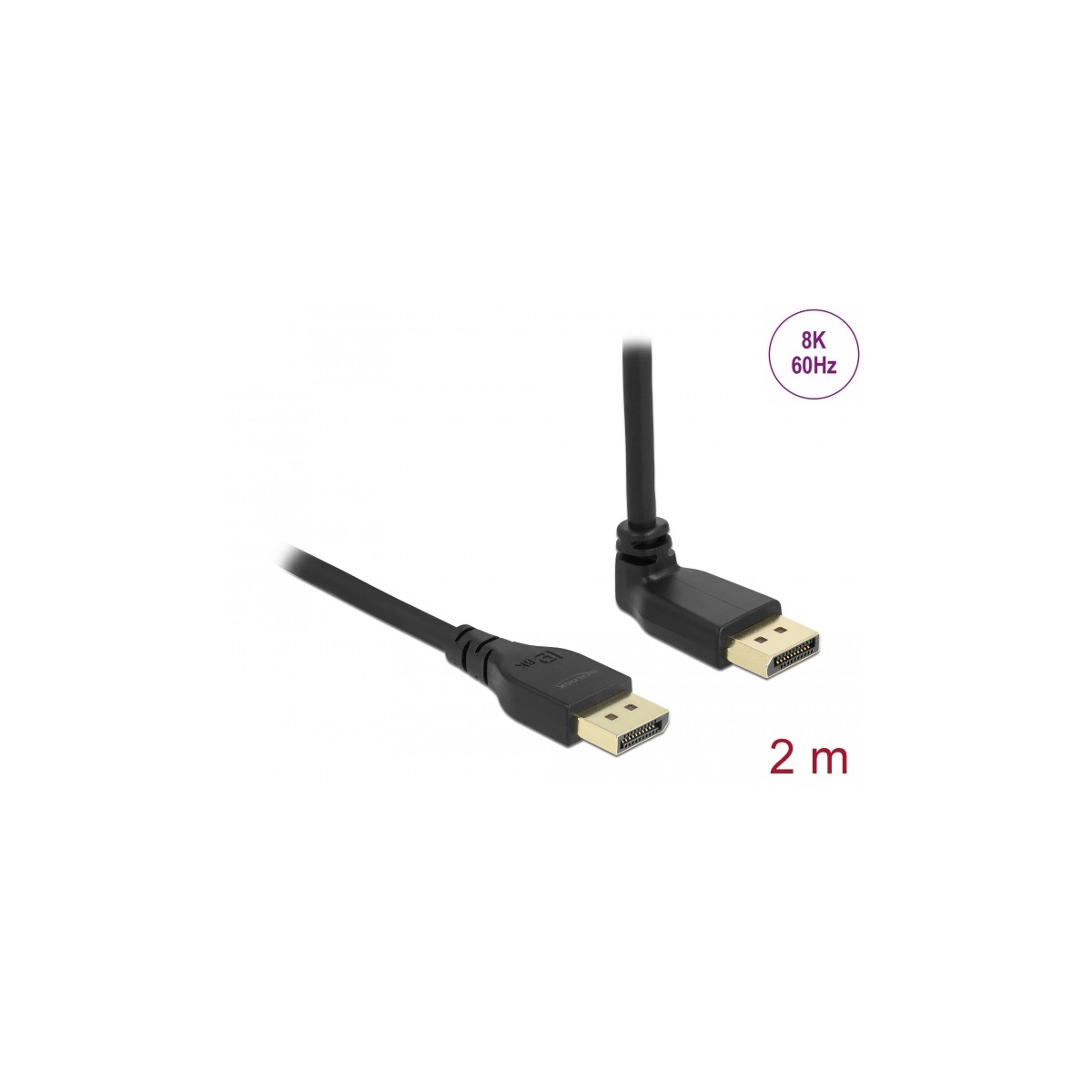

Delock DisplayPort cable male straight to male 90° upwards angled 8K 60 Hz 2 m without latch
87150
New
Description
This DisplayPort cable by Delock is used to connect devices with a DisplayPort interface, such as monitors, projectors or televisions, to a PC or laptop. Supporting a maximum bandwidth of 32.4 Gb/s, content can be displayed in 8K Ultra HD (7680 x 4320 @ 60 Hz) resp. 5K (5120 x 2880 @ 120 Hz) and 4K Ultra HD (3840 x 2160 @ 240 Hz) resolution. The high-quality, triple-shielded cable also significantly improves the quality of audio transmissions with a sampling rate of up to 1536 kHz.
Slim plug

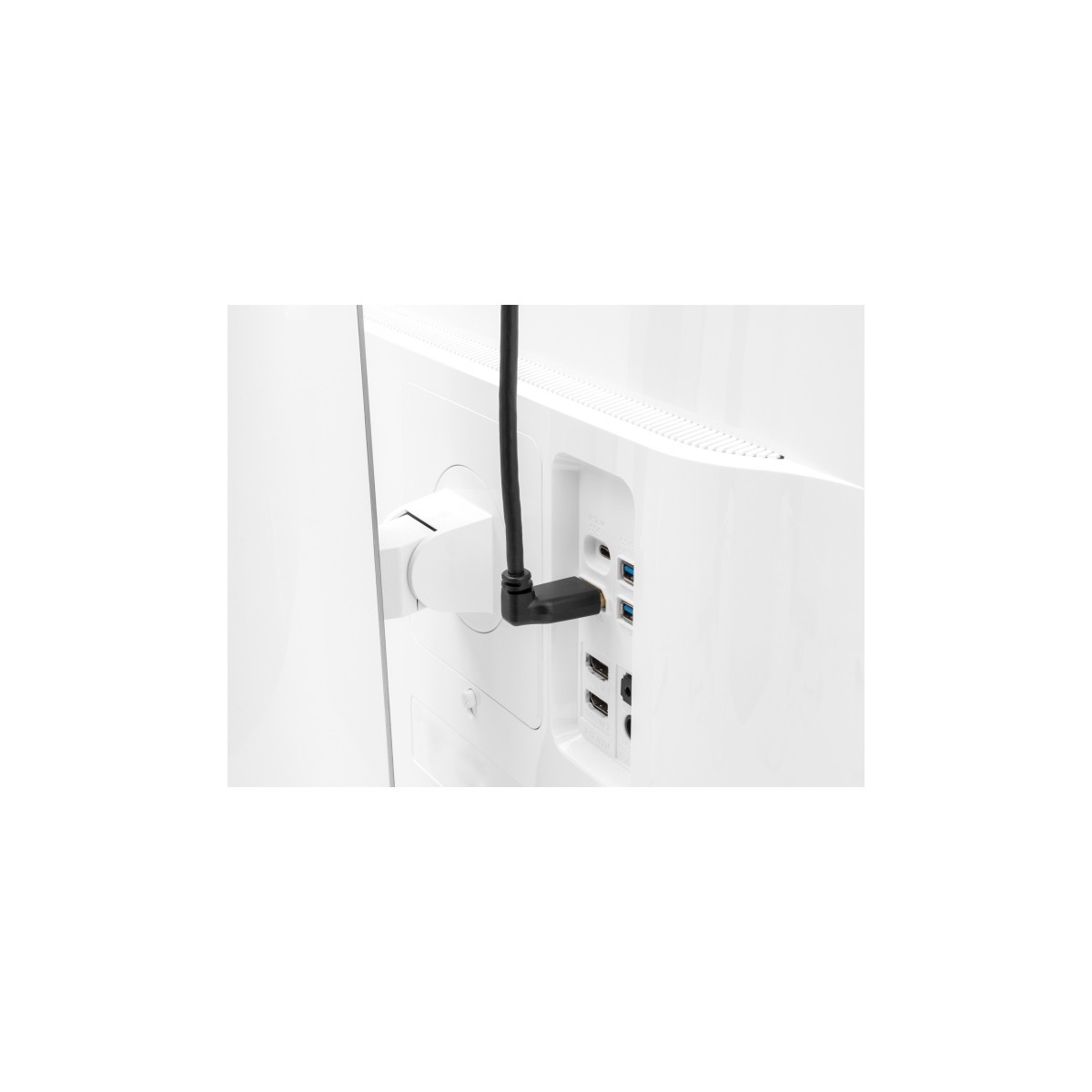

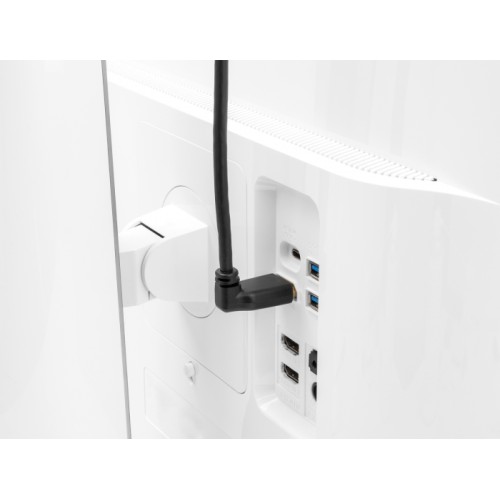

Thanks to the missing latch, the plugs are a bit slimmer than standard DisplayPort plugs, so several ports can be used simultaneously. In addition, the plugs can be removed more easily from hard-to-reach DisplayPort ports, e.g. on the rear side of a monitor.
Specification
• Connectors:
1 x DisplayPort male >
1 x DisplayPort male angled
• DisplayPort 1.4 specification
• Downwards compatible to DisplayPort 1.3, 1.2 and 1.1
• Pin 20 not connected
• Cable gauge: 30 AWG
• Cable diameter: ca. 5.7 mm
• Copper conductor
• Triple shielded cable
• Contacts gold-plated
• Transmission of audio and video signals
• Data transfer rate up to 32.4 Gbps
• Resolution up to:
Display with DSC support:
7680 x 4320 @ 60 Hz
Display without DSC support:
7680 x 4320 @ 30 Hz
(depending on the system and the connected hardware)
• Supports Display Stream Compression 1.2 (DSC)
• Supports HDR
• Supports HDCP 1.4 and 2.2
• Supports HBR3 (8.1 Gbps) data rate
• Up to 32 audio channels for speakers
• Up to 1536 kHz audio sampling rate
• Supports colour sampling in 4:4:4, 4:2:2 and 4:2:0 format
• Colour: black
• Length incl. connectors: ca. 2 m
System requirements
• A free DisplayPort interface
Package content
• DisplayPort cable
New
4043619871506
