Description
This mini DisplayPort adapter by Delock can be used to connect a DVI monitor to graphics cards with mini DisplayPort ports that have special notches in the slot bracket above the ports. The additional latch of the plug of the adapter snaps into the notch and prevents the adapter from being pulled out unintentionally.
Specification
• Connectors:
1 x mini DisplayPort male with latch >
1 x DVI 24+5 female
• Chipset: Pericom PI3VDP411LS
• DVI-D (Single Link), VGA not wired
• DisplayPort 1.1 specification
• Passive converter (level shifter), suitable only for graphics cards with DP++ output
• Cable gauge: 32 AWG
• Cable diameter: ca. 4.8 mm
• Contacts gold-plated
• LS0H (halogen-free)
• Resolution up to 1920 x 1200 @ 60 Hz
(depending on the system and the connected hardware)

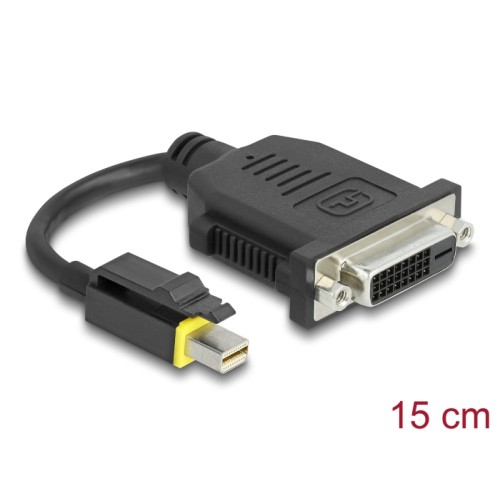

• Cable length incl. connectors: ca. 15 cm
• Colour: black
System requirements
• A free mini DisplayPort female
Package content
• Adapter mini DisplayPort to DVI
Package
• Poly bag
New
4043619659791
