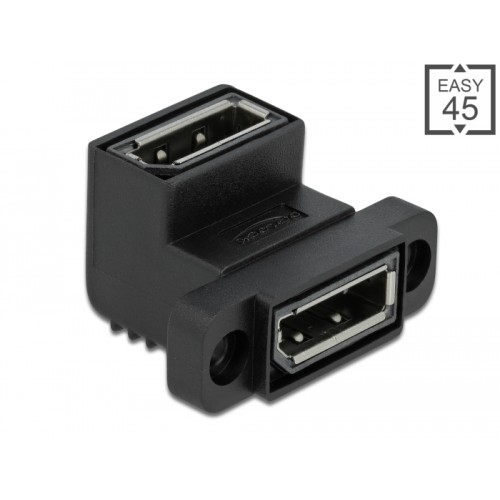

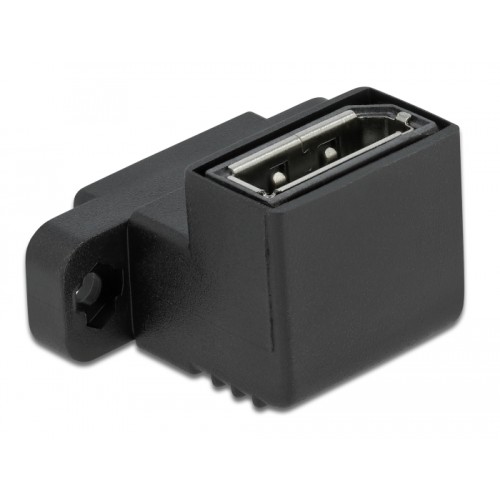

Delock Easy 45 DisplayPort Adapter angled 90°

Description

This Easy 45 adapter by Delock is designed to connect two DisplayPort cables. The adapter can be used to extend cables or as a gender changer. The two holes on the side allow the adapter to be screwed into devices or furniture, for example.

Suitable for Delock Easy 45 module cover
The shape and hole spacing are optimally matched to the Delock Easy 45 module plate with rectangular cut-out. In conjunction with the module cover, the adapter can be mounted in a Delock Easy 45 module holder or in a 45 mm cable duct.

Specification

• Connectors: 2 x DisplayPort female
• Resolution up to 7680 x 4320 @ 30 Hz (depending on the system and the connected
  hardware)
• Supports HDCP 2.2 (High-Bandwidth Digital Content Protection)
• Supports HDR
• Pin 20 is connected (supports 3.3 V)
• Material: PC plastic
• Suitable for Easy 45 module plate rectangular cut-out 12.5 x 21.5 mm
• Pitch of screw hole: ca. 23.5 mm
• Dimensions (LxWxH): ca. 36.0 x 26.5 x 20.5 mm
• Colour: black

System requirements

• A free DisplayPort male port

Package content

• DisplayPort adapter

Package

• Zip poly bag
