Description

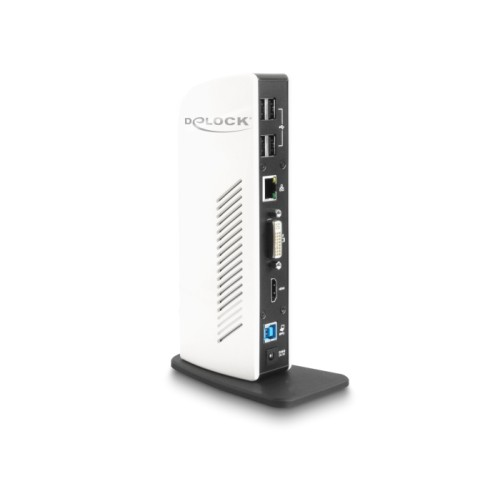

This Delock port replicator can be connected to a single USB port of your computer and expands your system by several interfaces, like USB, audio, Gigabit Ethernet, DVI and HDMI. The DVI and HDMI ports enable the connection of two additional monitors. The port replicator supports a HD resolution of up to 2048 x 1152.
Specification
• Connector:

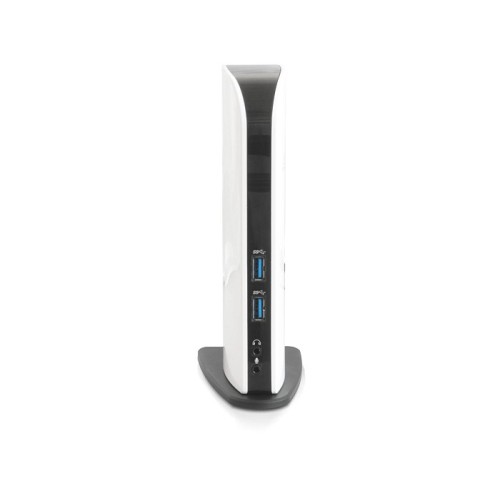

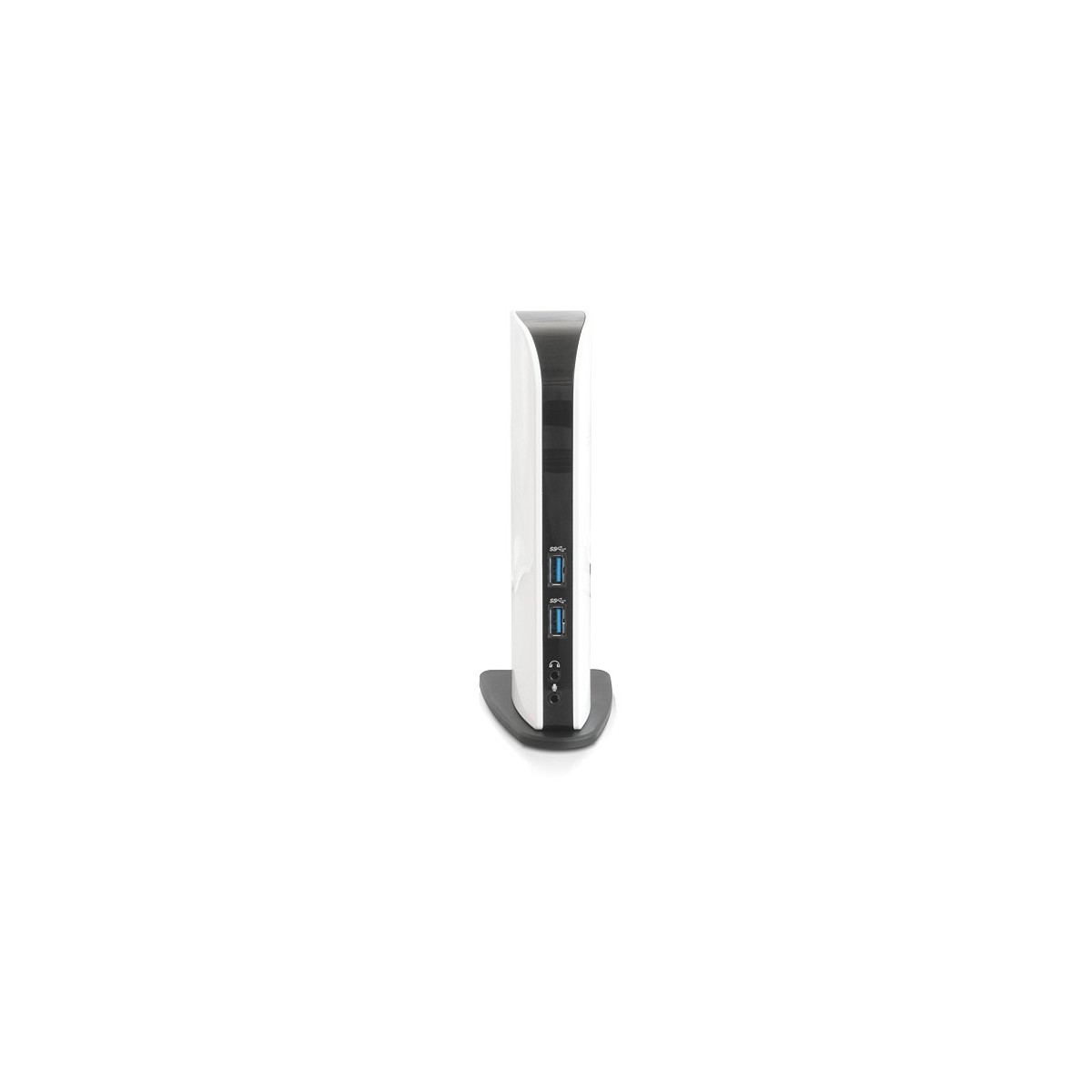

front side:
2 x USB 3.0 Type-A female
1 x microphone 3.5 mm stereo jack
1 x speaker 3.5 mm stereo jack

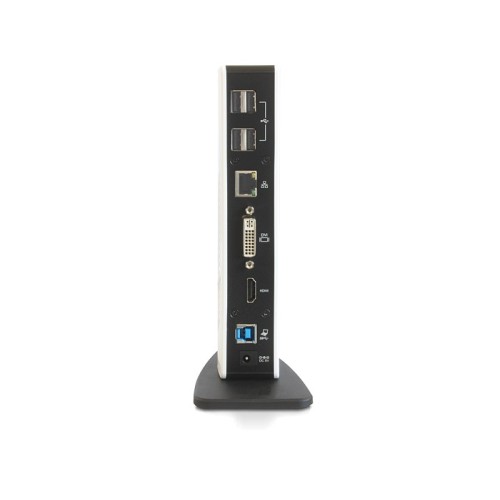

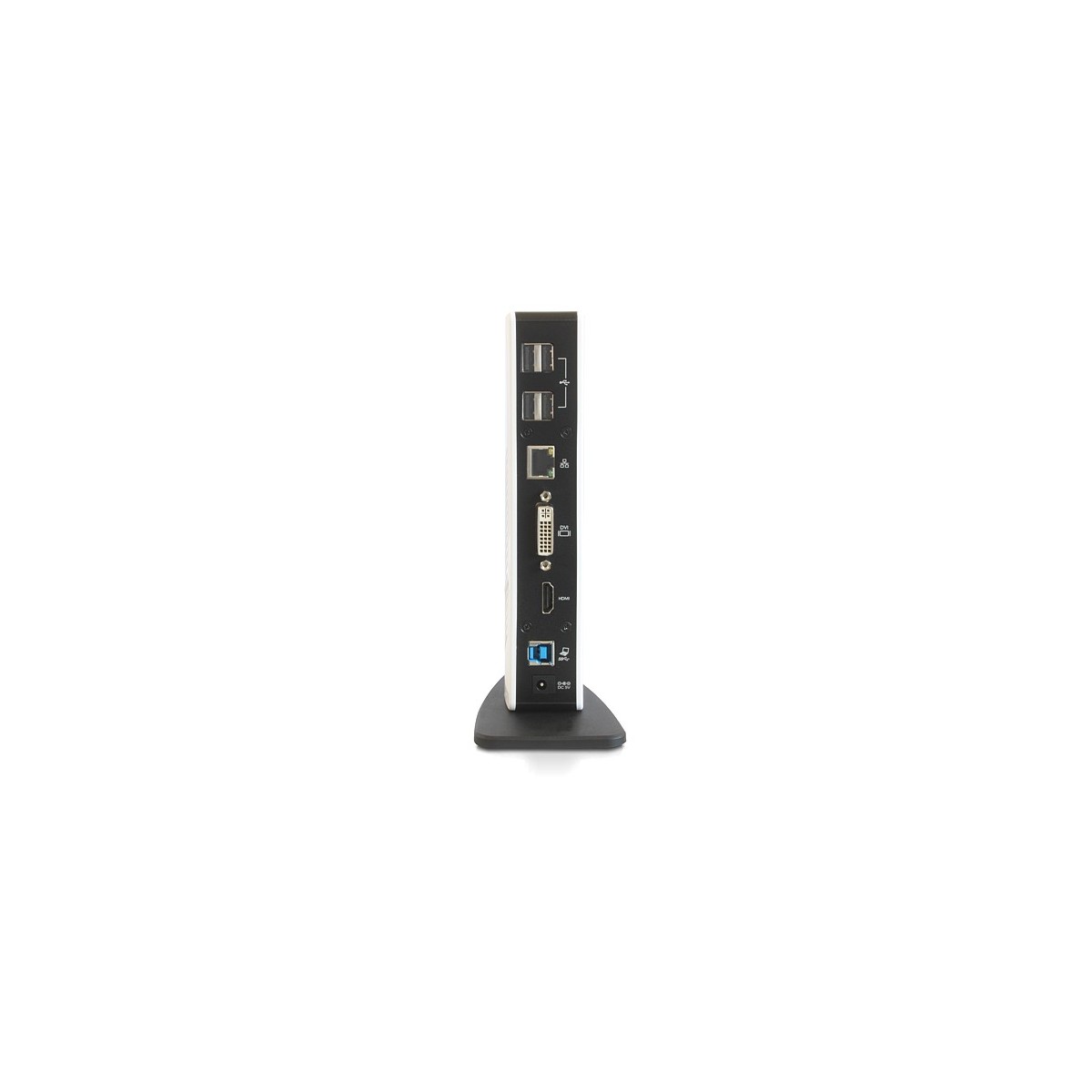

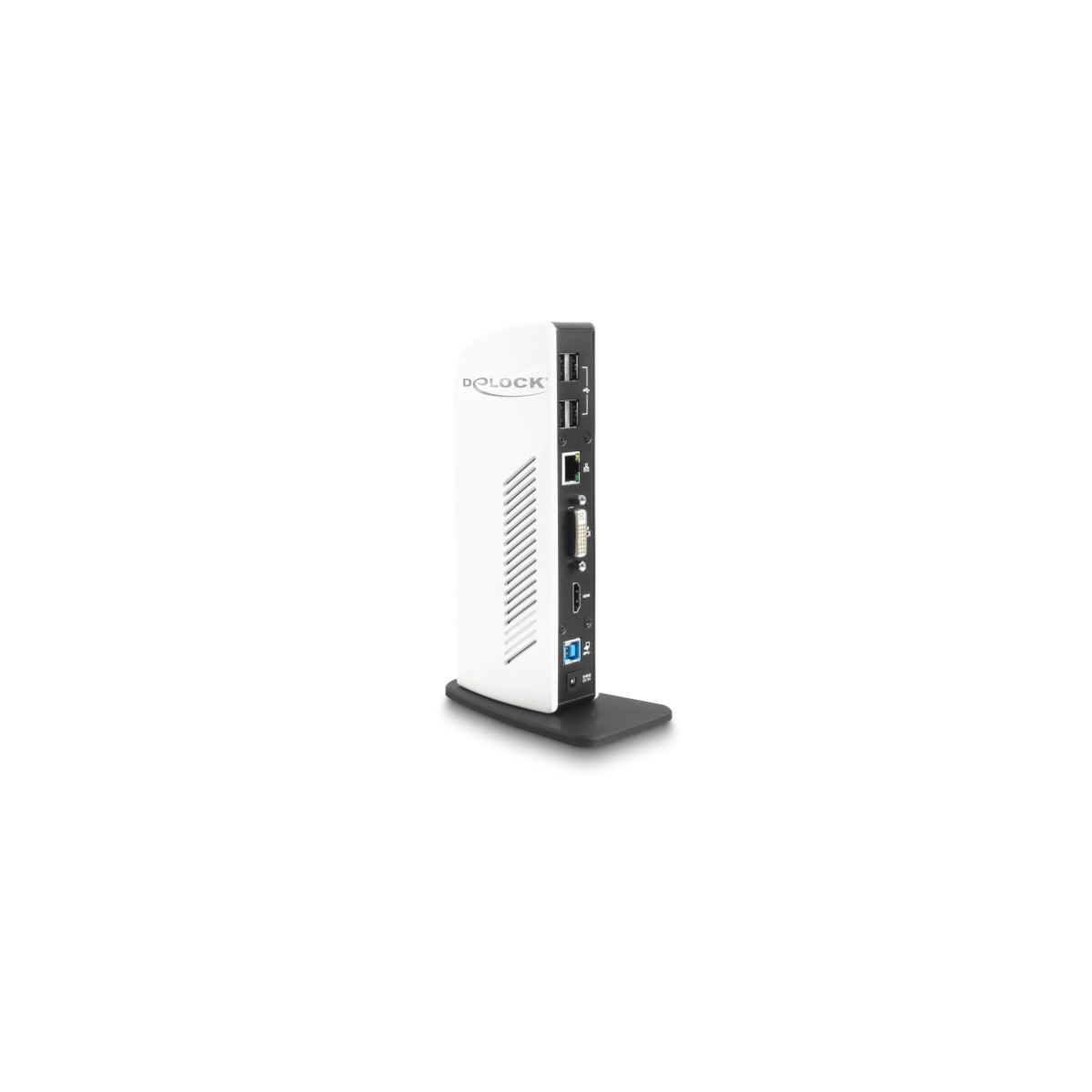

back side:
1 x USB 3.0 Type-B downstream port
1 x DC 5 V power connector
1 x HDMI-A 19 pin female
1 x DVI-I (Dual Link) 24+5 female
1 x Gigabit LAN 10/100/1000 Mb/s RJ45 female
4 x USB 2.0 Type-A female
• HDMI and DVI ports supports function: extended and mirror with a
resolution up to 2048 x 1152 (depends on the monitor and the existing
graphics card)
• Hot Plug
Power supply specification
• Wall power supply
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.8 A
• Output: 5 V / 4 A

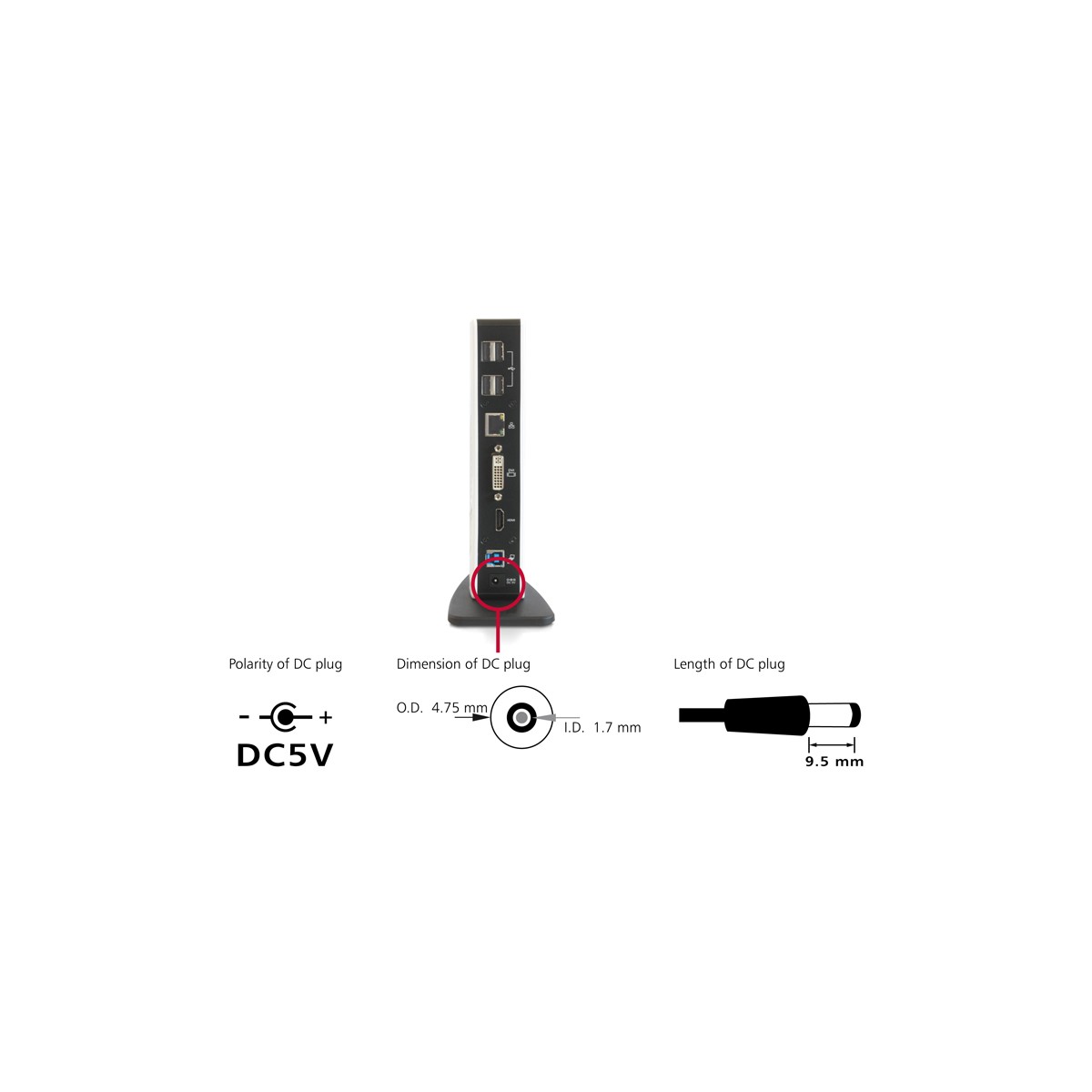

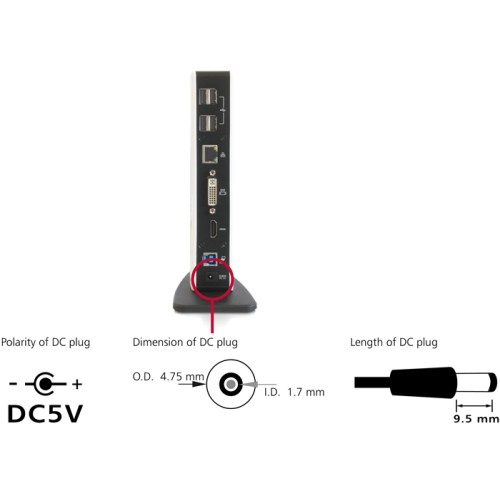

• Ground outside, plus inside
• Dimensions:
inside: ø ca. 1.7 mm
outside: ø ca. 4.75 mm
length: ca. 9.5 mm
System requirements
• Windows XP/Vista/Vista-64/7/7-64/8/8-64/8.1/8.1-64/10/10-64, Mac Lion 10.7.4
• PC or laptop with a free USB Type-A port
• 1.6 GHz CPU or above
• Minimum 30 MB free HDD space

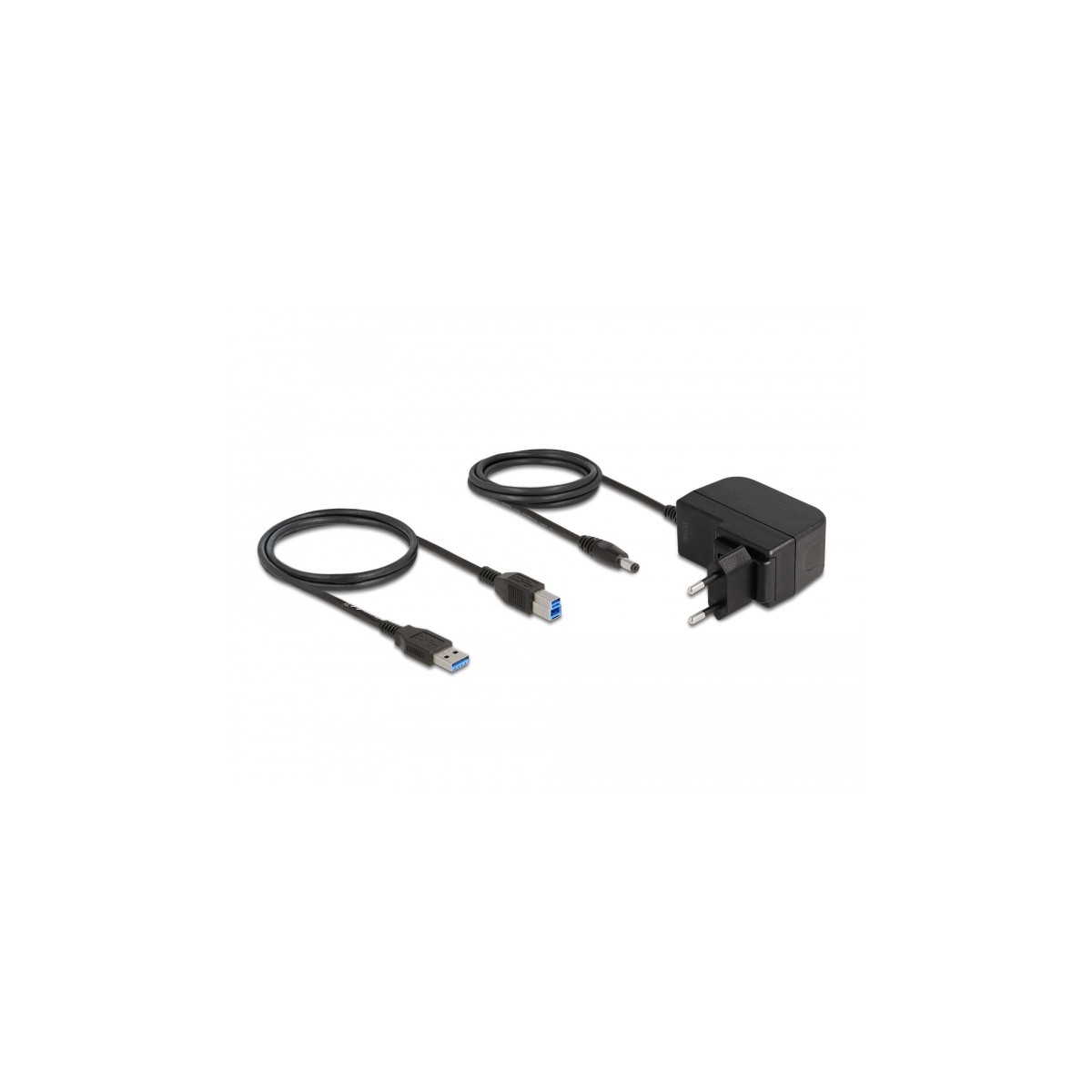

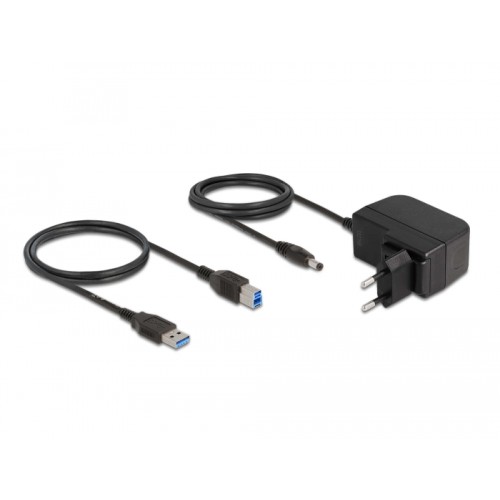

Package content
• USB 3.0 Port Replicator
• USB 3.0 cable
• External power supply
• Driver CD
• User manual
Package
• Retail Box
