Description

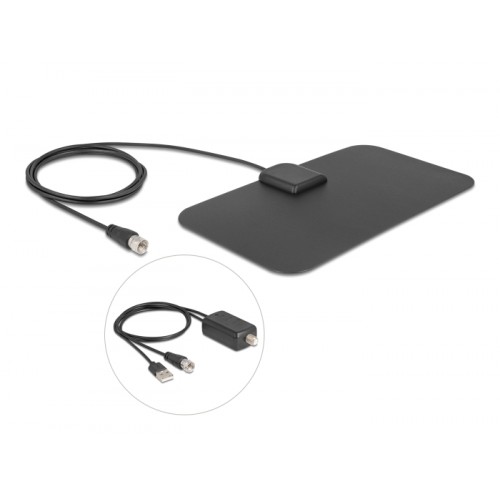

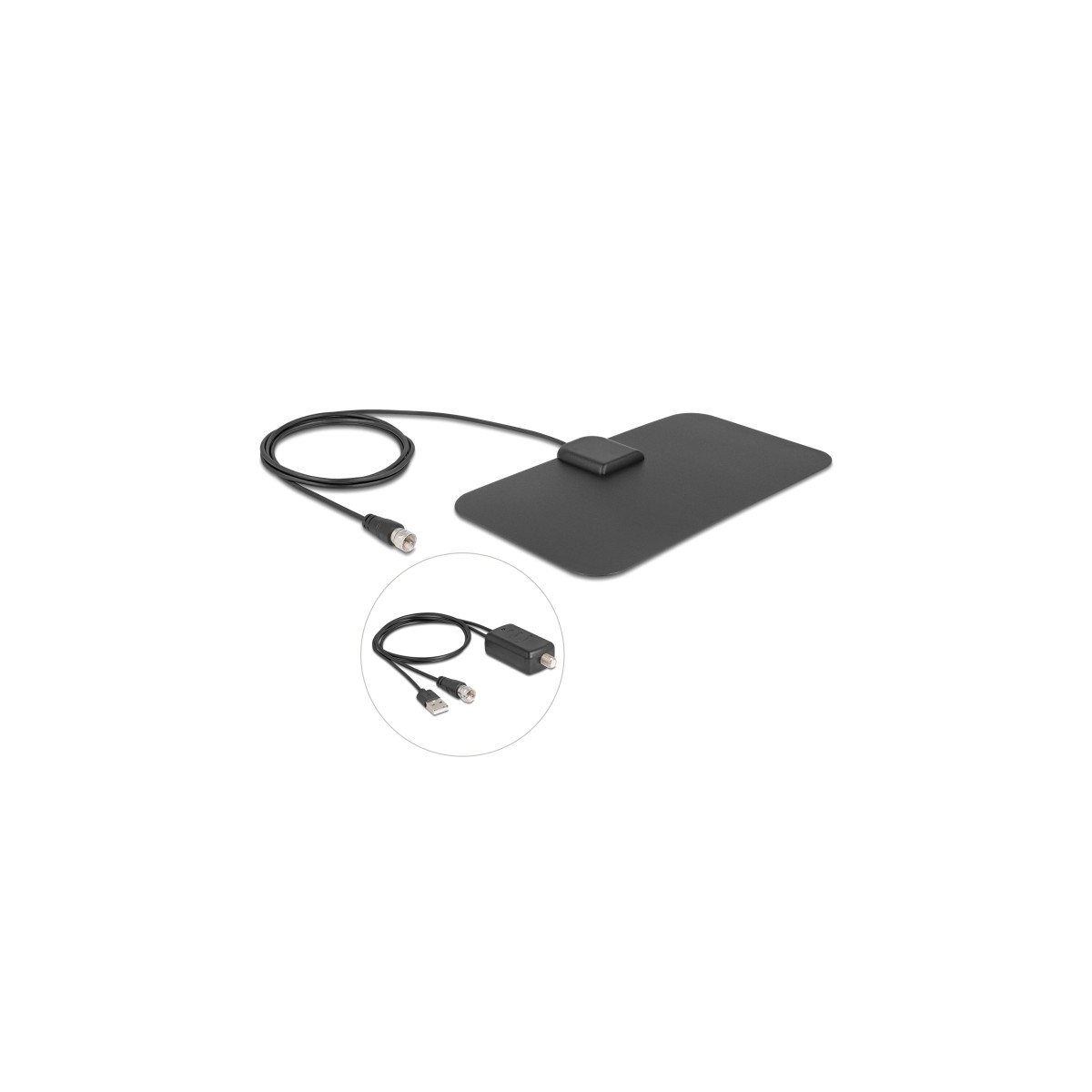

This active antenna by Delock is designed to receive digital broadcasting DAB+ and digital antenna-based television DVB-T2 HD. The integrated amplifier additionally improves the reception signal.
Specification
• Connector: 1 x F plug
• Frequency range:
DAB+: 174 - 230 MHz
DVB-T2: 470 - 860 MHz
• Antenna gain: 5 - 25 dB
• Impedance: 50 Ohm
• VSWR: < 1.5
• Operating voltage: 5 V
• Current consumption: 14 - 28 mA
• Operating temperature: -40 °C ~ 85 °C
• Cable type: RG-174
• Cable diameter: ca. 2.7 mm
• Cable length: ca. 2 m

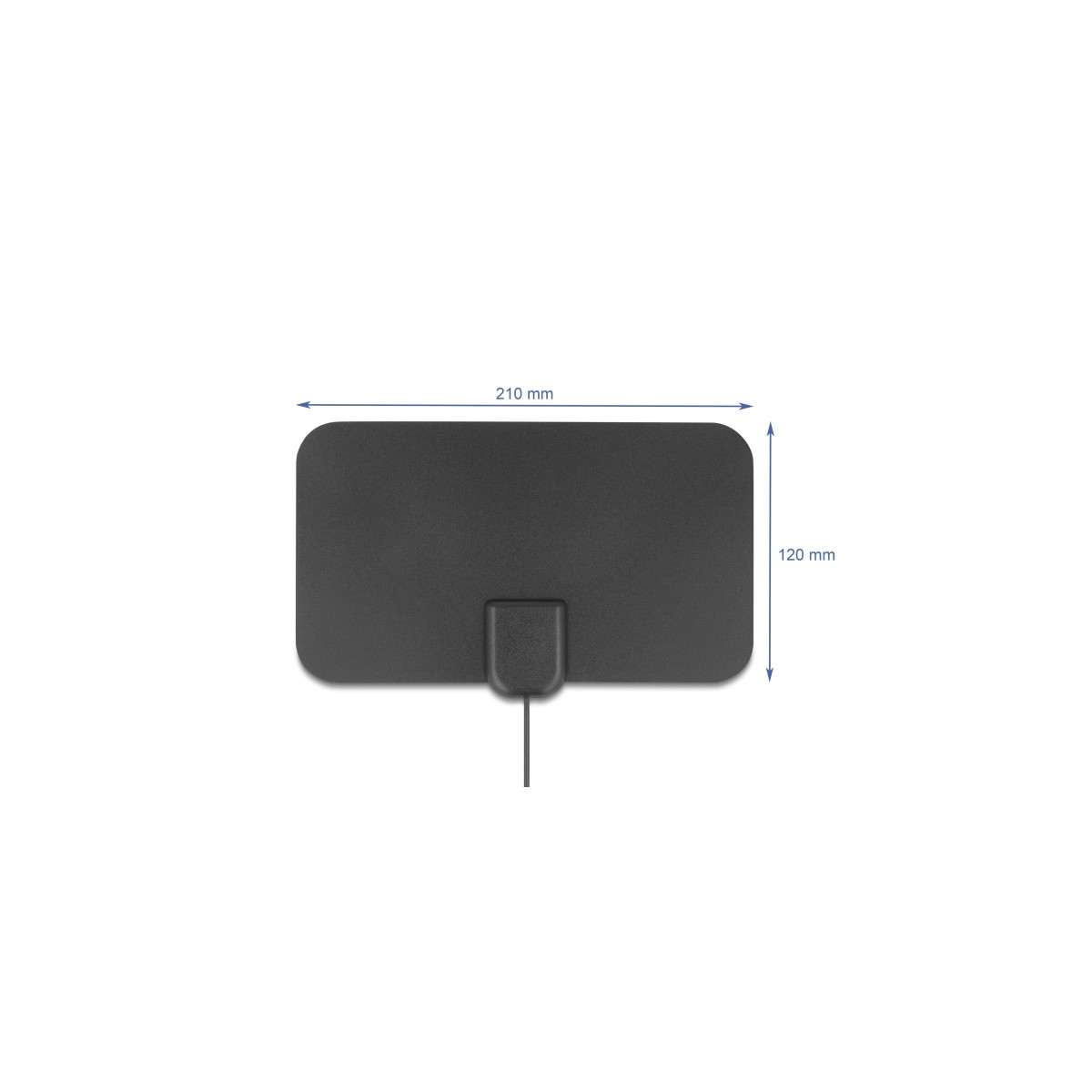

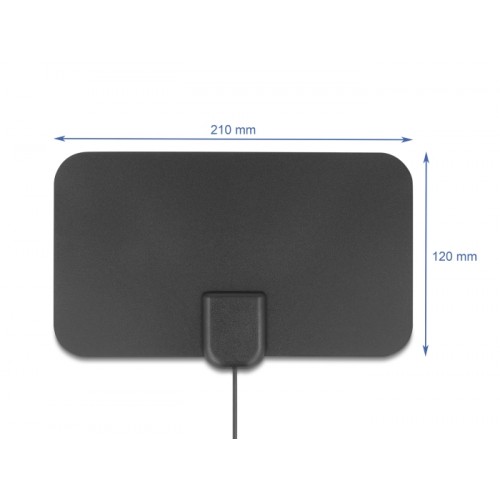

• Dimensions (LxWxH): ca. 120.0 x 210.0 x 0.6 mm
• Weight: ca. 156 g
System requirements
• DAB+ DVB-T2 receiver with a free F port
• Device with USB Type-A port
Package content
• DAB+ DVB-T2 antenna

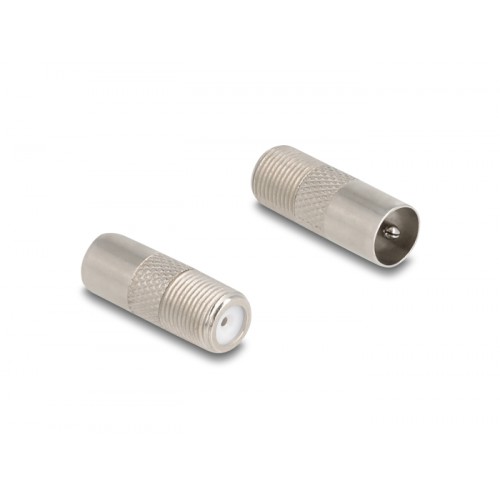

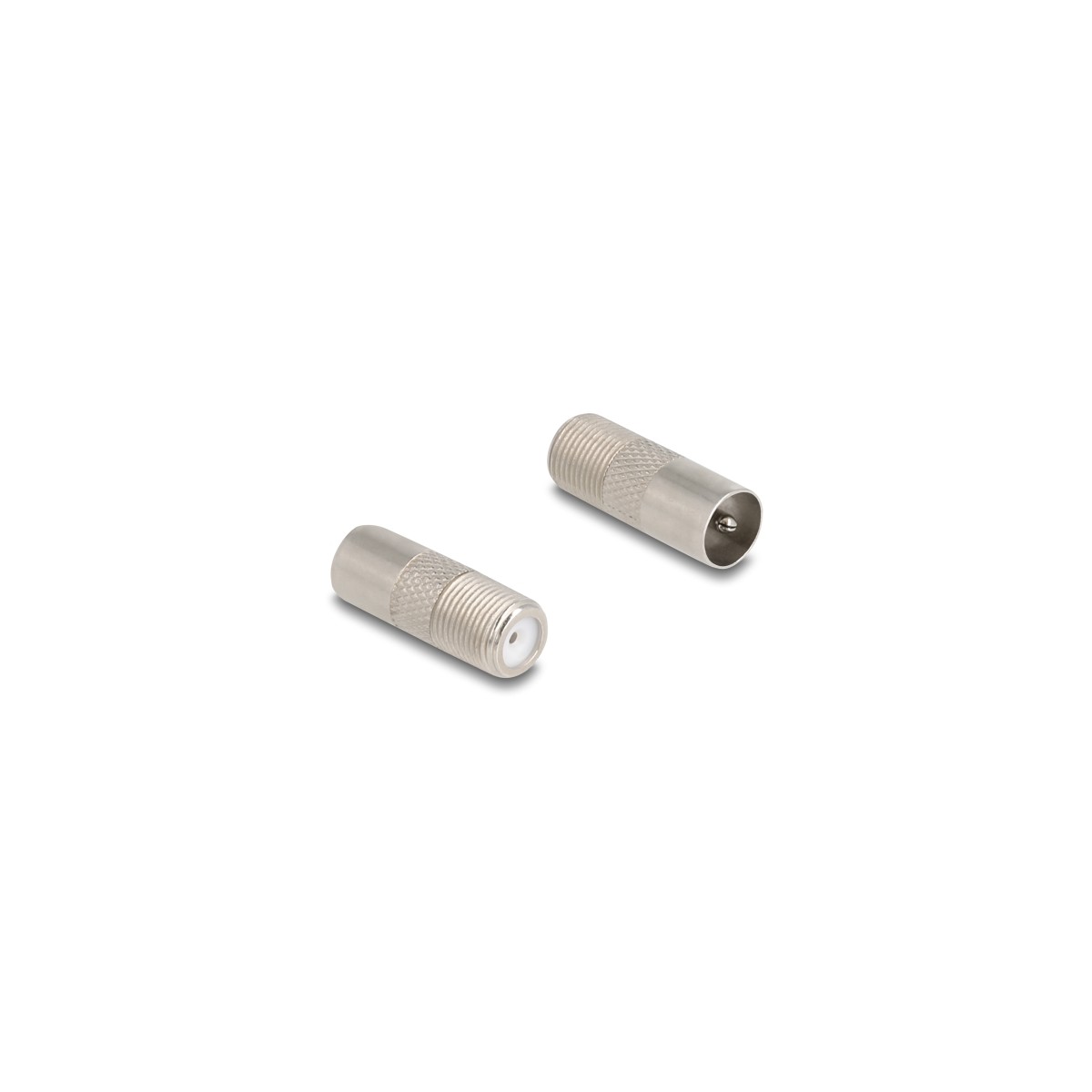

• Adapter F jack to IEC plug
