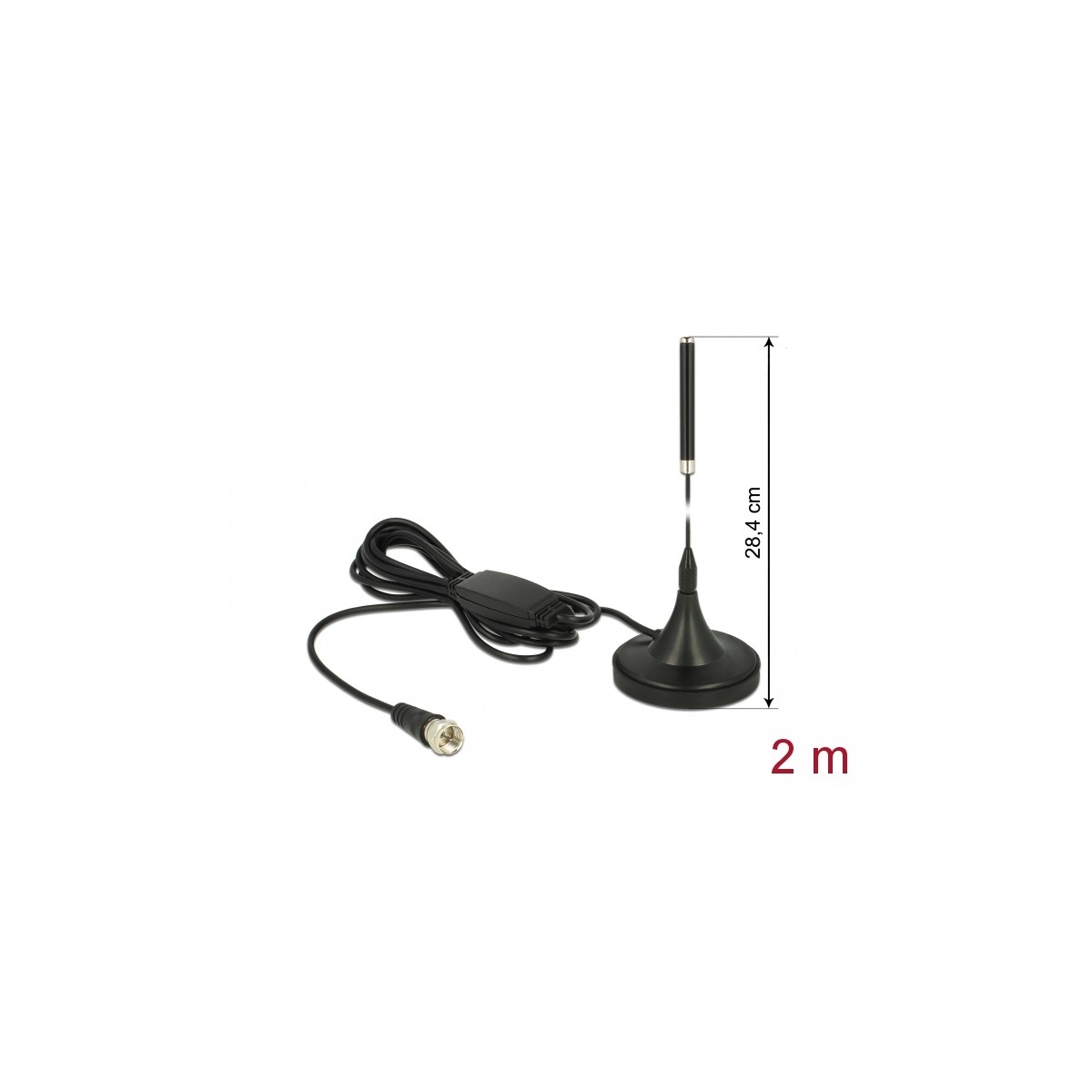

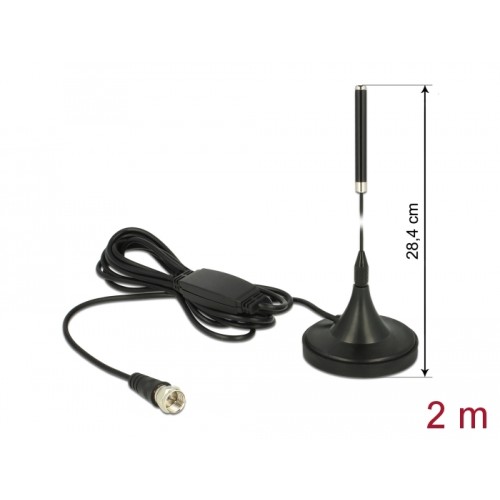

Delock DAB+ Antenna F Plug 21 dBi active fixed omnidirectional with magnetic base RG-174 2 m black
12413
New
Description
This active DAB + antenna is designed to receive digital broadcasting DIGITAL RADIO. The integrated amplifier improved the reception signal.
Specification
• Connector: F plug
• Frequency range: 174 ~ 240 MHz
• Gain: 21 dBi
• Impedance: 50 Ohm
• VSWR: 2.0:1
• Power supply: 5 V
• Current consumption: 2 ~ 6 mA
• Operating temperature: -10 °C ~ 70 °C
• Cable type: RG-174
• Cable diameter: ca. 2.7 mm
• Cable length: ca. 2 m
• Dimension (LxW) antenna: ca. 25.1 x 0.16 cm
• Dimension (WxH) stand: ca. 5.3 x 3.3 cm
System requirements
• DAB+ receiver with F connector and 5V over coaxial connector
• If the DAB + receiver has no 5V power supply over coaxial cable, use the cable 13006
http://www.delock.de/produkte/S_13006/merkmale.html. The 5V power supply is taken from USB port to coaxial cable to the active antenna.
Package content
• DAB+ antenna
Package
• Poly bag
New
4043619124138
