Description

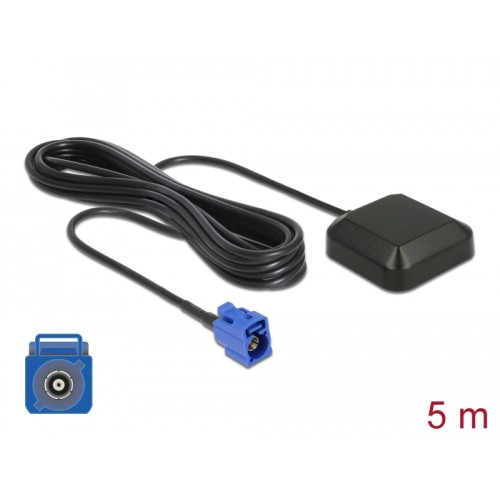

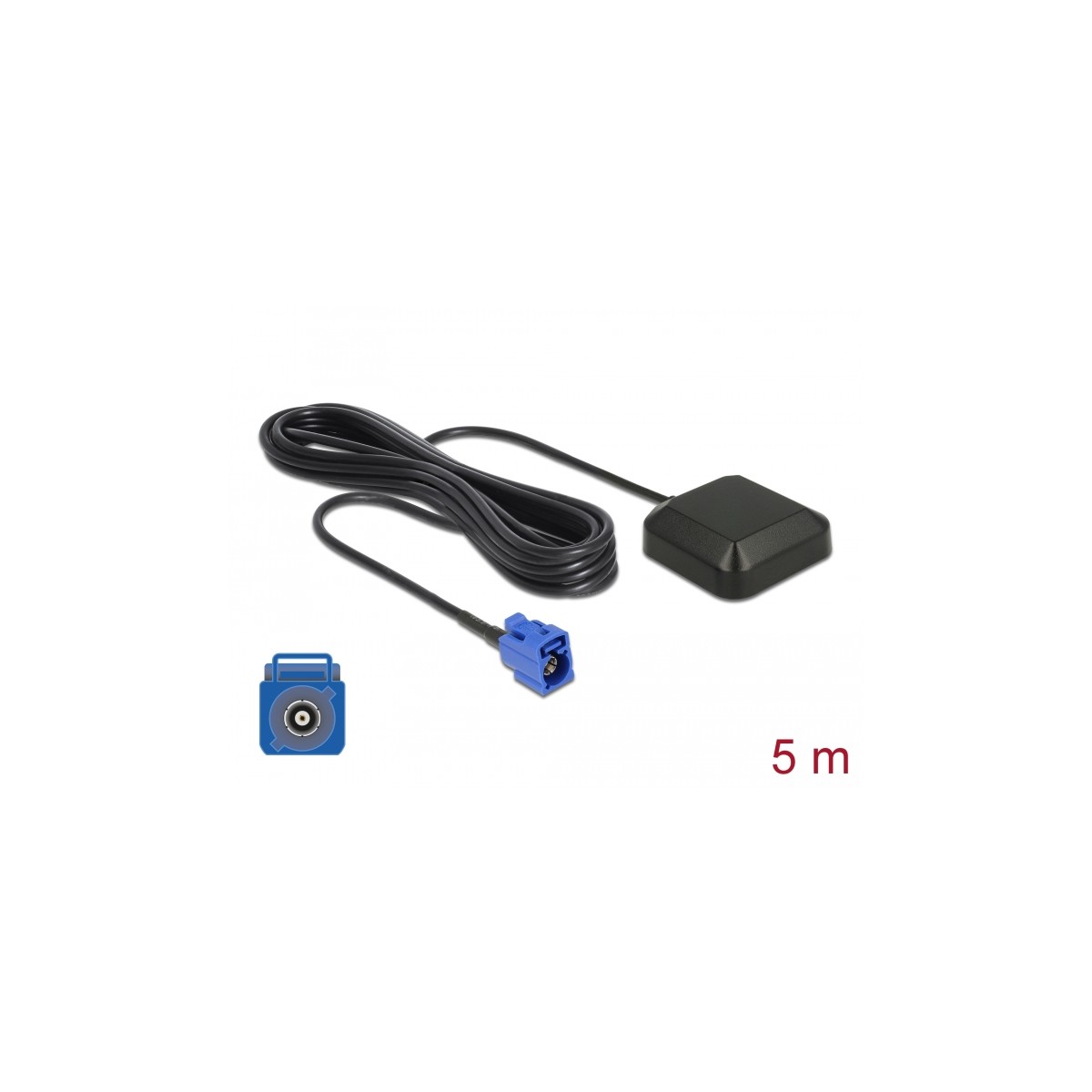

This GPS antenna by Navilock can be used with an existing GPS receiver or car receicer with FAKRA-C connection. Improvement of reception will be provided by placing the antenna, e.g. on the hat rack or car roof, where it has a better or free view to the sky. The antenna is waterproof and can temporary also be used outside of the vehicle.
Specification
• Active GPS antenna
• Frequency: L1 band 1575.42 MHz
• Band width: 2 MHz
• Gain: 27 dBi
• FAKRA C jack blue
• Cable typ: RG 174/U
• Cable attenuation: 5,6 dB/100m
• Cable length: 5 m
• Impedance: 50 Ohm
• Dimensions (LxWxH): 40.5 x 38 x 12 mm
• DC input: 3.0 - 5.5 V
• Power consumption: typ. 11 mA, max: 15 mA @ 3 V
• Magnetic housing bottom
• Weight: 150 g
• Protection class: IP67
• Operating temperature: -30 °C ~ 80 °C
Package content
• GPS antenna
Package
• Poly bag
This GPS antenna by Navilock can be used with an existing GPS receiver or car receicer with FAKRA-C connection. Improvement of reception will be provided by placing the antenna, e.g. on the hat rack or car roof, where it has a better or free view to the sky. The antenna is waterproof and can temporary also be used outside of the vehicle.
Specification
• Active GPS antenna
• Frequency: L1 band 1575.42 MHz
• Band width: 2 MHz
• Gain: 27 dBi
• FAKRA C jack blue
• Cable typ: RG 174/U
• Cable attenuation: 5,6 dB/100m
• Cable length: 5 m
• Impedance: 50 Ohm
• Dimensions (LxWxH): 40.5 x 38 x 12 mm
• DC input: 3.0 - 5.5 V
• Power consumption: typ. 11 mA, max: 15 mA @ 3 V
• Magnetic housing bottom
• Weight: 150 g
• Protection class: IP67
• Operating temperature: -30 °C ~ 80 °C
Package content
• GPS antenna
Package
• Poly bag
