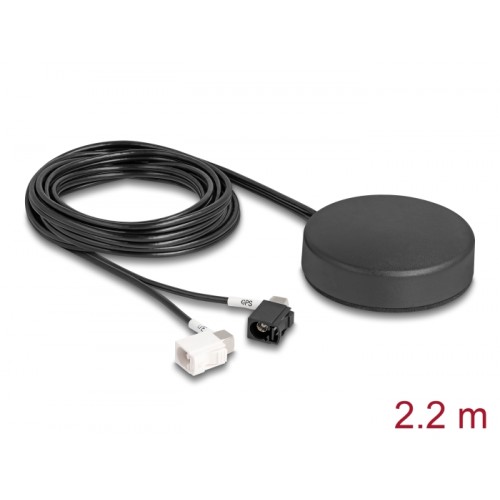

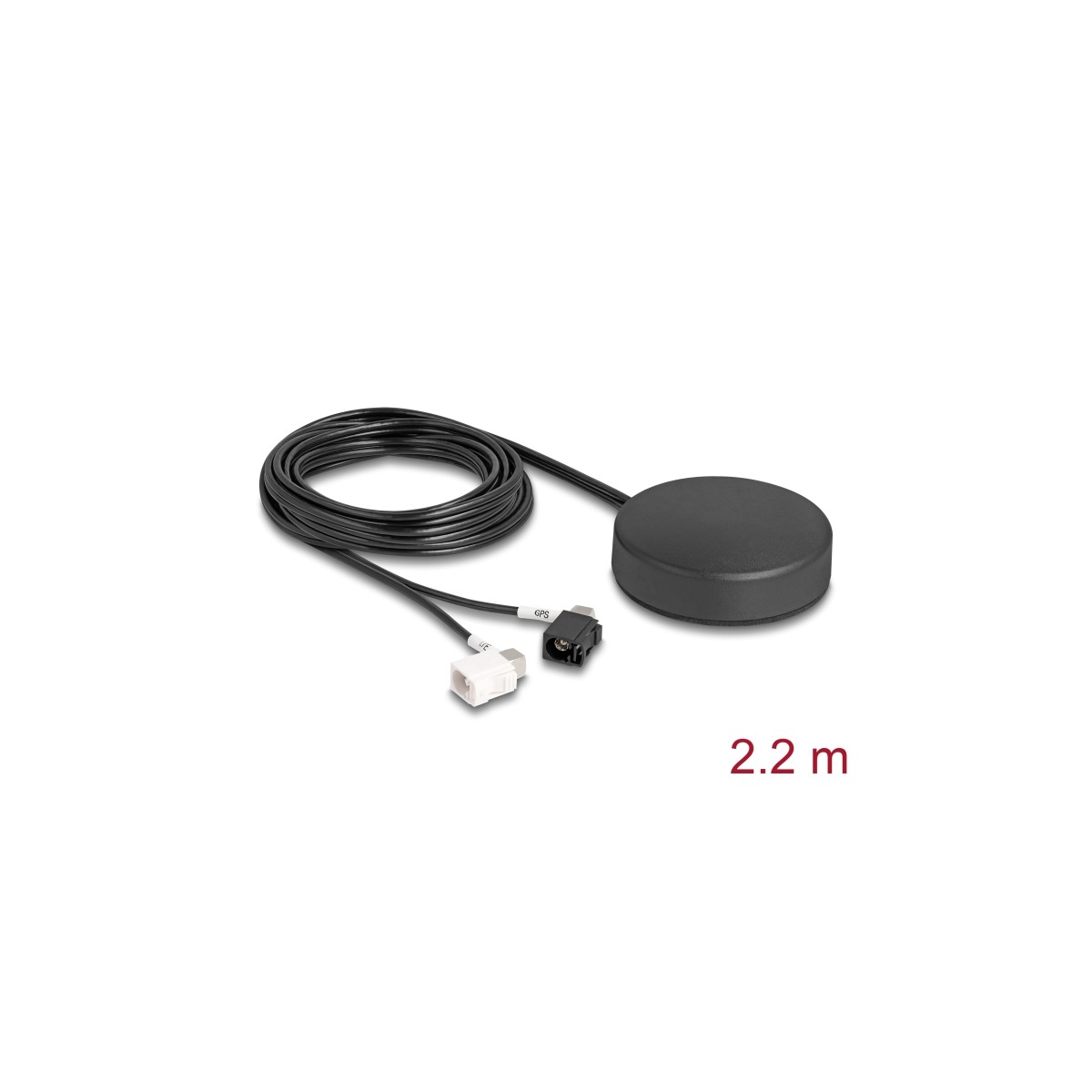

Delock 4G GNSS Antenna 1 x FAKRA A + 1 x FAKRA B jack 2 dBi / 28 dB 2.2 m RG-174 omnidirectional roof mount black outdoor

Description
This multiband antenna by Delock has two physically separated transmitting and receiving units. Due to its outdoor features, the multiband antenna is well suitable for usage in harsh areas such as transportation, forestry, agriculture, construction and in the maritime sector. It is waterproof and can be used in the extended temperature range.

Specification
• 4G:
• Connector:
1 x FAKRA B jack
FAKRA B: RAL 9001 Cream
Frequency range:
698 - 960 MHz
1710 - 2700 MHz
Antenna gain: 2 dBi
Impedance: 50 Ohm
VSWR:
< 2.5 @ 690 MHz
< 2.6 @ 824 MHz
< 1.4 @ 960 MHz
< 1.5 @ 1710 MHz
< 3.3 @ 2700 MHz
Polarisation: linear
Cable type: coaxial
Cable type: RG-174
Cable diameter: ca. 2.7 mm

• GNSS:
• Connector:
1 x FAKRA A jack
FAKRA A: RAL 9005 Jet Black
Frequency range:
GNSS: L1, 1575.42 MHz, 1598 - 1602 MHz
Antenna gain: 4 - 5 dBi
Impedance: 50 Ohm
VSWR: < 1.5
Polarisation: RHCP
Cable type: coaxial
Cable type: RG-174
Cable diameter: ca. 2.7 mm

• LNA GNSS:
Frequency range:
GNSS: L1, 1575.42 MHz, 1598 - 1602 MHz
Gain: 28 dB
Impedance: 50 Ohm
VSWR: < 2.0
Operating voltage: 2.7 - 5.0 V
Current consumption: 7 - 15 mA

• self-adhesive
• Operating temperature: -20 °C ~ 75 °C
• Housing material: ABS
• Colour: black
• Protection class: IP67
• Cable attenuation: 1.5dB @ 2 GHz per meter
• Cable colour: black
• Cable length incl. connectors: ca. 2.2 m
• Dimensions (Ø x H): ca. 75 x 21 mm

System requirements
• Device with multiple free FAKRA ports

Package content
• Multiband antenna
