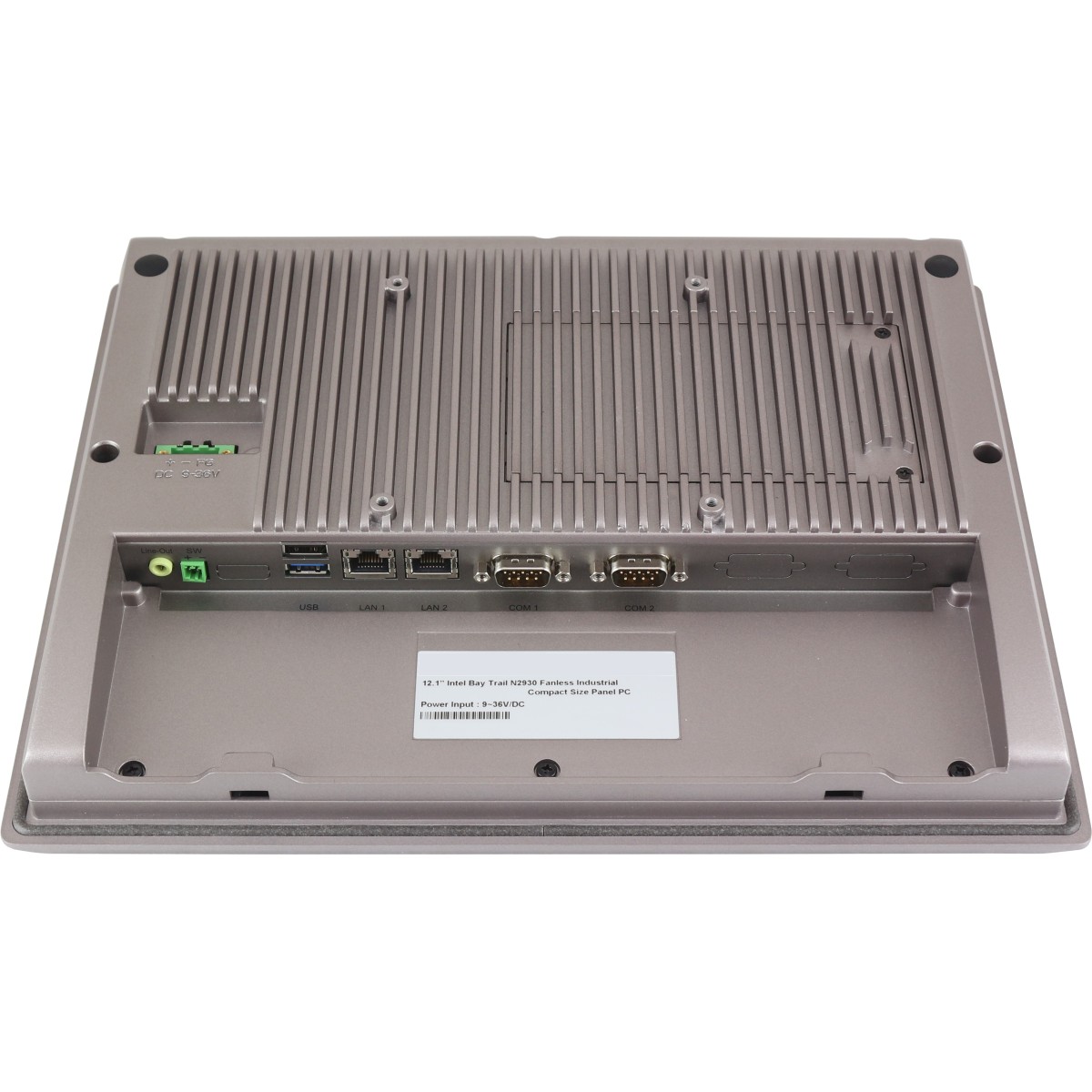

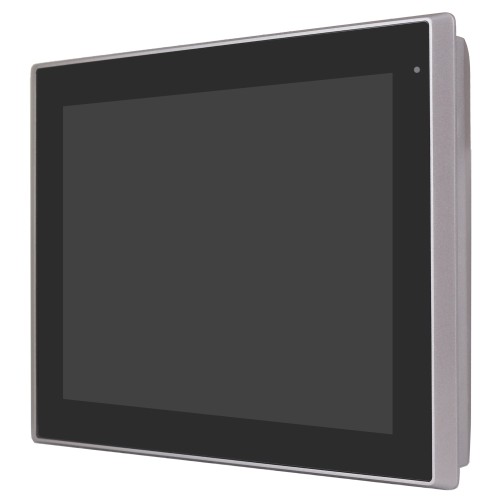

Panel PC with UL certification 10" / 12" / 15" / 17" / 19" / 21" IP66, Aluminum Die-Casting Chassis, CPU I3/I5, touchscreen
New
Specifications
System
CPU: Onboard Intel 4th Core i3 / i5(option) Processors
System Chipset: SoC
System Memory: Onboard 4GB DDR3L SDRAM
Graphics: Intel® HD Graphics 4400
External I/O
USB2 x USB 3.0 type A
Serial / Parallel1 x RS-232 DB-9(COM2)1 x DB-9 RS-232/422/485 (Default RS-232)(COM1)
Storage Space
HDD/SSD1 x 2.5" SATA HDD bay for SATA HDD (Easy Accessible)
Expansion
1 x Internal Mini-PCIe slot full size
Display
LCD Size: 21.5" TFT-LCD
Max. resolution: 1920 x 1080
Max. color: 16.7M
Luminance(cd/m²): 250
Viewangle(H°/V°): 178/178
Backlight lifetime(hrs): 30000
Touch Screen
Touch Type: Projected Capacitive Touch
Interface: USB
Light transmission(%): 90%
Power
Power inputDC 9~36V
Mechanical
Construction: Aluminum Die-casting Front Bezel and Chassis
IP rating: Front Bezel IP66
Mounting: Panel mounting, VESA 100 x 100
Environment
Operating temperature(°C): 0~50°C
Storage temperature(°C): -30~70°C
Storage humidity: 10 to 90%@ 40˚C, non-condensing
Certification: CE / FCC Class A / UL
Operating System Support: Windows Embedded Compact 7, Windows Embedded Standard 7, Windows 7 Pro(FES), Windows 7 Ultimate(FES), Windows Embedded 8 Standard, Windows Embedded 8.1 Industry Pro, Windows 10 IoT Enterprise 2015LTSB
