BORN FOR SUPERIOR PERFORMANCE

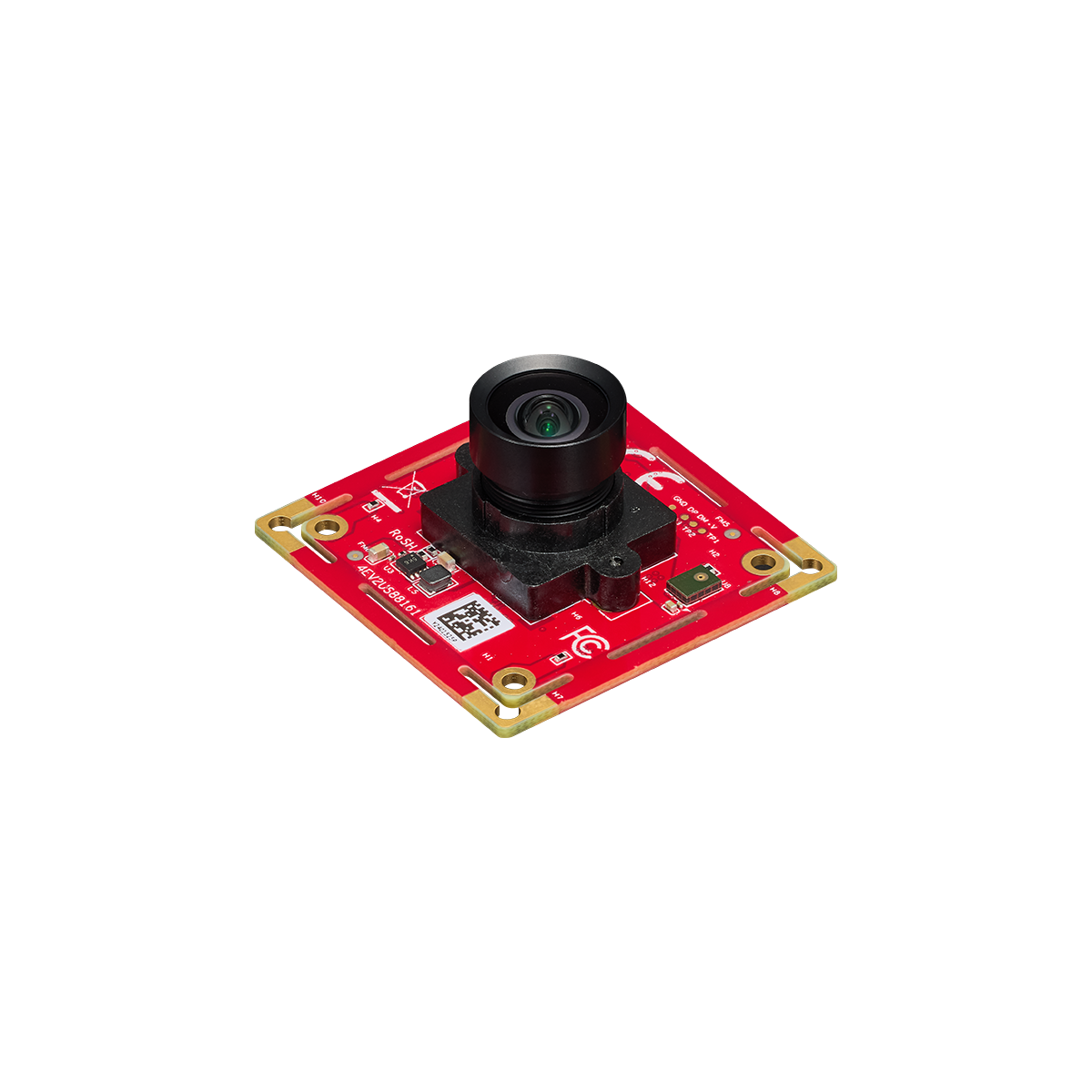

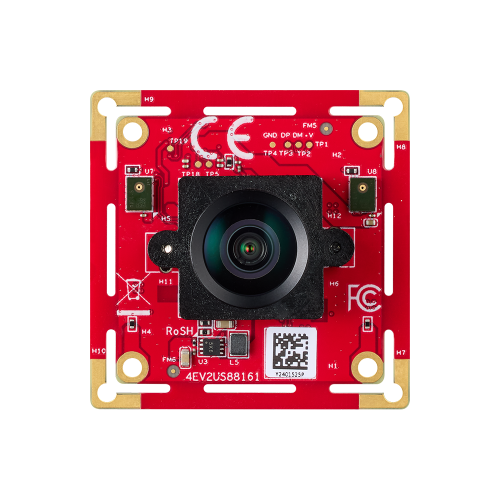

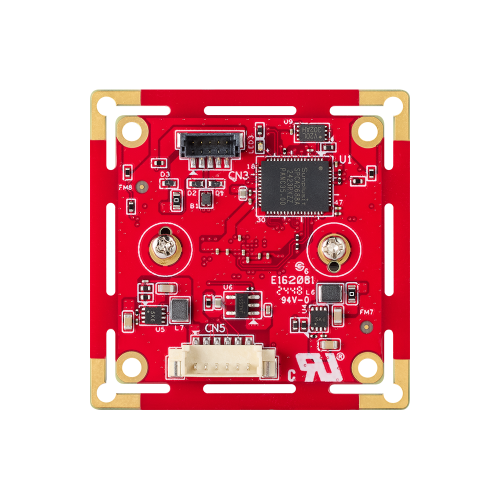

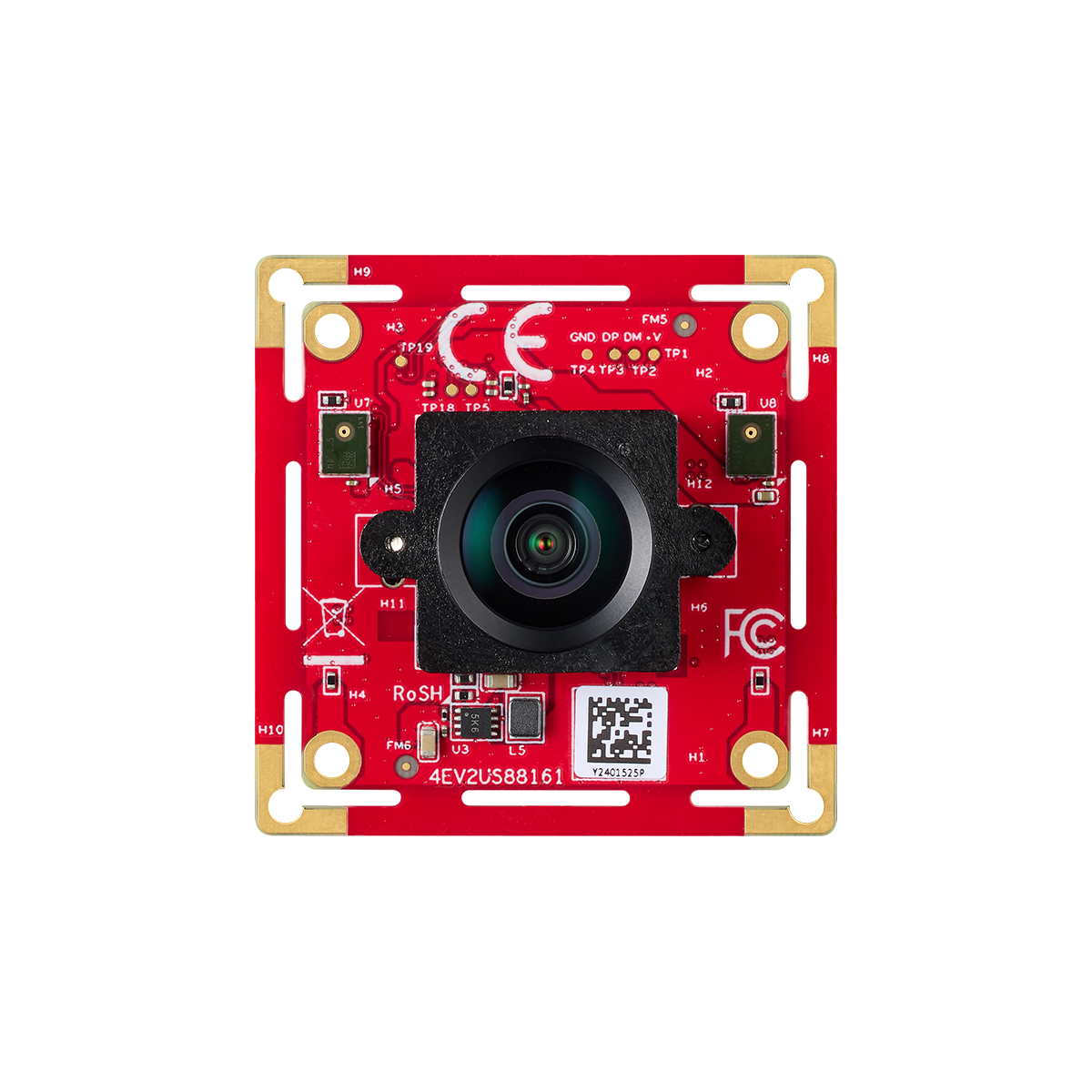

Innodisk’s USB 2.0 2MP Fixed Focus Camera Module features a built-in ISP along with HDR and external trigger support, ensuring stable, sharp image quality. It’s ideal for applications such as ATMs, access control systems, and other scenarios where precise image capture timing is critical.
HDR FOR SUPERIOR IMAGE CLARITY
Innodisk's Camera Module features cutting-edge HDR technology, ensuring exceptional image clarity and sharpness even in challenging lighting conditions. By effectively extending the dynamic range, HDR technology captures intricate shadow details and vivid highlights, delivering images with unparalleled realism and natural balance.
HDR FOR SUPERIOR IMAGE CLARITY
Equipped with external trigger support, the USB 2.0 2MP Fixed Focus Camera Module enables the host system to precisely control the timing of image capture. Ideal for equipment monitoring, multi-camera synchronization, and other time-sensitive applications.
TAILORED TO YOUR SPECIFIC NEEDS
PCBA CUSTOMIZATION
Offering PCBA (Printed Circuit Board Assembly) customization services to ensure your camera module meets your specific requirements.
IMAGE QUALITY TUNING
With an integrated Image Signal Processor (ISP), we enable to optimize image quality while saving development resources.
VERSATILE LENS SUPPORT
A wide range of lenses empowers you to capture stunning images in any situation.
IMPLEMENTED WITH SUCCESS IN DYNAMIC ENVIRONMENTS

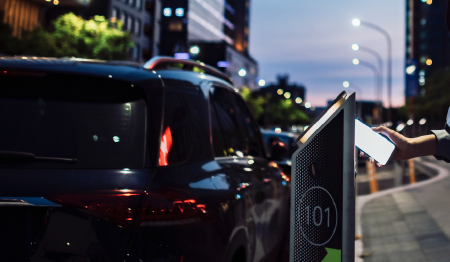

SMART PARKING METER
Delivers wide-angle, clear video capture even in low-light conditions, enabling accurate vehicle detection and monitoring.

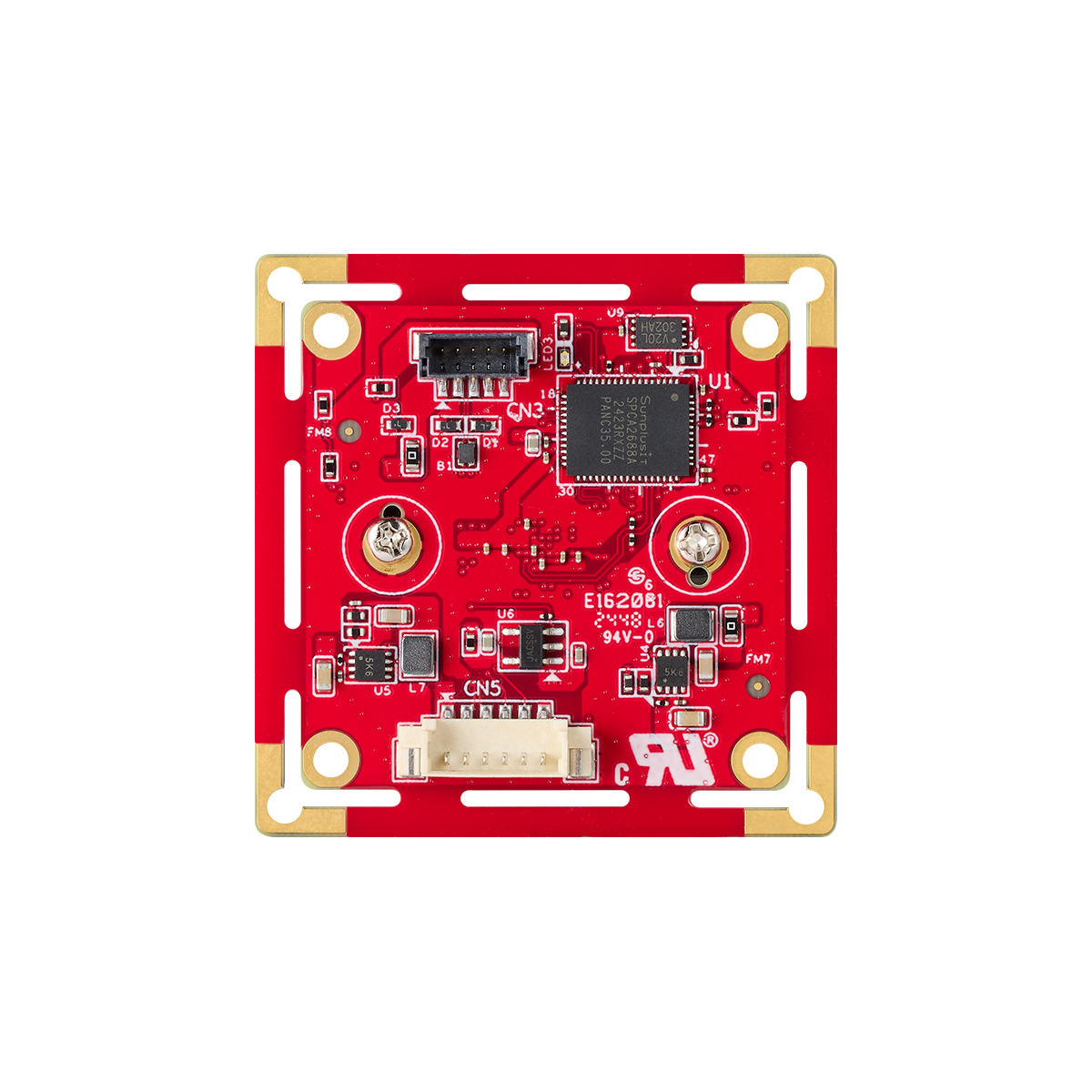

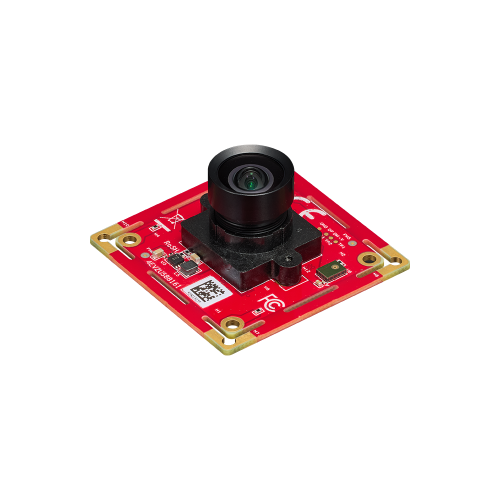

SPECIFICATIONS
Model Name
EV2U-LOM1-RHCF
Module Type
USB 2.0 2MP Fixed Focus Camera Module
Resolution (Max.)
2MP
Frame Rate (Max. Resolution)
30fps
Output I/F
USB 2.0
Sensor
onsemi AR0246
Shutter
Rolling
Video Format
YUV422, MJPEG
Power Consumption
Approximate 1W (MJPEG @Max. Resolution)
Operating Temperature
0°C ~ 70°C
Sensor Size
1/4”
Pixel Size
2.0µm
Chroma Type
Color
Lens Type
Fixed Focus (M12)
Dimensions (W x L x H/mm)
38 x 38 x 21.88
32 x 32 x 21.88
41.4 x 41.4 x 37.68 (Housing)
Lens FOV (D / H / V)
96° / 88° / 57°
OS Support
Windows / Linux / Android / macOS
Housing
Board Level, Housing
Features
HDR
Warranty
3 Years
Note
For detailed resolution and frame rate combined application, please refer to product datasheet.
ORDER INFORMATION
P/N
Description
EV2U-LOM1-RHCF-11
USB 2.0 2MP Fixed Focus Camera Module (USB cable included)
Dimension: 38 x 38mm
EV2U-LOM1-RHCF-12
USB 2.0 2MP Fixed Focus Camera Module, with DMIC (USB cable included)
Dimension : 38 x 38mm
EV2U-LOM1-RHCF-A1
USB 2.0 2MP Fixed Focus Camera Module (USB cable included)
Dimension: 32 x 32mm
EV2U-LOM1-RHCF-A2
USB 2.0 2MP Fixed Focus Camera Module, with DMIC (USB cable included)
Dimension : 32 x 32mm
EV2U-LOM1-RHCF-21
USB 2.0 2MP Fixed Focus Camera Module, with Housing (USB cable included)
Dimension : 41.4 x 41.4mm
7W2000000160
USB 2.0 cable 1 meter, 5 pins, pitch 1mm
