BORN FOR SUPERIOR PERFORMANCE
Innodisk's USB 2.0 Camera Module sets the standard for exceptional performance. Its expansive wide-angle view captures everything in sight, while lightning-fast auto exposure ensures crystal-clear images in any lighting conditions. Moreover, this adaptable camera module seamlessly integrates into smart parking meters, EV chargers, POS, Kiosks, ATMs, and more. Its robust features and unmatched performance make it the ideal choice for businesses seeking a reliable and versatile camera solution.
UNMATCHED NIGHT VISION
Innodisk’s camera module captures remarkably clear images even in low-light conditions, ensuring reliable performance in 24/7 surveillance scenarios.
WIDE FIELD OF VIEW
With a wide field of view, the camera modules capture the entire scene and surroundings, reducing blind spots and improving situational awareness.
ENERGY EFFICIENCY
Fast Auto Exposure ensures quick and clear image capture, minimizing power consumption and extending the battery lifespan of edge devices.
TAILORED TO YOUR SPECIFIC NEEDS

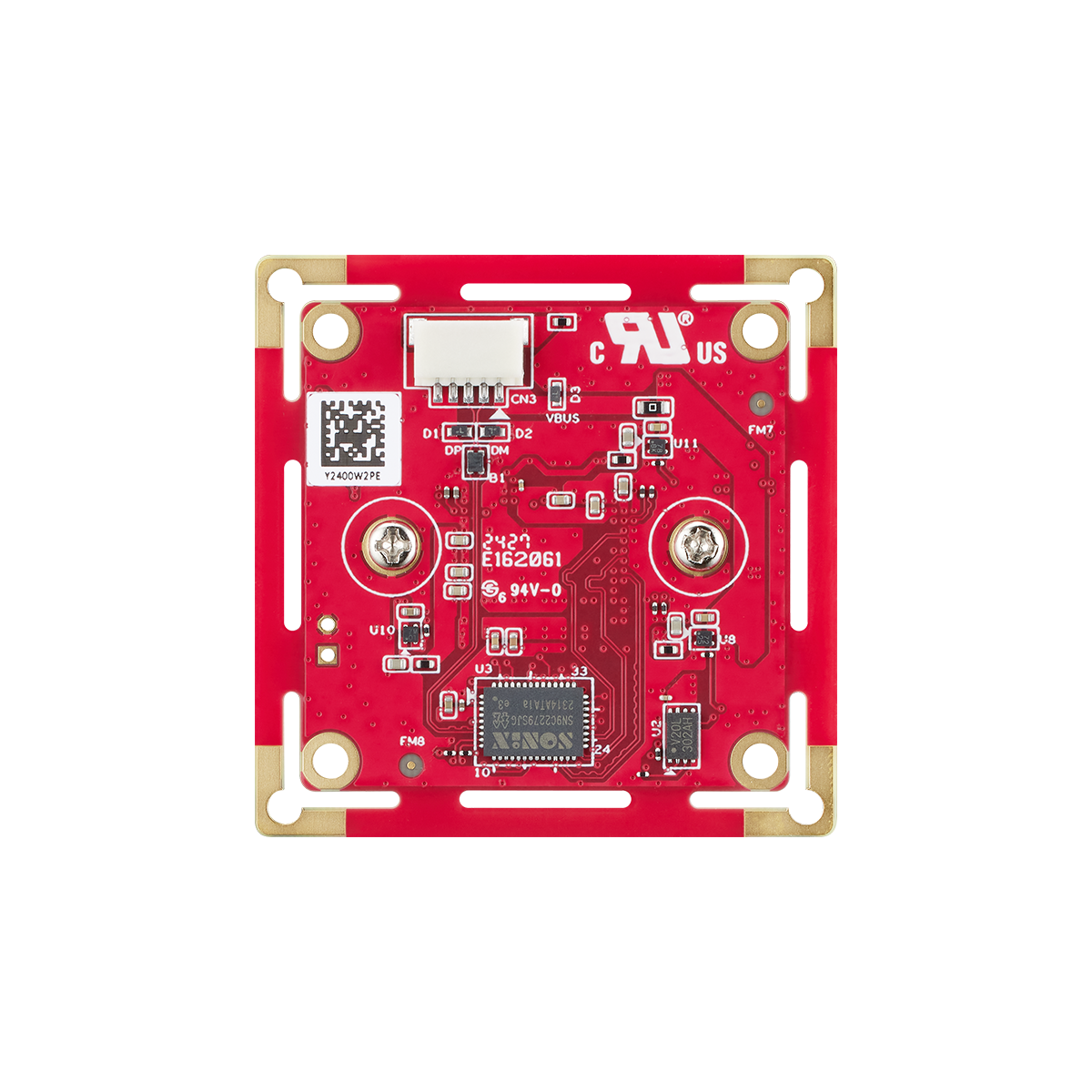

PCBA CUSTOMIZATION
Offering PCBA (Printed Circuit Board Assembly) customization services to ensure your camera module meets your specific requirements.
IMAGE QUALITY TUNING
With an integrated Image Signal Processor (ISP), we enable to optimize image quality while saving development resources.
VERSATILE LENS SUPPORT
A wide range of lenses empowers you to capture stunning images in any situation.
IMPLEMENTED WITH SUCCESS IN DYNAMIC ENVIRONMENTS
SMART PARKING METER
Delivers wide-angle, clear video capture even in low-light conditions, enabling accurate vehicle detection and monitoring.

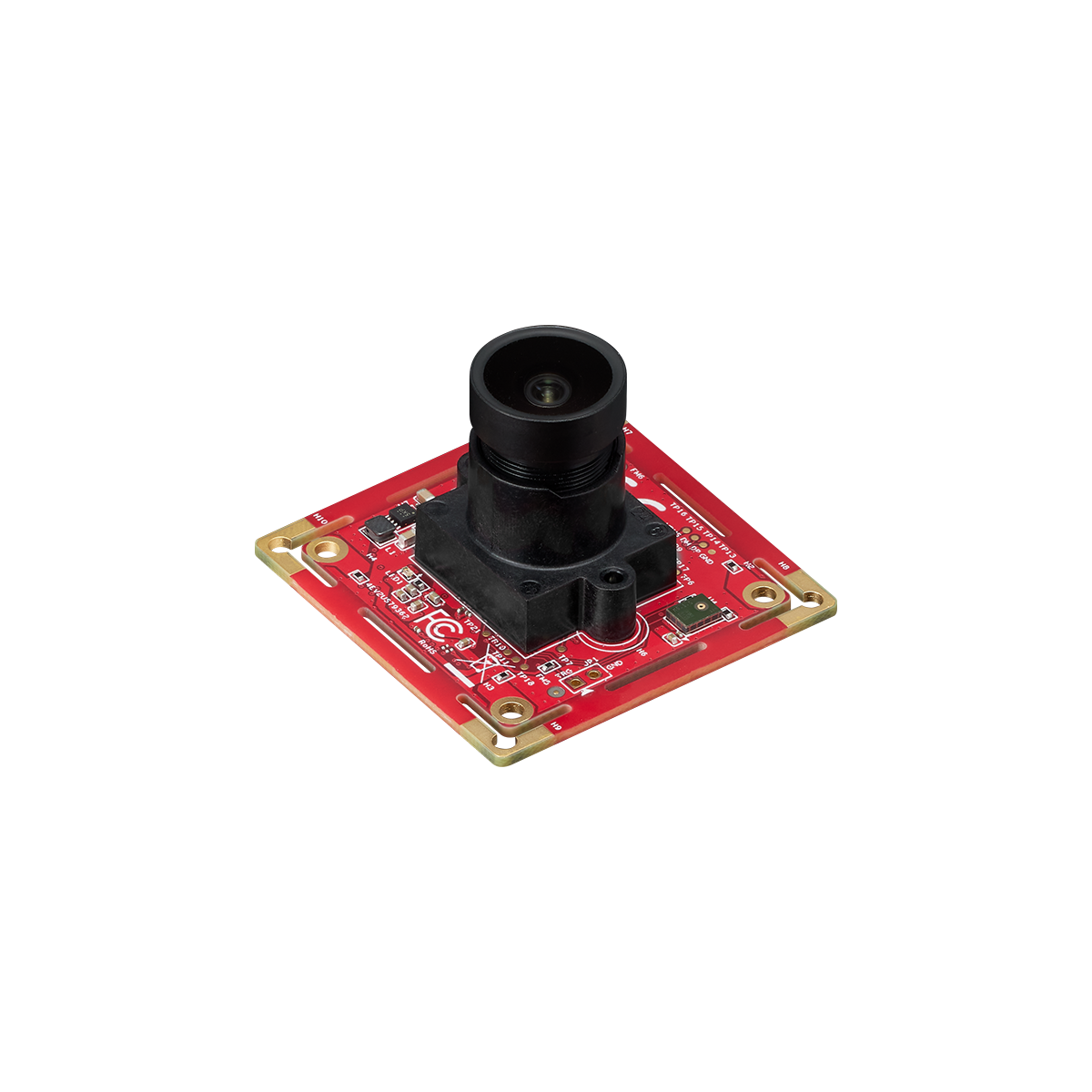

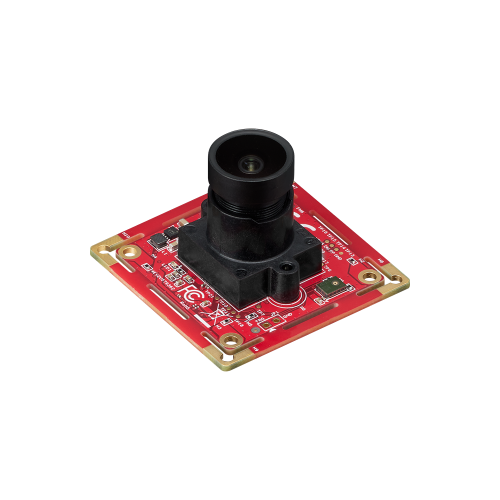

SPECIFICATIONS

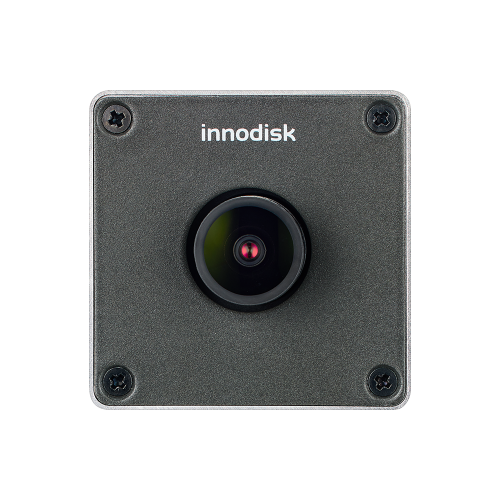

Model Name
EV2U-SSM1-RLCF
Module Type
USB 2.0 2MP Fixed Focus Camera Module
Resolution (Max.)
2MP
Frame Rate (Max. Resolution)
30fps
Output I/F
USB 2.0
Sensor
Sony IMX307
Shutter
Rolling
Video Format
YUV422, MJPEG
Power Consumption
Approximate 1W (MJPEG @Max. Resolution)
Operating Temperature
-20°C ~ 70°C
Sensor Size
1/2.8”
Pixel Size
2.9µm
Chroma Type
Color
Lens Type
Fixed Focus (M12)
Dimensions (W x L x H/mm)
38 x 38 x 26.6
Lens FOV (D / H / V)
121° / 102° / 54°
OS Support
Windows / Linux / Android / macOS
Housing
Board Level, Housing
Features
Low light, DMIC, External Trigger
Warranty
3 Years
Note
For detailed resolution and frame rate combined application, please refer to product datasheet.
ORDER INFORMATION
P/N
Description

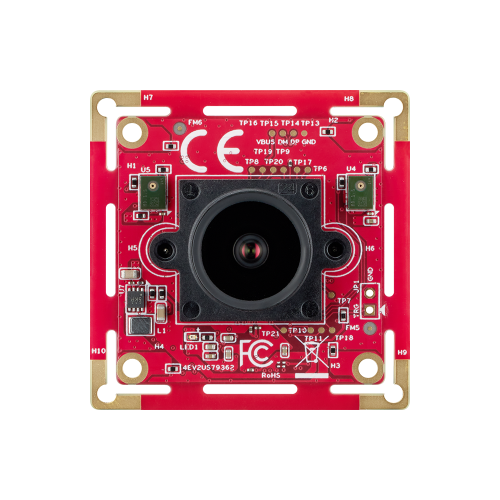

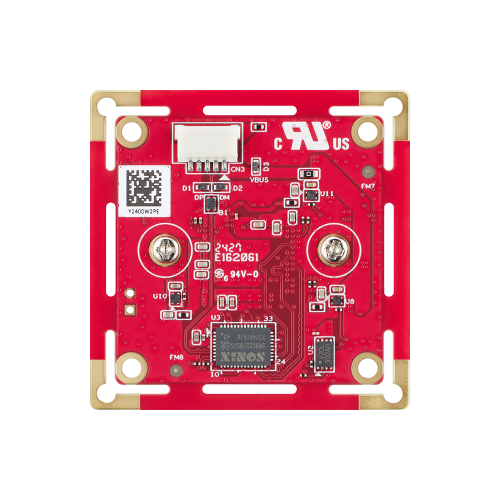

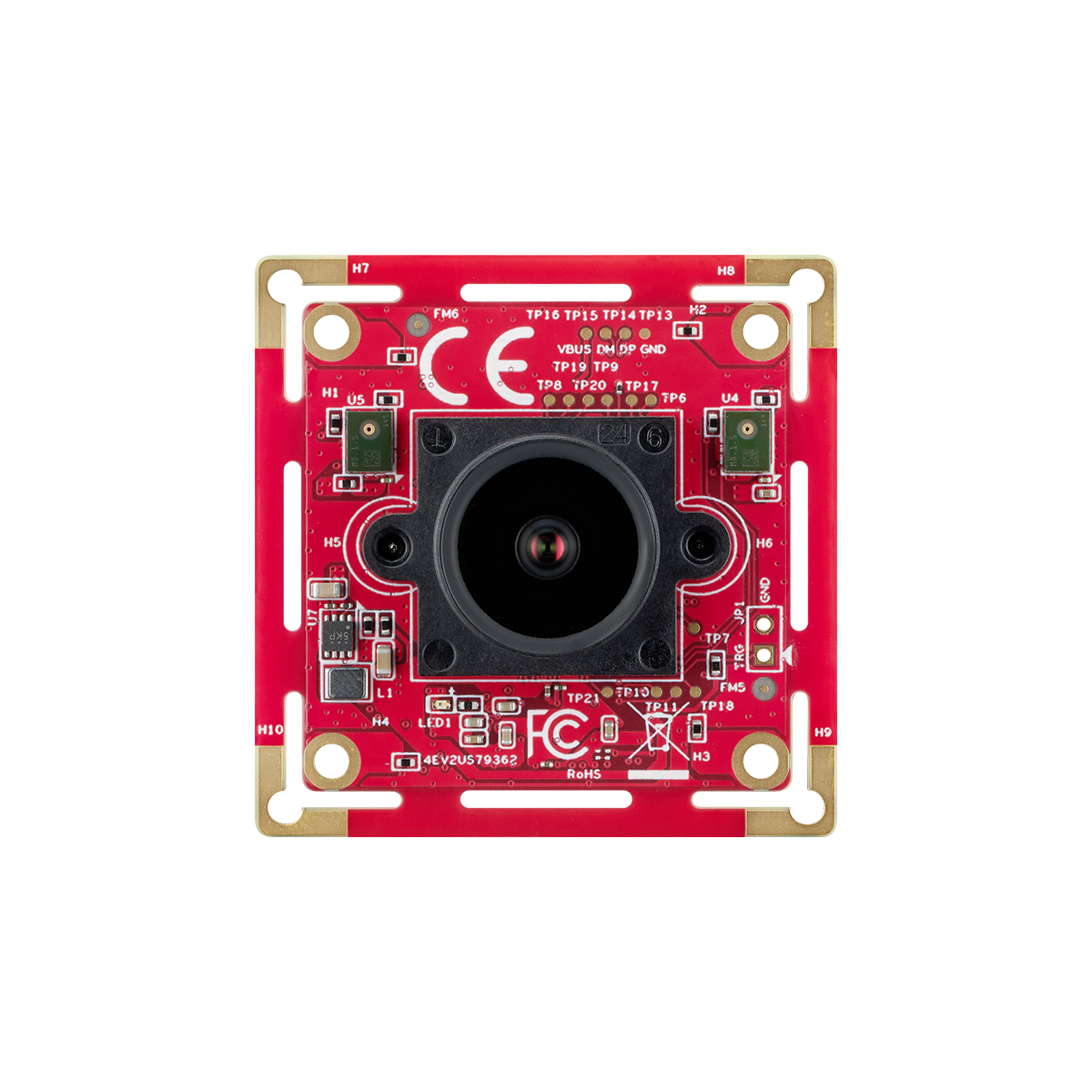

EV2U-SSM1-RLCF-11
USB 2.0 2MP Fixed Focus Camera Module (USB cable included)
Dimension: 38 x 38mm
EV2U-SSM1-RLCF-12
USB 2.0 2MP Fixed Focus Camera Module, with DMIC (USB cable included)
Dimension : 38 x 38mm
EV2U-SSM1-RLCF-A1
USB 2.0 2MP Fixed Focus Camera Module (USB cable included)
Dimension: 32 x 32mm
EV2U-SSM1-RLCF-A2
USB 2.0 2MP Fixed Focus Camera Module, with DMIC (USB cable included)
Dimension : 32 x 32mm

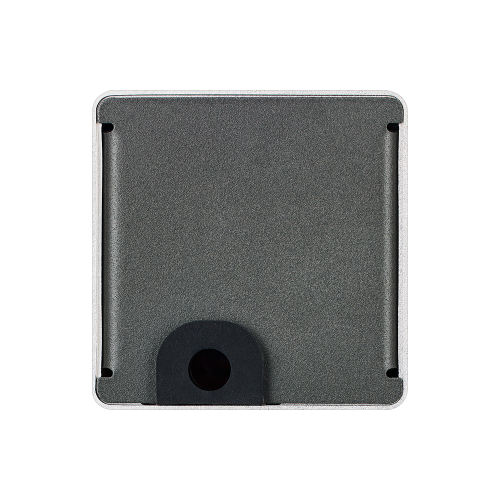

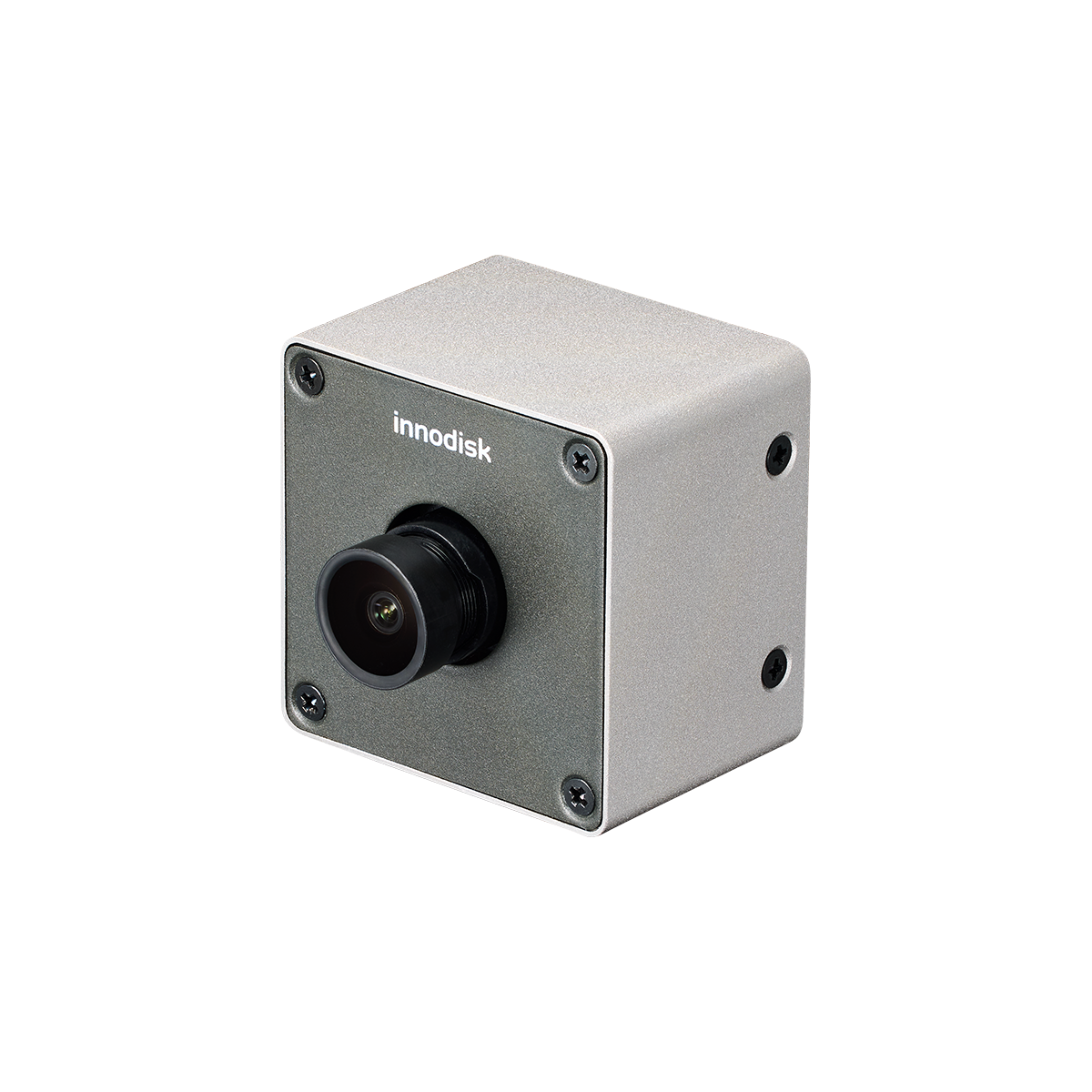

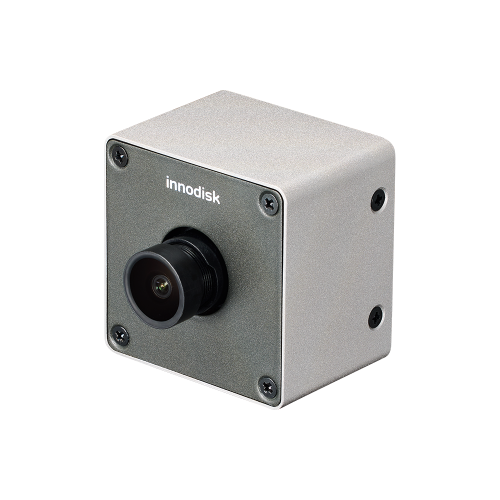

EV2U-SSM1-RLCF-21

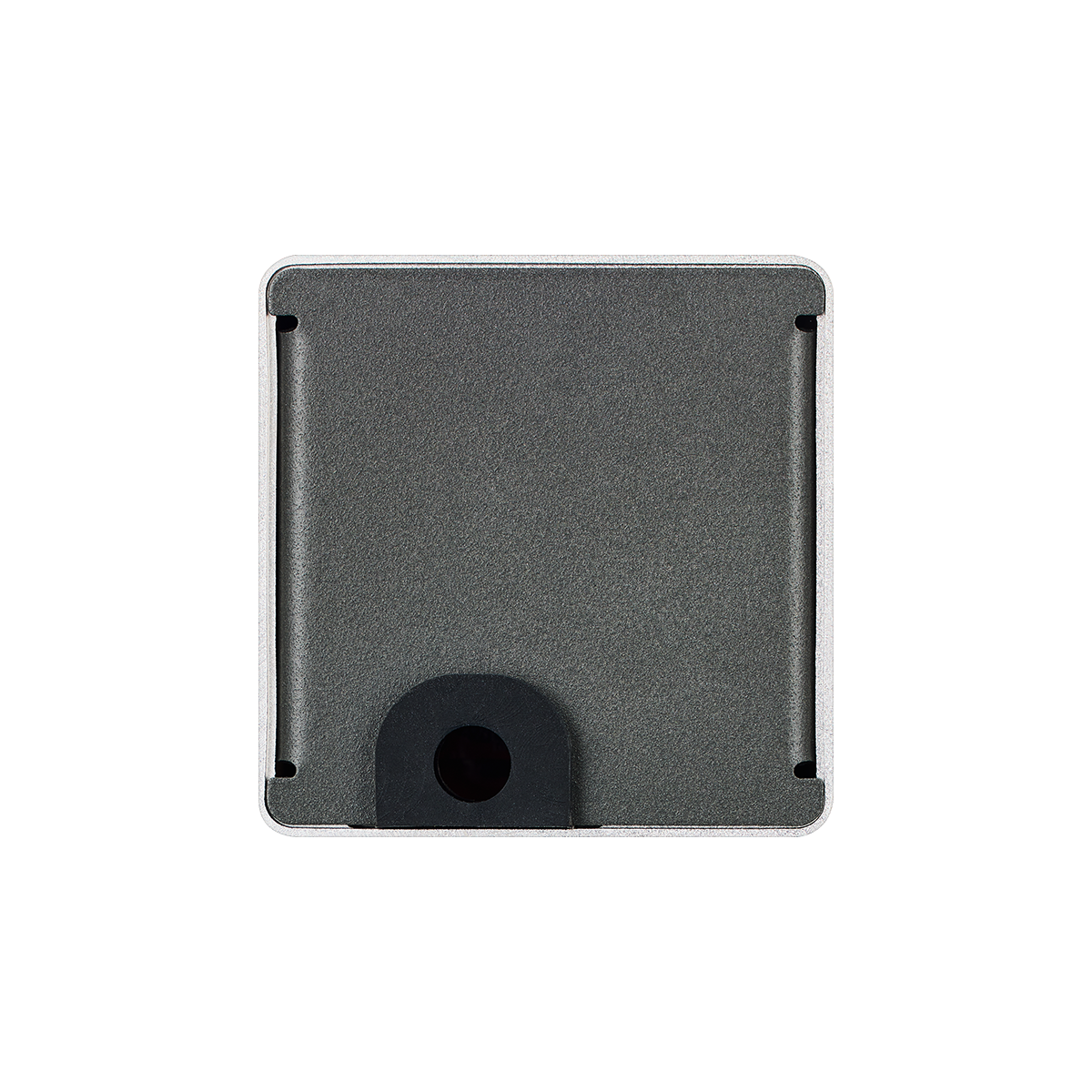

USB 2.0 2MP Fixed Focus Camera Module, with Housing (USB cable included)
Dimension : 41.4 x 41.4mm
7W2000000160
USB 2.0 cable 1 meter, 5 pins, pitch 1mm
