BORN FOR SUPERIOR PERFORMANCE

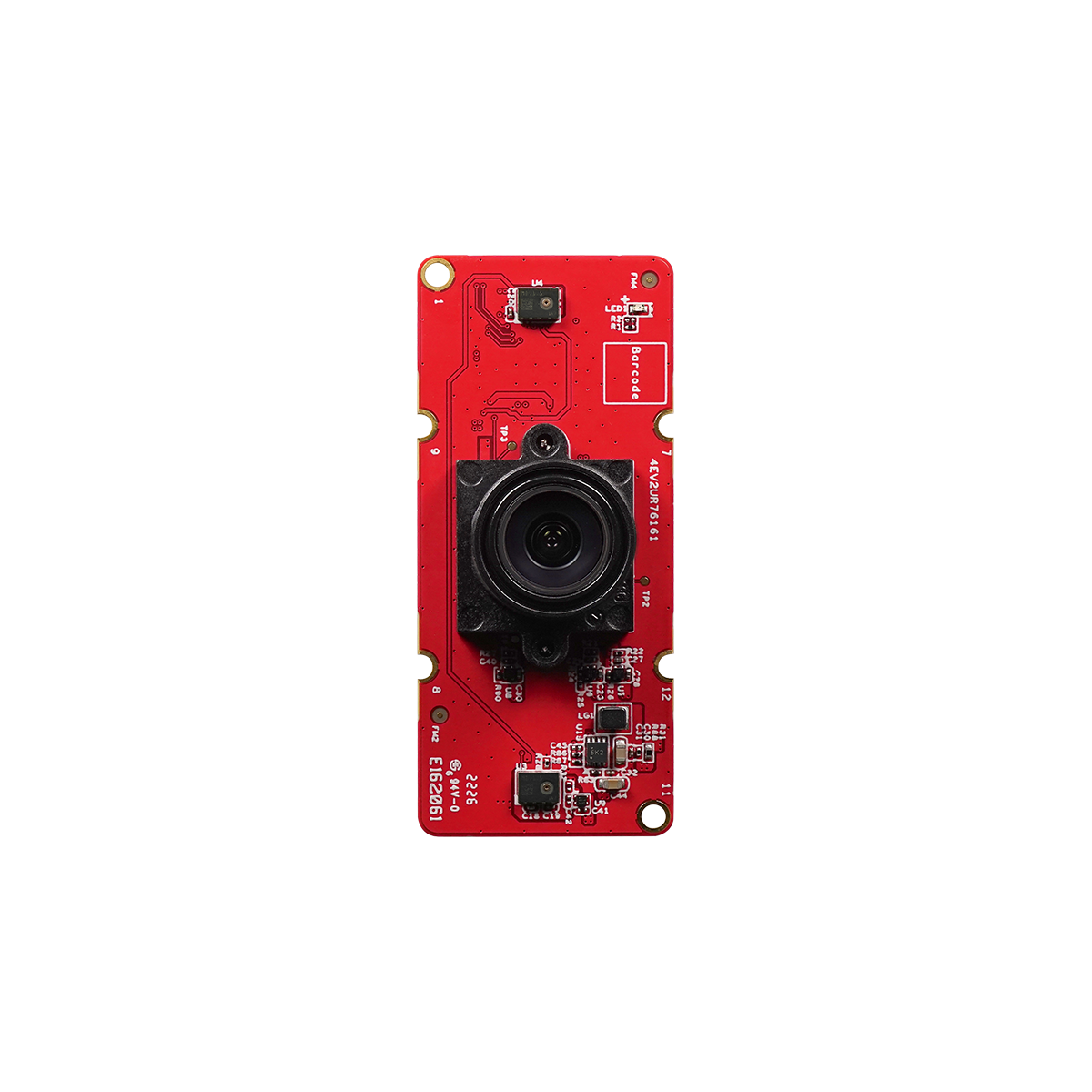

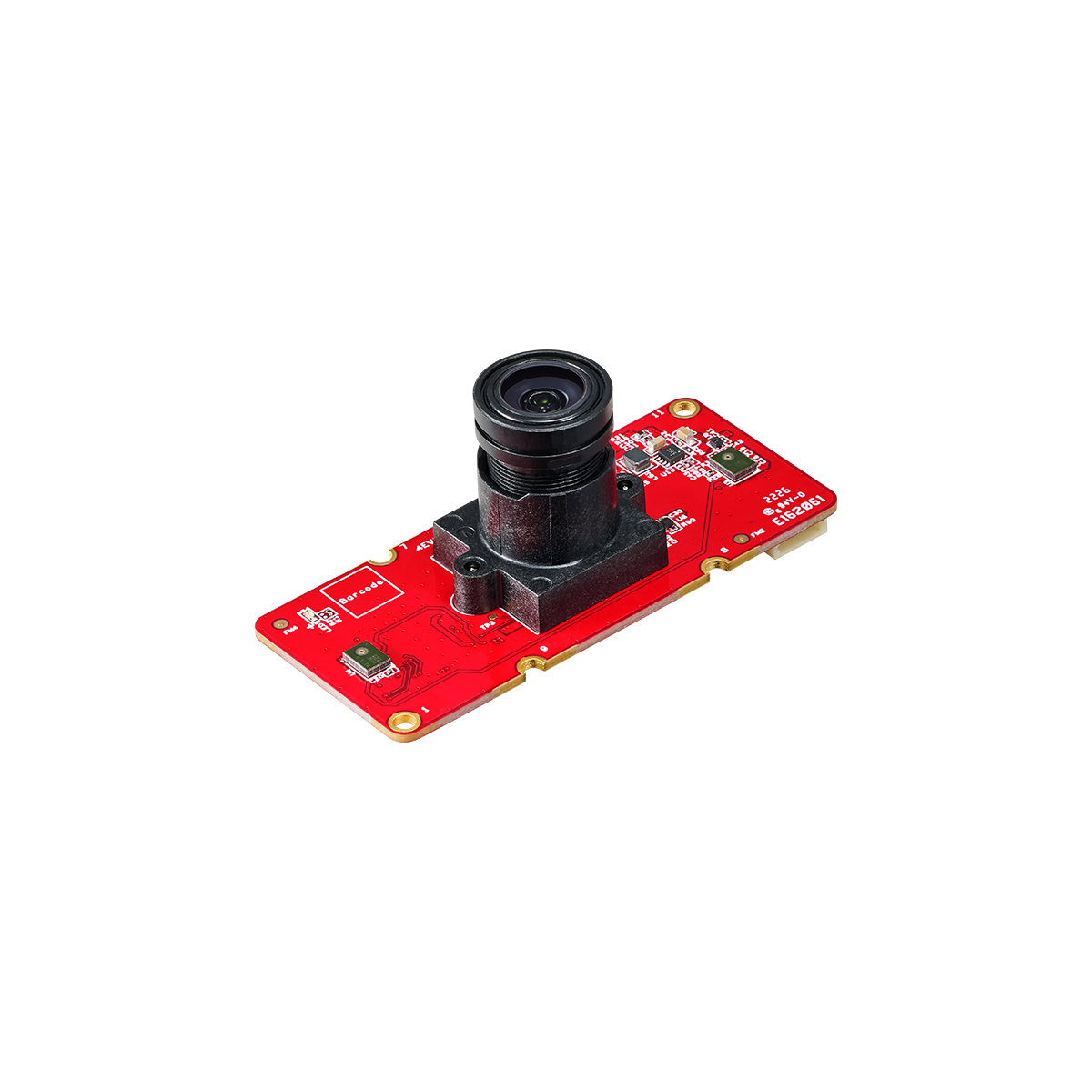

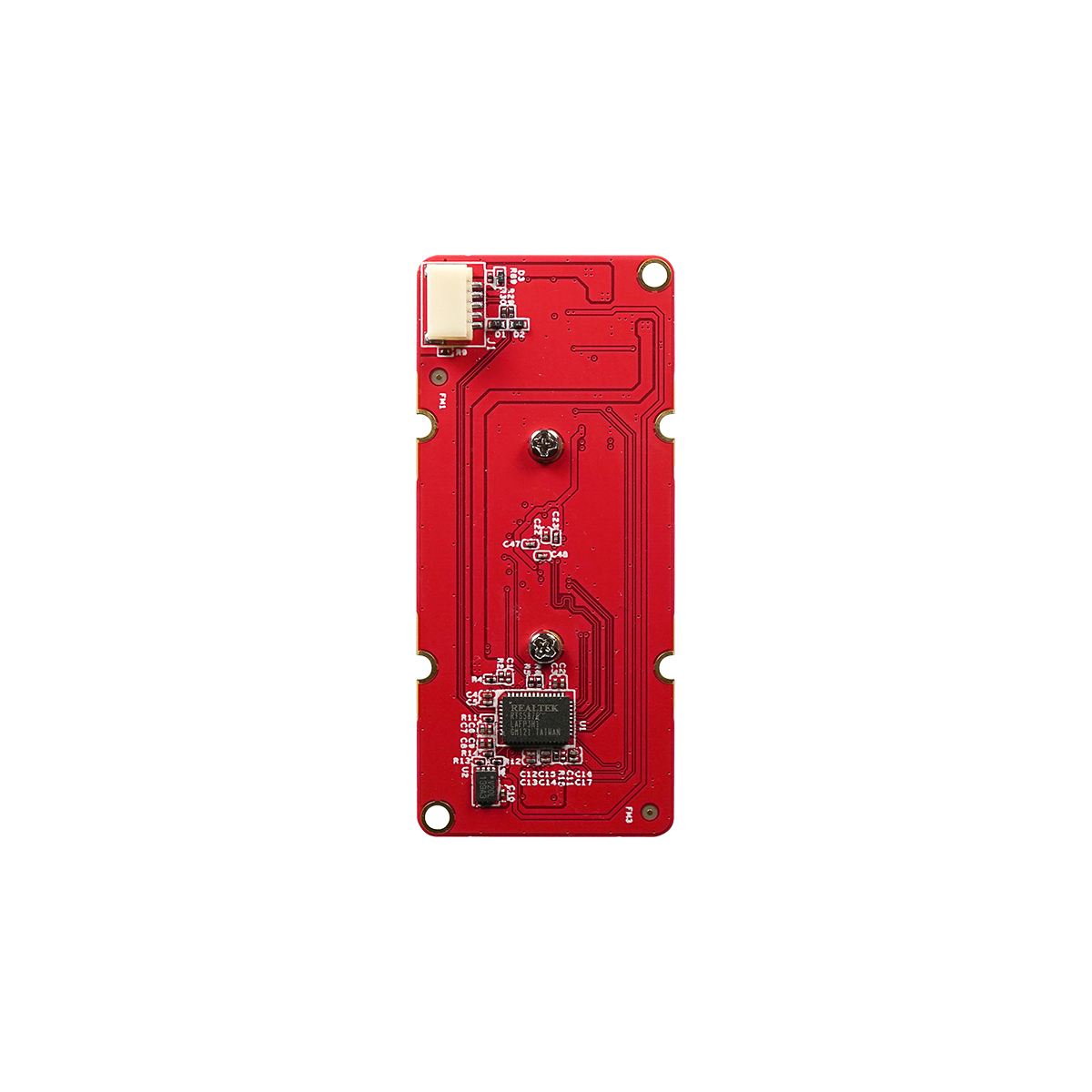

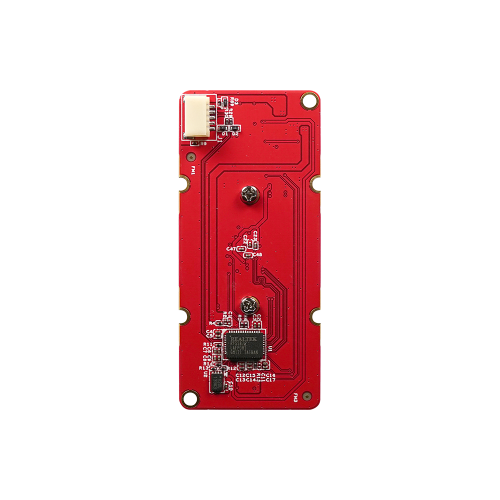

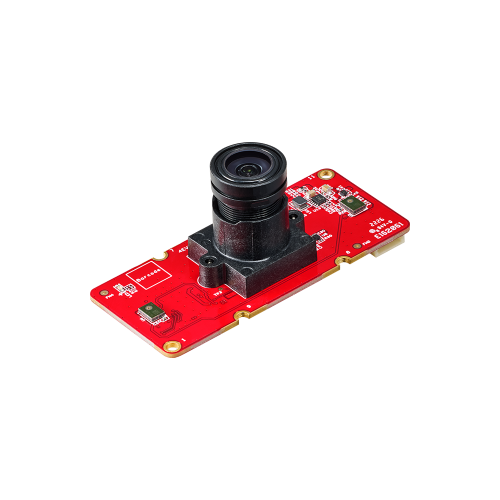

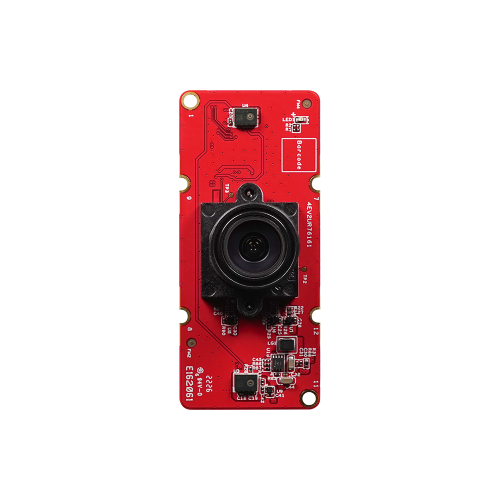

Innodisk‘s USB 2.0 Camera Module provides outstanding image quality, capturing sharp and vibrant details in any lighting condition. With UVC compatibility, the camera module offers plug-and-play ease for effortless integration. A variety of lens options accommodate diverse needs, making them perfect for smart systems such as retail settings, parking meters, and ATMs. Innodisk USB 2.0 Camera Module ensures a clear view for improved security and monitoring. .
TAILORED TO YOUR SPECIFIC NEEDS
PCBA CUSTOMIZATION
Offering PCBA (Printed Circuit Board Assembly) customization services to ensure your camera module meets your specific requirements.
IMAGE QUALITY TUNING
With an integrated Image Signal Processor (ISP), we enable to optimize image quality while saving development resources.
VERSATILE LENS SUPPORT
A wide range of lenses empowers you to capture stunning images in any situation.
IMPLEMENTED WITH SUCCESS IN DYNAMIC ENVIRONMENTS
KIOSK
Provides high-resolution imaging and low-light performance for secure and efficient customer interactions, supported across multiple operating systems.
SPECIFICATIONS
Model Name
EV2U-RMR2-MMC1
Module Type
USB 2.0 2MP Fixed Focus Camera Module
Resolution (Max.)
2MP
Frame Rate (Max. Resolution)
30fps
Output I/F
USB 2.0
Sensor
OmniVision OV2732
Shutter
Rolling
Video Format
YUV422, MJPEG
Power Consumption
Approximate 1W (MJPEG @Max. Resolution)
Operating Temperature
-20°C ~ 70°C
Sensor Size
1/6”
Pixel Size
1.4µm
Chroma Type
Color
Lens Type
Fixed Focus (M12)
Dimensions (W x L x H/mm)
58 x 25 x 27
Lens FOV (D / H / V)
86° / 72° / 38°
OS Support
Windows / Linux / Android / macOS
Housing
Board Level
Features
DMIC
Warranty
3 Years
Note
For detailed resolution and frame rate combined application, please refer to product datasheet.
ORDER INFORMATION
P/N
Description
EV2U-RMR2-MMC1-C1
USB 2.0 Fixed Focus Camera Module (USB cable included)
Dimension : 58 x 25
EV2U-RMR2-MMC1-C2
USB 2.0 Fixed Focus Camera Module, with DMIC (USB cable included)
Dimension : 58 x 25
7W2000000160
USB 2.0 cable 1 meter, 5 pins, pitch 1mm
