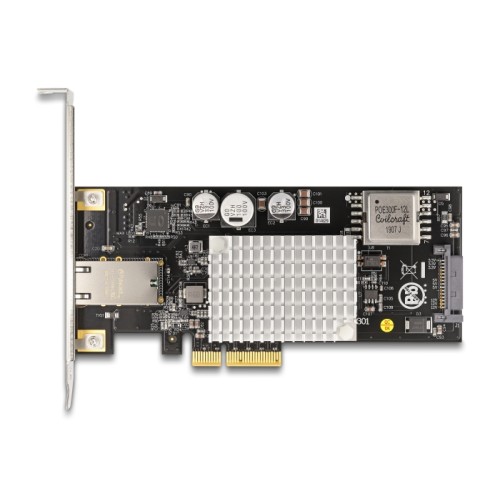

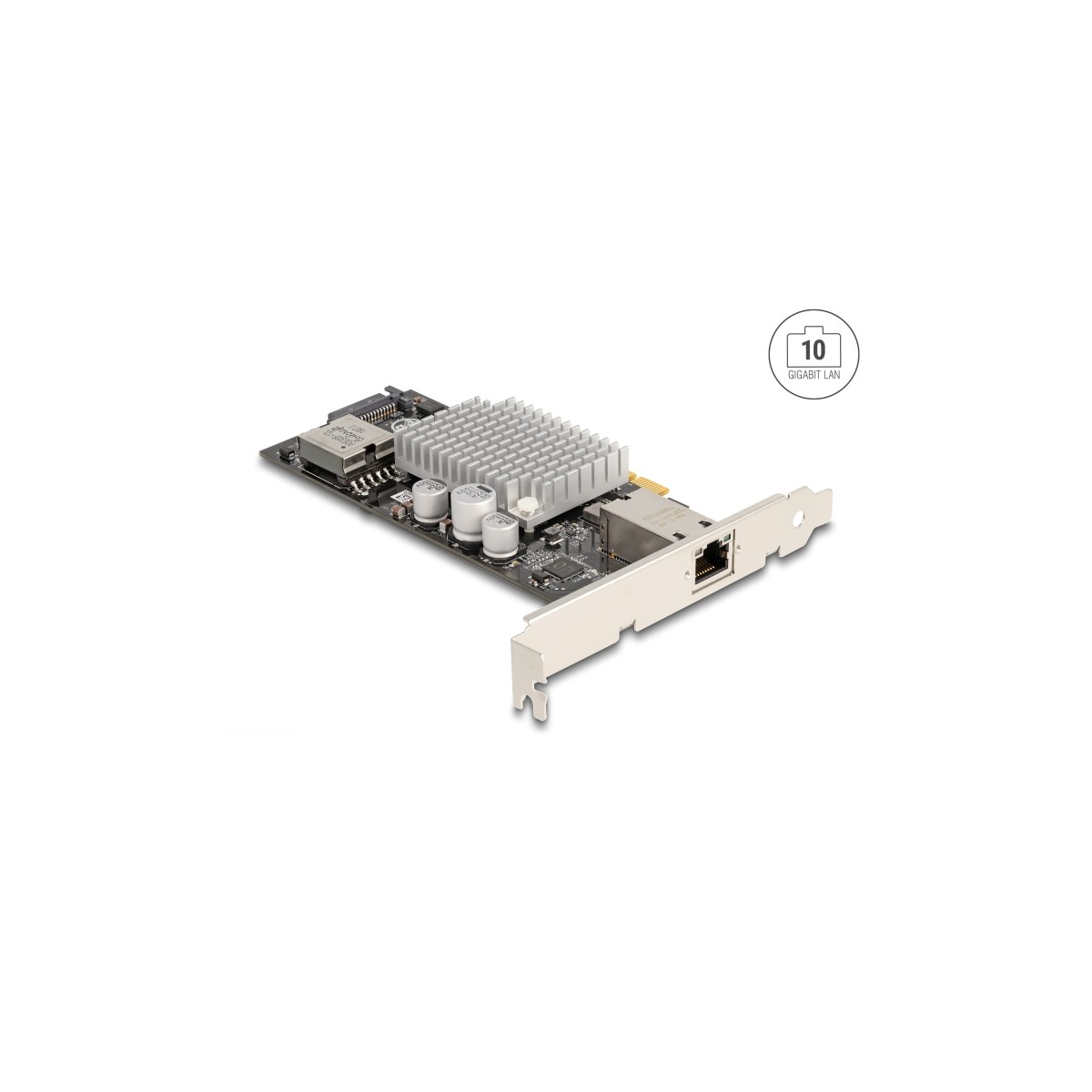

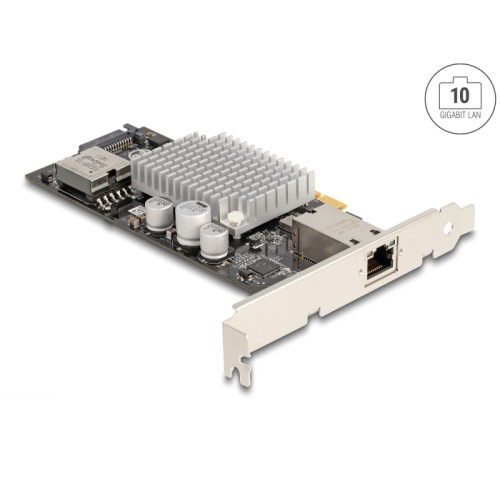

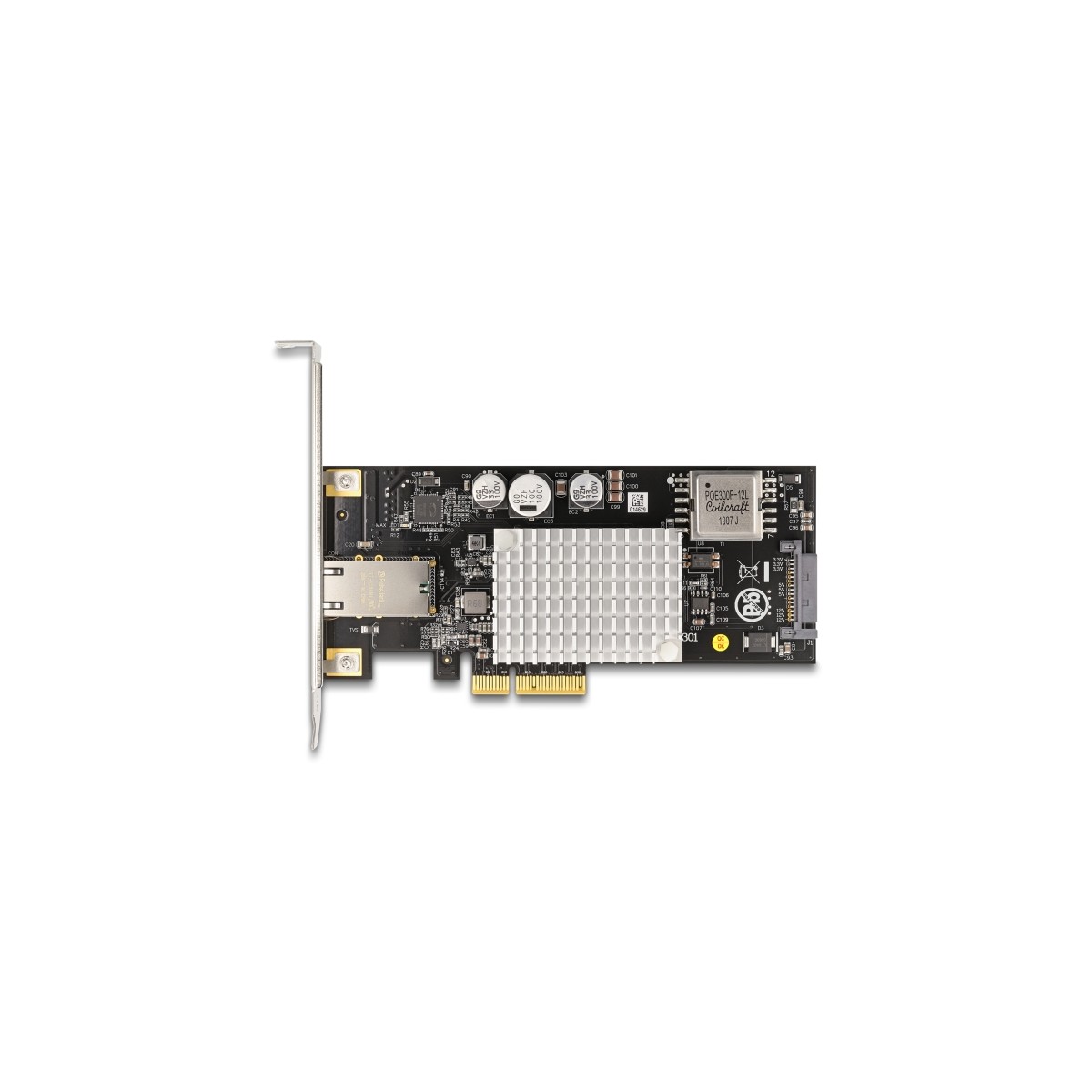

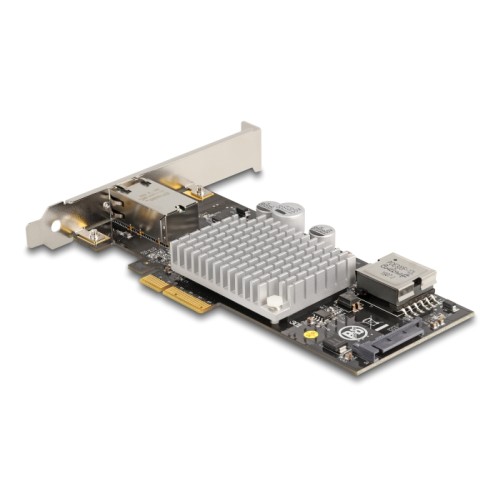

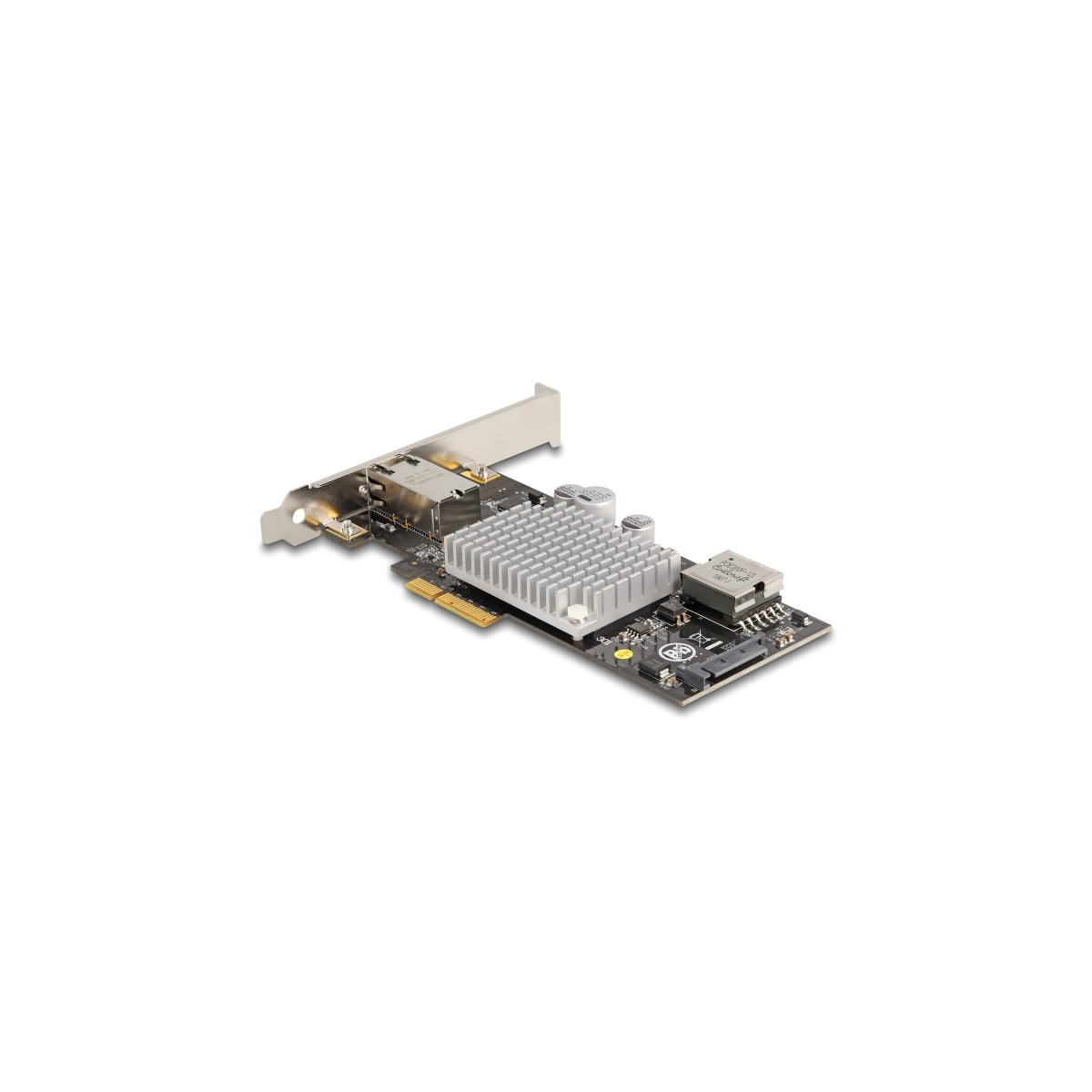

Delock PCI Express Card to 1 x 10GBase-T LAN PoE+ RJ45

Description
This PCI Express card by IOI offers one network port with a data transfer rate up to 10 Gbps. The RJ45 port supports Power over Ethernet according to IEEE 802.3at, so you can supply power to PoE-enabled devices, such as an IP camera or a PoE splitter via the network cable.

Multi-Gigabit
The PCIe card supports 10GBase-T according to the standard IEEE 802. 3an, 5G and 2. 5G Ethernet, as well as 1000BASE-T.

Specification
• IOI item number: GE10P-PCIE4XG301
• Connector:
 external:
 1 x 10 Gigabit LAN RJ45 jack with screw nuts
 internal:
 1 x SATA 15 pin power connector
 1 x PCI Express x4, V3.0
• Chipset: Aquantia AQC107
• Data transfer rate:
 Fast Ethernet up to 100 Mbps
 Gigabit Ethernet up to 1 Gbps
 NBASE-T (draft) with up to 2.5 Gbps and 5 Gbps
 10 Gigabit Ethernet up to 10 Gbps
• Supports Full Duplex flow control (IEEE 802.3x)
• Supports IEEE 802.3 10Base-T and 802.3u 100Base-TX
• Supports IEEE 802.1P Layer 2 Priority Encoding
• Supports IEEE 802.1Q VLAN tagging
• Supports 16k Jumbo frames
• Supports IEEE 802.3at Power Sourcing Equipment (PSE)
• Power delivery: max. 30 W total
• PoE power input from PCIe or SATA 15 pin power connector

System requirements
• Linux Kernel 3.12 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64
• PC with one free PCI Express x4 / x8 / x16 / x32 slot

Package content
• PCI Express card
• Driver CD
• User manual

Package
• Box
