Description

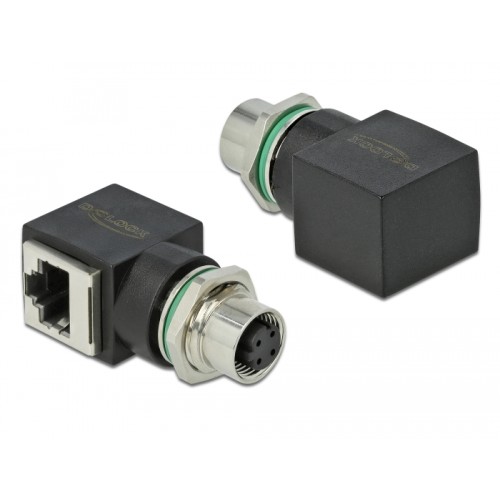

This industrial Ethernet adapter by Delock can be used to connect various components with M12 connectors, e.g. for machine control or automation.
Installation in switch cabinet
Due to its compact dimensions, the adapter is very well suited for installation in a switch cabinet. Devices with M12 connectors can be integrated into an existing network structure.
Specification
• Connectors:

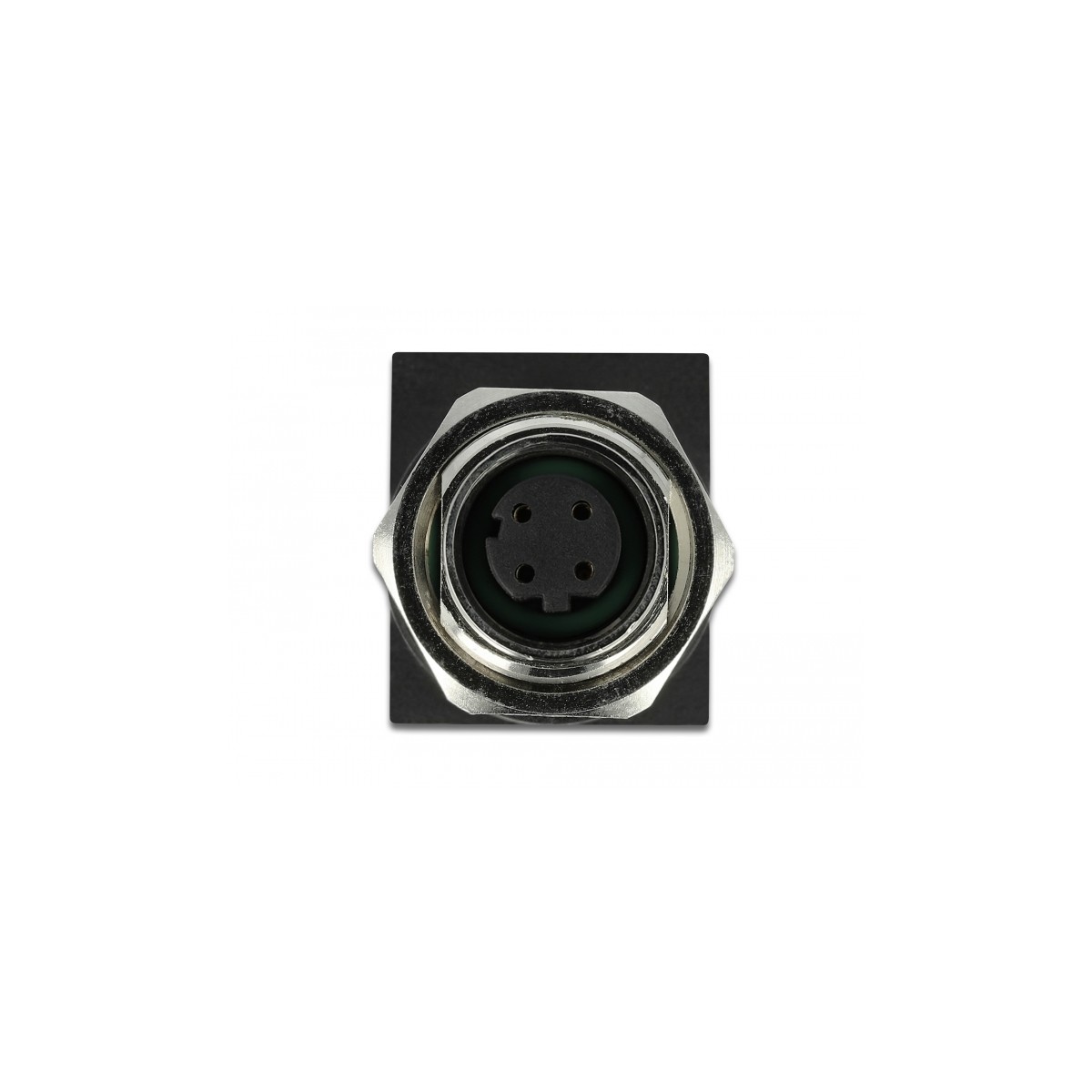

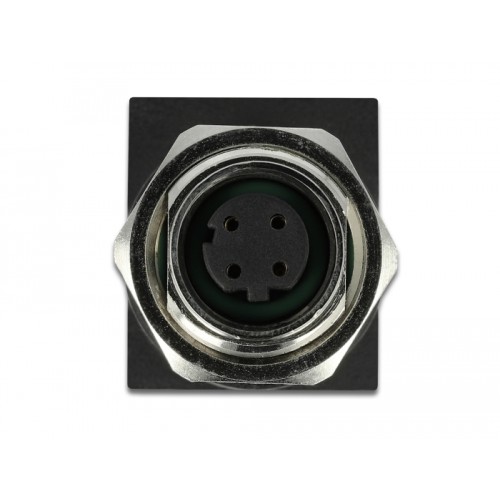

1 x M12 female 4 pin D-coded >
1 x RJ45 jack
• PROFINET specification

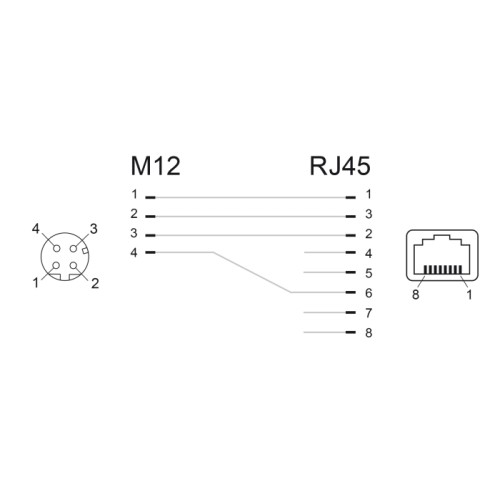

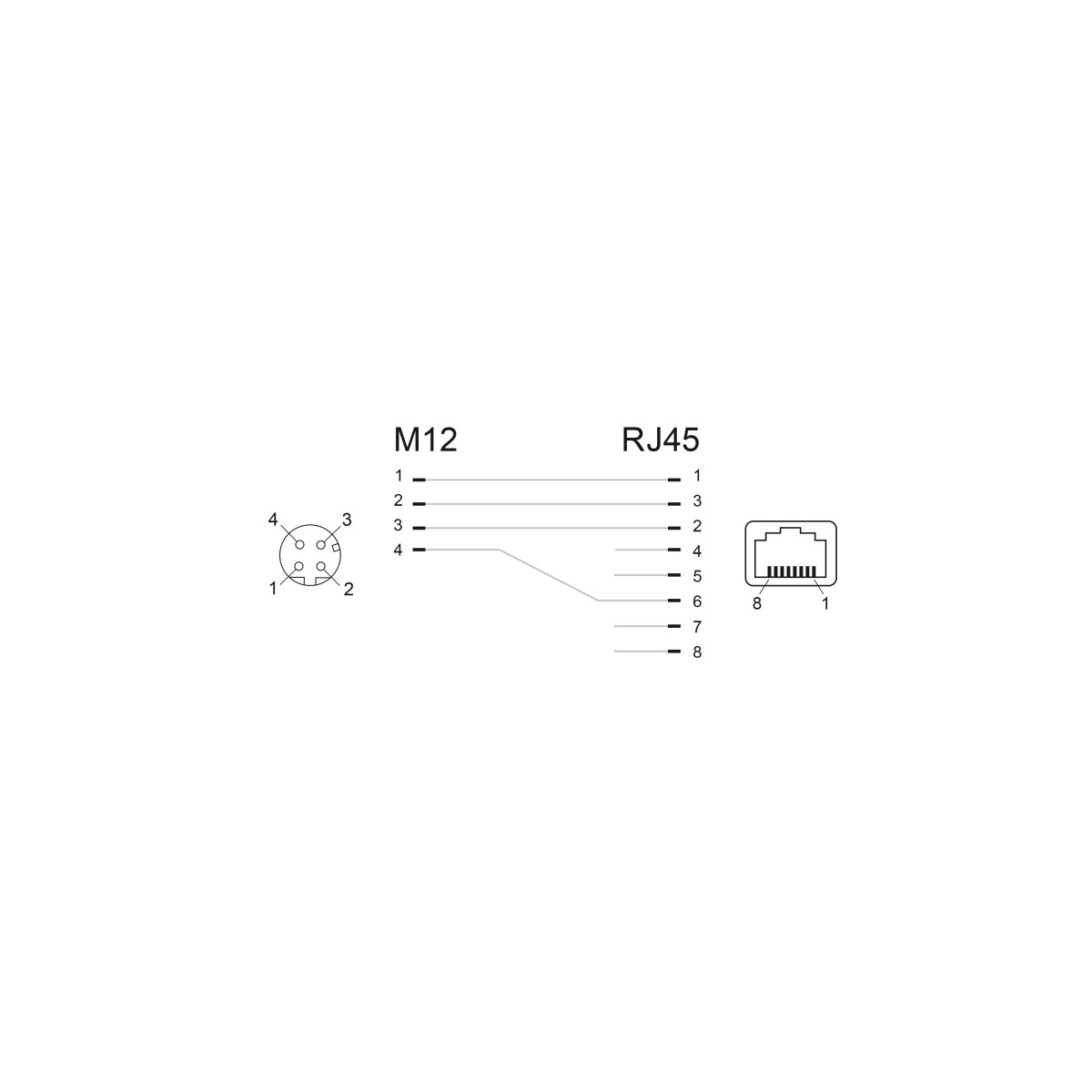

• Pin assignment according to PROFINET standard
• Cat.5e specification
• Housing material: TPU
• M16 external thread
• Contacts gold-plated
• Operating voltage: max. 250 V
• Current: max. 4 A
• Operating temperature: -25 °C ~ 85 °C
• Protection class: IP67
• Colour: black
• Dimensions (LxWxH): ca. 47.0 x 19.6 x 25.0 mm
System requirements
• A free M12 plug
• A free RJ45 plug
Package content
• Adapter
Package
• Poly bag
New
4043619663125
