Description

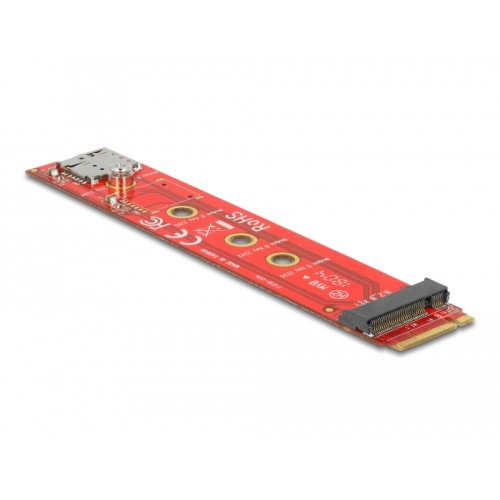

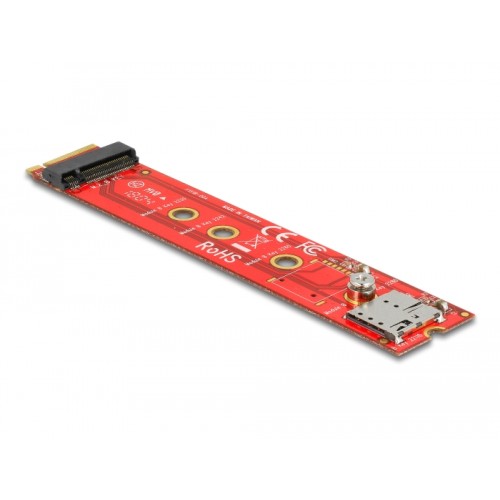

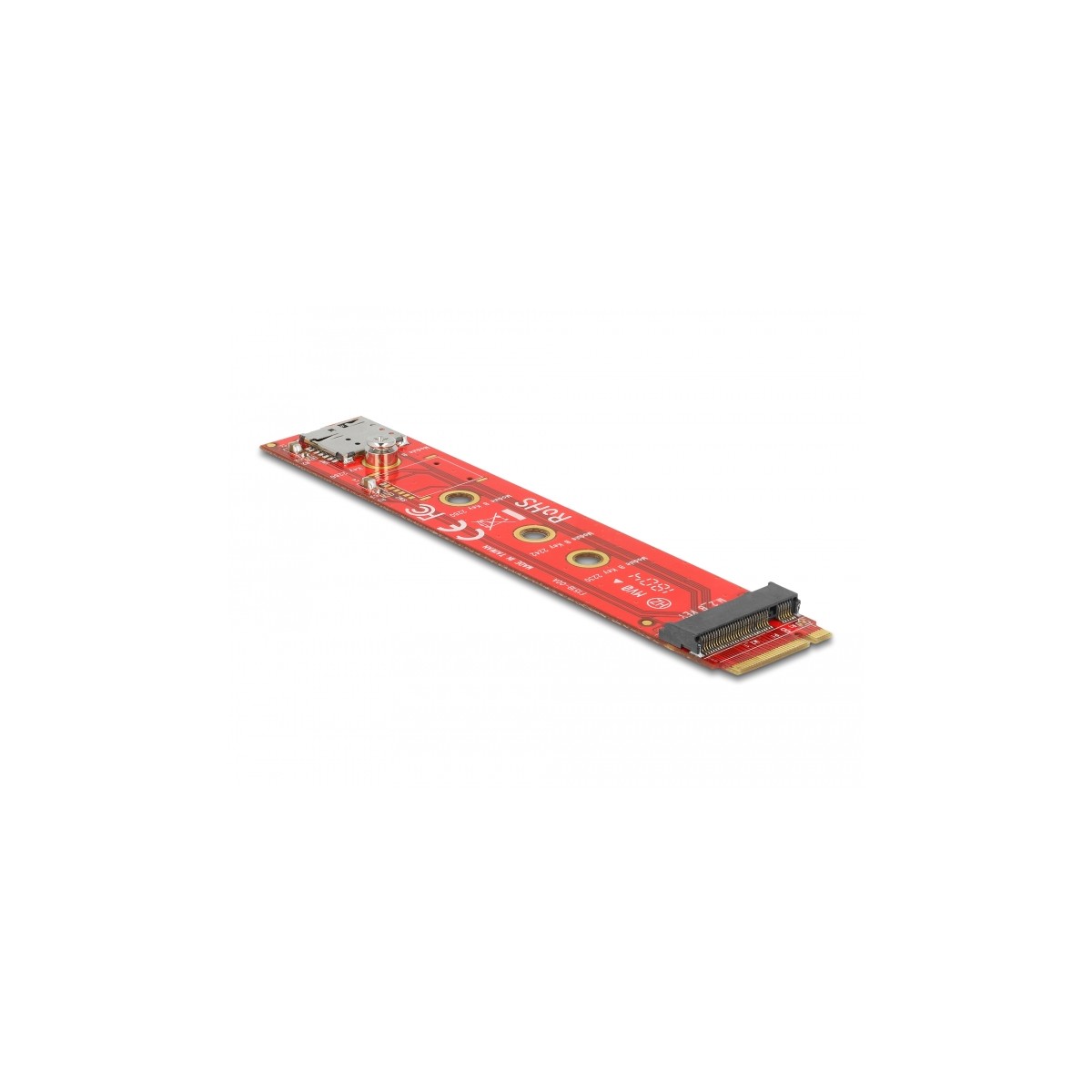

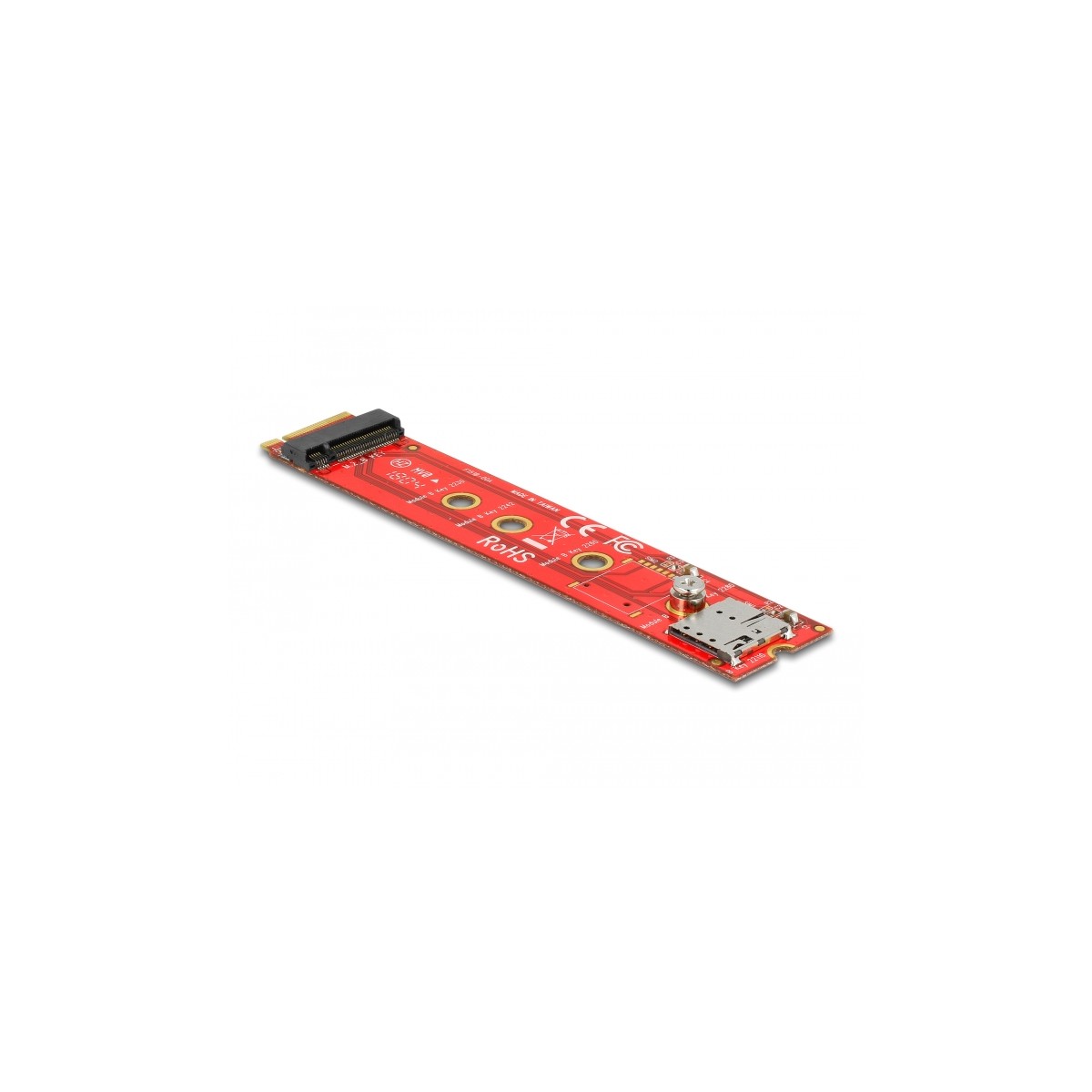

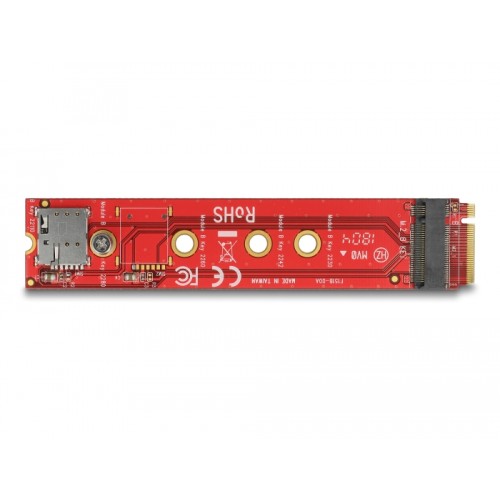

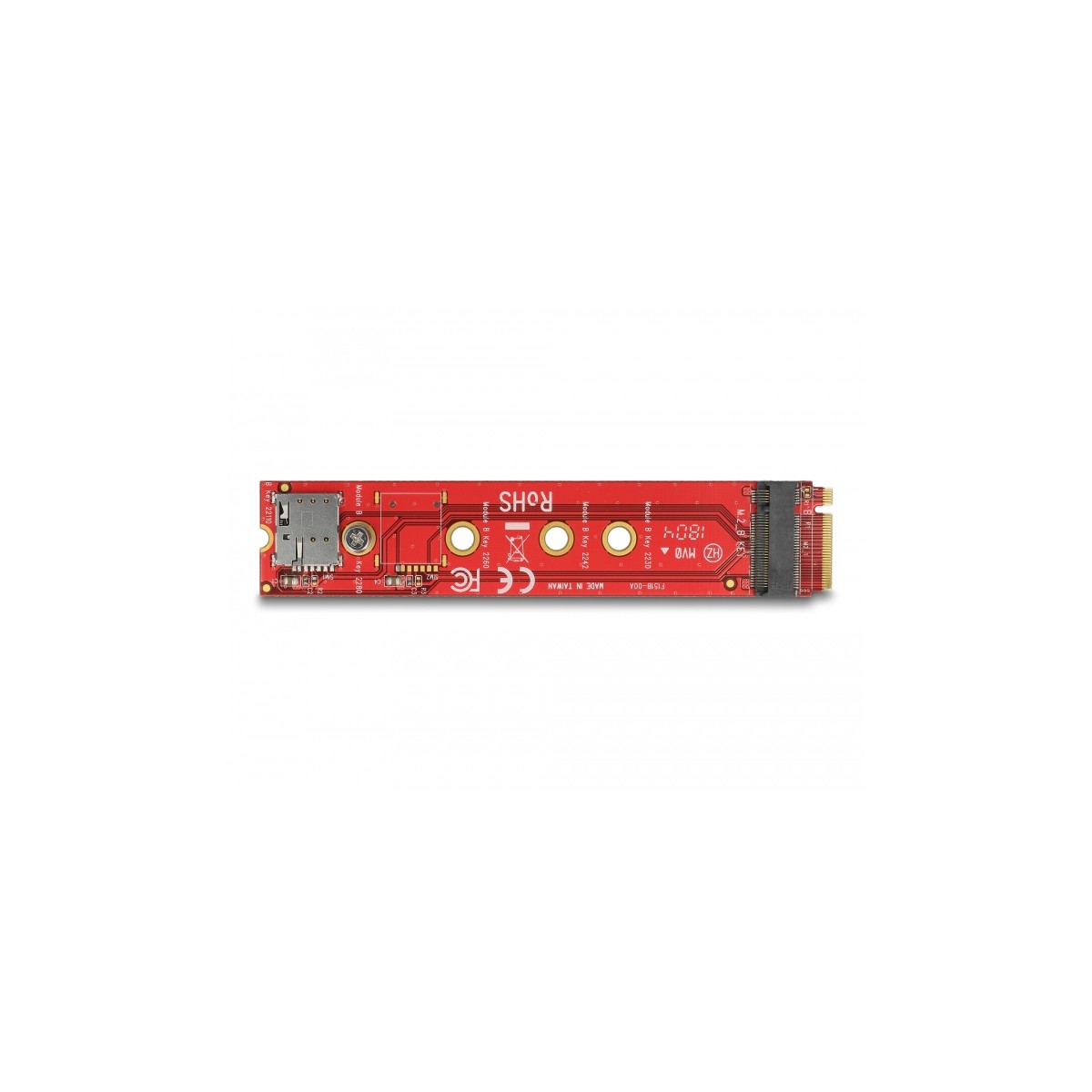

This adapter by Delock can be used as a port saver in order to prevent the M.2 interface from damage when it is under usage for high contact durability. Further there is the possibility to insert a Nano SIM card in the slot and use with an appropriate M.2 module.
Specification
• Connectors:
1 x 67 pin M.2 Key B male >
1 x 67 pin M.2 key B slot
1 x Nano SIM slot
• Form factor: M.2 22110
• Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key B or key B+M
• Maximum height of the components on the module: 1.5 mm,
application of double-sided assembled modules supported

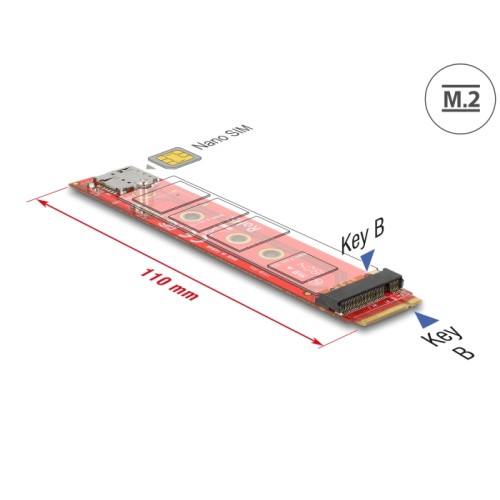

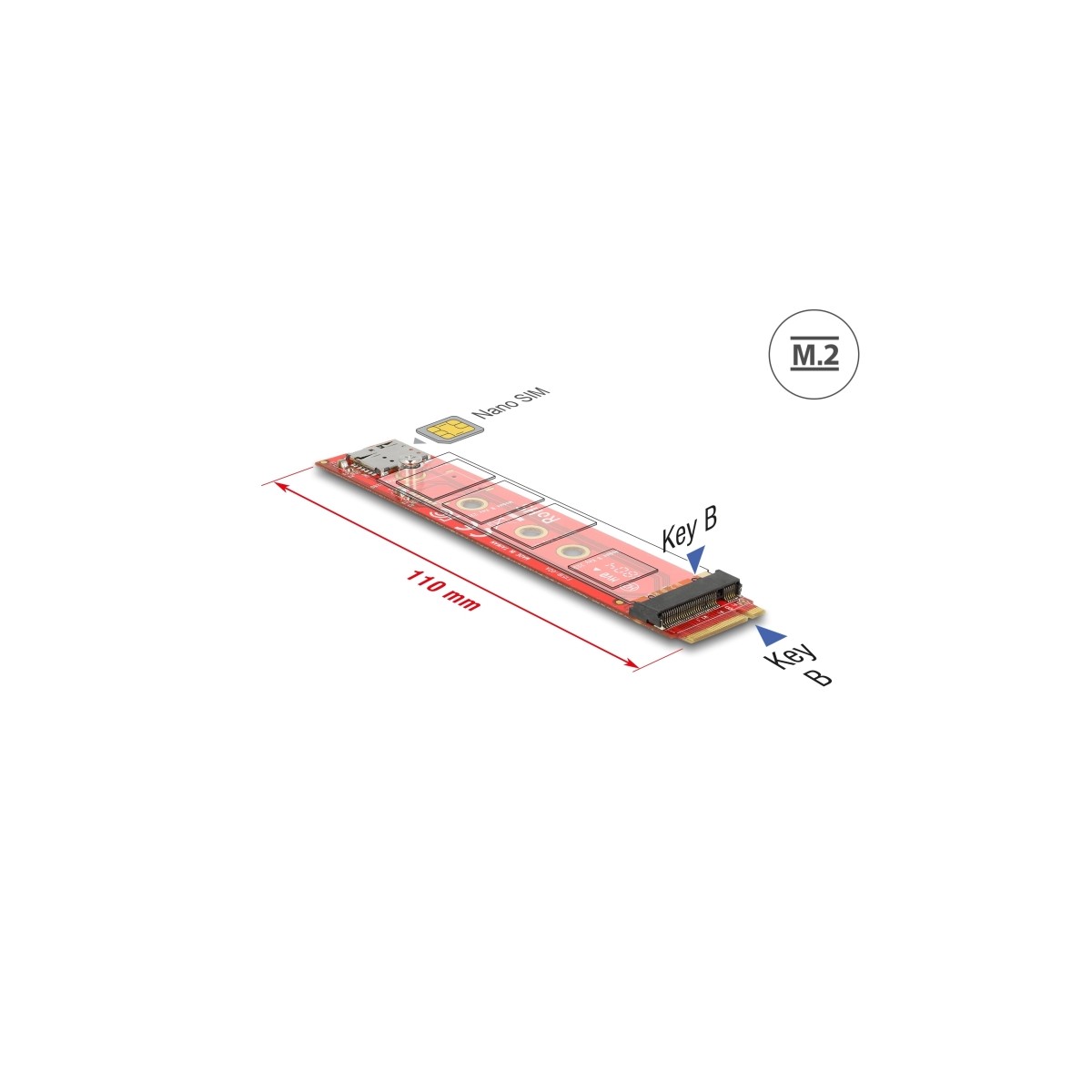

• Dimensions (LxWxH): ca. 110 x 22 x 5 mm
System requirements
• One free M.2 key B slot
Package content
• Adapter
• Mounting material
Package
• Box
New
4043619659210
