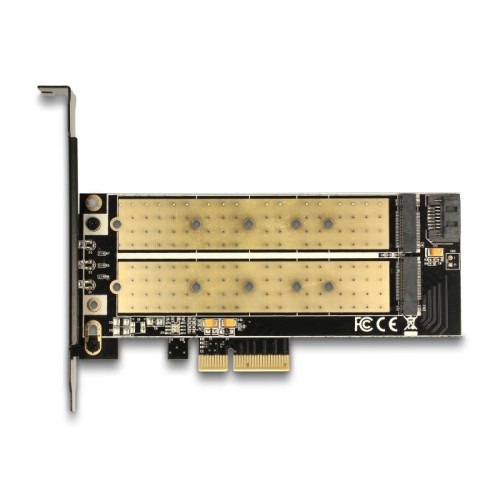

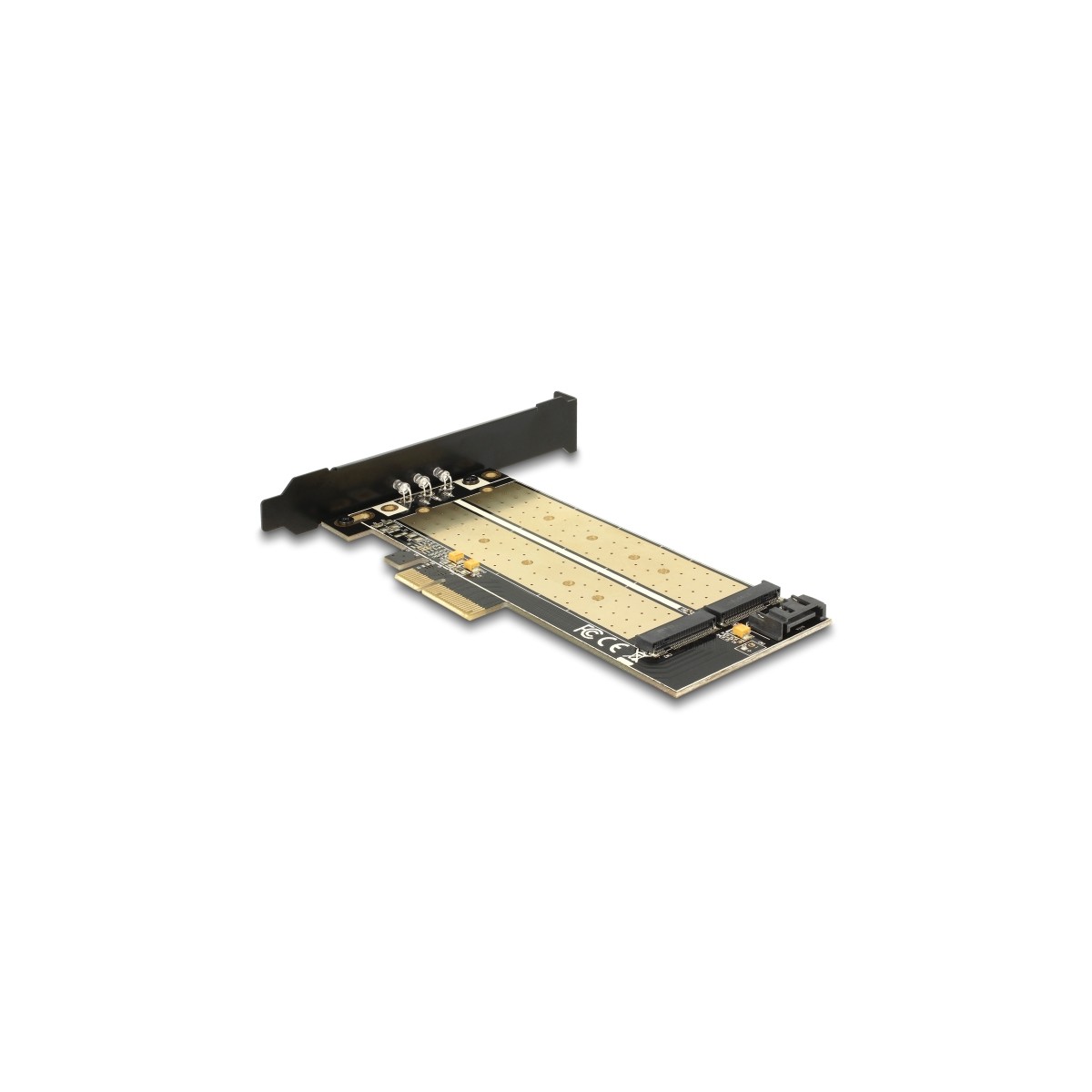

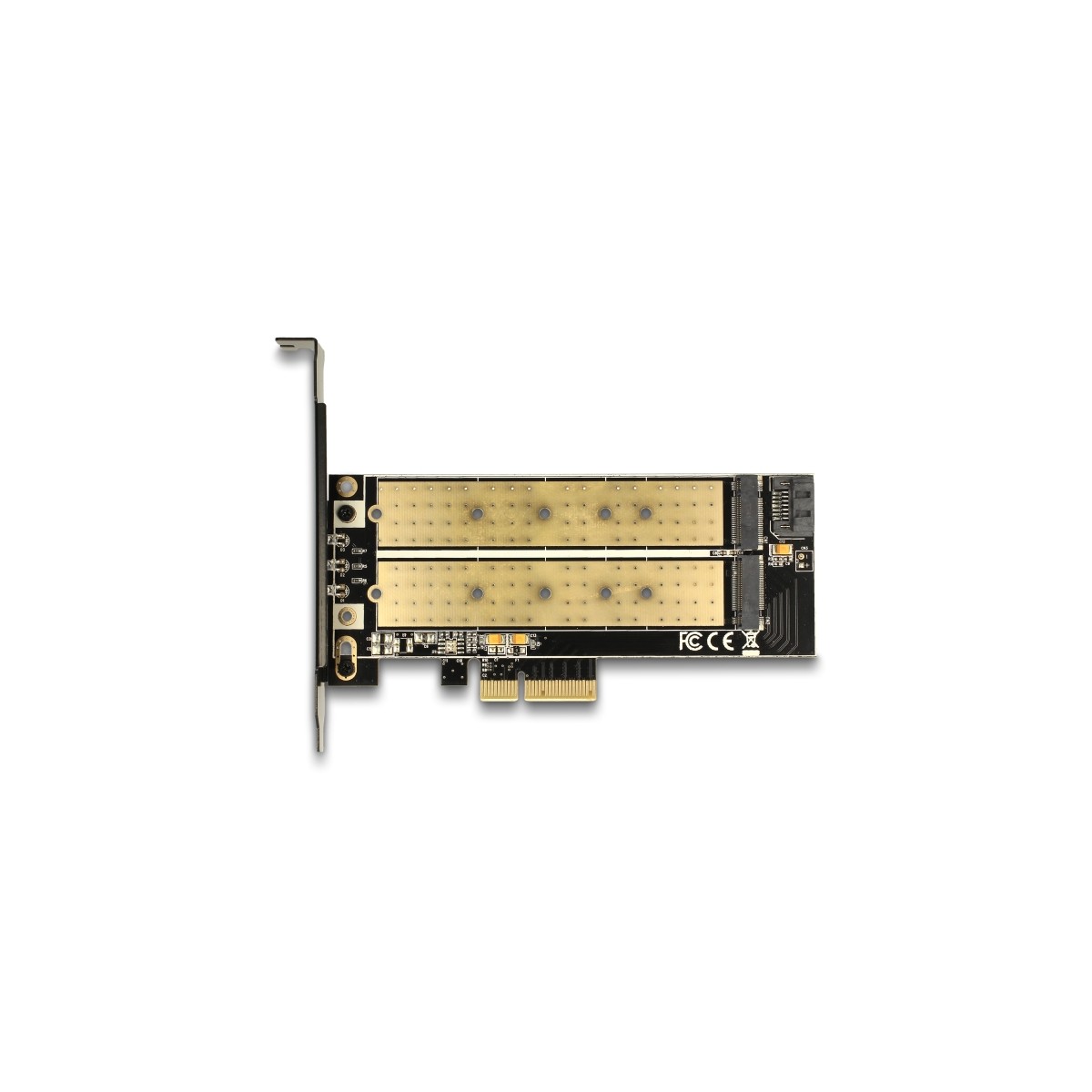

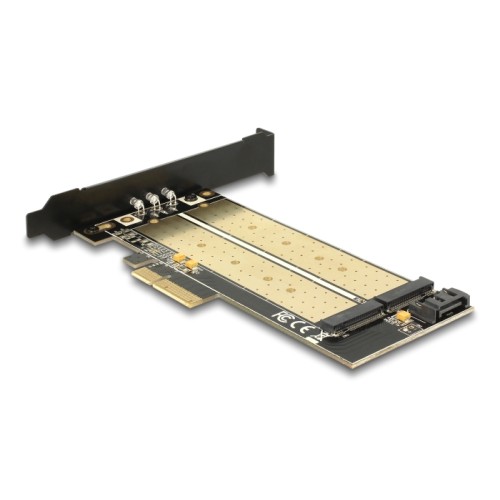

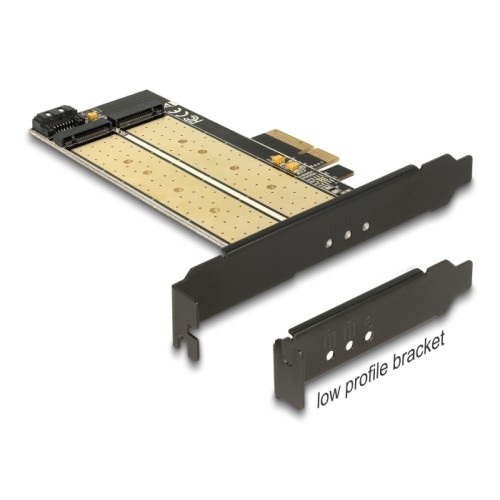

Delock PCI Express x4 Card > 1 x internal M.2 Key B + 1 x internal NVMe M.2 Key M - Low Profile Form Factor

Description

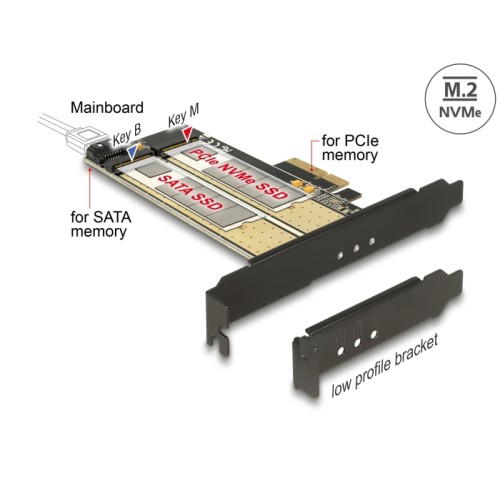

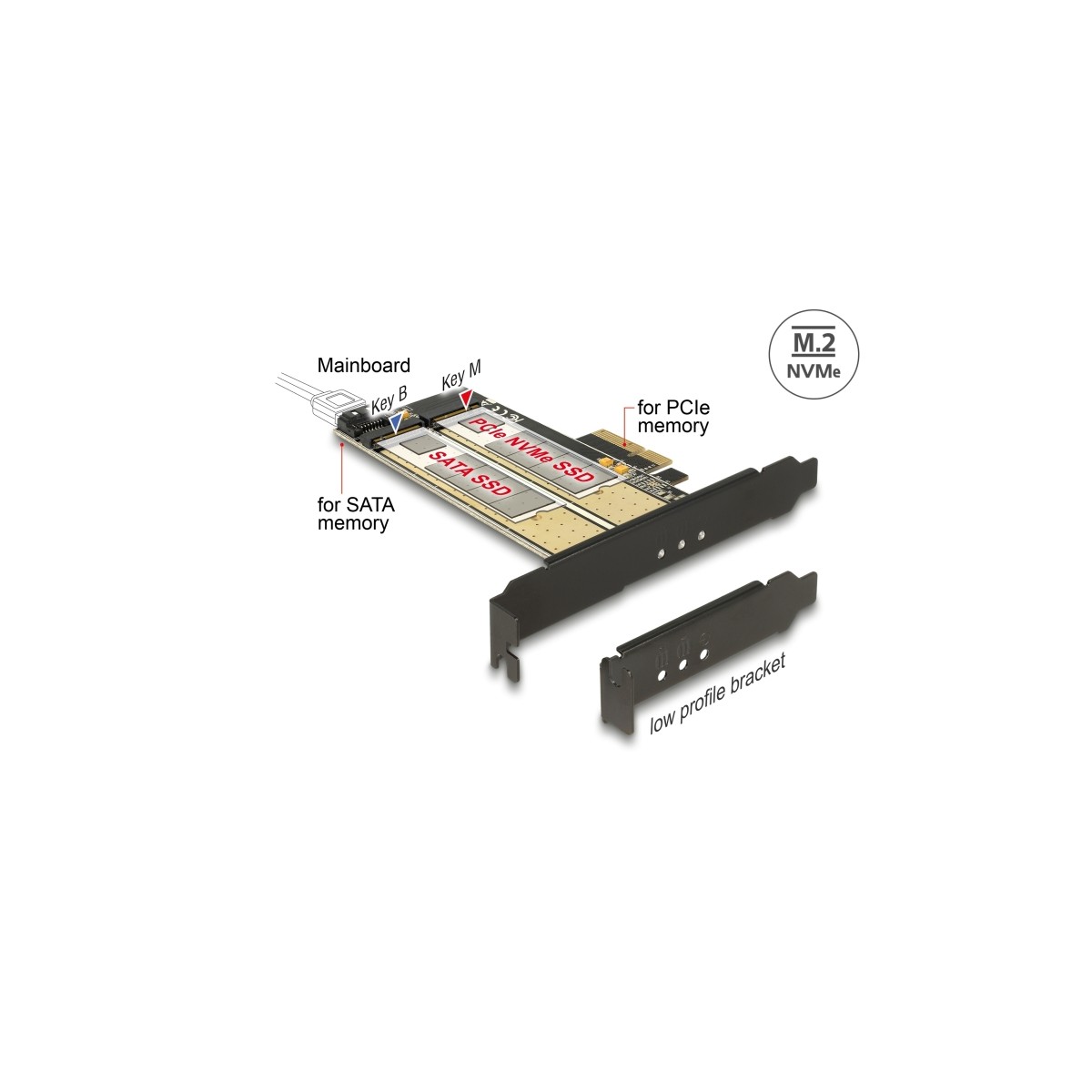

This PCI Express card by Delock expands the PC by two M.2 slots. One M.2 SATA module can be connected in format 22110, 2280, 2260, 2242, 2230 with this card and connected via SATA cable to the motherboard. Additionally, one M.2 PCIe module in format 22110, 2280, 2260, 2242, 2230 can be connected. Both slots can be used at the same time.

Specification
• Connectors:
  internal:
  1 x 67 pin M.2 key B slot
  1 x 67 pin M.2 key M slot
  1 x PCI Express x4
  1 x SATA 6 Gb/s 7 pin plug
• Interface: SATA / PCIe (2 or 4 lanes)
• Supports one M.2 module in format 22110, 2280, 2260, 2242 and 2230
  with key B or key B+M based on SATA and one M.2 module in format
  22110, 2280, 2260, 2242 and 2230 with key M or key B+M based on PCIe
• Maximum height of the components on the module: 1.5 mm,
  application of double-sided assembled modules supported
• 3 x LED indicator
• Bootable
• Supports NVM Express (NVMe)

System requirements
• Windows 7/7-64/8.1/8.1-64/10/10-64
• PC with one free PCI Express x4 / x8 / x16 / x32 slot

Package content
• PCI Express card

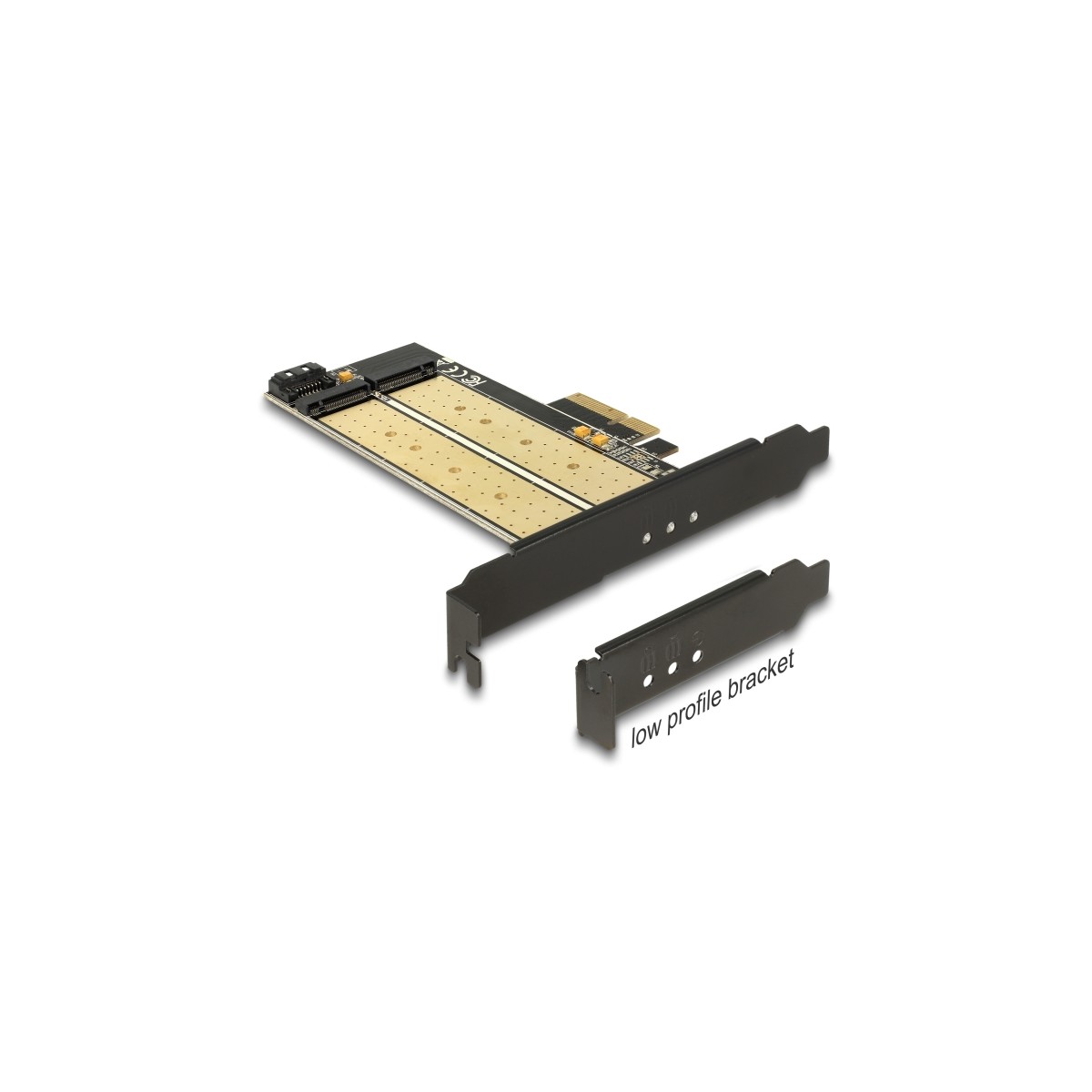

• Low profile bracket

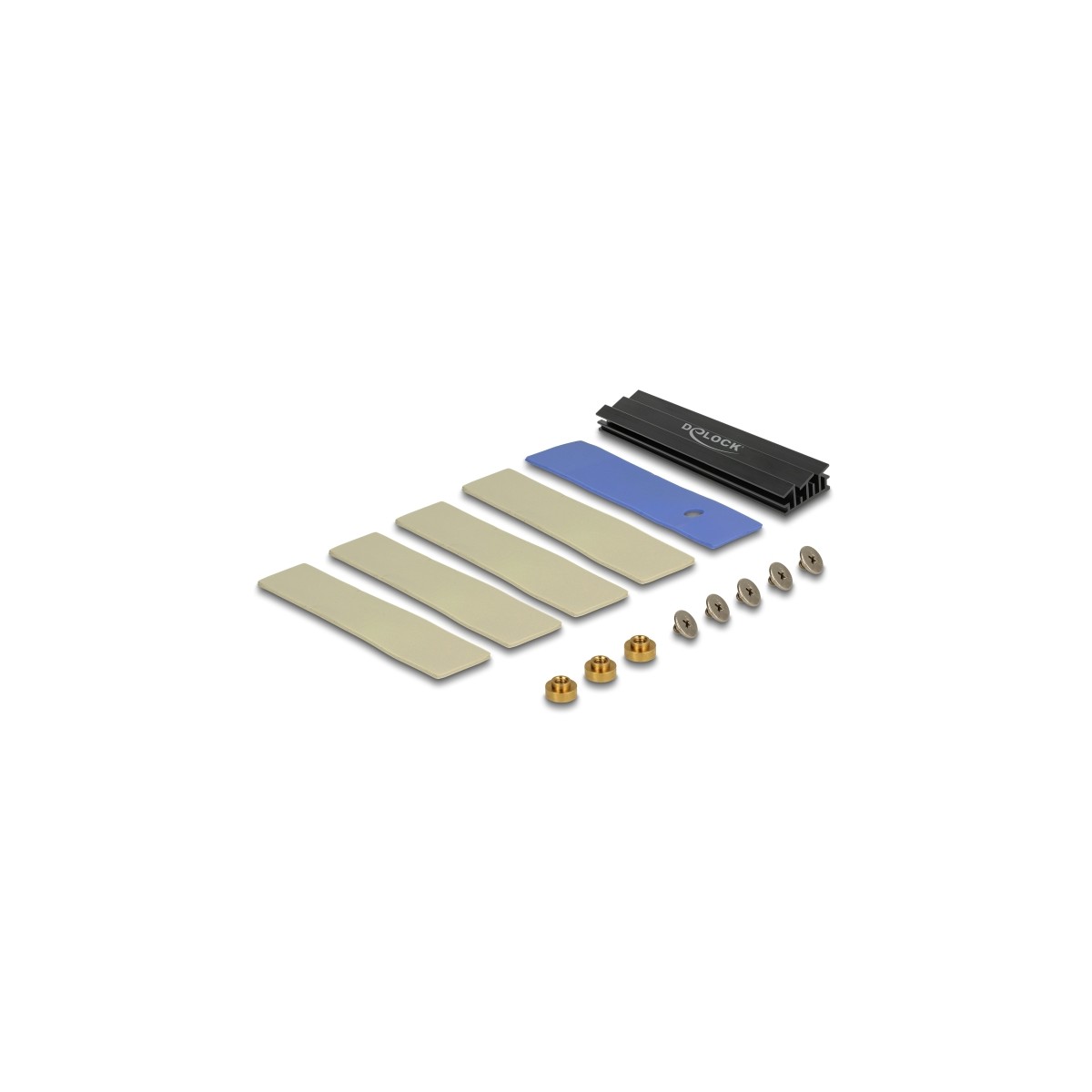

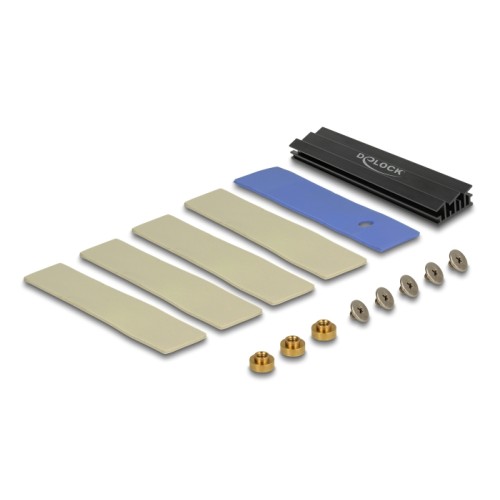

• 1 x Heat sink
• 2 x fixing screw for M.2 module
• 5 x self-adhesive thermal pad
• User manual

Package
• Retail Box
