Description

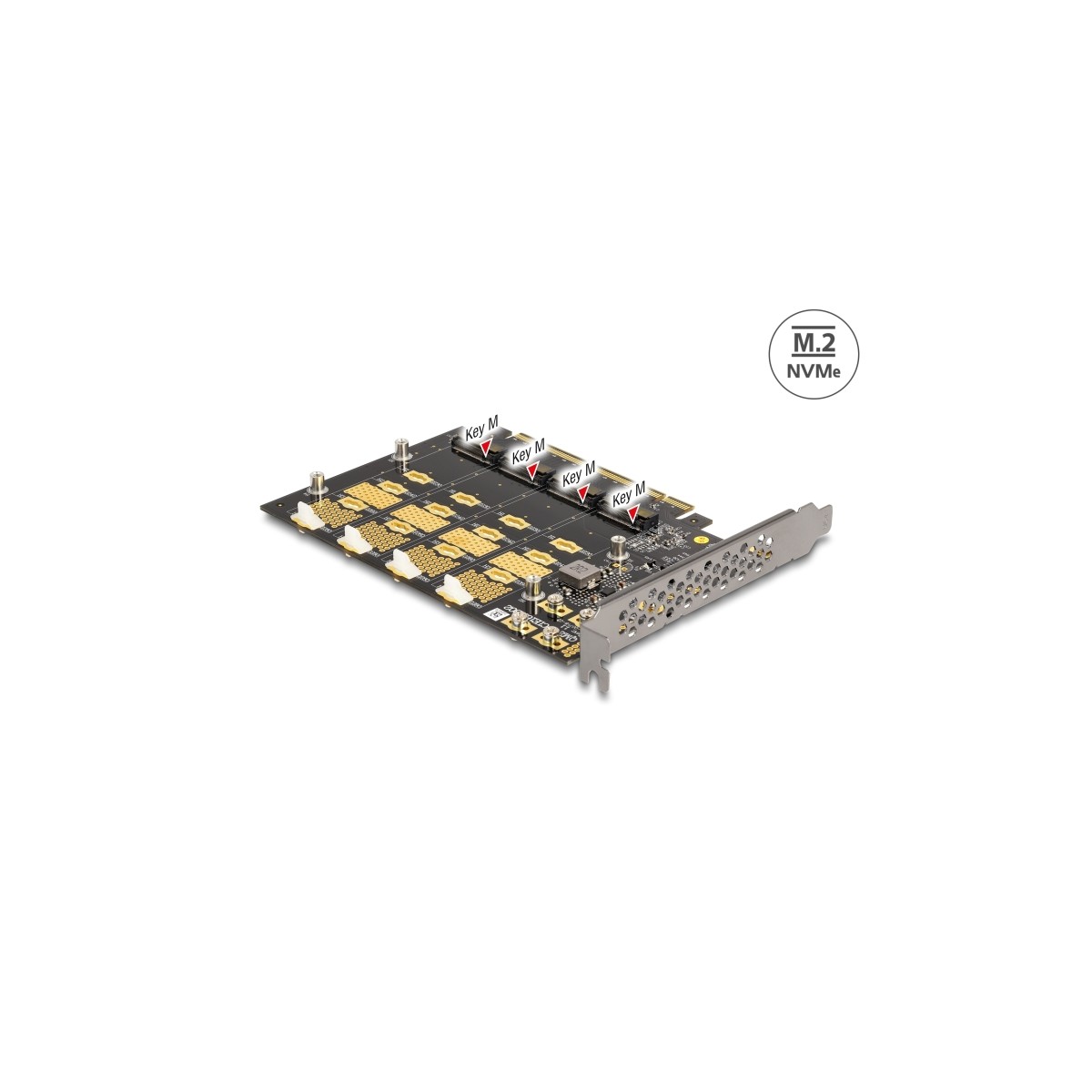

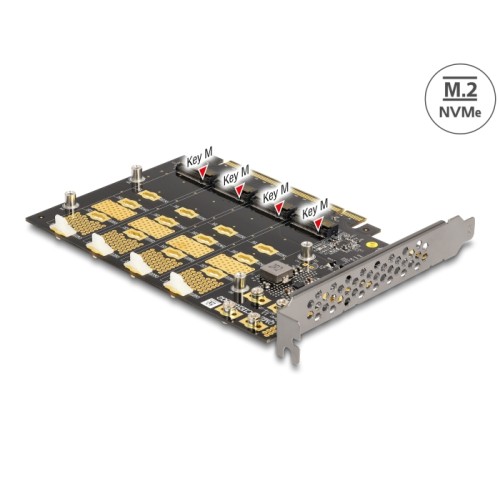

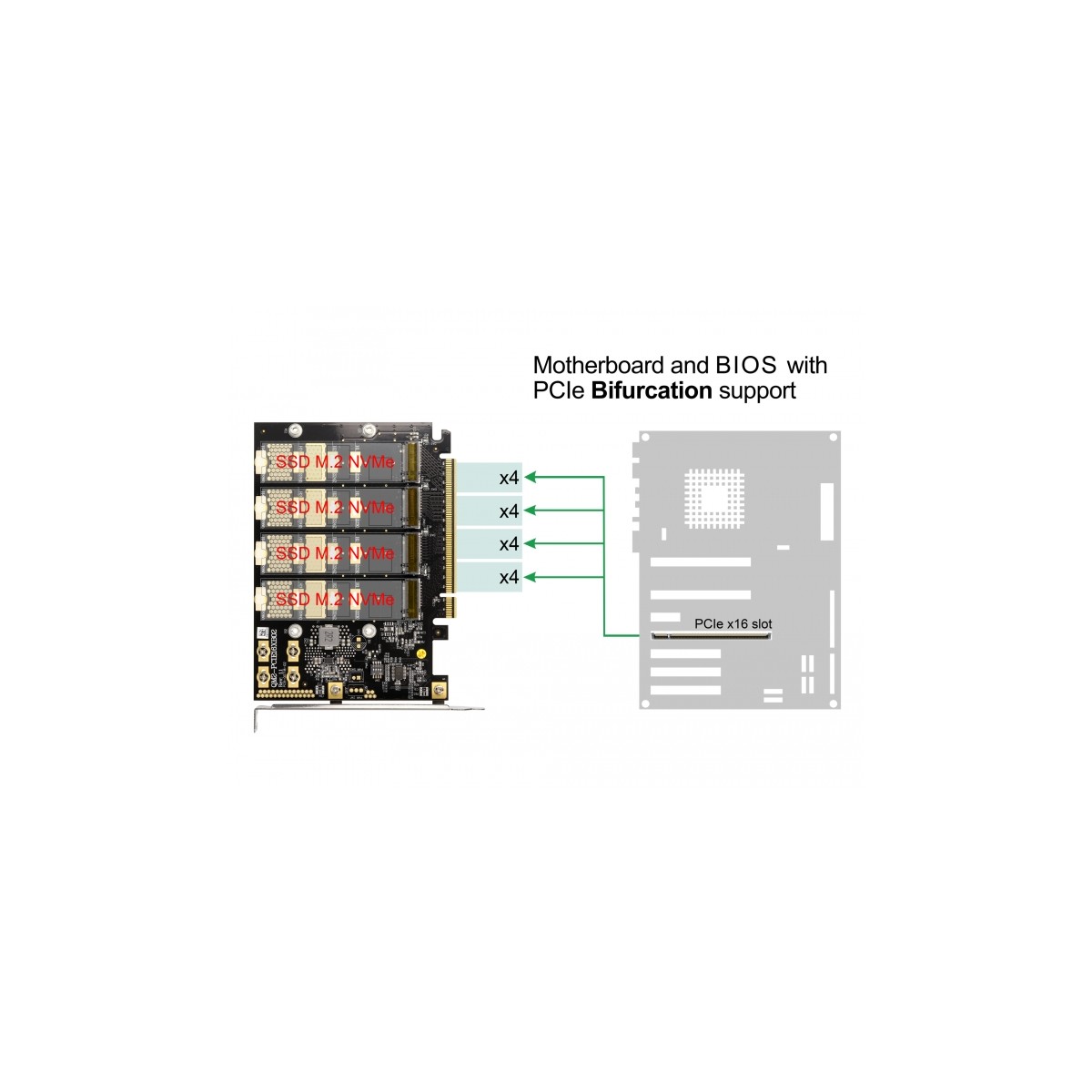

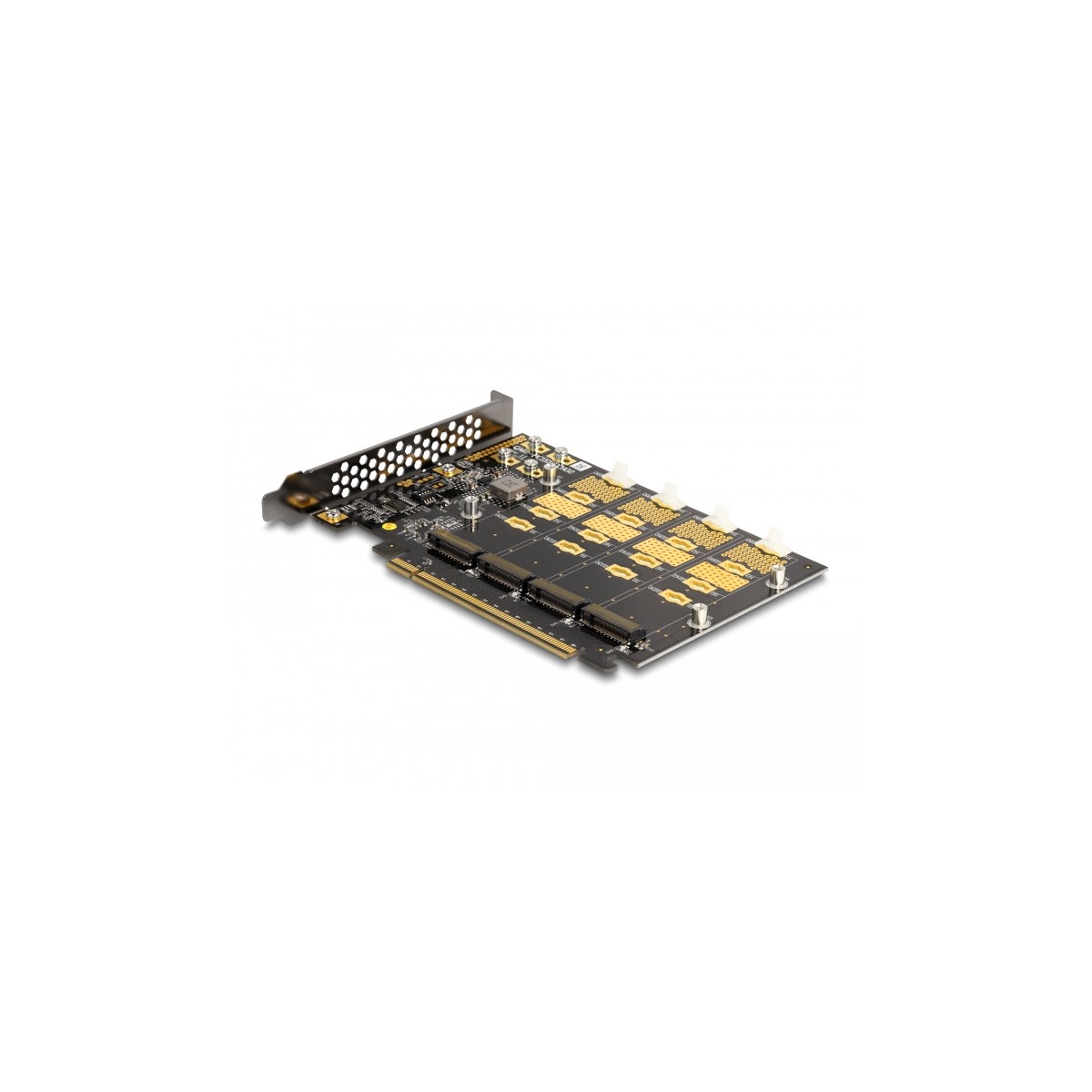

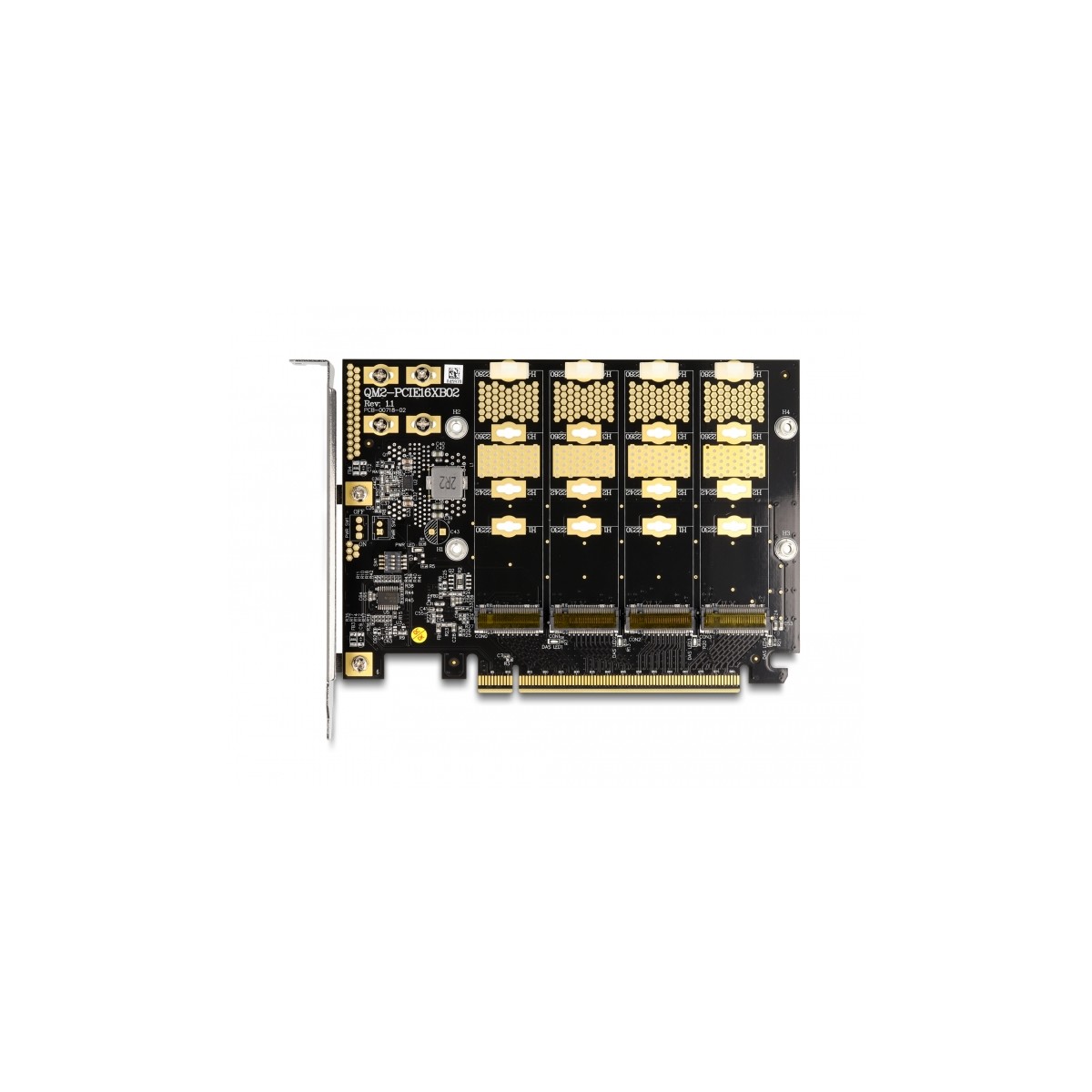

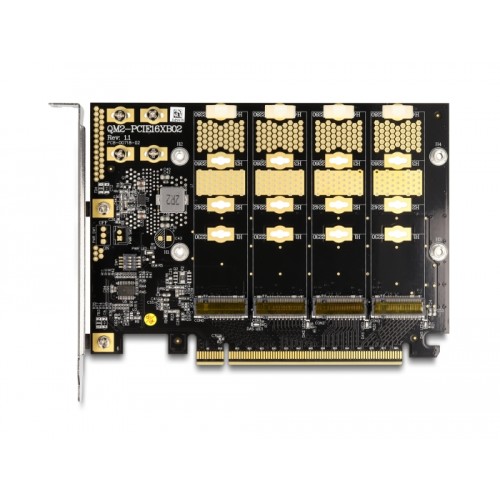

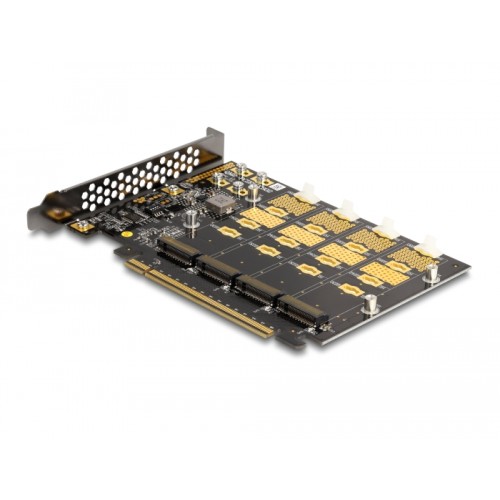

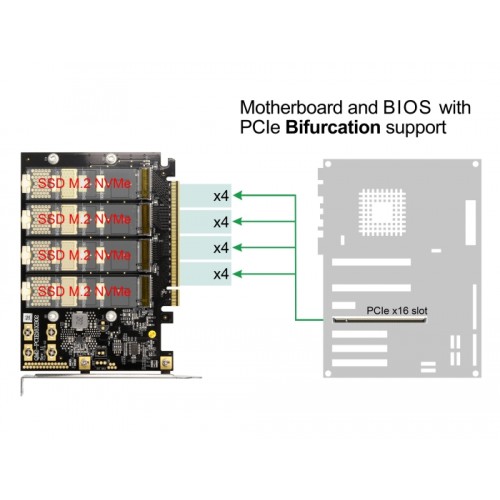

This PCI Express card by Delock expands the PC by four M.2 slots. M.2 SSDs in format 2280, 2260, 2242 and 2230 can be connected. The card requires the PCIe bifurcation of the motherboard to split the PCIe signal in order to use multiple slots with M.2 SSDs.
Note
Without PCIe bifurcation only the first M.2 slot of the card can be used.
Specification
• IOI item number: QM2-PCIE16XB02
• Connectors:
internal:
4 x 67 pin M.2 key M slot
1 x PCI Express x16, V4.0
• Interface: PCIe
• Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key M or
key B+M based on PCIe
• Maximum height of the components on the module: 1.5 mm,
application of double-sided assembled modules supported
• Supports NVM Express (NVMe)
• 4 x LED indicator
System requirements
• Linux Kernel 3.17 or above
• Windows 8.1/8.1-64/10/10-64
• PC with one free PCI Express x16 / x32 slot
• Motherboard and BIOS with PCIe bifurcation support
Package content
• PCI Express card
Package
• Box
New
4043619890170
