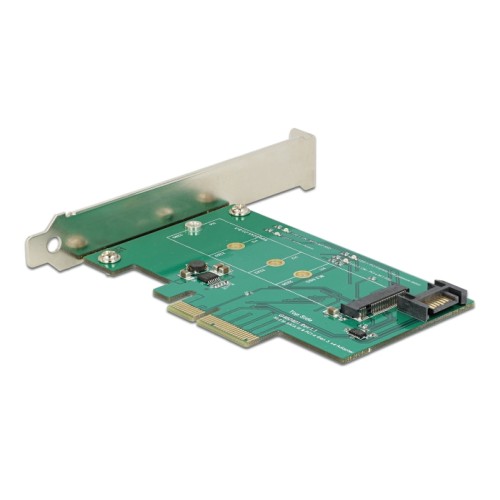

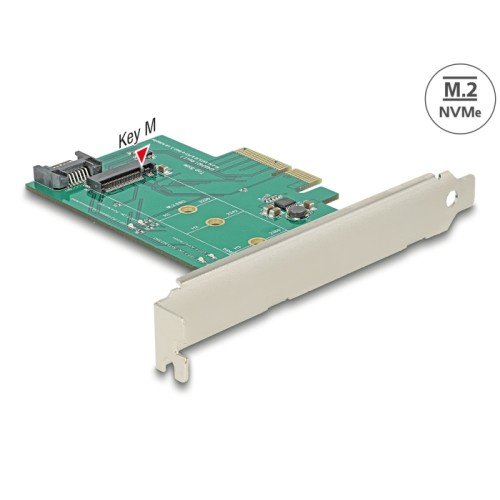

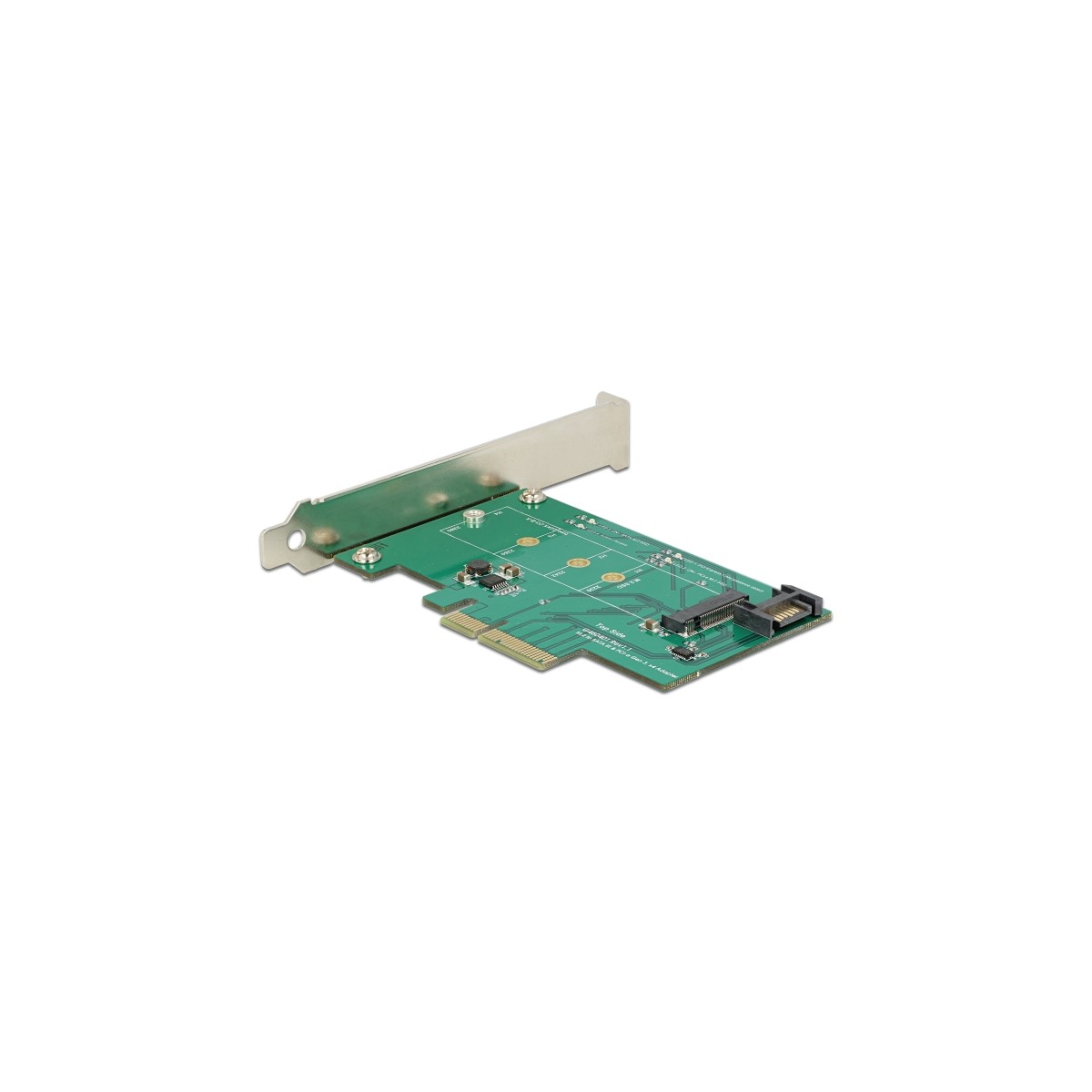

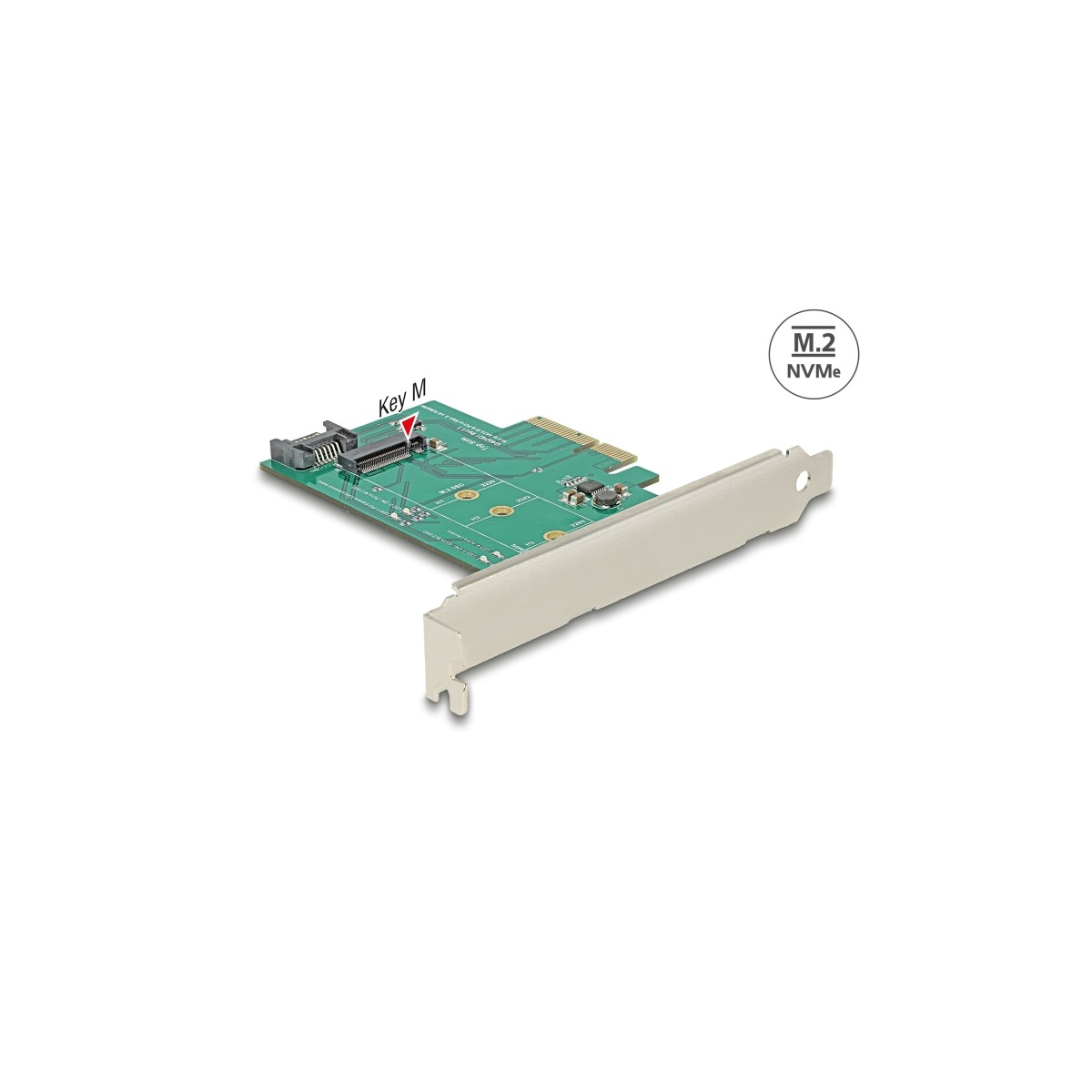

Delock PCI Express Card > 1 x internal NVMe M.2

Description
This PCI Express card by Delock expands the PC by one M.2 slot. One M.2 module in 2280, 2260, 2242 or 2230 format can be connected. When connecting a SATA module, the SATA 7 pin port must be connected to the motherboard.

Specification

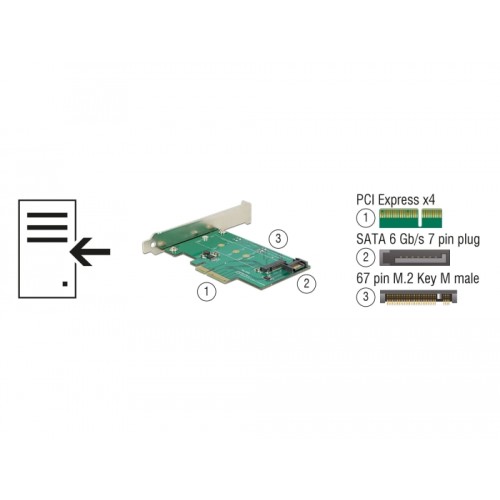

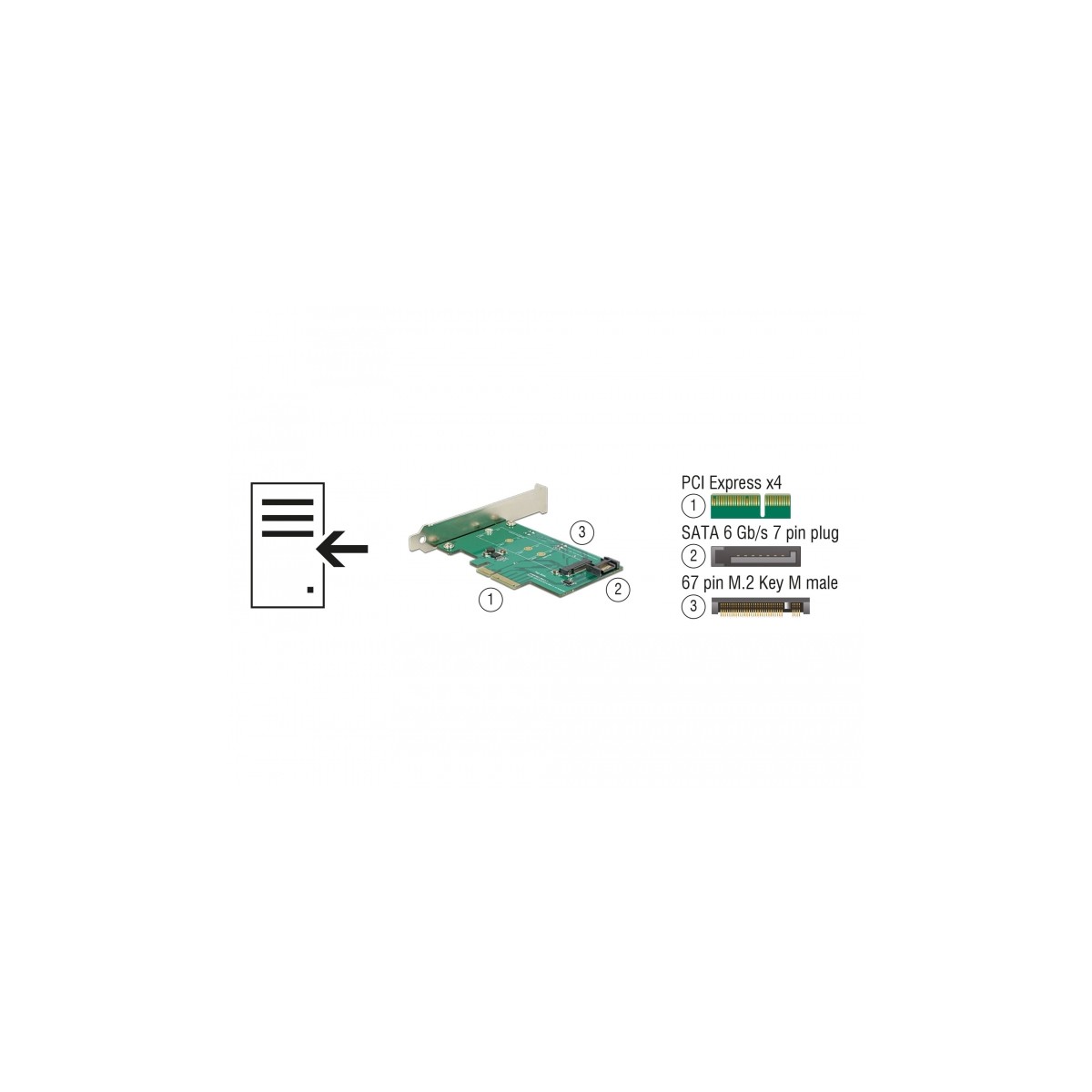

• Connector:
  internal:
  1 x 67 pin M.2 key M slot
  1 x SATA 6 Gb/s 7 pin receptacle
  1 x PCI Express x4
• Interface: PCIe / SATA
• Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key M or key B+M based
  on PCIe or SATA

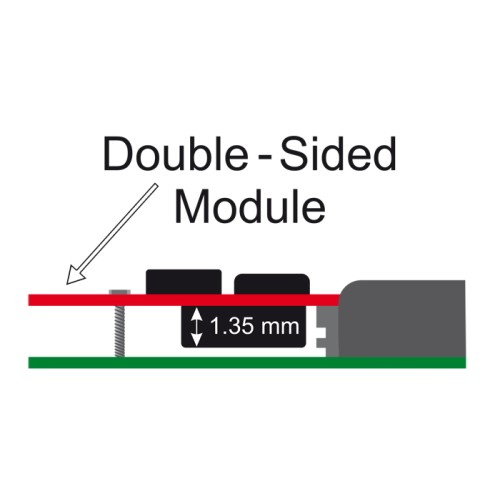

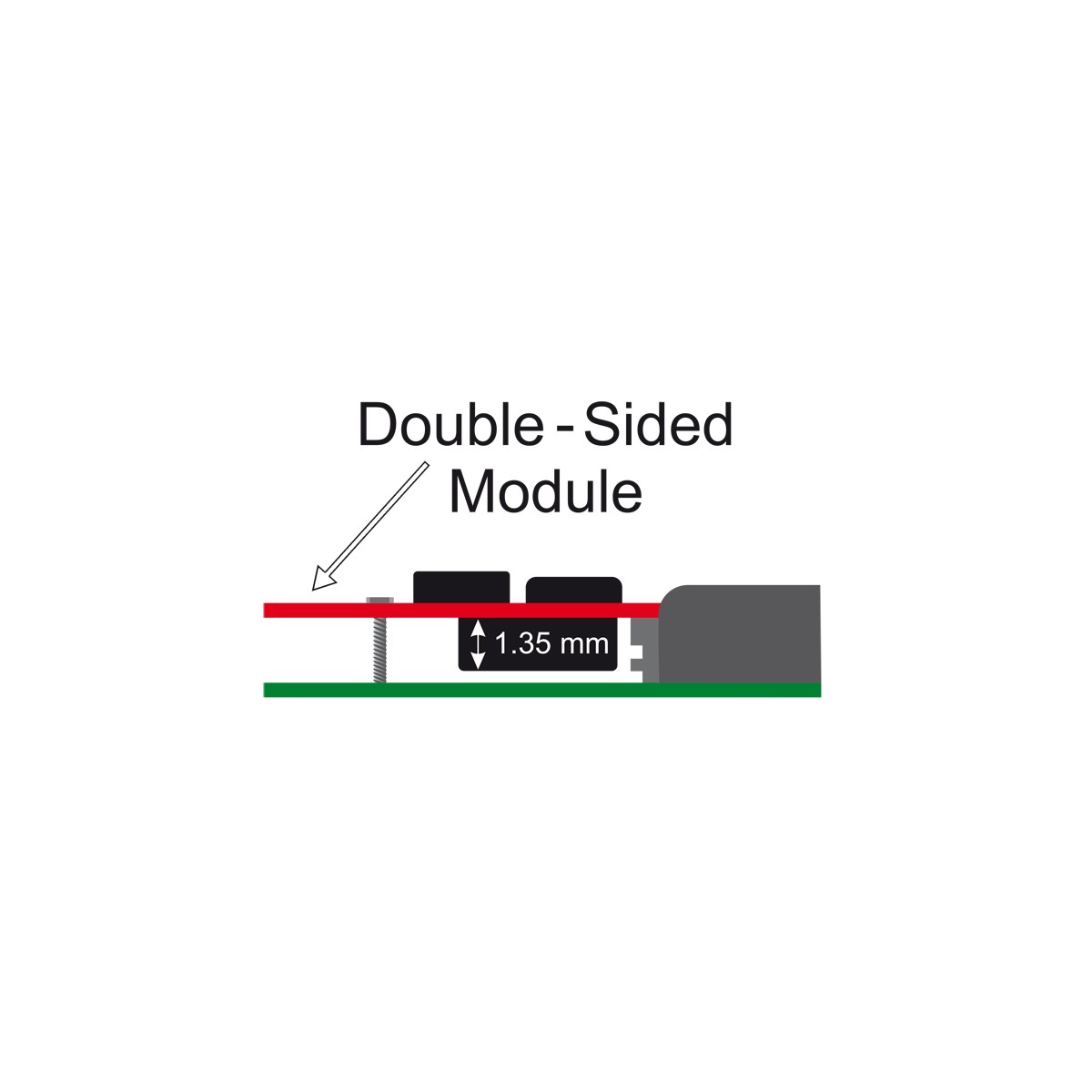

• Maximum height of the components on the module: 1.35 mm application of double-sided
  assembled modules supported
• Supports M.2 PCI Express 2-Lane and 4-Lane modules

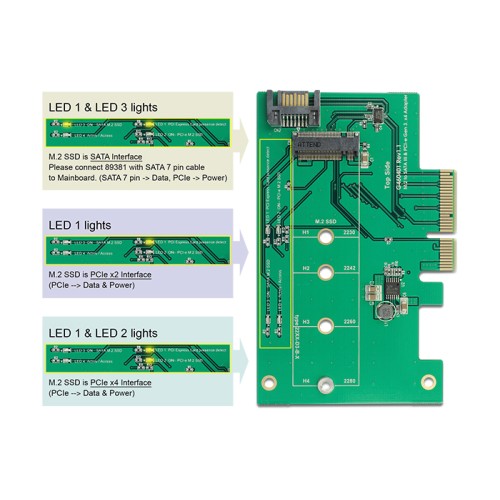

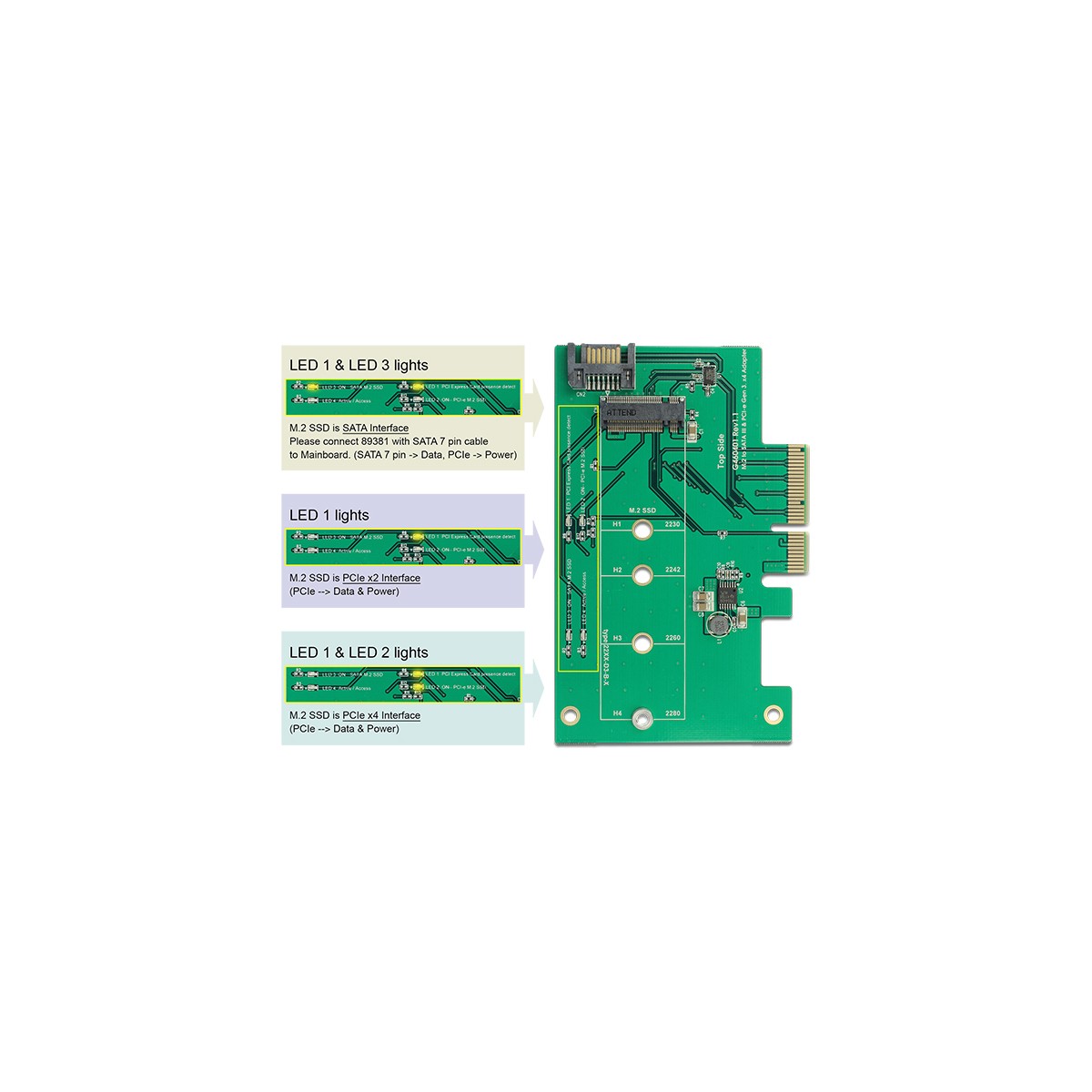

• 4 LEDs for indication of SATA or PCI Express module and for activity status
• Bootable (with SATA module)
• Supports NVM Express (NVMe)
• OS independent, no driver installation necessary

System requirements
• PC with one free PCI Express x4 / x8 / x16 / x32 slot
• Additional need a free SATA port and SATA data cable if using a SATA module

Package content
• PCI Express card

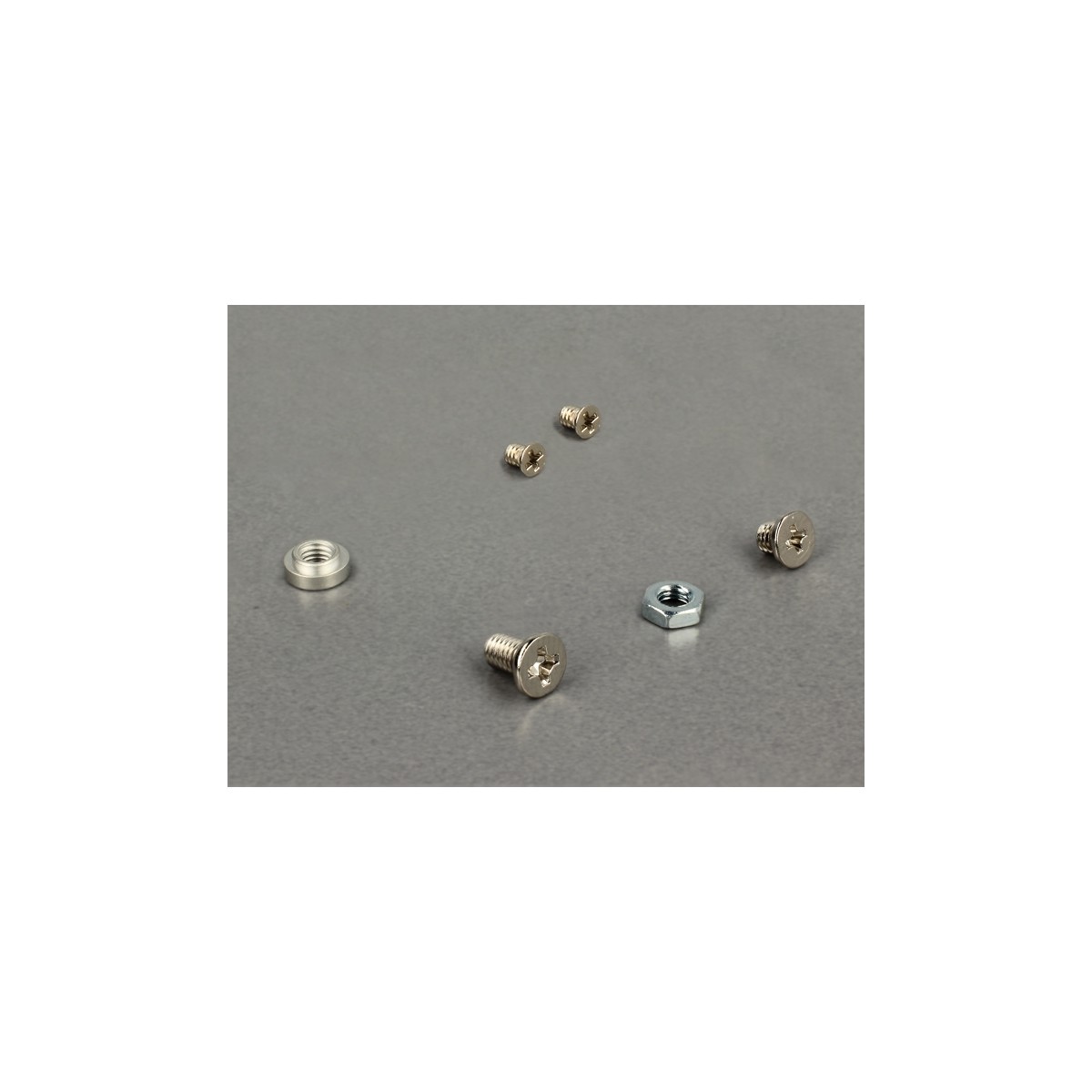

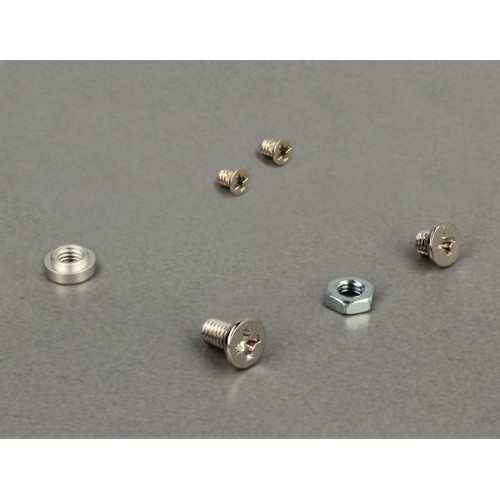

• Mounting material
• User manual

Package
• Retail Box
