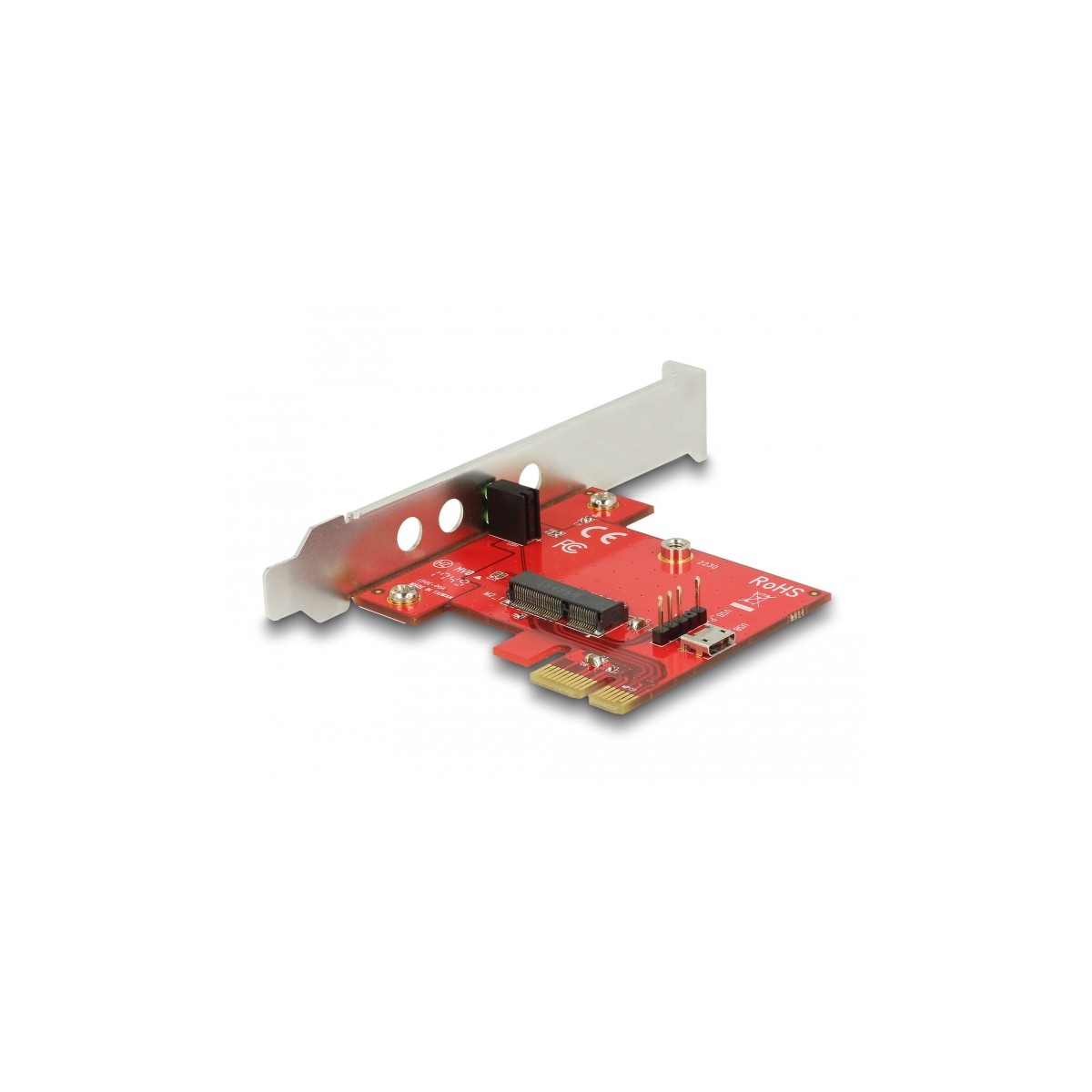

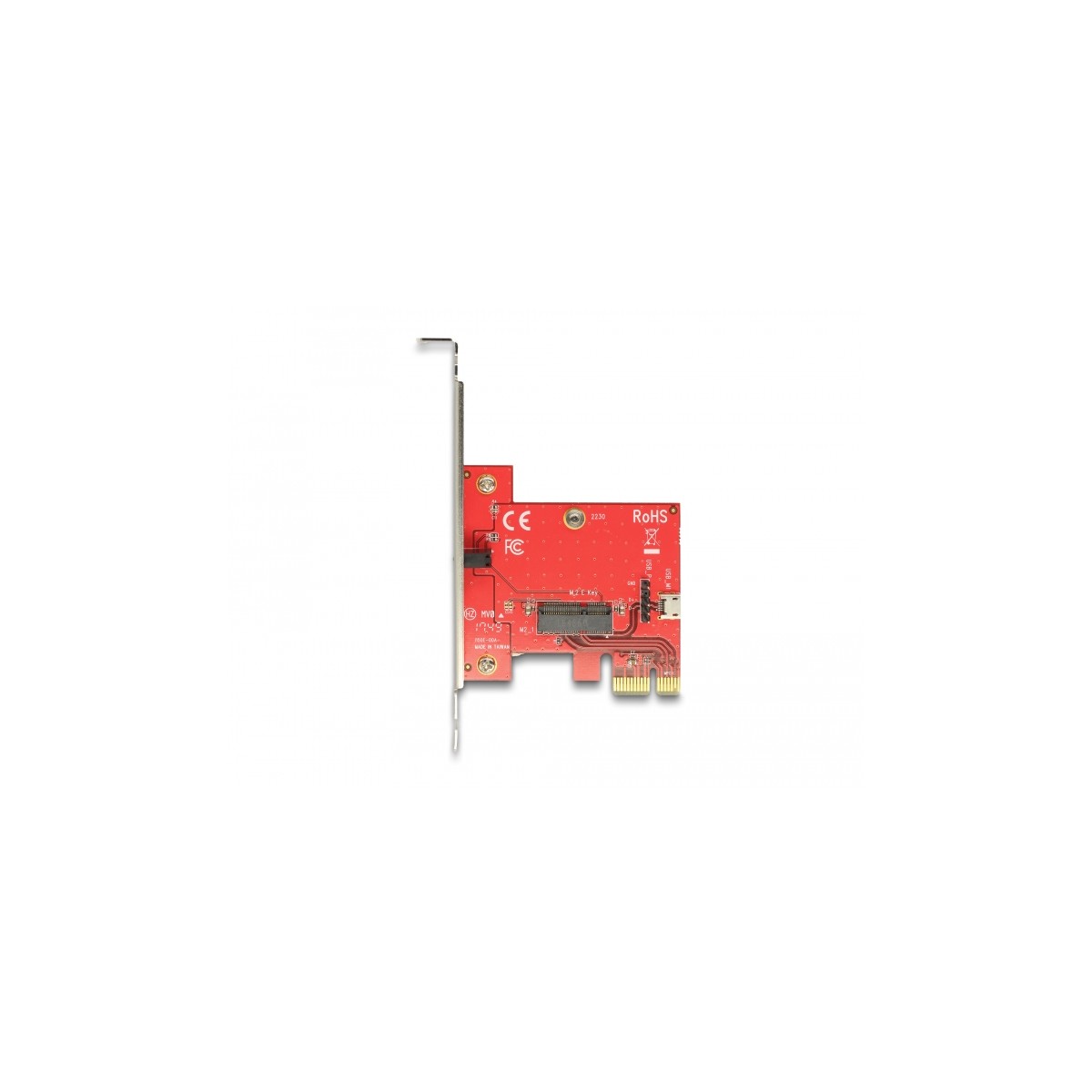

Delock PCI Express Card > 1 x internal M.2 Key E - Low Profile Form Factor

Description
This PCI Express card by Delock expands the PC by one M.2 key E slot. Different M.2 modules with USB and PCIe signals can be inserted in the card. On the M.2 key A or key E interface can be used e.g. WLAN, Bluetooth, GNSS, 3G, HSPA and NFC modules. Further it is possible to use both functions of a module which has e.g. WLAN and Bluetooth. The USB modules need to be connected via the USB interface of the card to the system.

Specification

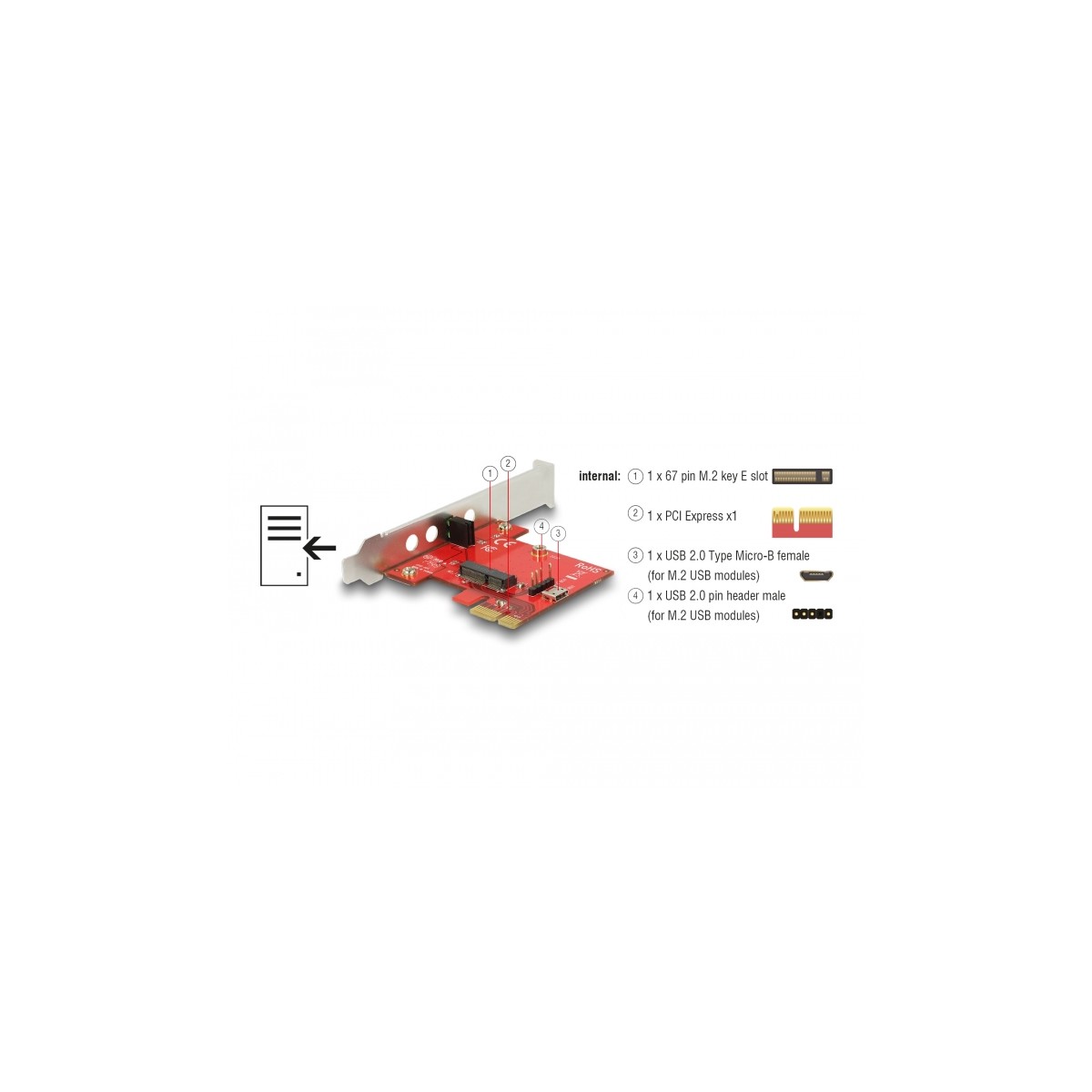

• Connectors:
  1 x 67 pin M.2 key E slot
  1 x PCI Express x1
  1 x USB 2.0 Type Micro-B female (for M.2 USB modules)
  1 x USB 2.0 pin header male (for M.2 USB modules)
• Interface: PCIe + USB
• Supports modules in format 2230, 1630 and 3030 with key E
  or key A+E based on PCIe and USB
• Maximum height of the components on the module: 1.5 mm,
  application of double-sided assembled modules supported
• 2 x LED indicator
• Each slot bracket with 3 x hole for antenna connector
• OS independent, no driver installation necessary

System requirements
• PC with one free PCI Express slot

Package content
• PCI Express card

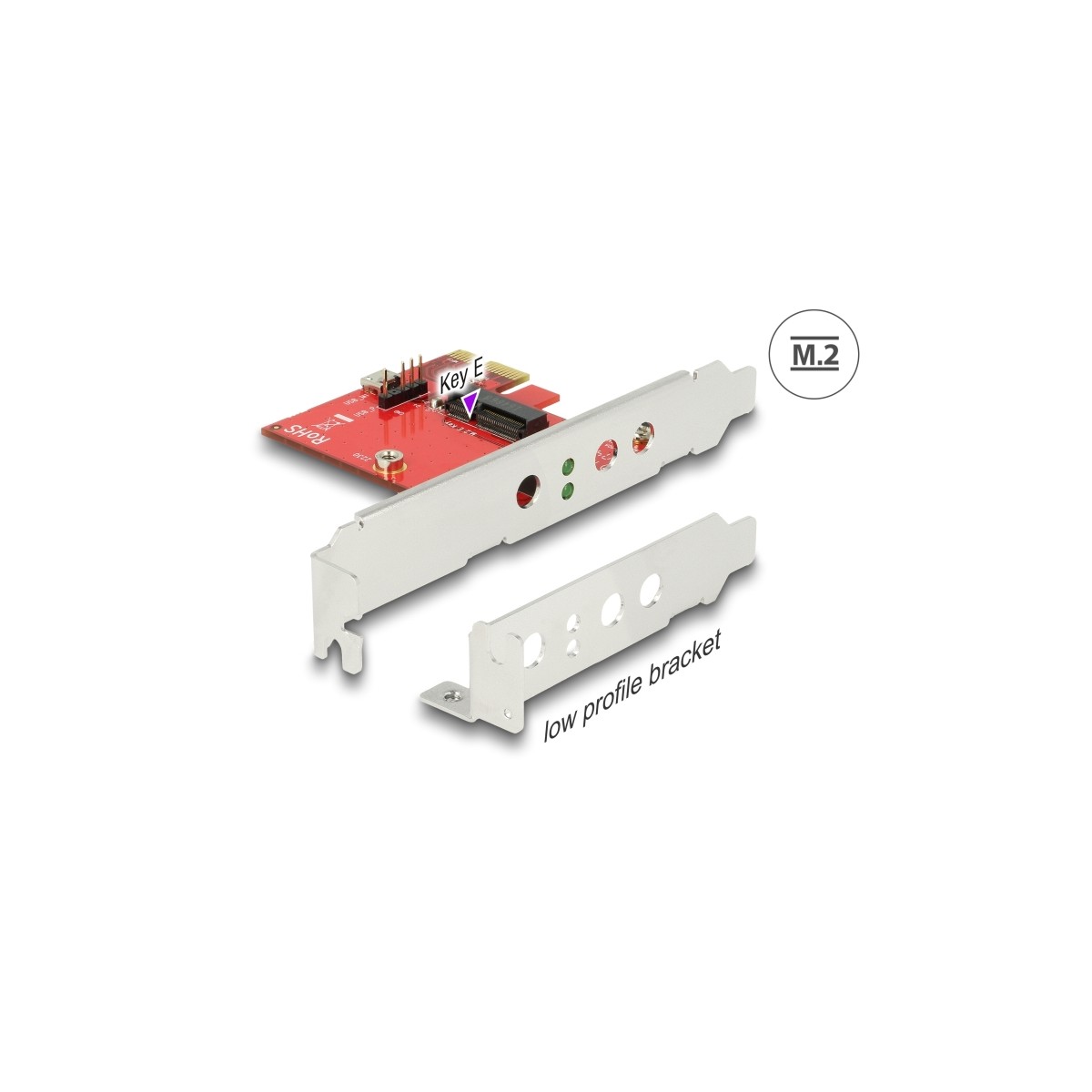

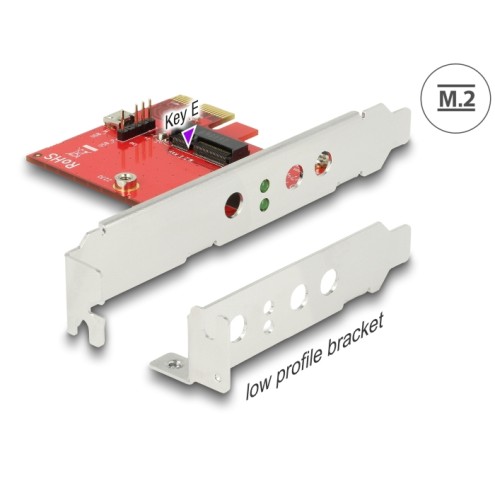

• Low profile bracket

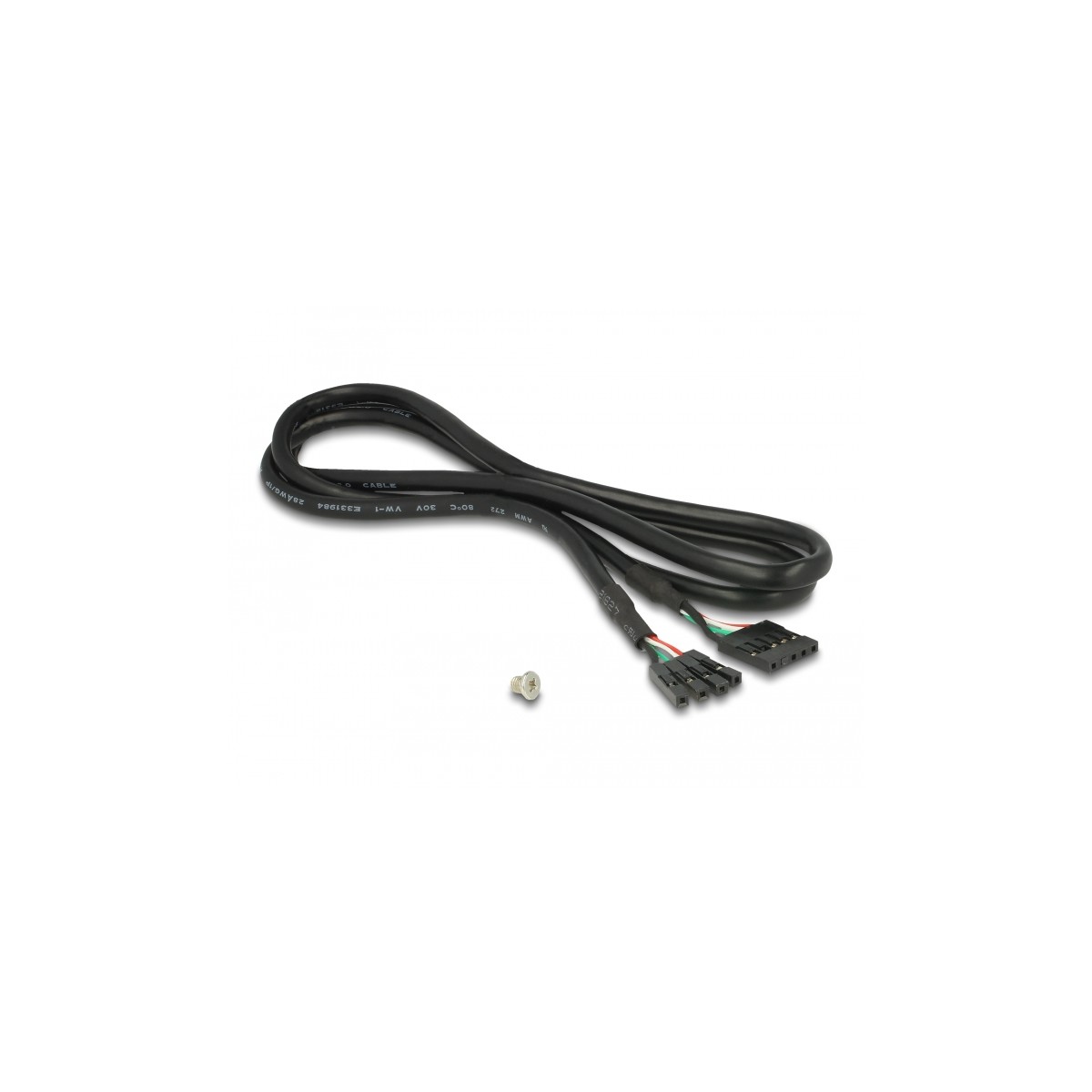

• USB pin header cable 5 pin to 4 pin, length ca. 90 cm
• User manual

Package
• Retail Box
