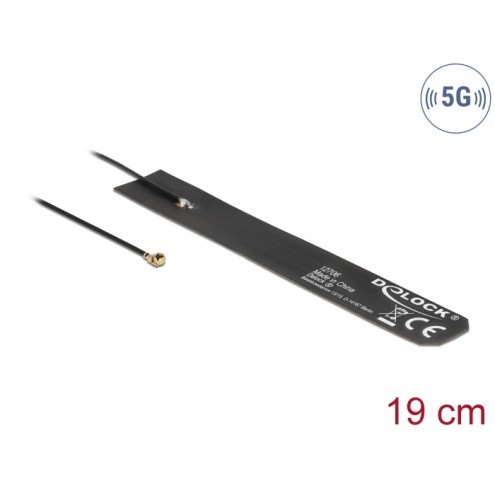

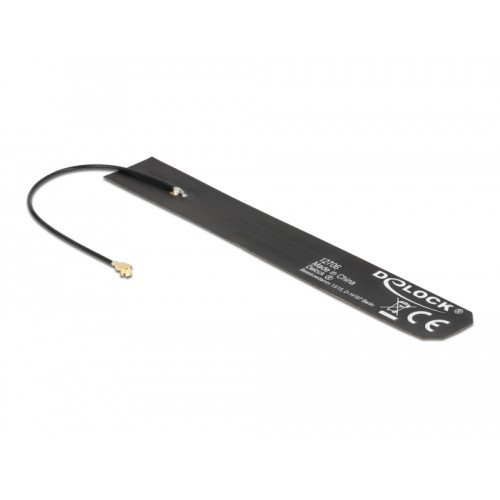

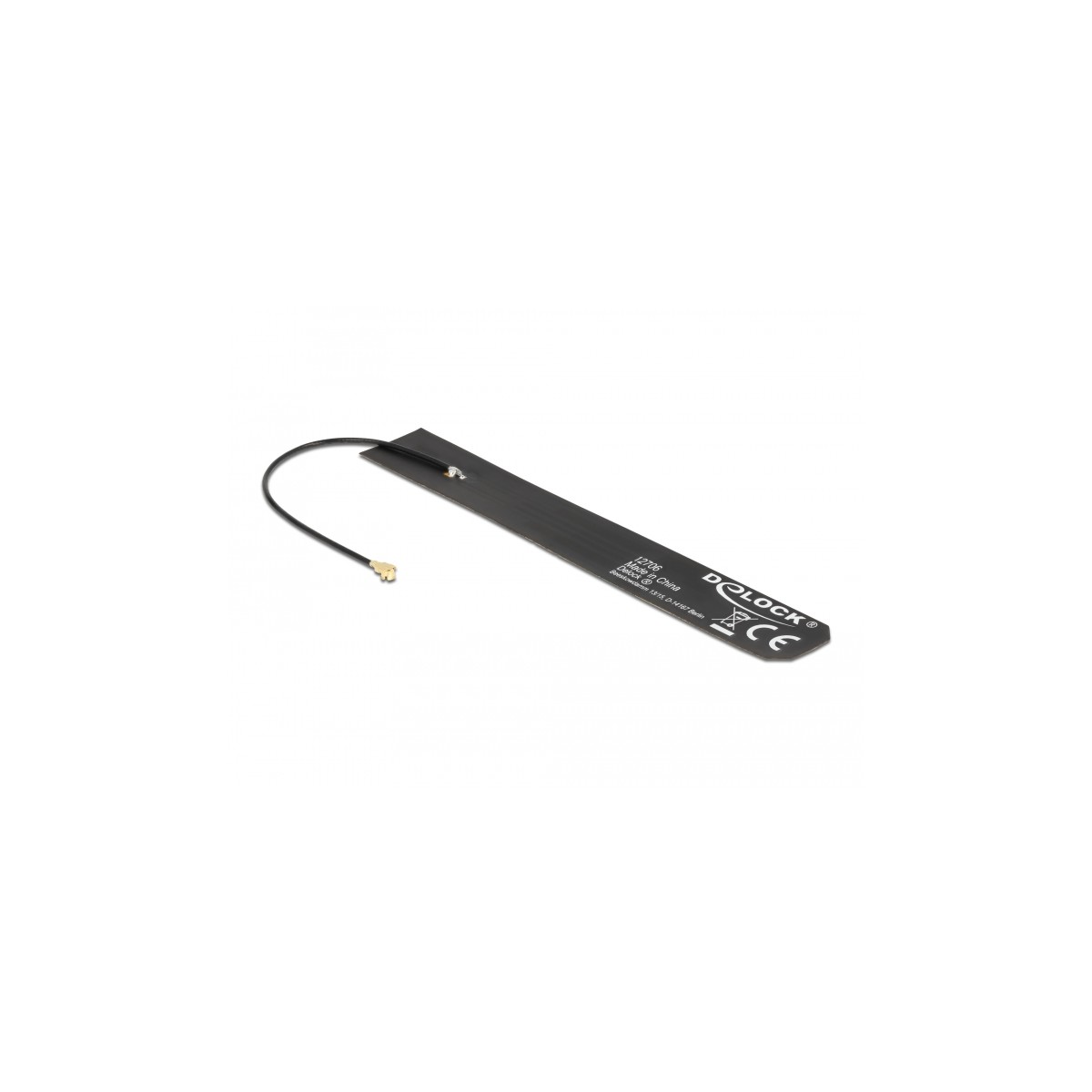

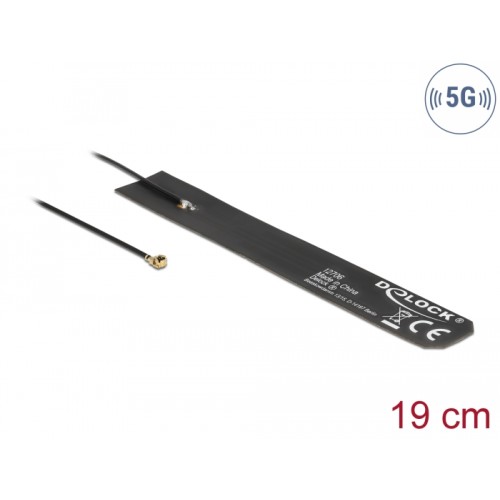

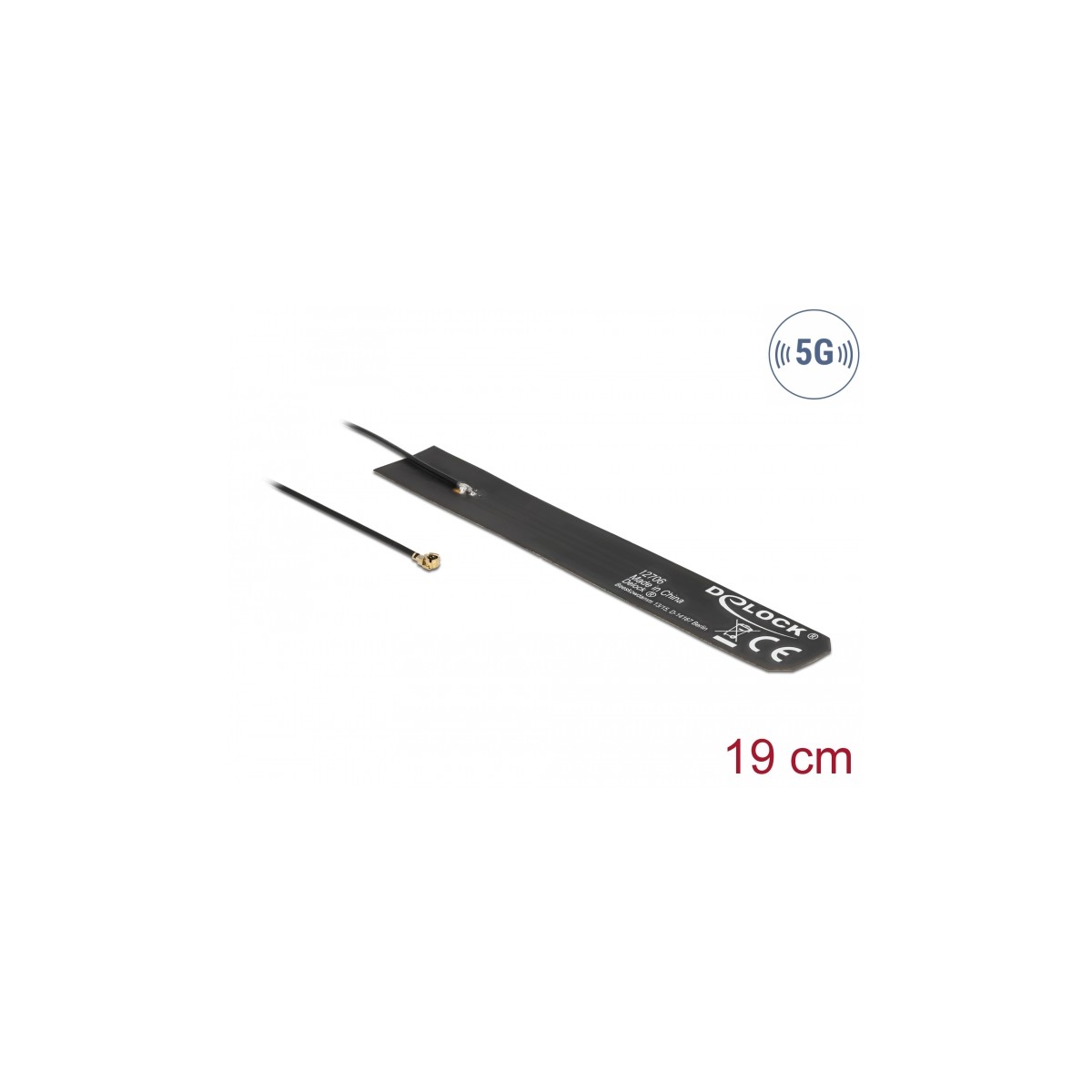

Delock 5G LTE Antenna MHF® I compatible plug 0 - 4 dBi omnidirectional FPC

Description
This antenna by Delock allows the usage of different 5G LTE bands inside. It is completely compatible to GSM, UMTS, 5G LTE, ZigBee, Z-Wave, NB-IoT, Dualband WLAN, Bluetooth, ISM, DECT and LoRa.

5G mobile radio standard
5G unlike its predecessors LTE (4G) and UMTS (3G) will use more and wider frequency spectrums.
The 5G standard promises more throughput, capacity and low latency.

Specification
• Connector: 1 x MHF® I compatible plug
• Frequency range: 700 - 6000 MHz
• Antenna gain: 0 - 4 dBi
• VSWR: 2.0
• Impedance: 50 Ohm
• Polarisation: linear, vertical
• Mounting type: self-adhesive
• Operating temperature: -40 °C ~ 85 °C
• Housing material: FPC
• Colour: black
• Cable type: coaxial
• Cable type: 1.13
• Cable colour: black
• Cable diameter: ca. 1.13 mm
• Cable attenuation: 3.2 dB @ 2.4 GHz per meter
• Smallest bending radius: 4.5 mm
• Dimensions (LxWxH): ca. 112.5 x 16.2 x 1.5 mm
• Length incl. connectors (L): ca. 19 cm

System requirements
• Device with one free MHF® I port

Package content
• Antenna
