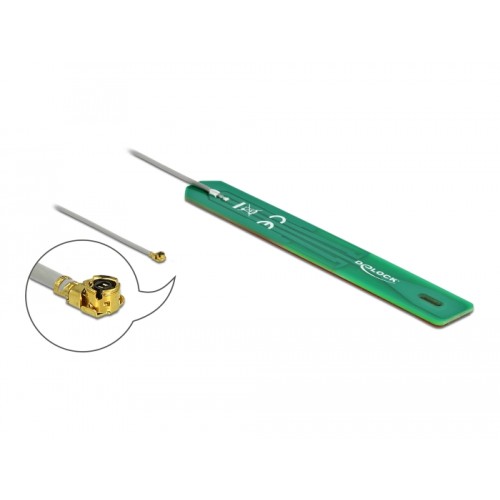

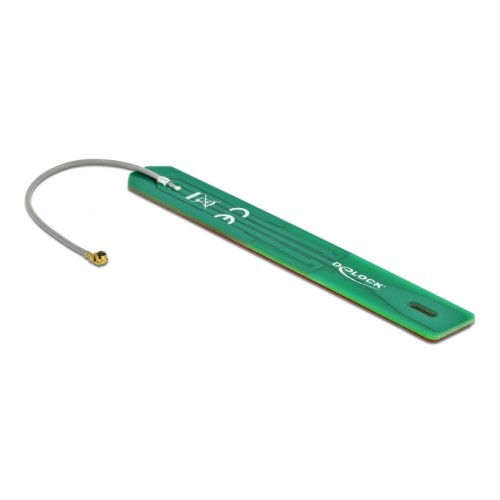

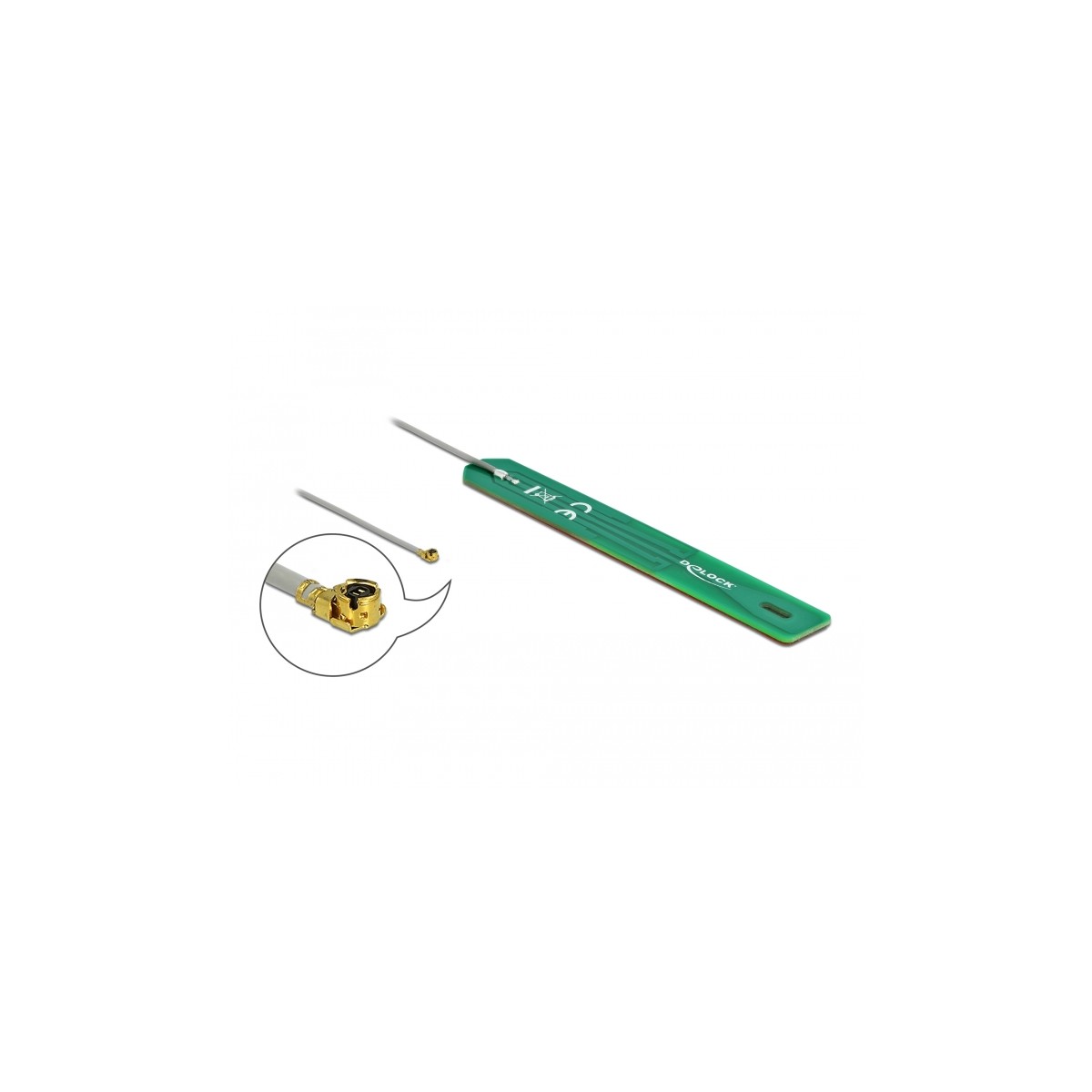

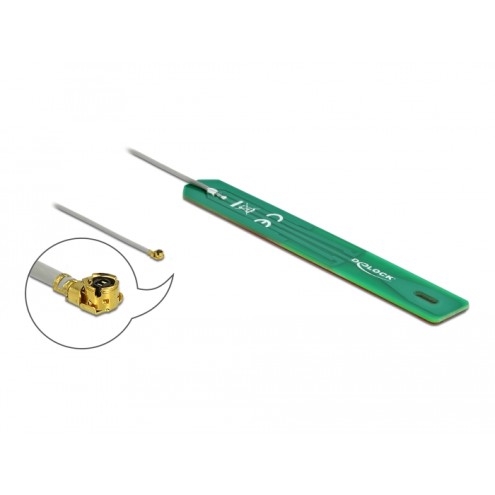

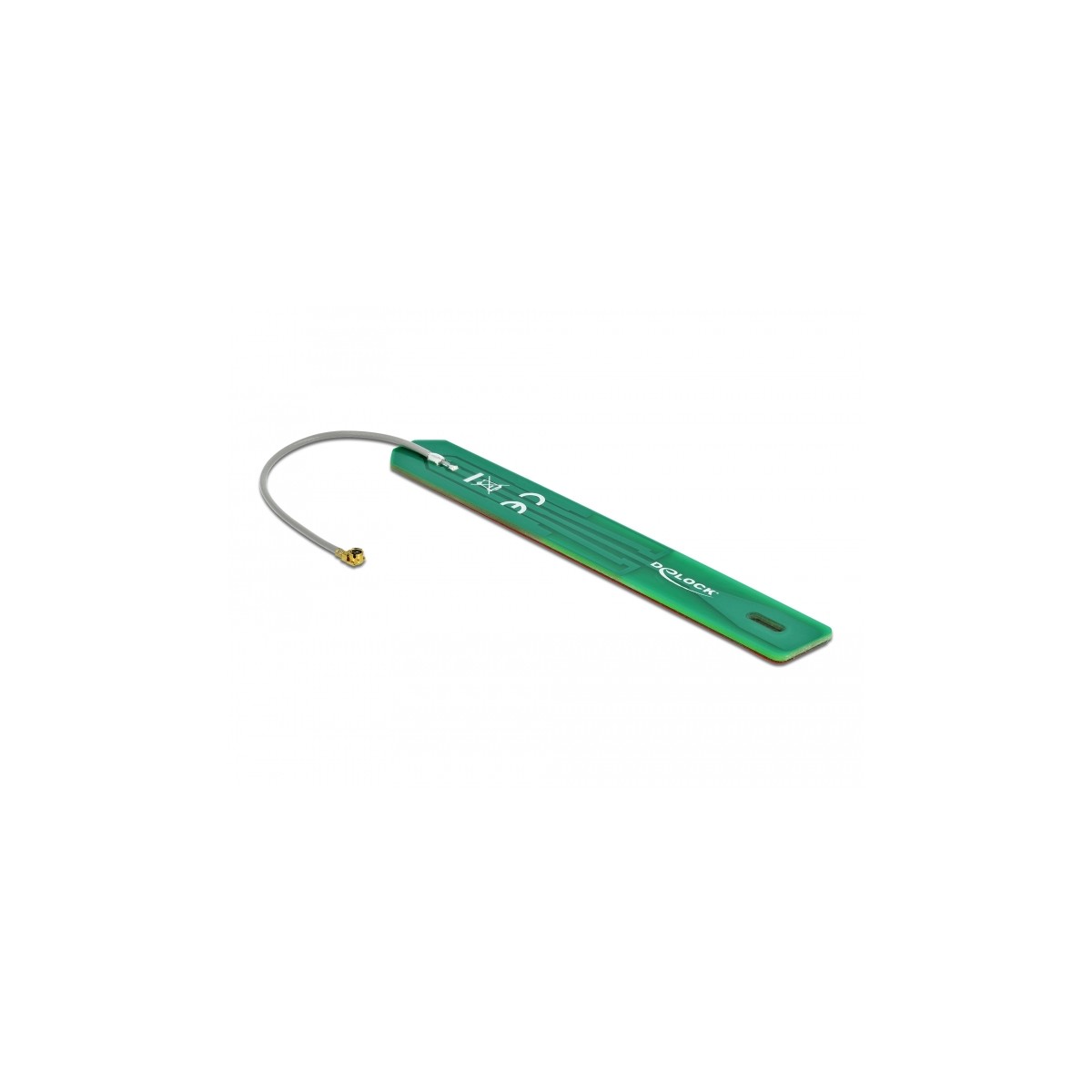

Delock LPWAN Antenna 880 - 960 MHz MHF® I plug 2 dBi 1.13 7.5 cm PCB internal self-adhesive
12692
New
Description
This antenna by Delock allows the usage of the 880 - 960 MHz band indoors.
LPWAN
LPWAN (Low Power Wide Area Network) are radio networks that cover large distances. They are characterized by a high reception sensitivity and by a low energy consumption.
Specification
• Connector: 1 x MHF® I plug
• Frequency range: 880 MHz - 960 MHz
• GSM, LTE, ZigBee, Z-Wave, NB-IoT, ISM, LoRa
• Antenna gain: 2 dBi
• VSWR: 2.0
• Impedance: 50 Ohm
• Mounting type: self-adhesive
• Operating temperature: -10 °C ~ 60 °C
• Housing material: FR4
• Colour: black
• Cable type: coaxial
• Cable type: 1.13
• Cable colour: black
• Cable diameter: ca. 1.13 mm
• Cable attenuation: 3.2 dB @ 2.4 GHz per meter
• Smallest bending radius: 4.5 mm
• Dimensions (LxWxH): ca. 9.52 x 1.30 x 0.12 cm
• Cable length incl. connector: ca. 7.5 cm
System requirements
• Device with one free MHF® I port
Package content
• Antenna
Package
• Zip poly bag
New
4043619126927
