Description

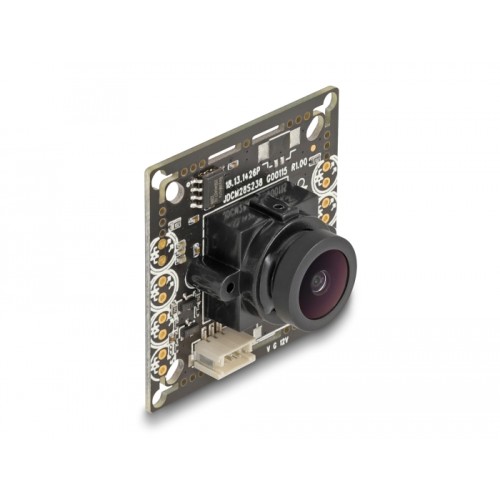

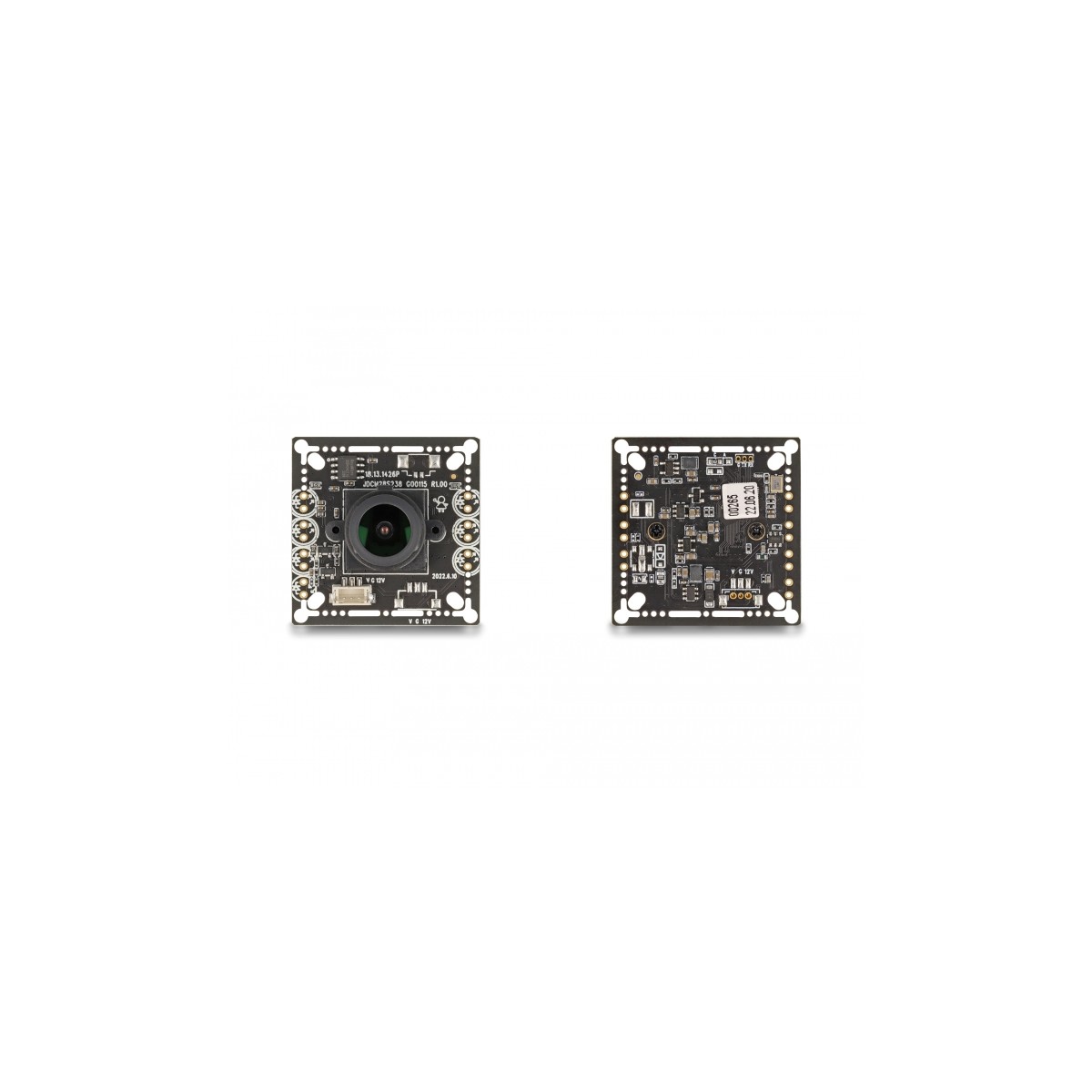

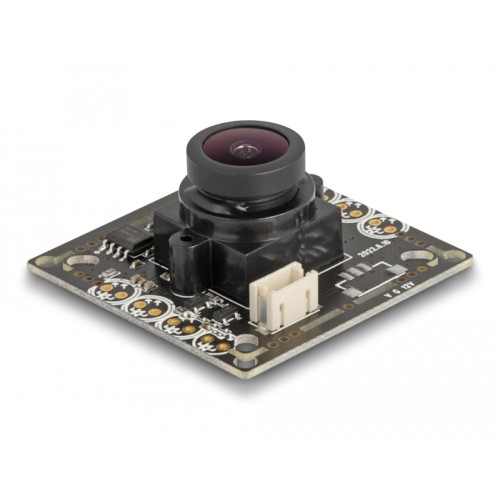

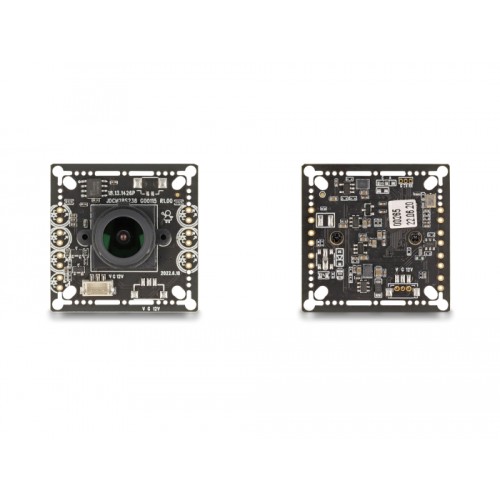

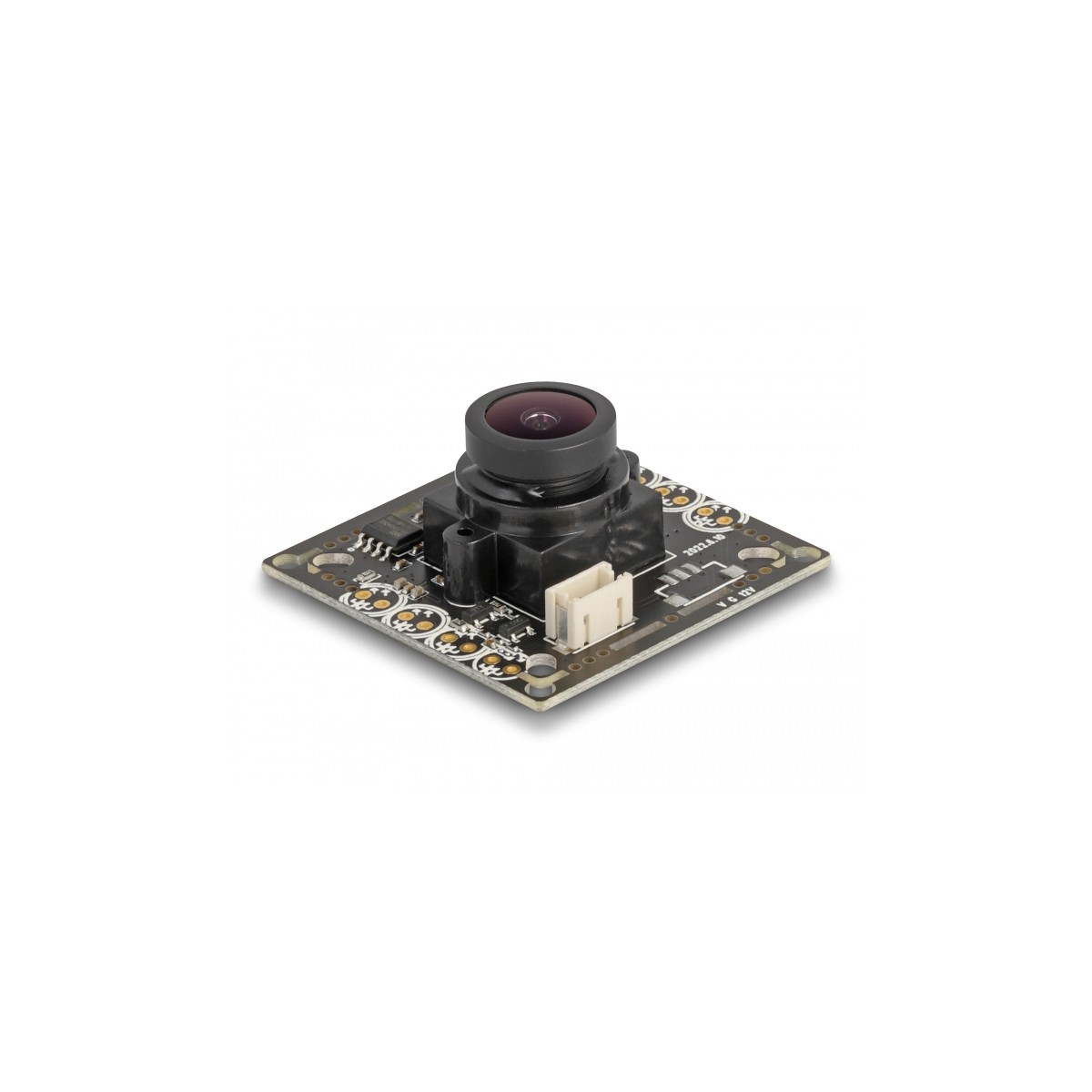

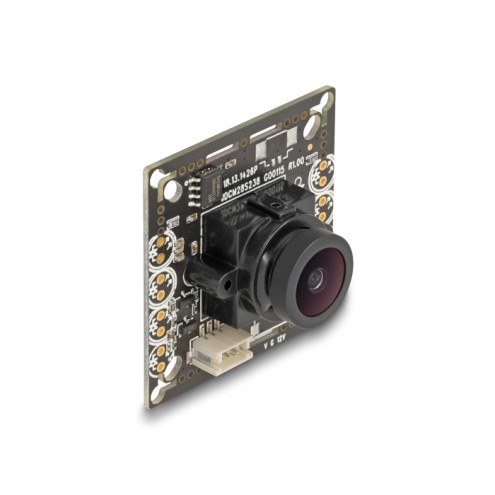

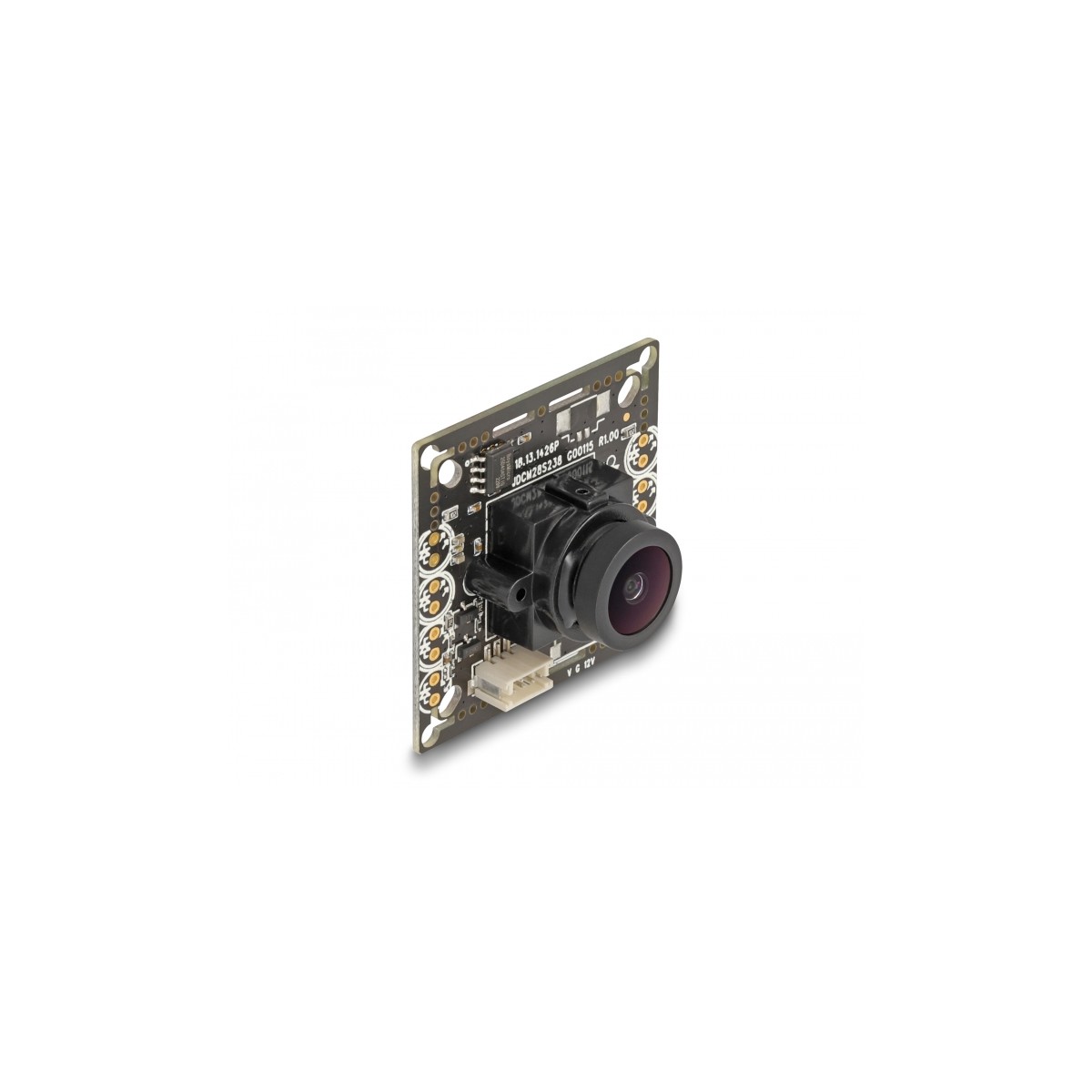

This analogue camera module by Delock offers in a compact construction a high resolution and low power consumption. It is ideally suited for installation in industrial components like IPCs, embedded systems, sensors and in device manufacture. The use of a photosensitive sensor with back side illumination (BSI) expands the scope of this module.
Specification
• Connector: 1 x 3 pin header female SMT, pitch 1.5 mm
• Resolution: 2.1 megapixel
• Sensor: SC223A
• With optical IR filter
• Maximum resolution: PAL / NTSC
• Image sensor processor functions:
Automatic black-level calibration (ABLC)
Embedded Local Tone Mapping
Black sun cancellation by CMOS sensors
• Current consumption: ca. 55 mA
• Operating voltage: 12 V DC
• Operating temperature: -30 °C ~ 70 °C
• Operating humidity: ≤ 80 %
• Sensor size: 1/2.8″
• Sensitivity: 7.33 V / lx s
• Signal-to-noise ratio (SNR): ca. 39 dB
• Dynamic range: 80 dB
• Fix focus: 0.4 m - infinite
• Aperture: F/2.8
• Lens thread: M12
• Frame rates:
NTSC: 30 fps
PAL: 25 fps
• Dimensions (LxWxH): ca. 38.0 x 38.0 x 21.9 mm
System requirements
• Device with analogue video input
Package content
• Camera Module
