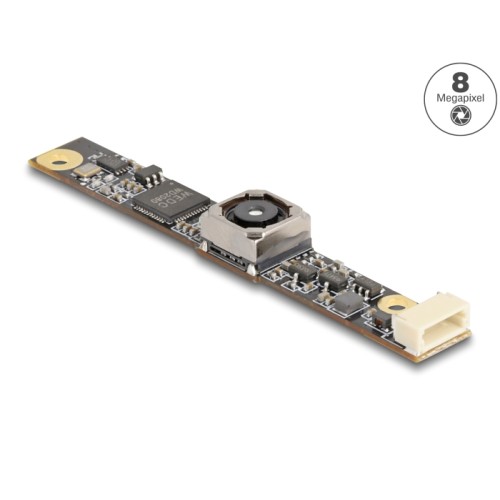

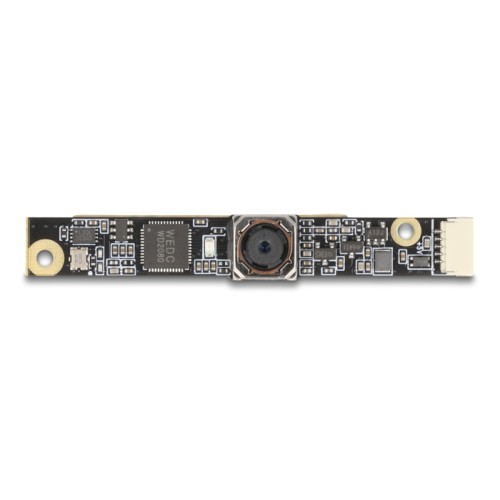

Delock USB 2.0 Camera Module 8 mega pixel IMX179QQH5-C Sony® Starvis™ 64° V51 auto focus

Description
This USB 2.0 camera module by Delock offers in a compact construction a high resolution and low power consumption. It is ideally suited for installation in industrial components like IPCs, embedded systems, sensors and in device manufacture. The use of a photosensitive sensor with back side illumination (BSI) expands the scope of this module.

Note
The auto focus of this camera module can be deactivated and adjusted individually.

Specification
• Connector: 1 x 5 pin USB 2.0 pin header female SMT, pitch 1.00 mm
• Resolution: 8.0 megapixel
• With optical IR filter
• Current consumption: sensor active: 110 mA ± 5 mA @ 640 x 480 pixel
• Operating voltage: 5 V DC
• Operating temperature: 5 °C ~ 50 °C
• Operating humidity: 20 ~ 80 %
• Sensor size: 1/3.2"
• Sensitivity: 0.6 V / lx s
• Signal-to-noise ratio (SNR): ca. 36 dB
• Dynamic range: 68 dB
• Auto focus: 0.2 m - infinite
• Aperture: F/2.8
• Frame rates:
320 x 240 @ 30 Hz
352 x 288 @ 30 Hz
640 x 480 @ 30 Hz
900 x 600 @ 30 Hz
1280 x 720 @ 30 Hz
1600 x 1200 @ 30 Hz
1920 x 1080 @ 30 Hz
2048 x 1536 @ 20 Hz
2560 x 1440 @ 30 Hz
2592 x 1944 @ 20 Hz
3264 x 1836 @ 15 Hz
3264 x 2448 @ 15 Hz
• Dimensions (LxWxH): ca. 60.0 x 9.0 x 5.8 mm

System requirements
• Android 11.0 or above
• Chrome OS
• Linux Kernel 5.15 or above
• Mac OS 12.4 or above
• Windows 10/10-64/11

Package content
• Camera Module
• CD with user manual
