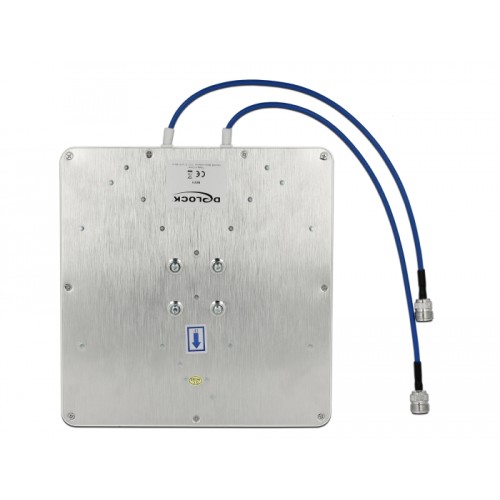

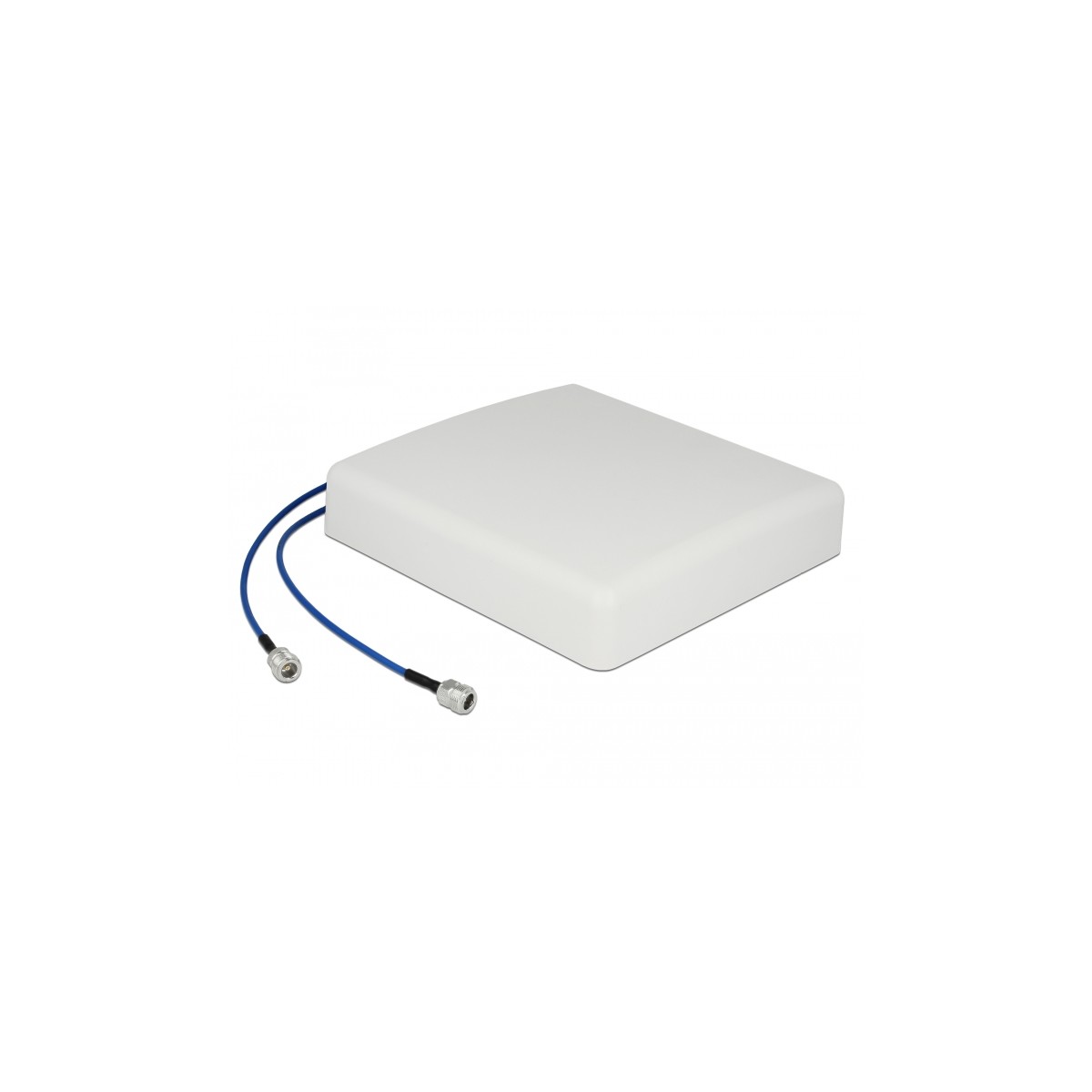

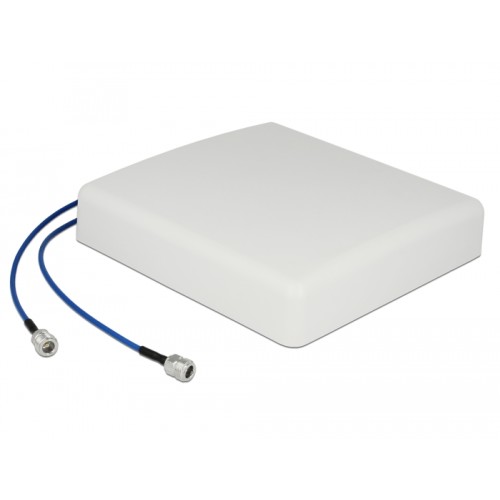

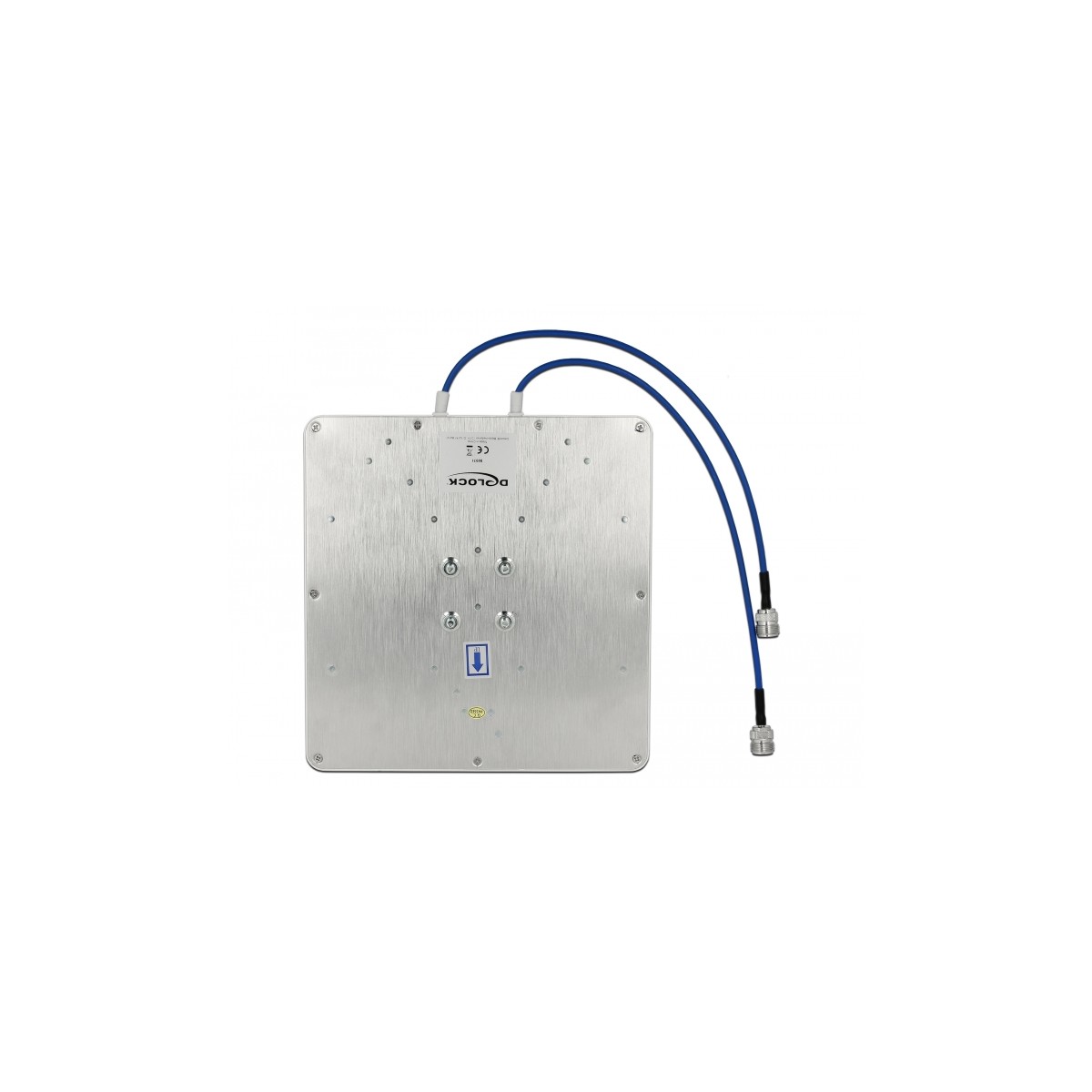

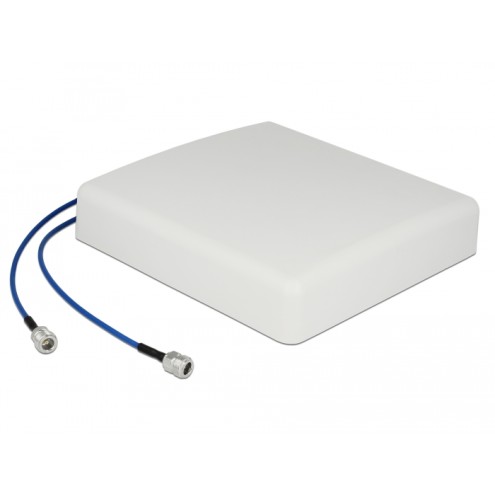

Delock LTE MIMO Antenna 2 x N jack 8 dBi directional with connection cable RG-402 37 cm outdoor beige
88931
New
Description
This LTE antenna can be installed indoors and outdoors and can be used for reception of different LTE bands. It is completely compatible to UMTS, GSM, Bluetooth, ZigBee and WiFi 2.4 GHz.
Special features
| LTE Band: | 1/2/3/4/5/6/7/8/9/10/11/12/13/14/15/16/17/18/19/23/20/25 | |
| Frequency range: | 698 ~ 960 MHz + 1710 ~2700 MHz | |
| Gain: | 7 dBi |
Specification
• Connector: 2 x N jack
• LTE Band 1/2/3/4/5/6/7/8/9/10/11/12/13/14/15/16/17/18/19/20/23/25
• UMTS / GSM / Bluetooth / WLAN 2.4 GHz / ZigBee
• Gain: 7 dBi
• Horizontal Beamwidth: 75°
• Vertical Beamwidth: 65°
• Polarisation: linear vertical
• Impedance: 50 Ohm
• VSWR: 1.5 max.
• Cable type: RG141
• Cable length: ca. 30 cm
• Operating temperature: -10 °C ~ 55 °C
• Housing: ABS UV resistant
• Protection class: IP 55

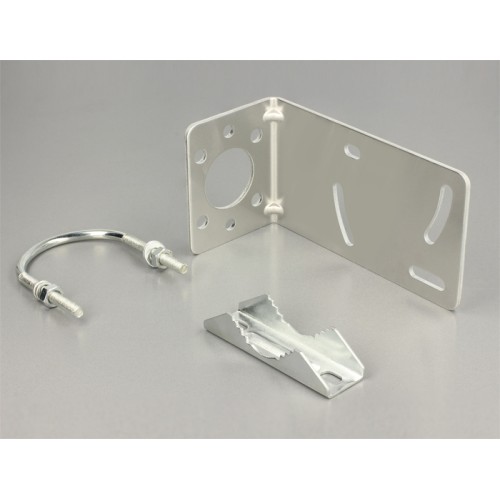

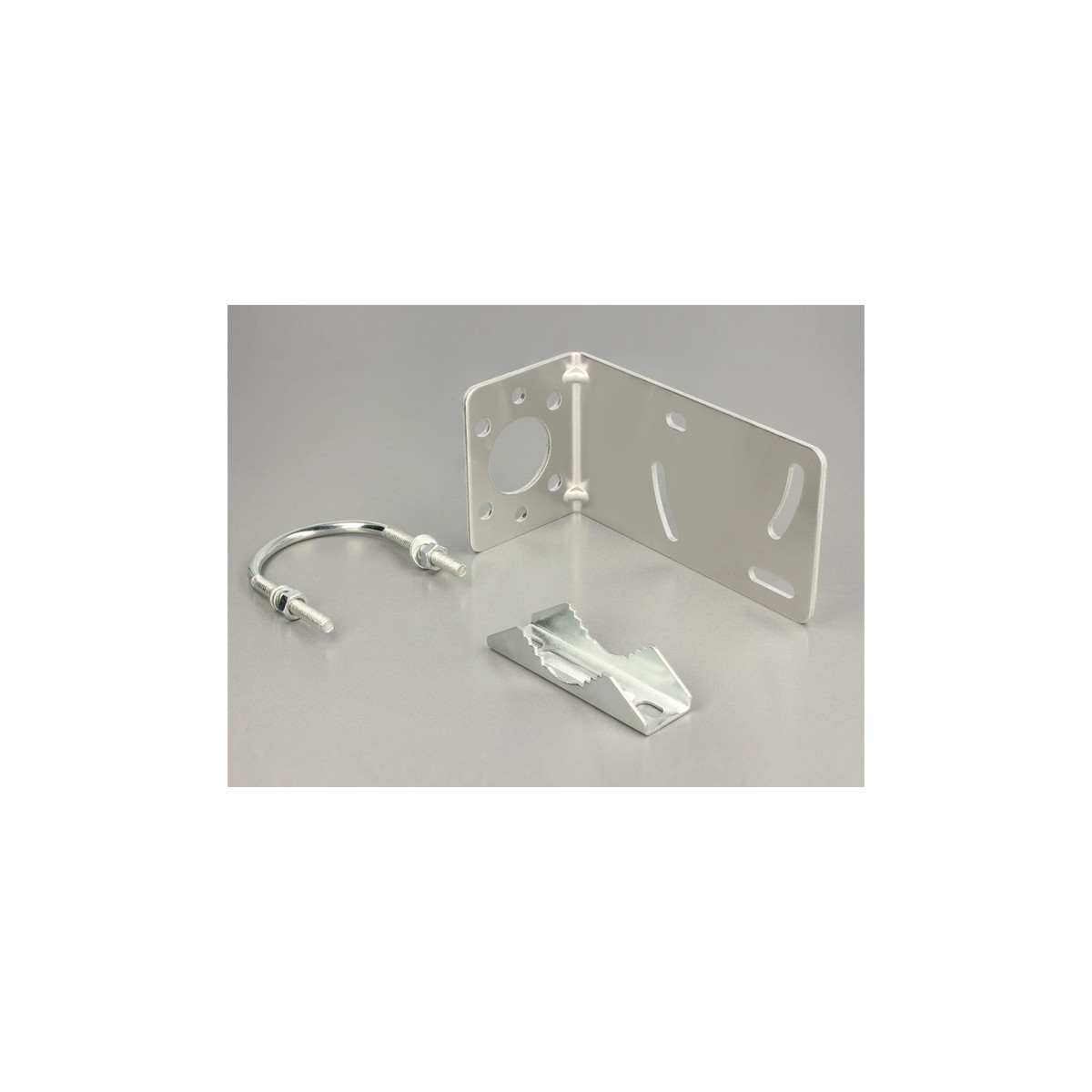

• Including wall/pole mounting kit
• Weight: 0.9 kg
• Dimension: ca. 237.5 x 229.5 x 50.0 mm
System requirements
• Device with free N connectors
Package content
• LTE MIMO antenna
• Wall/pole mounting kit
Package
• White Box
New
4043619889310
