Description

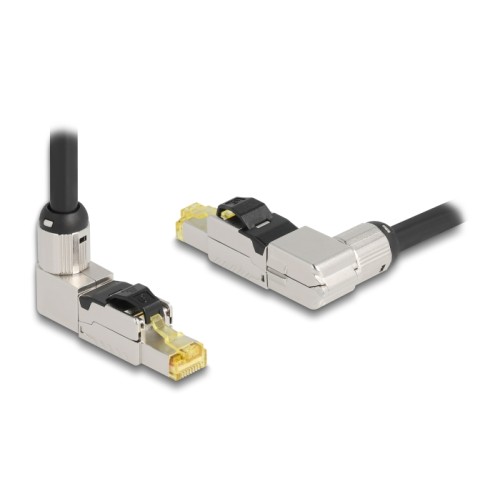

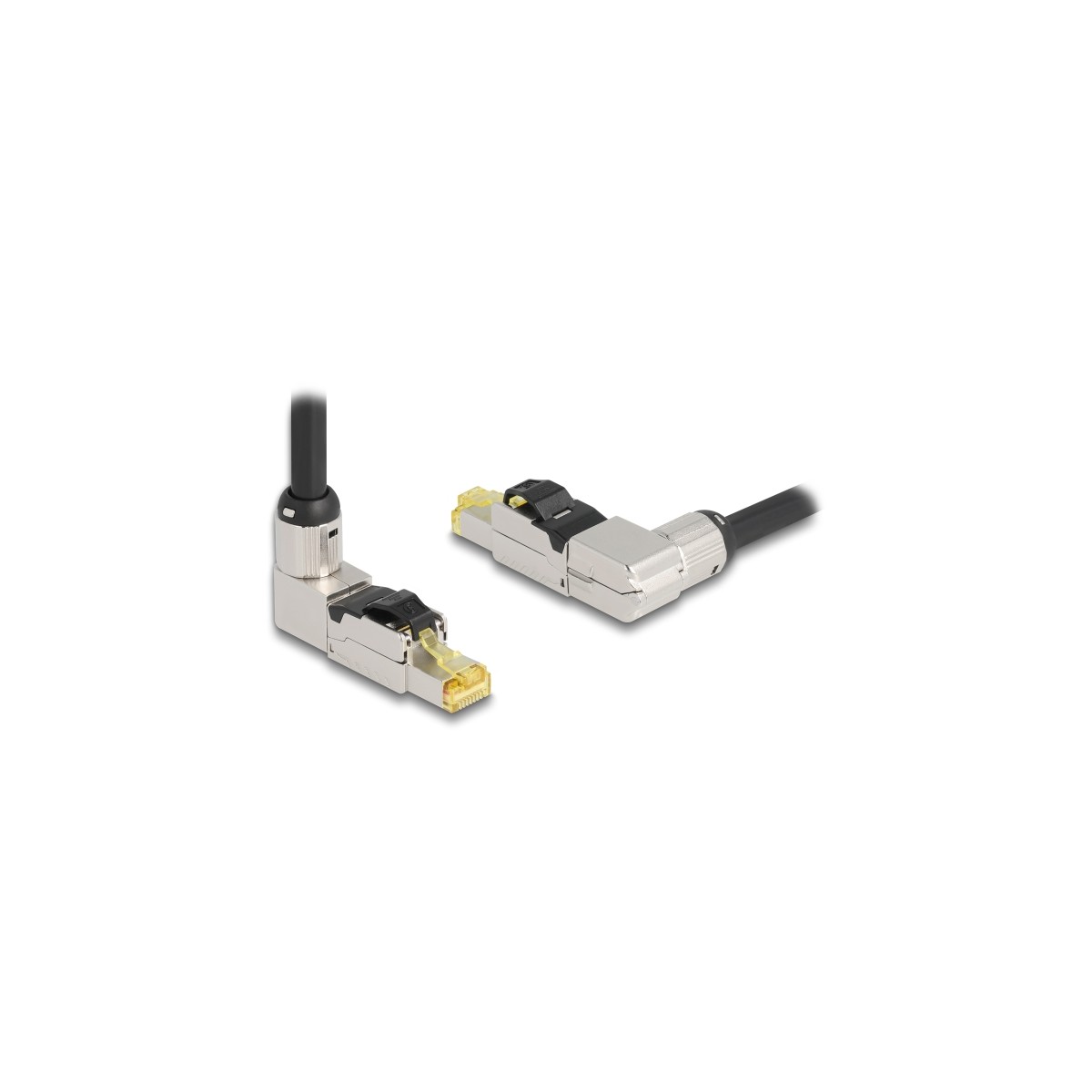

This RJ45 plug by Delock can be used to connect network cables. Installation of the plug to various cable types is tool-free and time-saving.

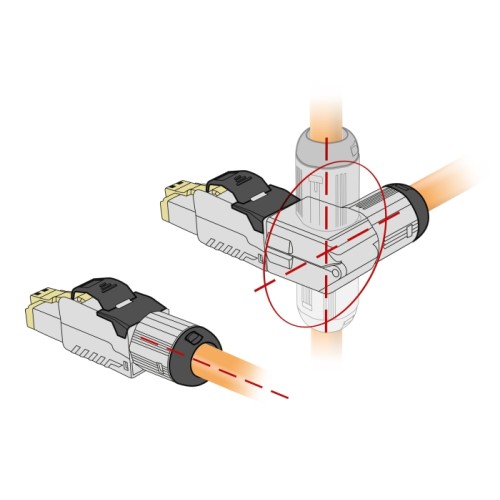

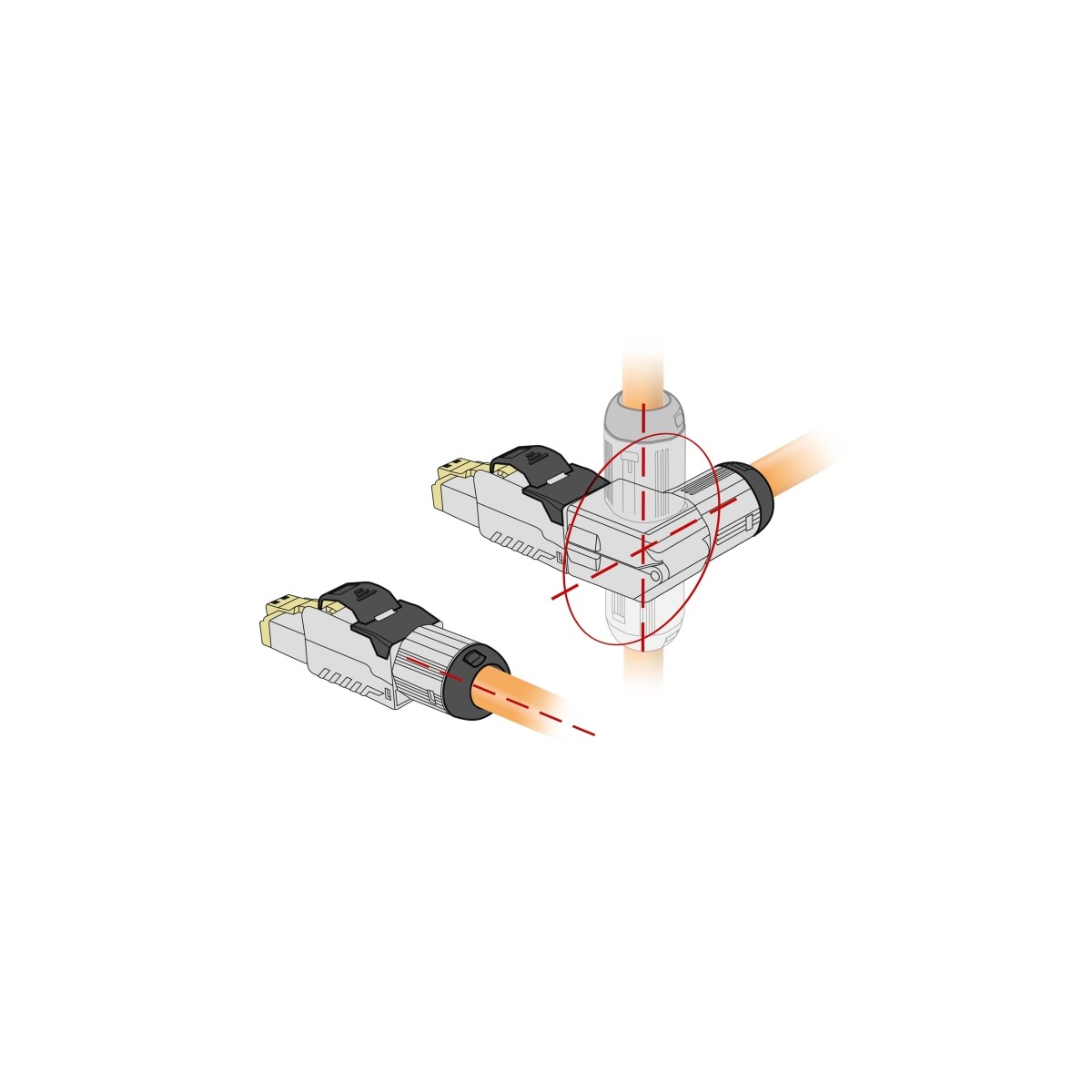

The angle cap can be applied in 4 different directions. Thereby all applications where angled mounting is required can be covered with a single connector.
Additionally, the cable can also be led straight out to the back when the angle cap is not used.
Specification
• Connectors: 1 x RJ45 plug angled
• Shielded (STP)
• Cat.8.1 specification
• Screwable cable boot
• Material: zinc die cast
• TIA-568A/B pinout
• For solid or stranded wire up to 0.644 mm (22 - 24 AWG)
• For cable diameter from 7.0 - 8.5 mm
• Dimensions (LxWxH): ca. 63.4 x 33.2 x 13.8 mm
System requirements

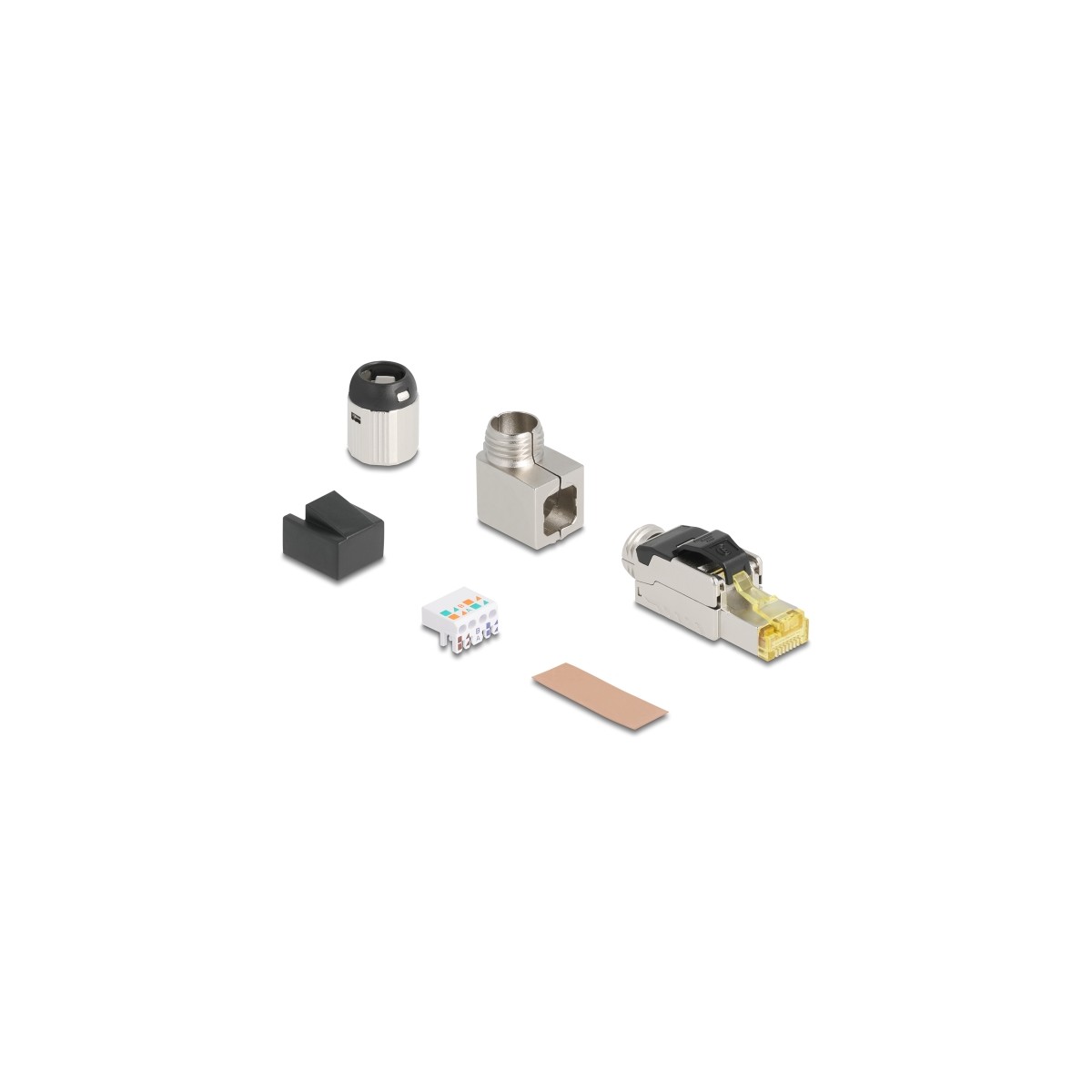

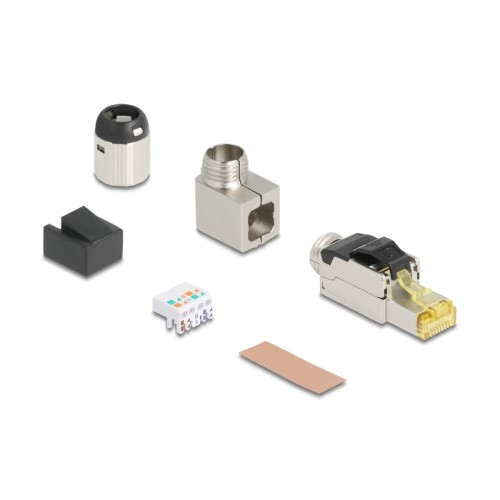

Package content
• RJ45 plug
• Angle cap
• Cable manager
• Copper foil
• Dust cover
4043619864898
