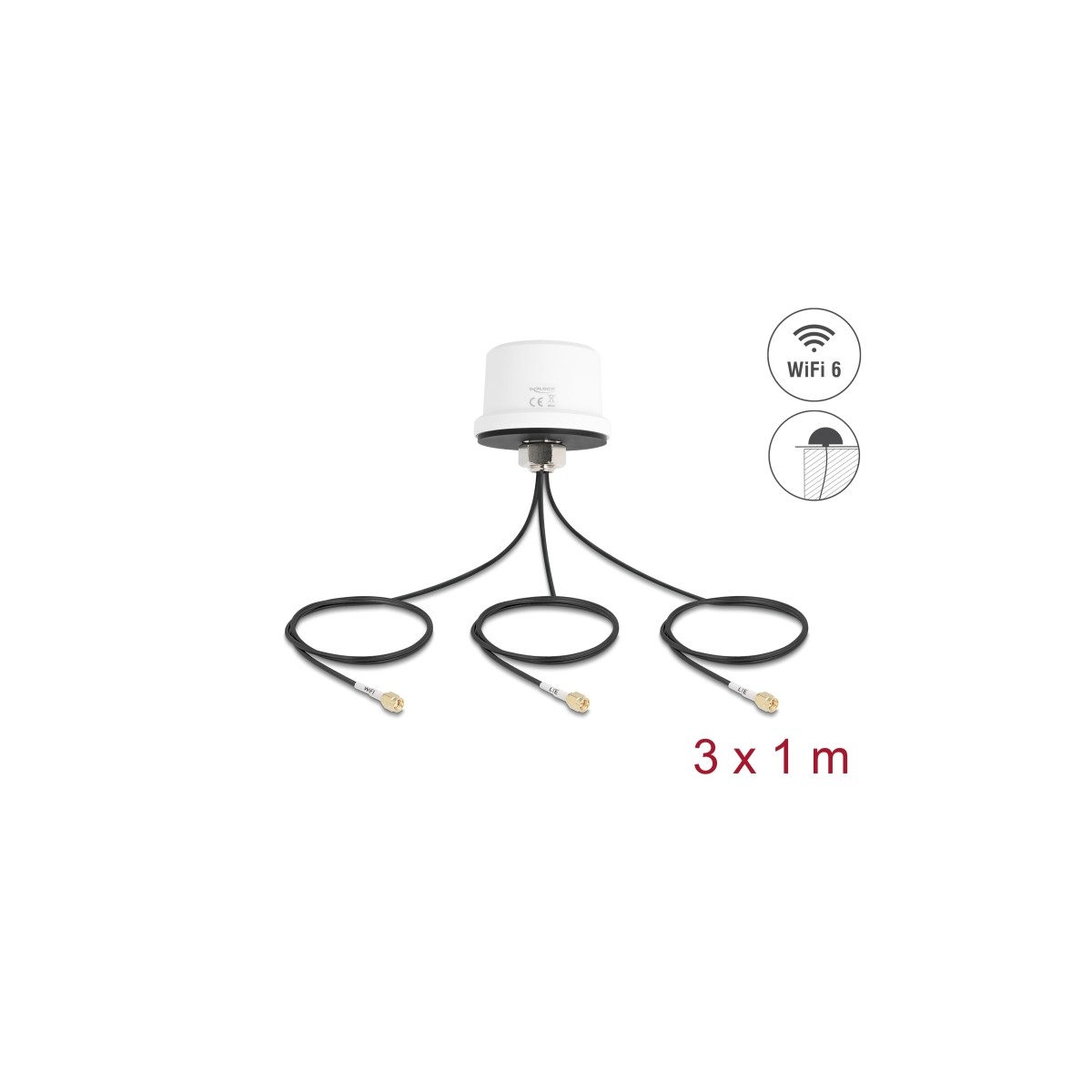

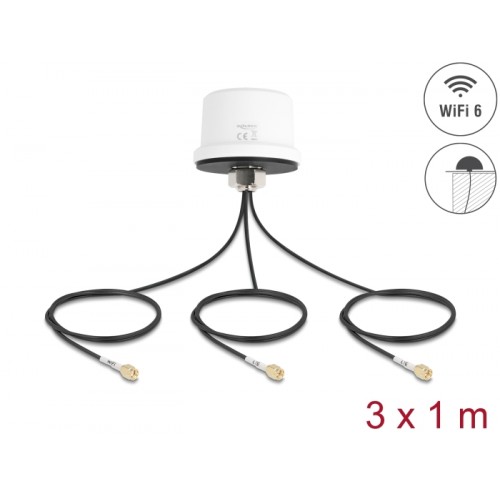

Delock 4G MIMO Dual Band WiFi 6 Antenna 2 x SMA + 1 x RP-SMA plug ULA100 1 m screw mounting outdoor white

Description
This antenna by Delock allows the usage of different 4G and WLAN bands outdoors. It is completely compatible to GSM, UMTS, 4G, ZigBee, DECT, Z-Wave, NB-IoT, Dual Band WLAN, Bluetooth, ISM, MIMO and LoRa 868 MHz / 915 MHz.

Specification
• Connectors:
2 x SMA plug
1 x RP-SMA plug
• 2 x 4G:
Frequency range:
698 - 791 MHz
824 - 960 MHz
1710 - 2170 MHz
2300 - 2700 MHz
Impedance: 50 Ohm
VSWR: < 3.5 - < 4.0
Antenna gain:
2.7 - 2.9 dBi @ 698 - 791 MHz
3.4 - 3.7 dBi @ 824 - 960 MHz
2.4 - 2.9 dBi @ 1710 - 2170 MHz
2.4 - 3.4 dBi @ 2300 - 2700 MHz
Polarisation: linear, vertical
• WLAN:
Frequency range:
2400 MHz - 2500 MHz
5150 MHz - 5875 MHz
Impedance: 50 Ohm
VSWR: < 2.0
Antenna gain:
3.9 dBi @ 2400 - 2500 MHz
4.5 dBi @ 5150 - 5875 MHz
Polarisation: linear, vertical
• Mounting type: screw mounting
• Operating temperature: -40 °C ~ 85 °C
• Housing material: PC
• Protection class: IP67
• Colour: white
• Cable type: coaxial
• Cable type: ULA100
• Cable colour: black
• Cable diameter: ca. 2.7 - 2.99 mm
• Cable attenuation: 1.3 dB @ 2500 MHz per meter
• Smallest bending radius: ca. 6.4 mm
• Cable length incl. connector: ca. 1 m
• Dimensions (Ø x H): ca. 78 x 50 mm
• Weight: ca. 209 g

System requirements
• Device with multiple free RP-SMA / SMA ports

Package content
• Antenna
