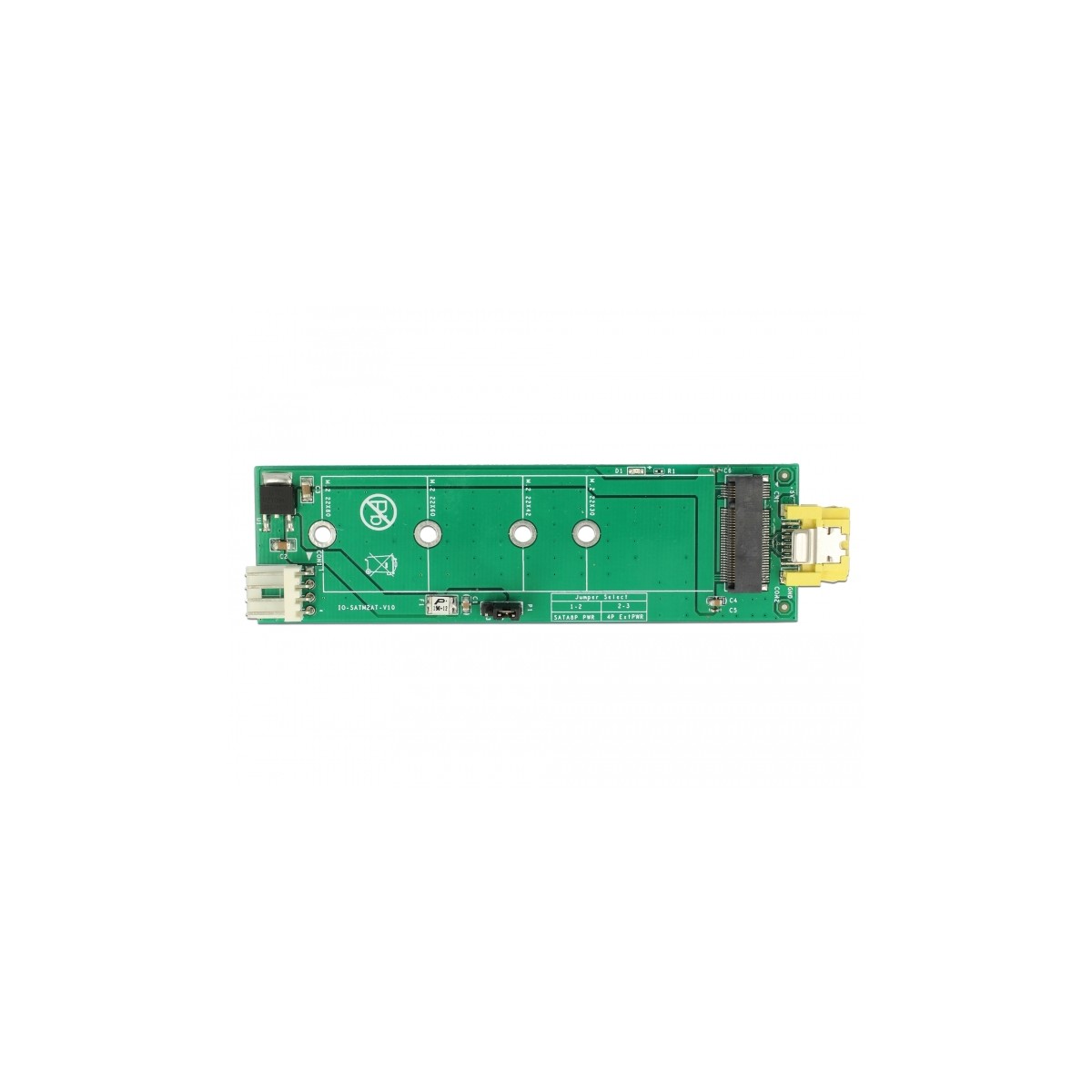

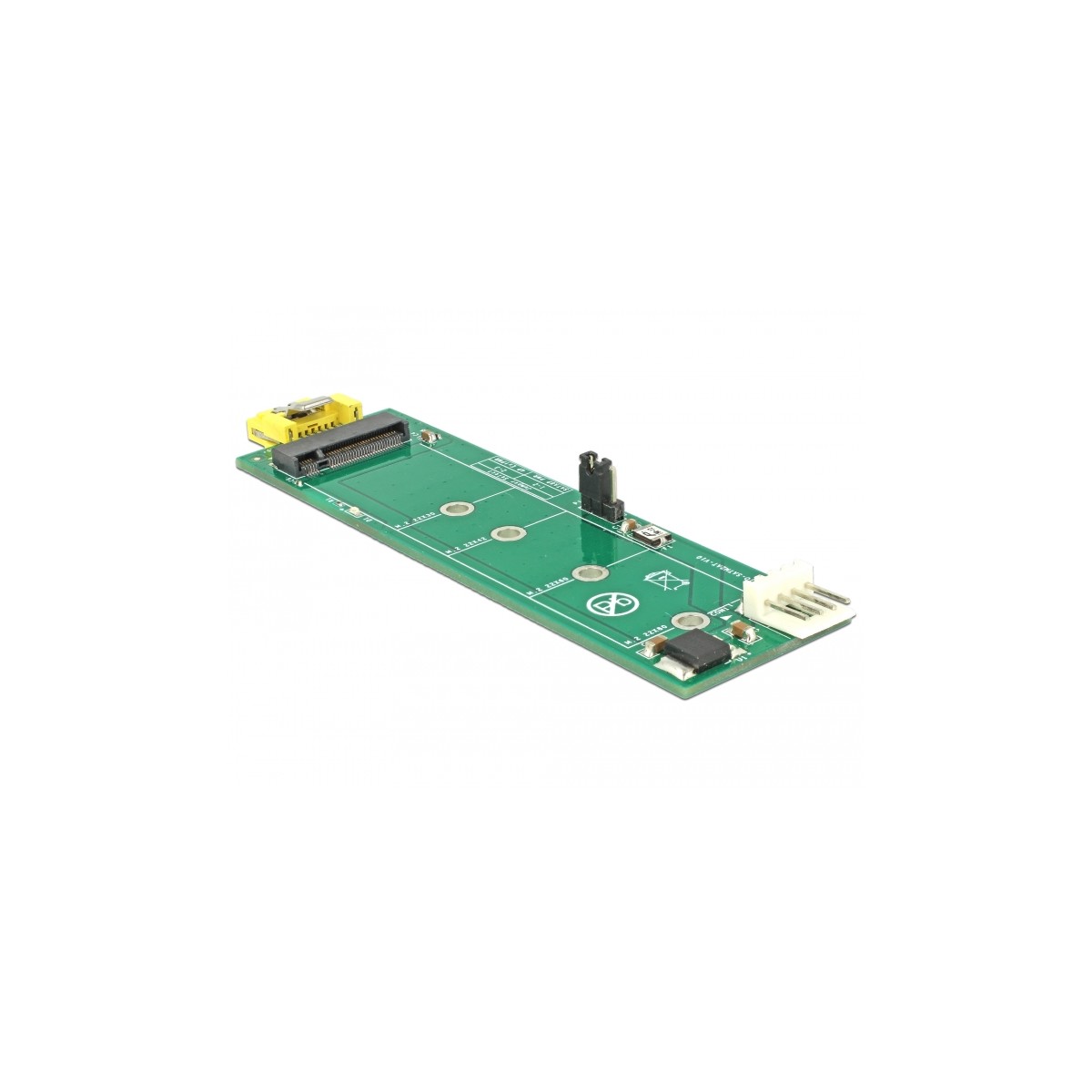

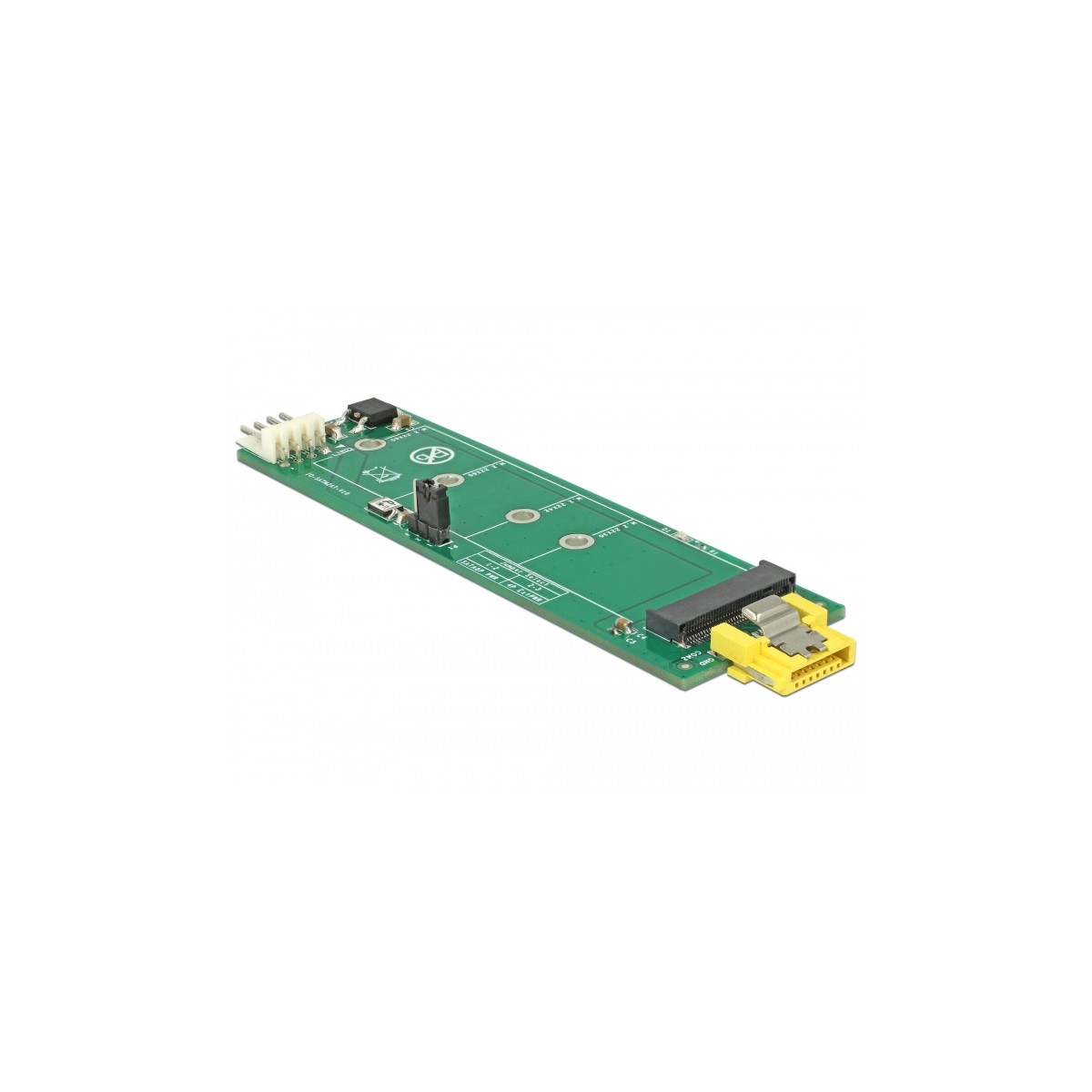

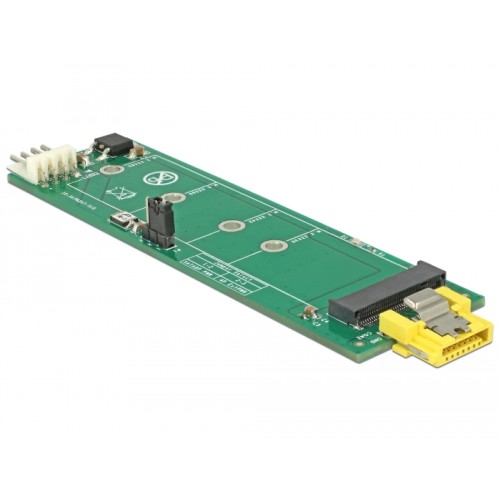

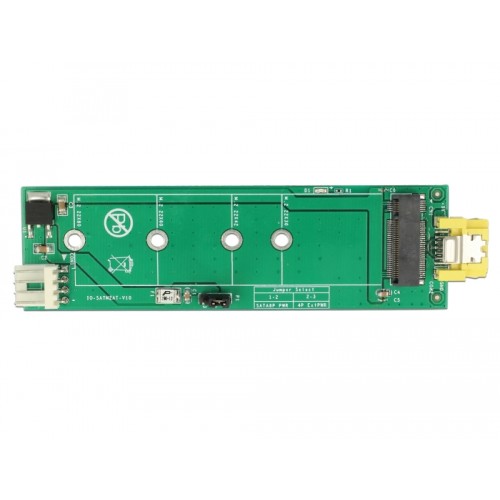

Delock Converter SATA pin 8 power receptacle > M.2 Key B slot

Description

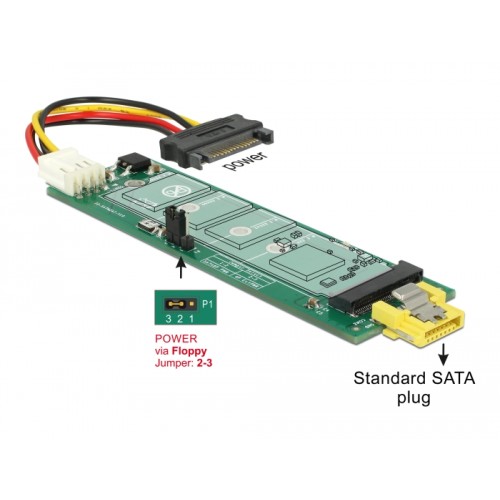

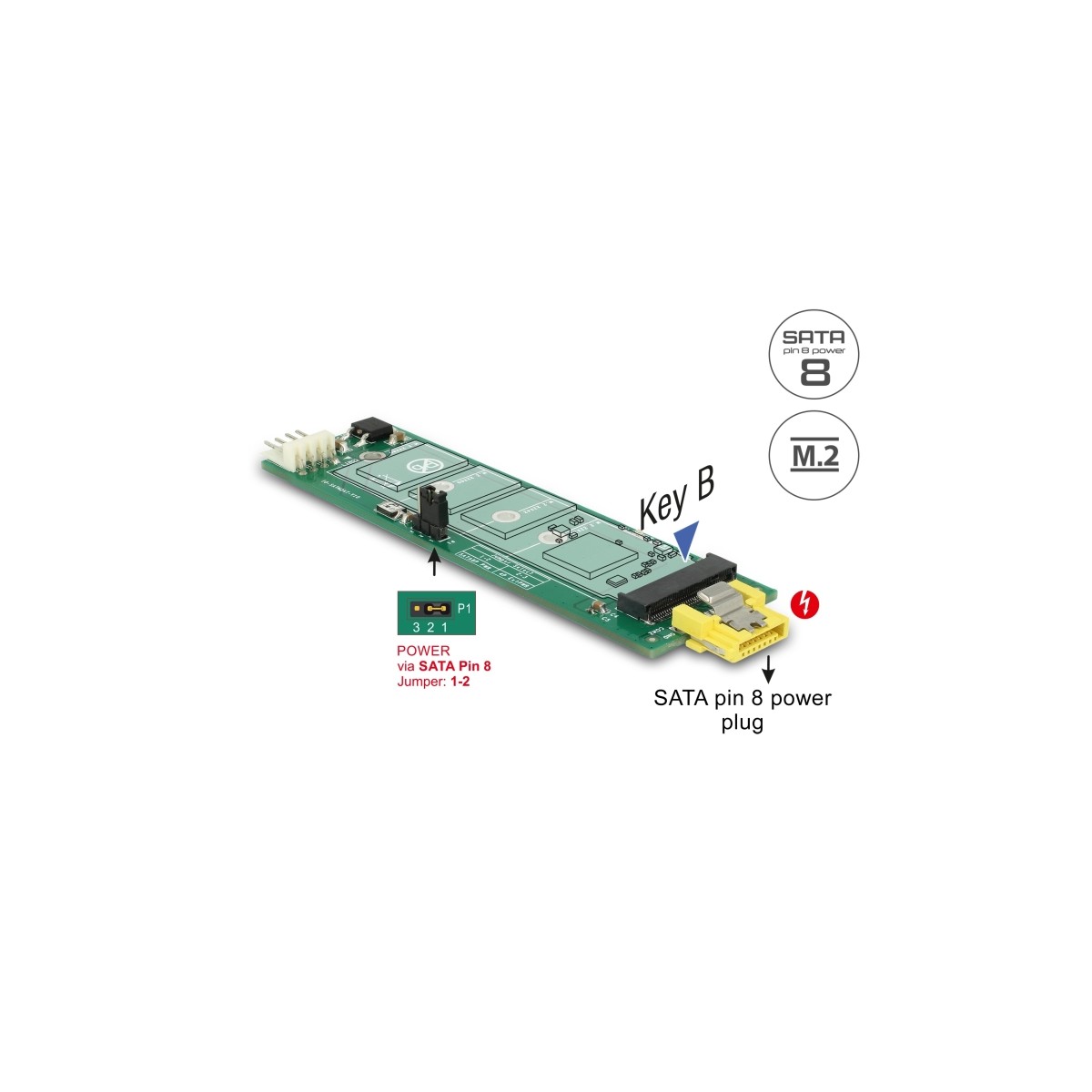

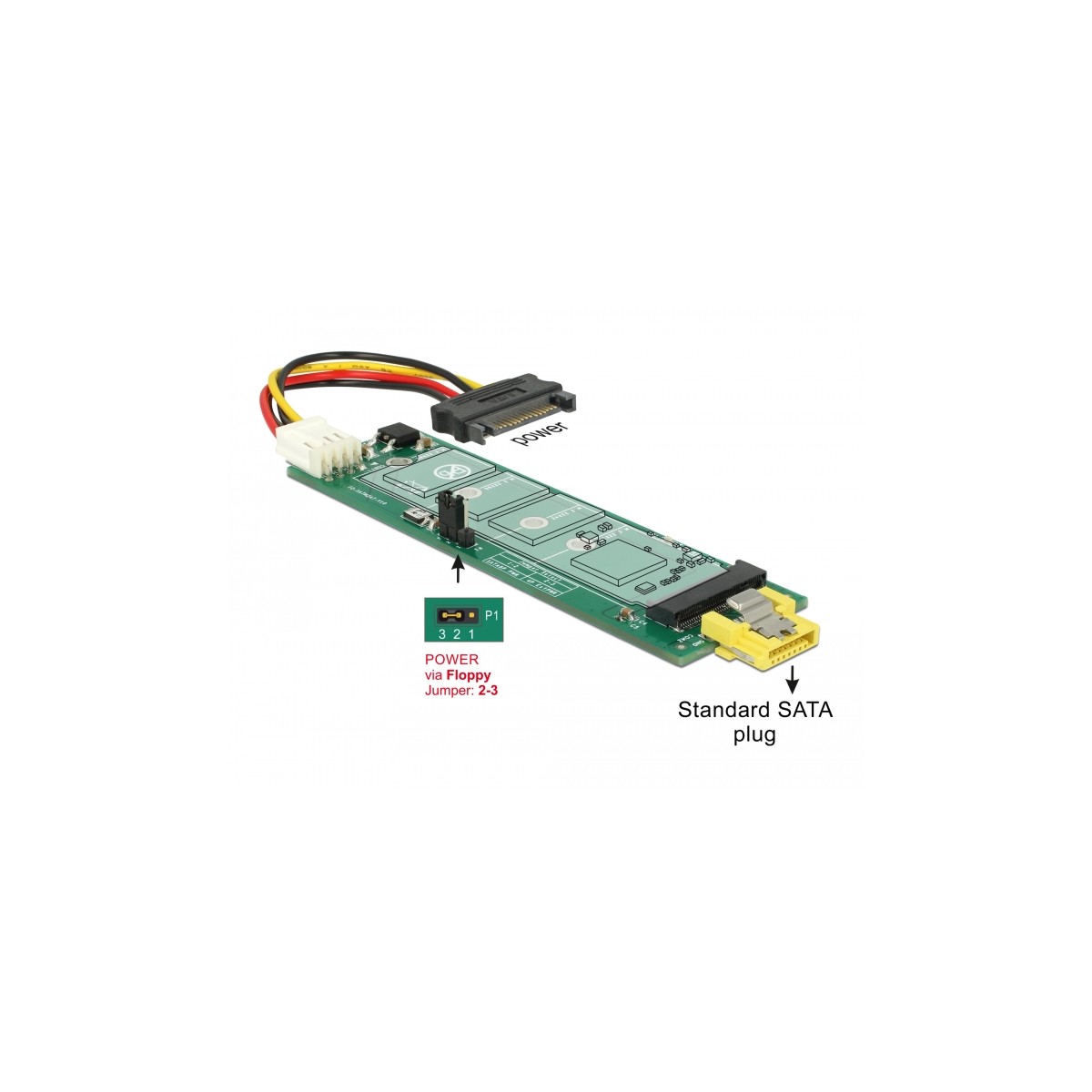

This converter by Delock enables the connection of a M.2 SSD in 2280, 2260, 2242 and 2230 format. The converter can be connected to a SATA pin 8 power plug and does not need an additional power supply. Additionally, the converter can be connected to a standard SATA port, then a power supply to the 4 pin power connector is needed.

Note
If the converter is connected to a SATA pin 8 power port, a few SSDs will not get enough power. In that case a power supply needs to be connected to the 4 pin power plug.

Specification

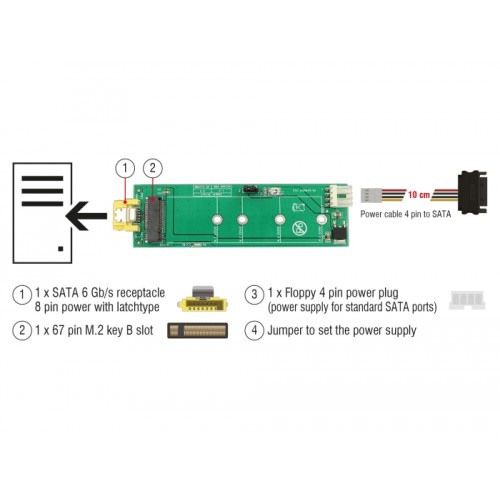

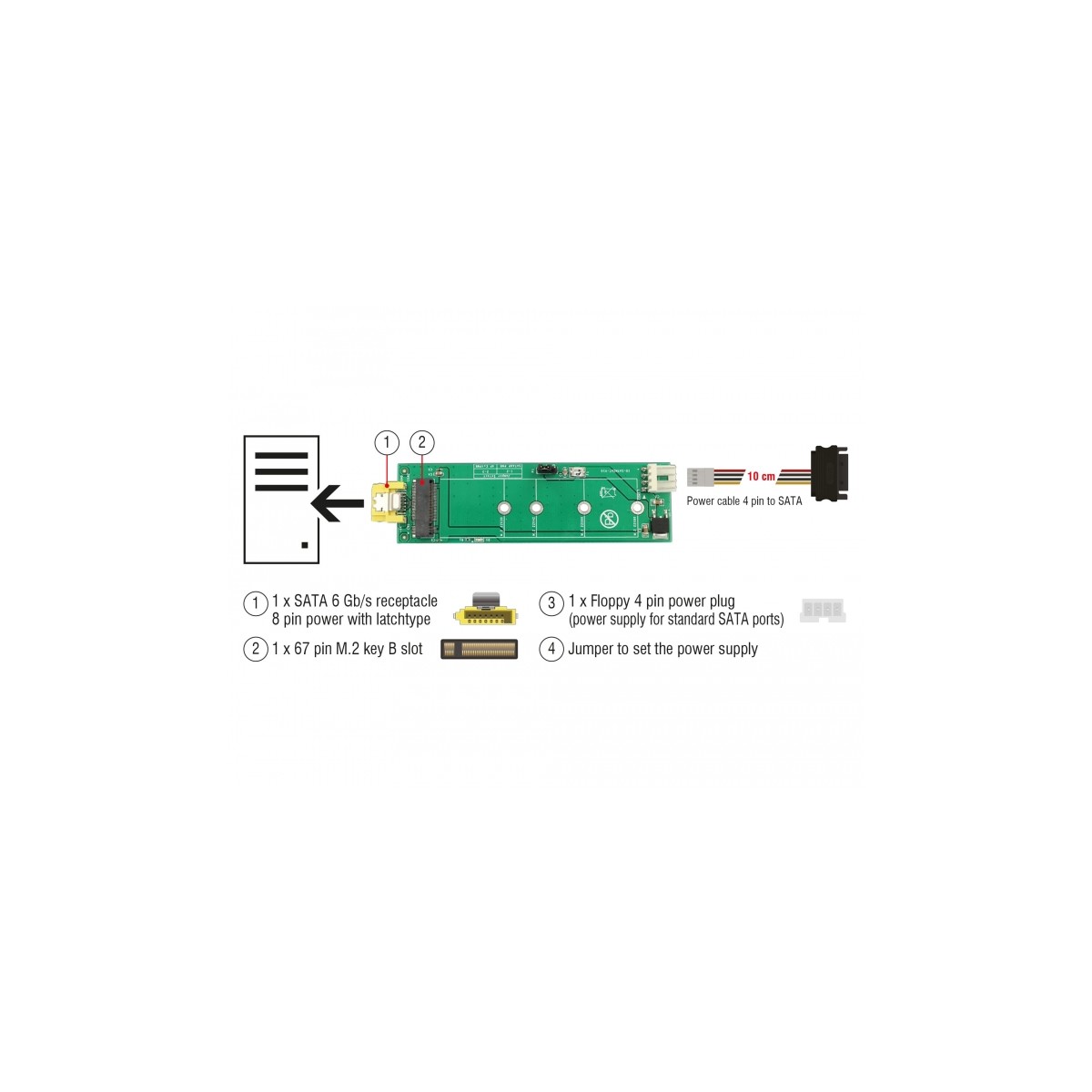

• Connectors:
  1 x SATA 6 Gb/s receptacle pin 8 power with latchtype >
  1 x 67 pin M.2 key B slot
  1 x Floppy 4 pin power plug (power supply for standard SATA ports)
• Interface: SATA
• Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key B or
  key B+M based on SATA
• Maximum height of the components on the module: 1.5 mm,
  application of double-sided assembled modules supported
• LEDs for power and activity

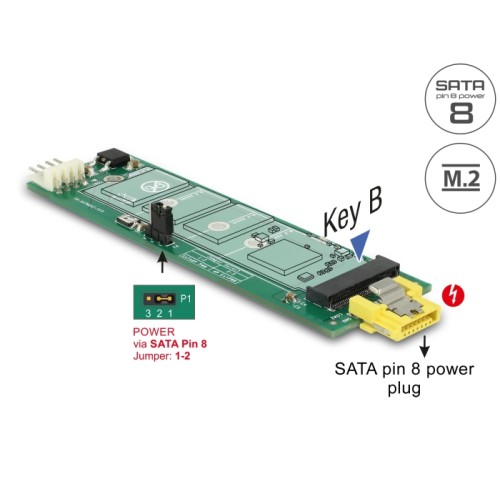

• Jumper to set the power supply
• Data transfer rate up to 6 Gb/s
• Dimensions (LxWxH): ca. 114 x 30 x 11 mm

System requirements
• Linux Kernel 3.10 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64
• One free SATA pin 8 power plug or
• One free SATA port + 4 pin power connector

Package content
• Converter

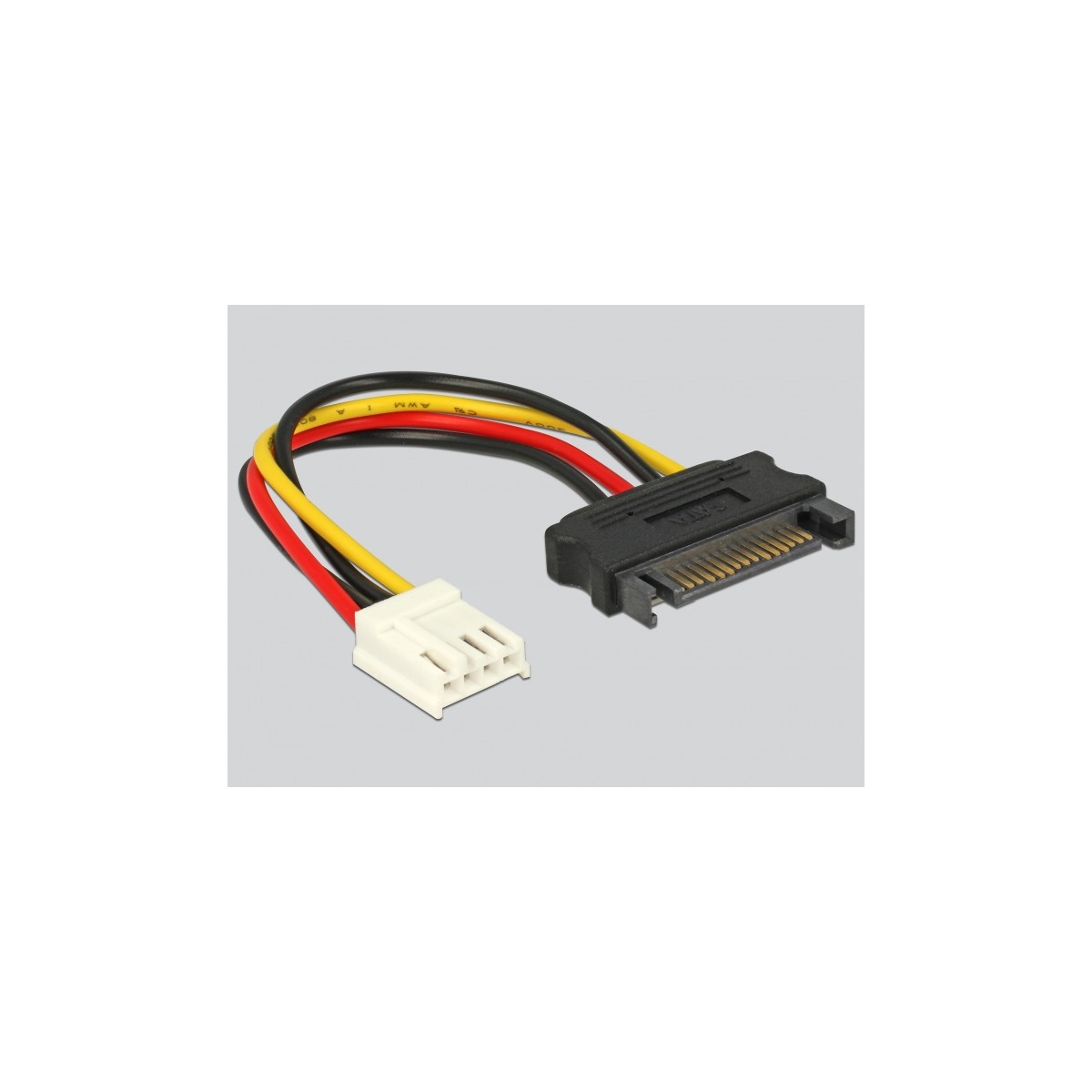

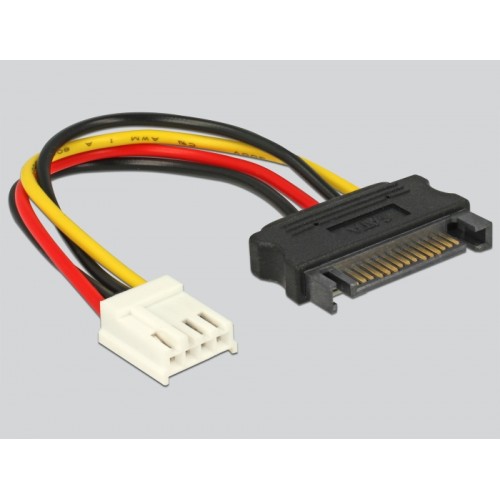

• Power cable 4 pin to SATA, length ca. 10 cm
• User manual

Package
• Retail Box
