Description

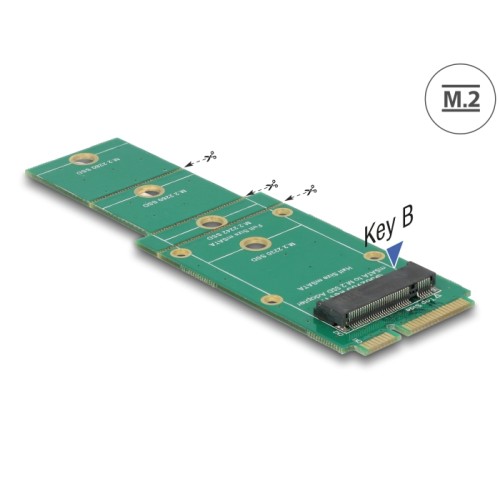

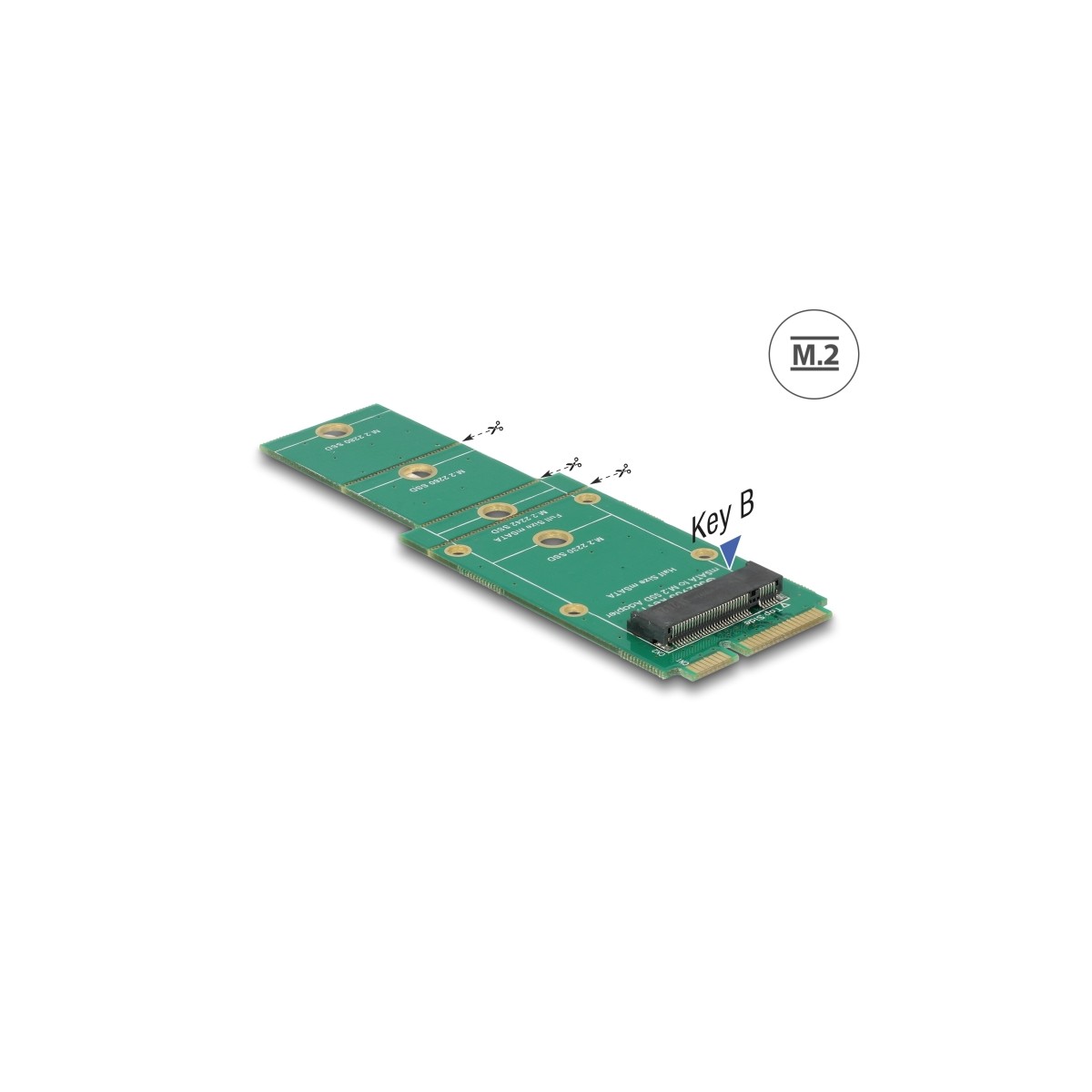

This Delock adapter enables you to connect a M.2 NGFF SSD in 2280, 2260, 2242 or 2230 format. The adapter can be installed into your system through an mSATA interface.
Specification
• Connector: 67 pin M.2 NGFF key B slot > mSATA male
• Interface: SATA
• Supports M.2 NGFF modules in format 2280, 2260, 2242 and 2230 with key B
or key B+M based on SATA

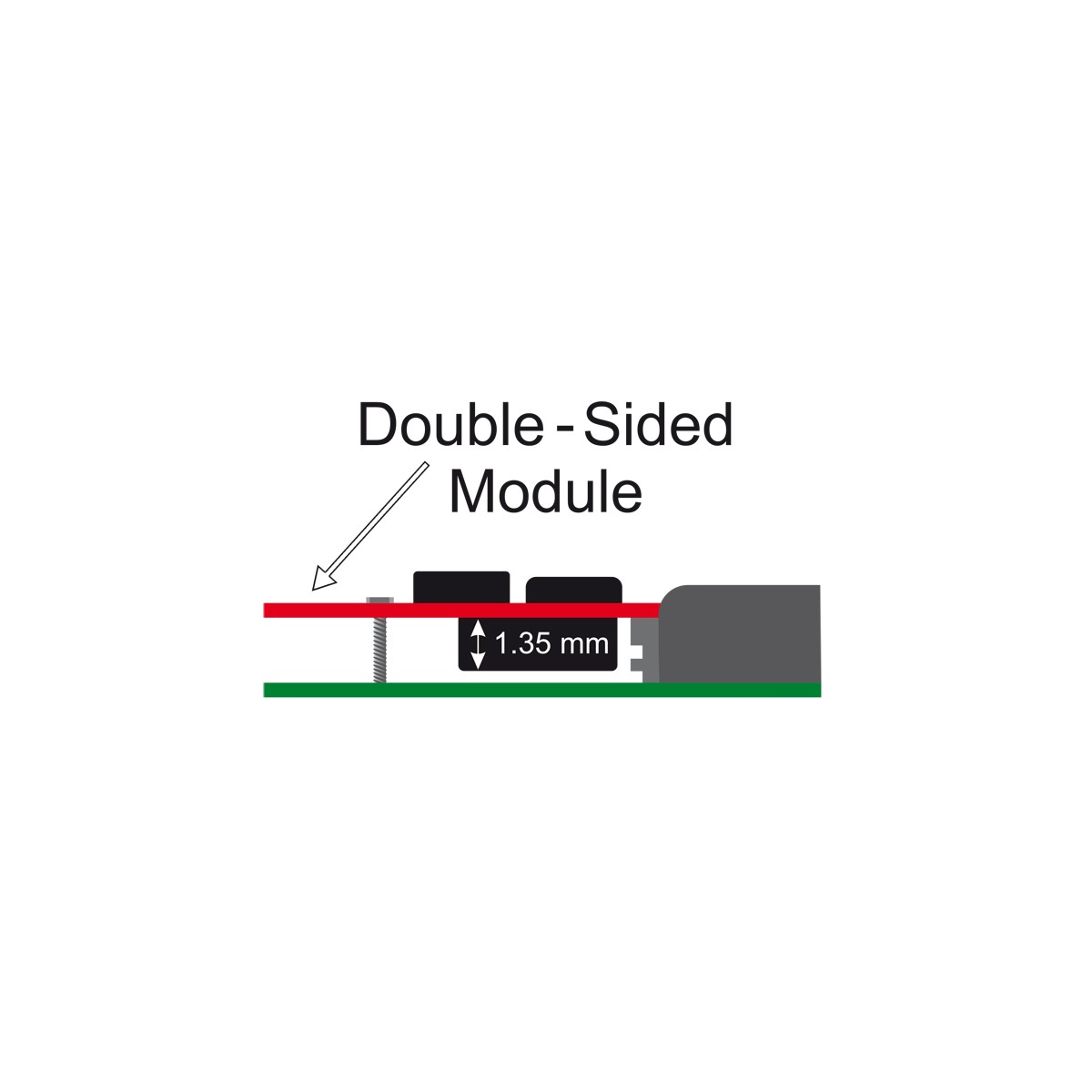

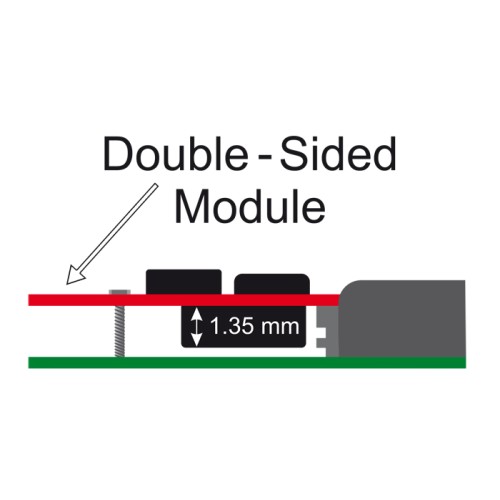

• Maximum height of the components on the module: 1.35 mm
application of double-sided assembled modules supported
• Dimensions (LxB): ca. 95.5 x 30 mm
• OS independent, no driver installation necessary
System requirements
• A free mSATA slot
Package content
• Adapter

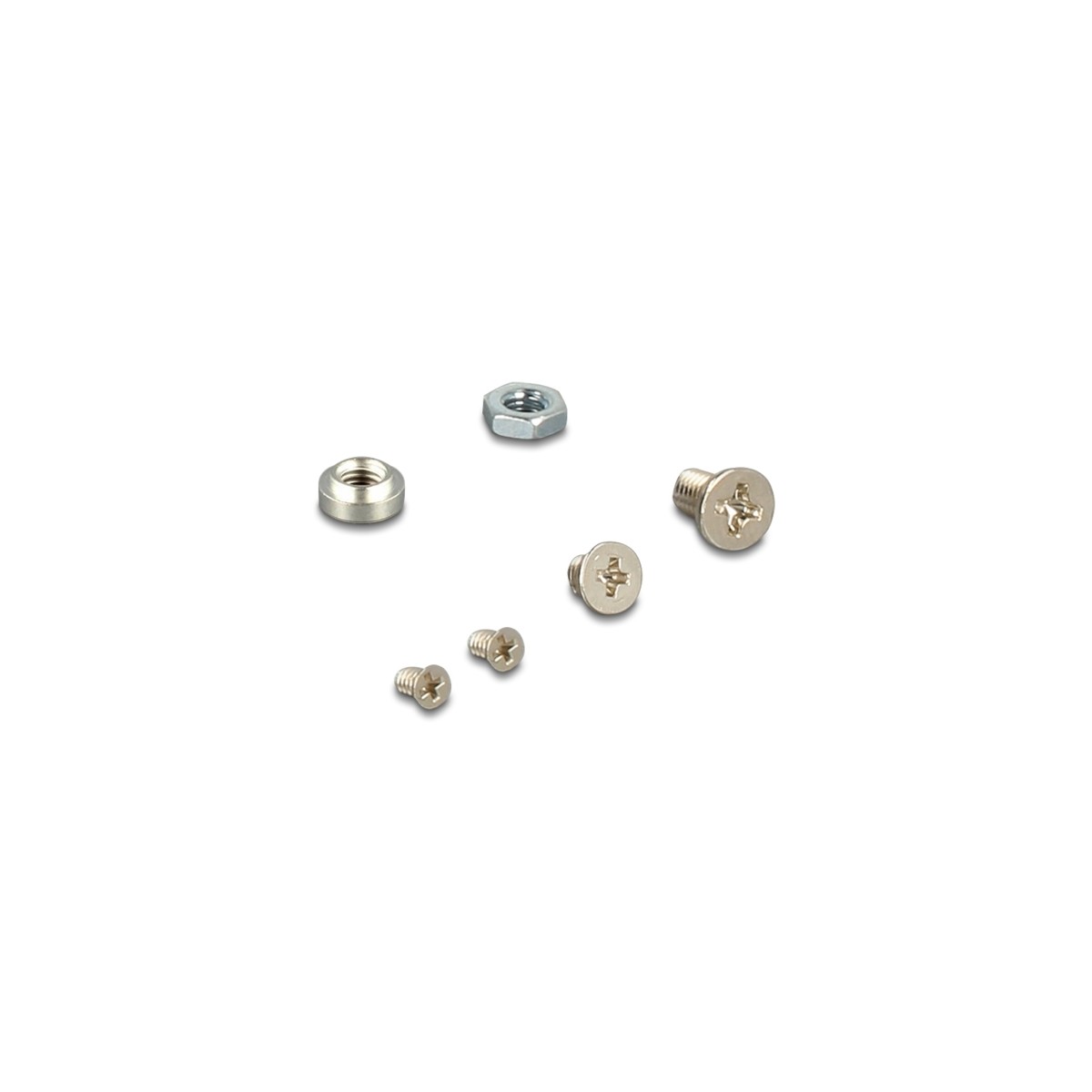

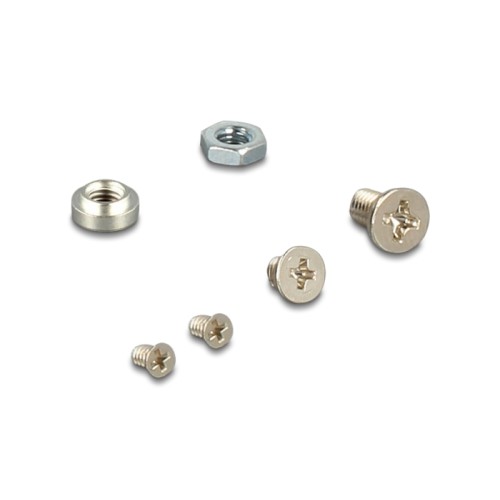

• Mounting material
Package
• Box
